Honda
>>
1989
>>
Prelude L4-1958cc SOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Power Window, Driver's Door. Wiring Circuit:

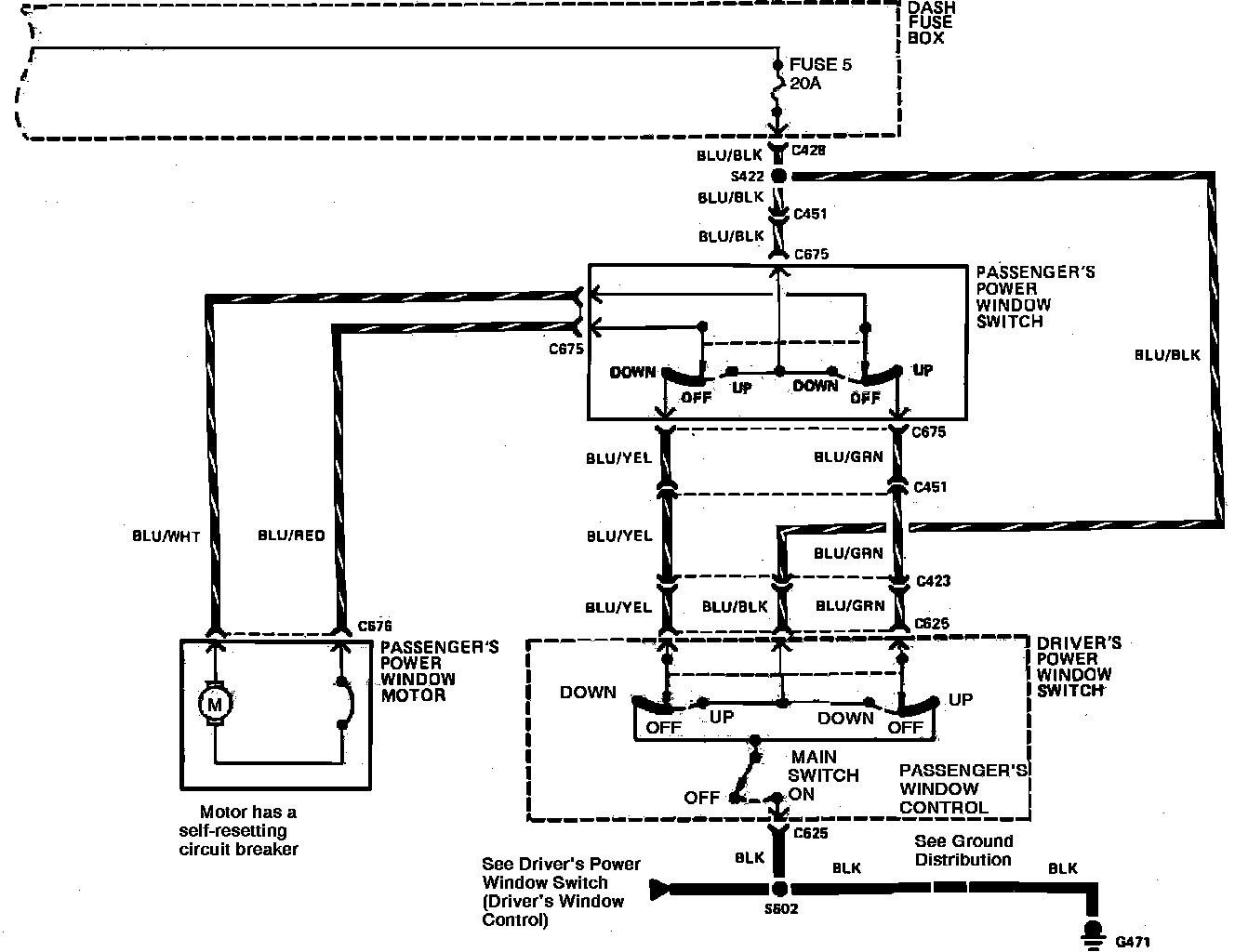

Power Window, Passenger's Door. Wiring Circuit:
