Mirrors: Service and Repair

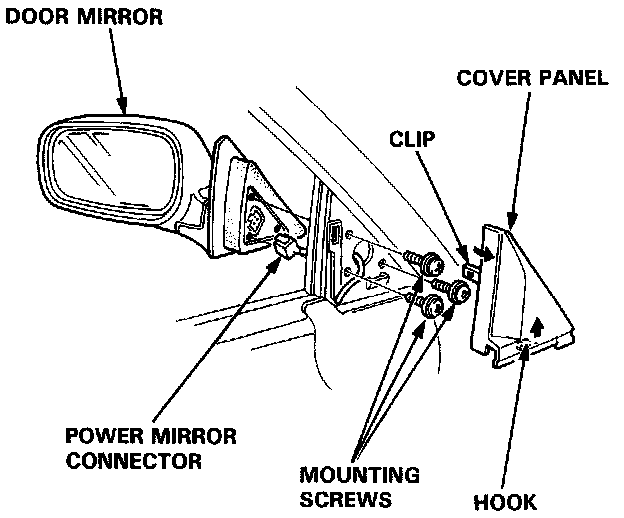

Power Door Mirror Replacement1. Pry the cover panel out with a flat tip screwdriver, then remove it. Disconnect the power mirror connector.
CAUTION: When prying with a flat tip screwdriver, wrap it with protective tape to prevent damage.
2. Remove the mounting screws while holding the door mirror.
3. Installation is the reverse of the removal procedure.
4. Check for water leaks.
NOTE: Do not use high pressure water.
Mirror Glass Replacement

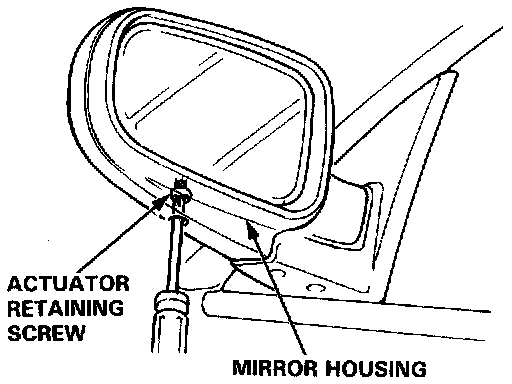

1. Insert a screwdriver in the mirror housing through the service hole, then loosen the actuator retaining screw.
2. Pull the mirror holder out from the mirror housing.

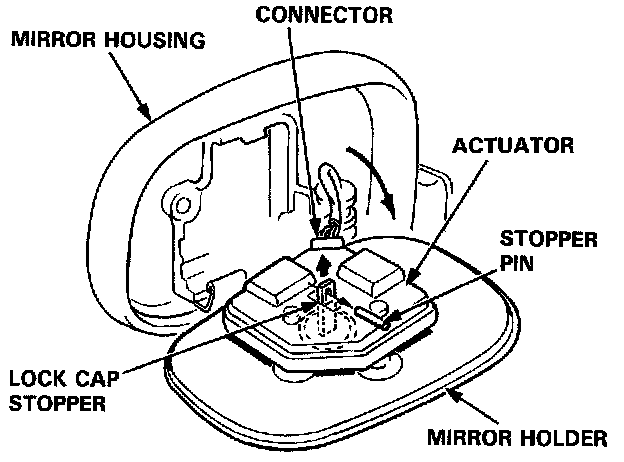

3. Pull the lock cap stopper and remove the stopper pin, then separate the actuator and mirror holder. Disconnect the connector.
4. Installation is the reverse of the removal procedure.
Manual Door Mirror Replacement

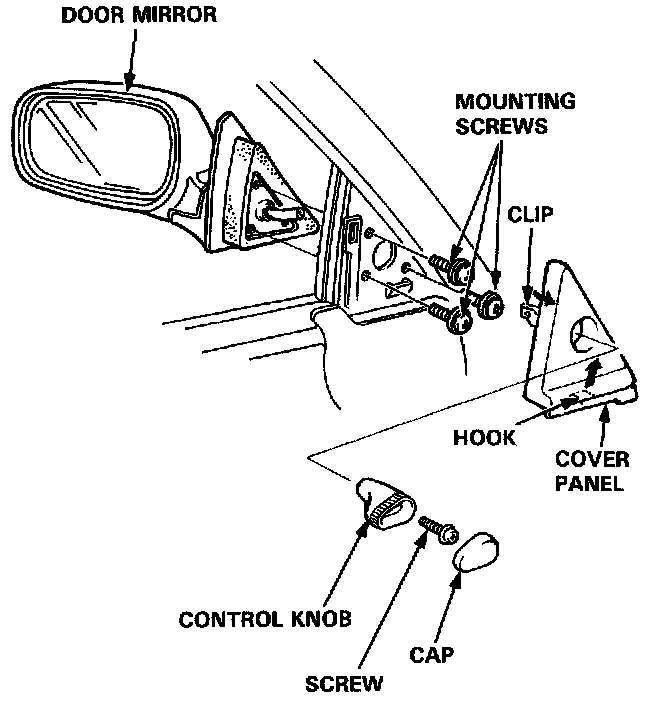

1. Remove the cap and screw, then remove the control knob.
2. Pry the cover panel out with a flat tip screwdriver, then remove it.
CAUTION: When prying with a flat tip screwdriver, wrap it with protective tape to prevent damage.
3. Remove the mounting screws while holding the door mirror.
4. Installation is the reverse of the removal procedure.
5. Check for water leaks.
NOTE: Do not use high pressure water.
Mirror Glass Replacement

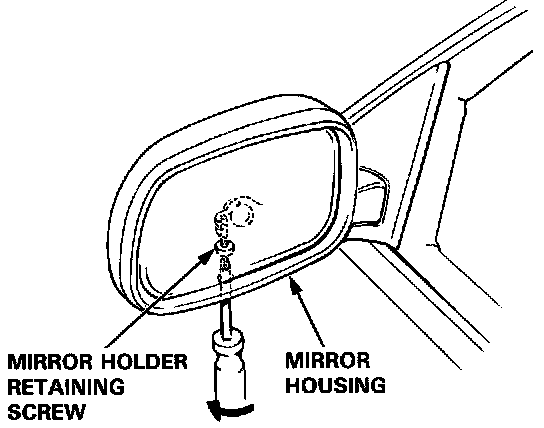

1. Insert a screwdriver in the mirror housing through the service hole, then loosen the mirror holder re taming screw.

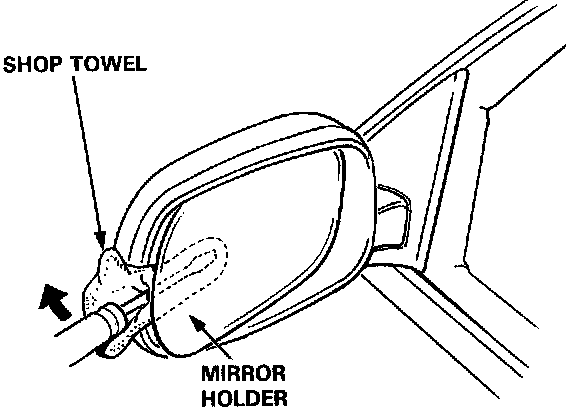

2. Carefully pry out the mirror holder with a flat tip screwdriver as shown.
CAUTION: To prevent damage to the mirror, wrap the end at a flat tip screwdriver with a shop towel.

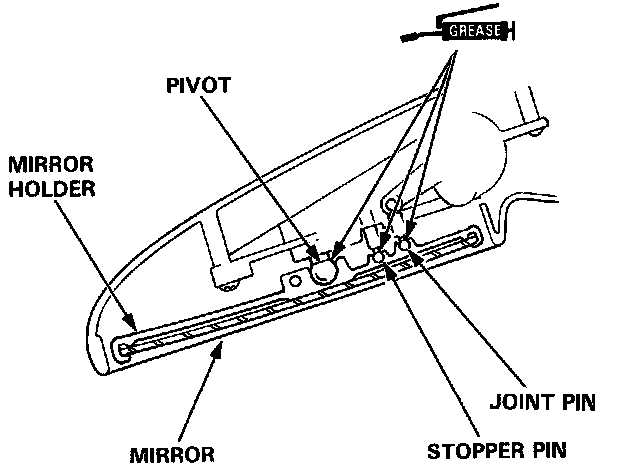

3. Install the mirror holder in the reverse order of removal and apply grease to the pivot joint pin and stopper pin.
