Radiator Cooling Fan Motor
>>
With Air Conditioning
With Air Conditioning

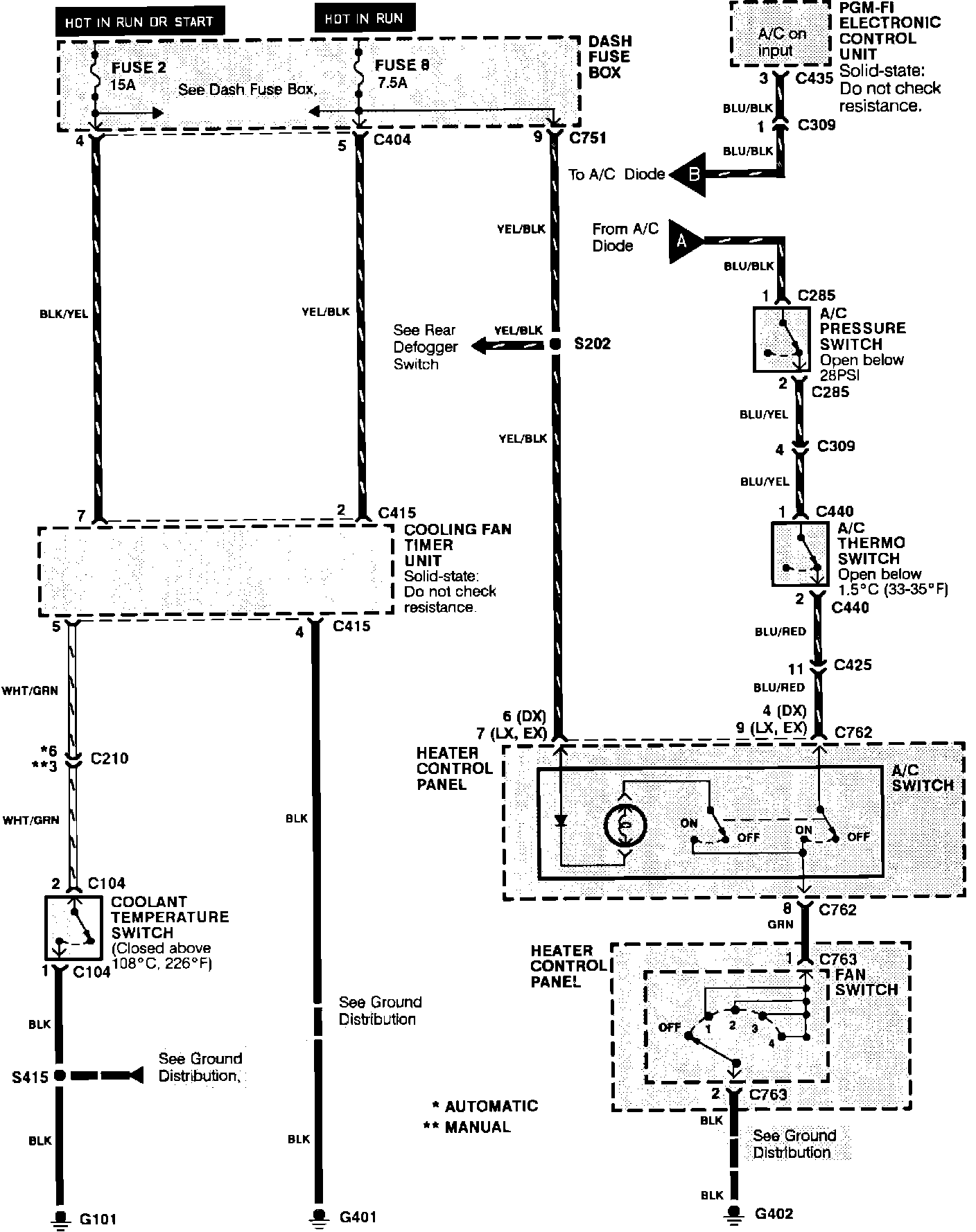

Compressor And Fan Controls, Part 1 Of 3:

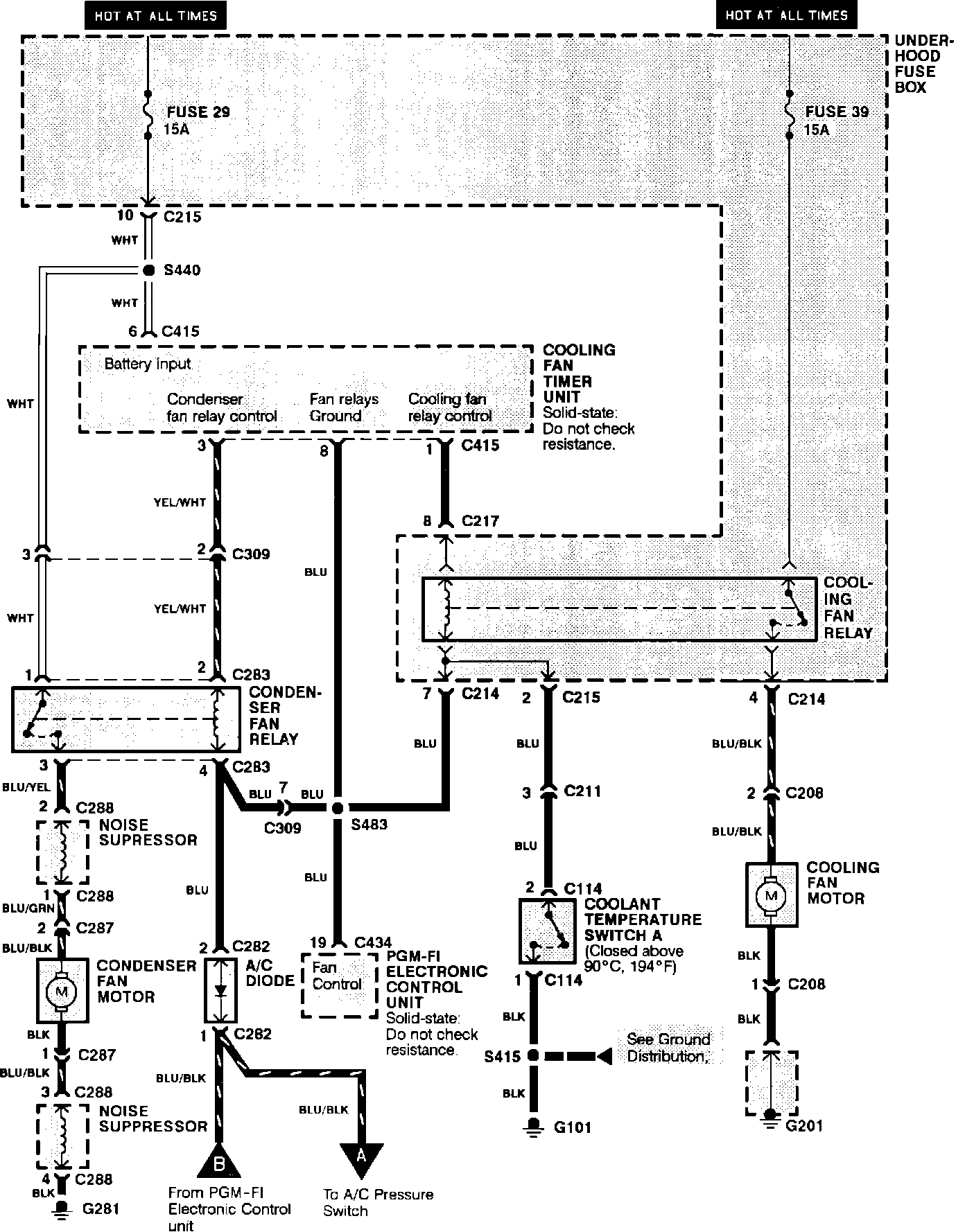

Compressor And Fan Controls, Part 2 Of 3:

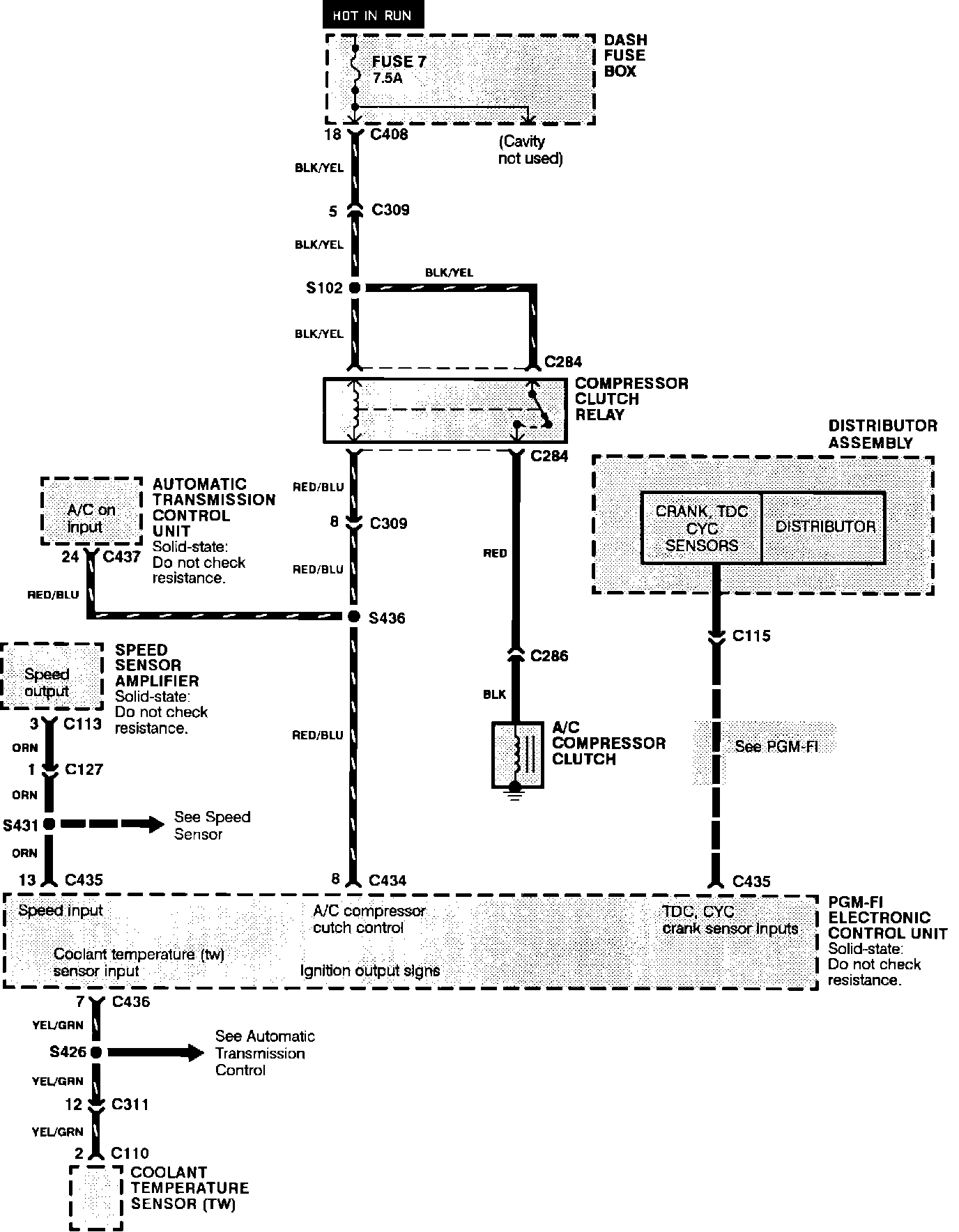

Compressor And Fan Controls, Part 3 Of 3:
