Home >> Honda >> 1990 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seat Belt Systems >> Circuit Diagrams

Circuit Diagrams

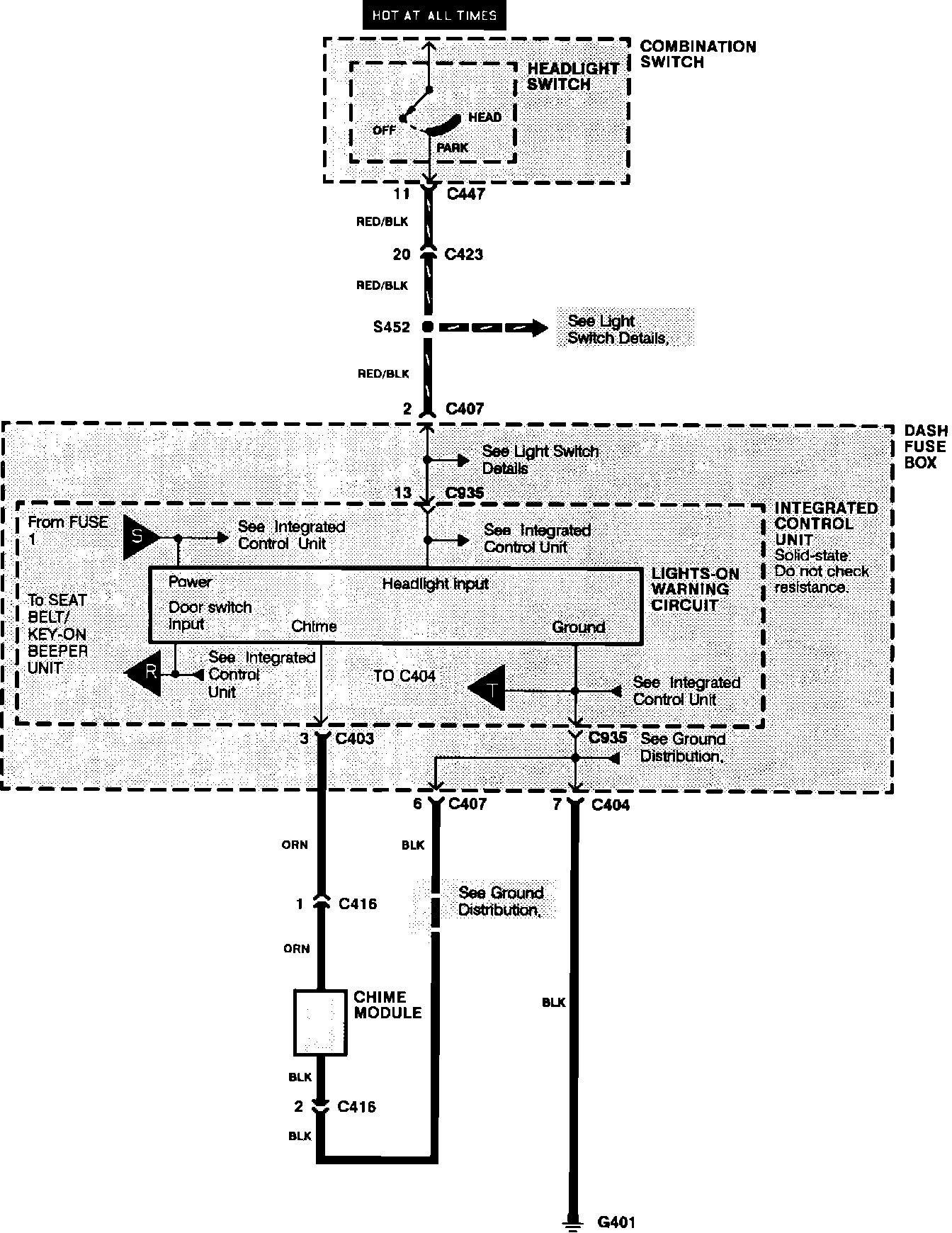

Ignition Key, Lights-On & Seat Belt:



Ignition Key, Lights-On & Seat Belt:



Ignition Key, Lights-On & Seat Belt:
