Vanity Lamp
>>
Wagon
Wagon

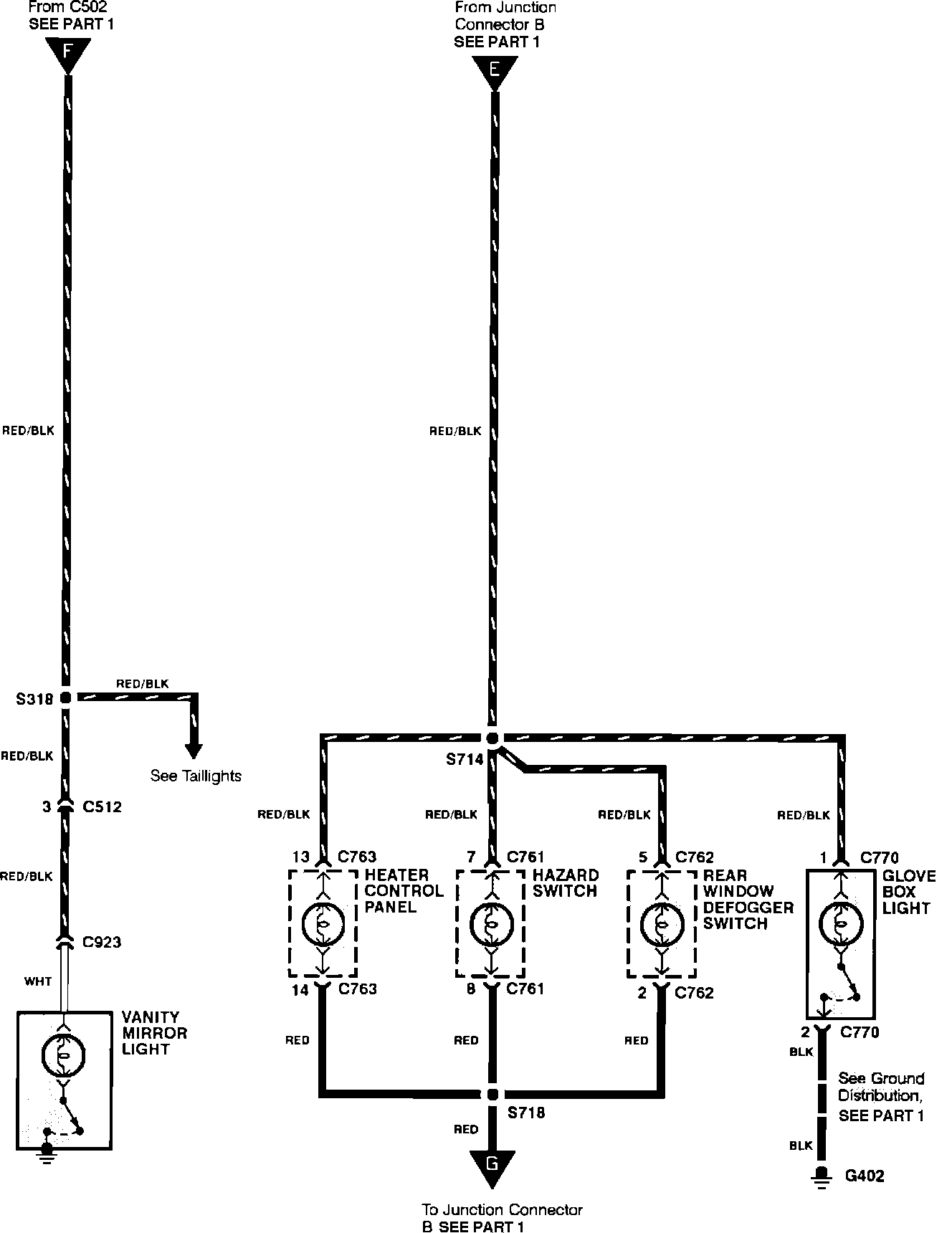

Dash, Glove Box, Vanity Mirror And Console Lights:
Dash, Glove Box, Vanity Mirror And Console Lights:
Dash, Glove Box, Vanity Mirror And Console Lights:
