Instrument Panel and Dash Components Removal and Installation

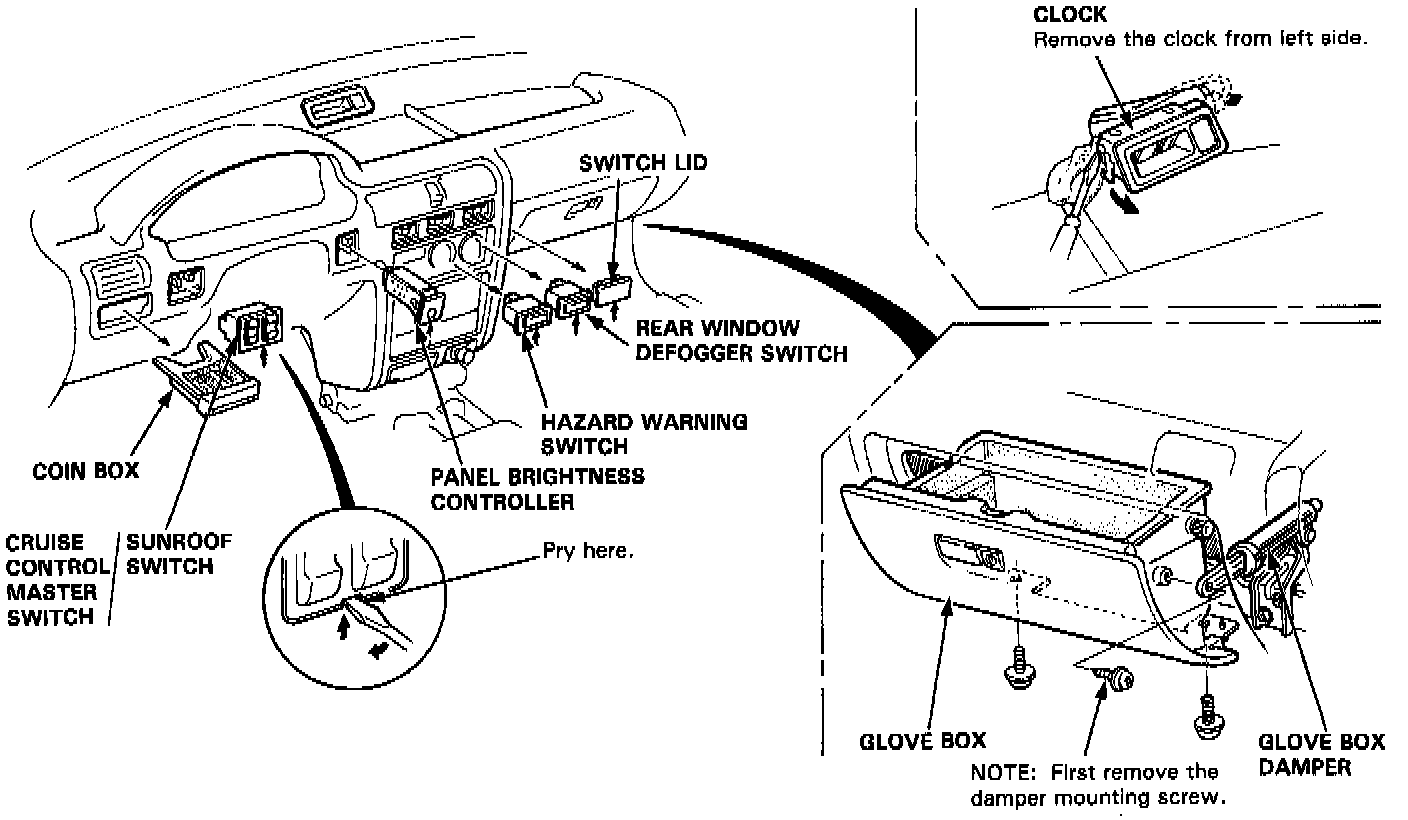

Instrument Panel Components:

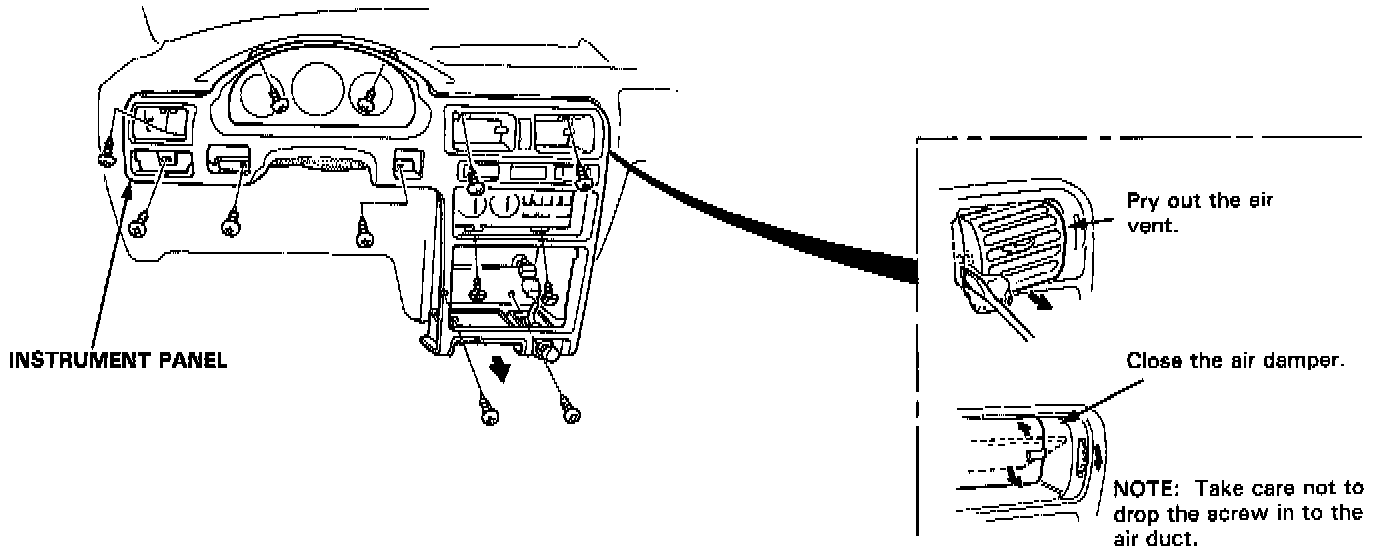

Instrument Panel:

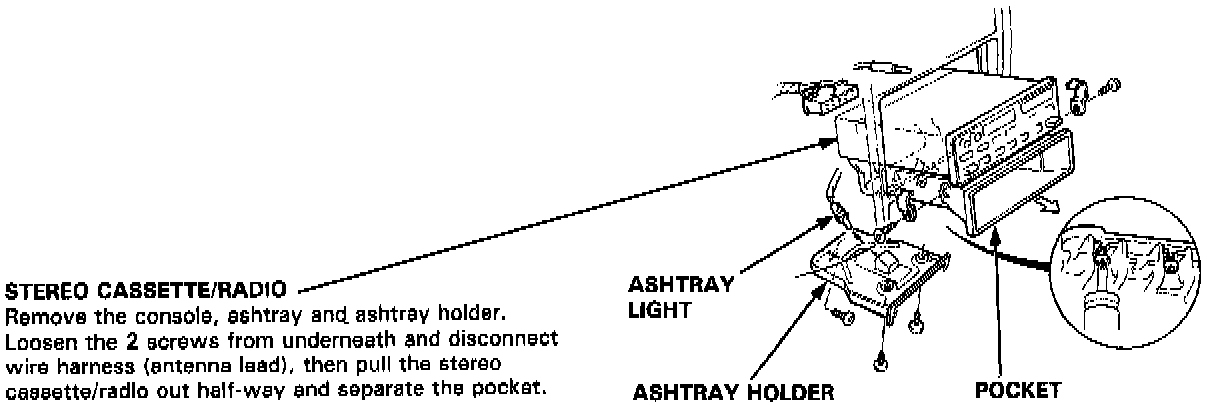

Stereo Removal And Installation:

COMPONENT REMOVAL AND INSTALLATION

NOTE: Take care not to scratch or score the dashboard and instrument panel.

1. Remove the following:
- Console
- Ashtray and ashtray holder
- Stereo cassette/radio
- Coin box, cruise control master switch, sunroof switch and panel brightness controller
- Side and center air vents
2. Remove the 12 mounting screws and disconnect the connectors.
3. Carefully pull out the instrument panel from the dashboard.
