Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1990
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

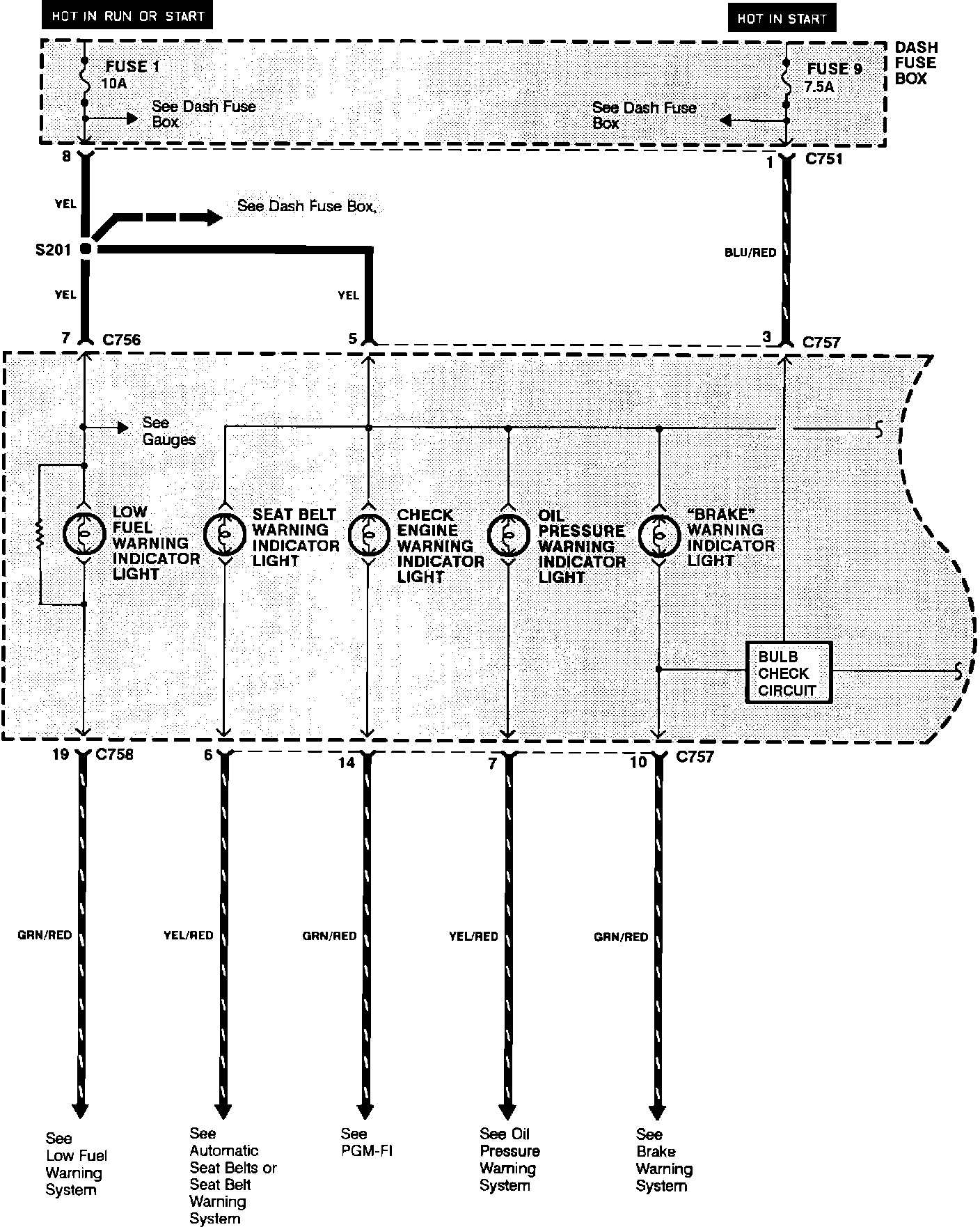

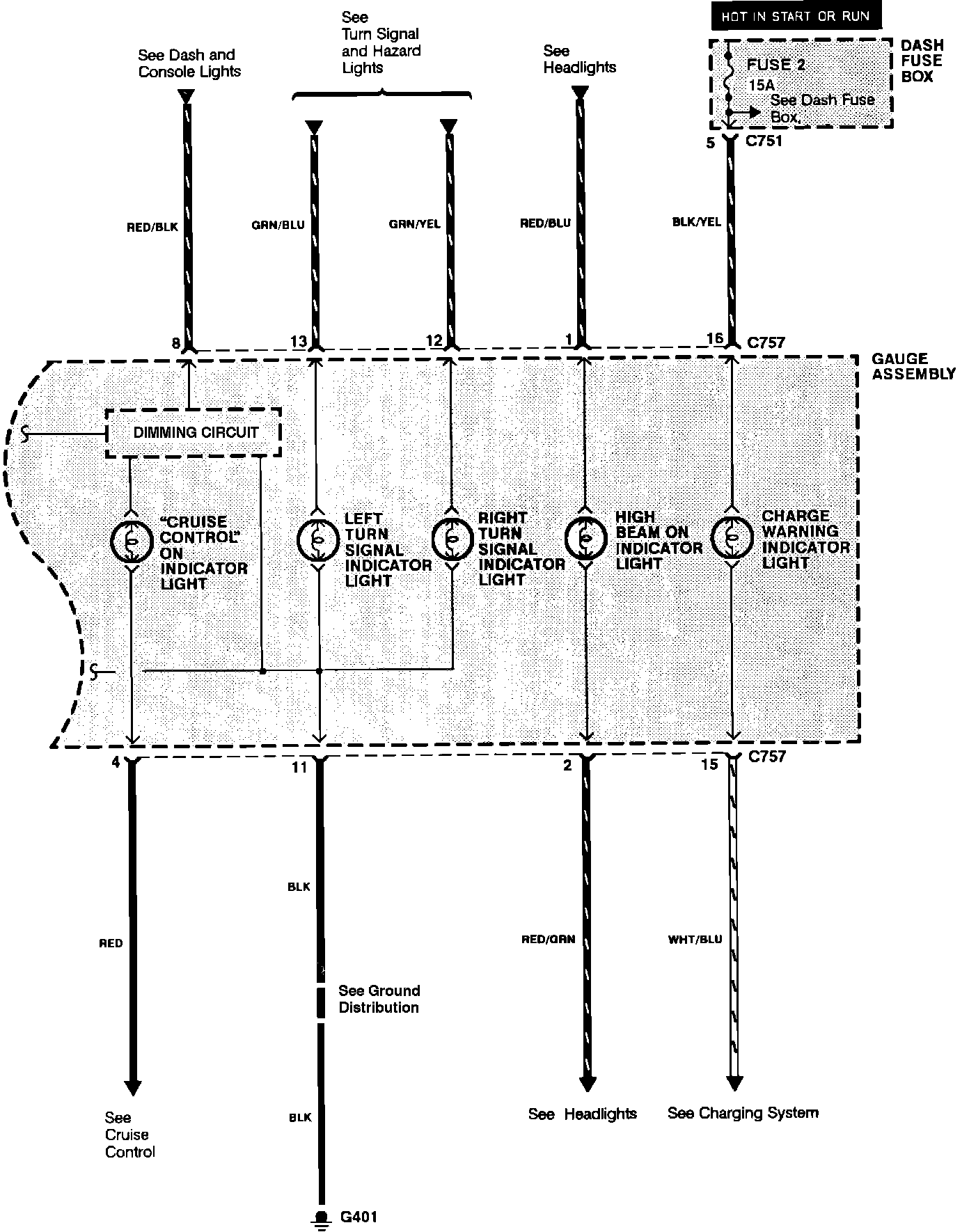

Indicator Lamps:
Indicator Lamps:
