Courtesy Lamp: Service and Repair

Courtesy Light Replacement


NOTE: The bulb or lens alone can be replaced without having to remove the door trim panel.

1. Remove the door trim panel.

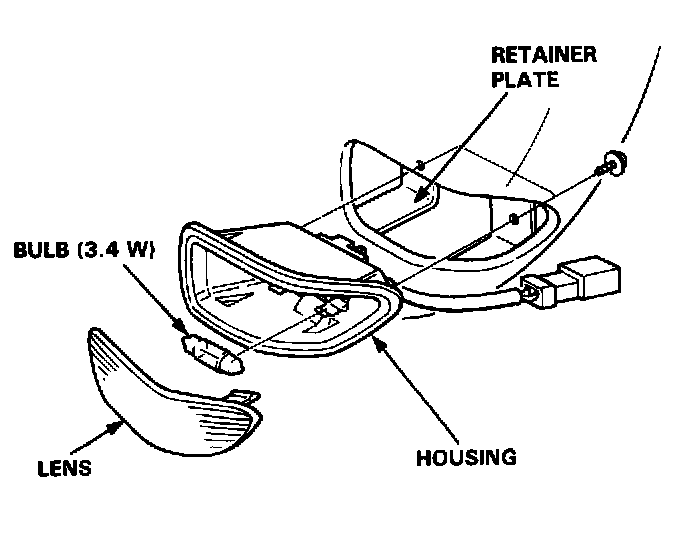

2. Remove the 2 screws and the retainer plate to remove the light from the door trim panel.
