Daytime Running Lamp: Testing and Inspection

DRL Relay Input Test (CANADA)

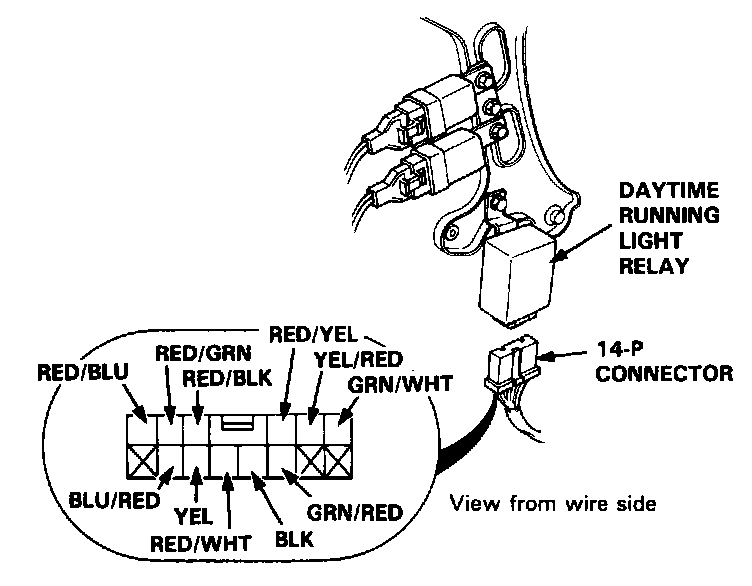

14-P Connector:

14-P Connector Details:

1. Remove the left side kick panel and disconnect the 14-P connector from the relay.

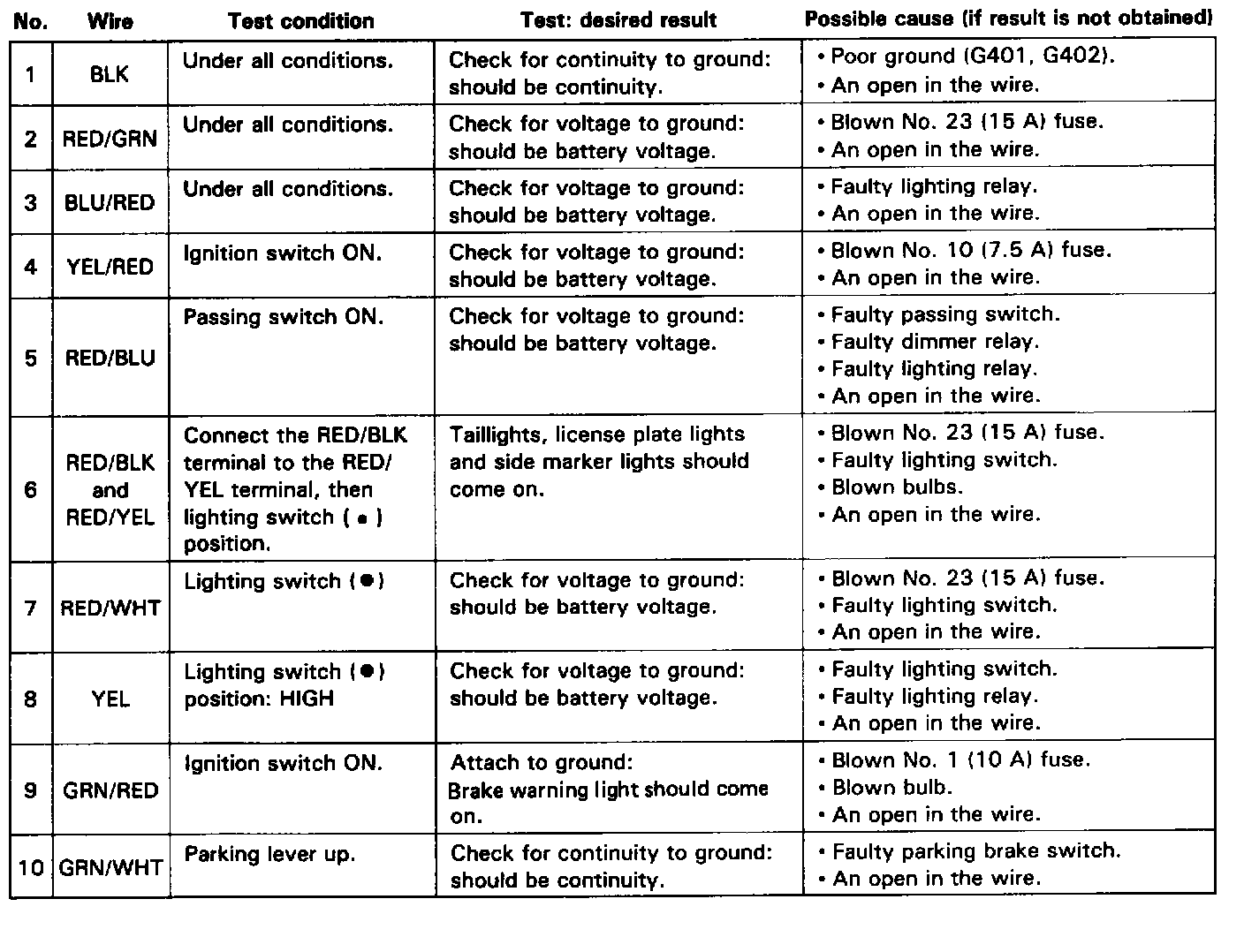

2. Make the following input tests at the harness pins. If all tests prove OK, yet the system still fails to work, replace the relay.
