Power Distribution

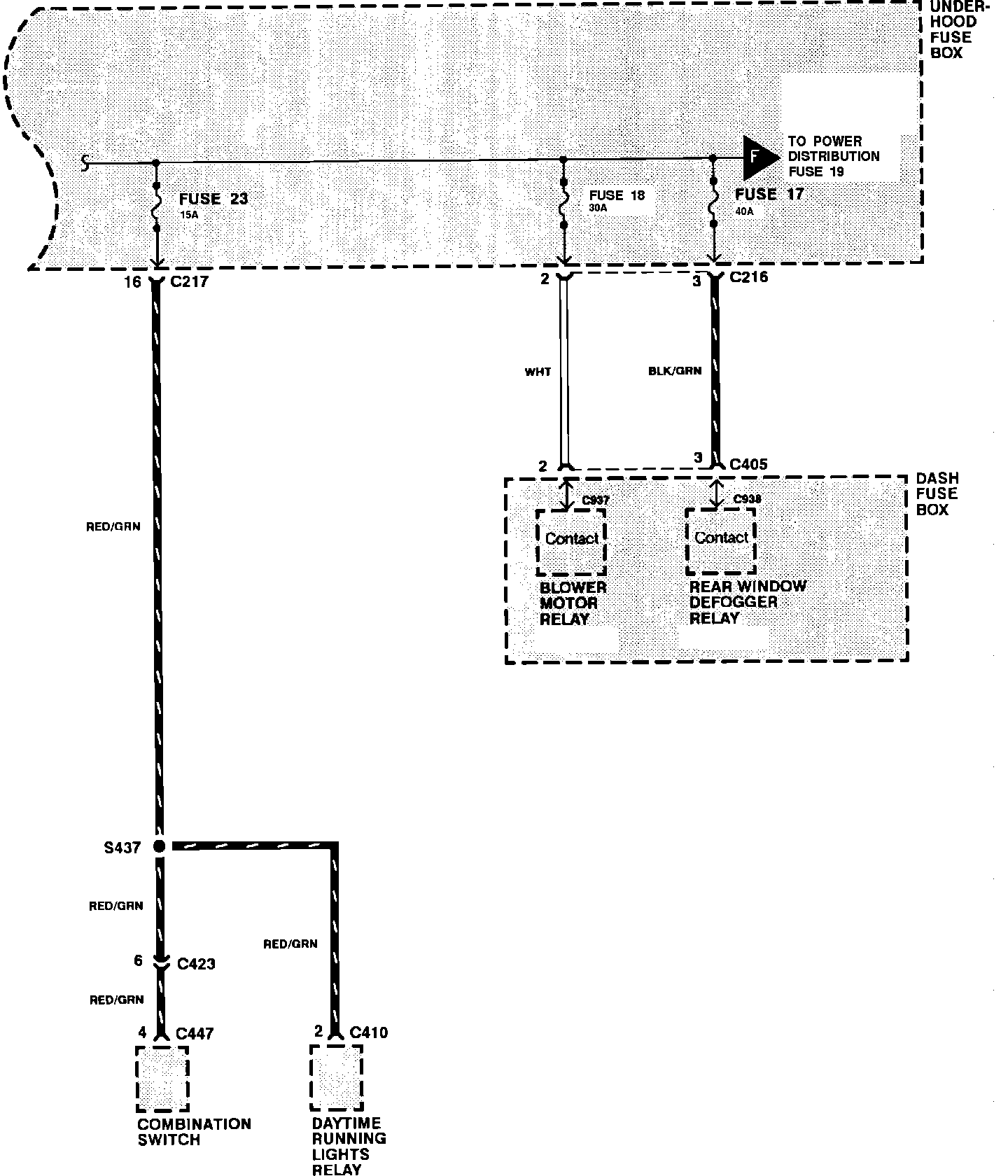

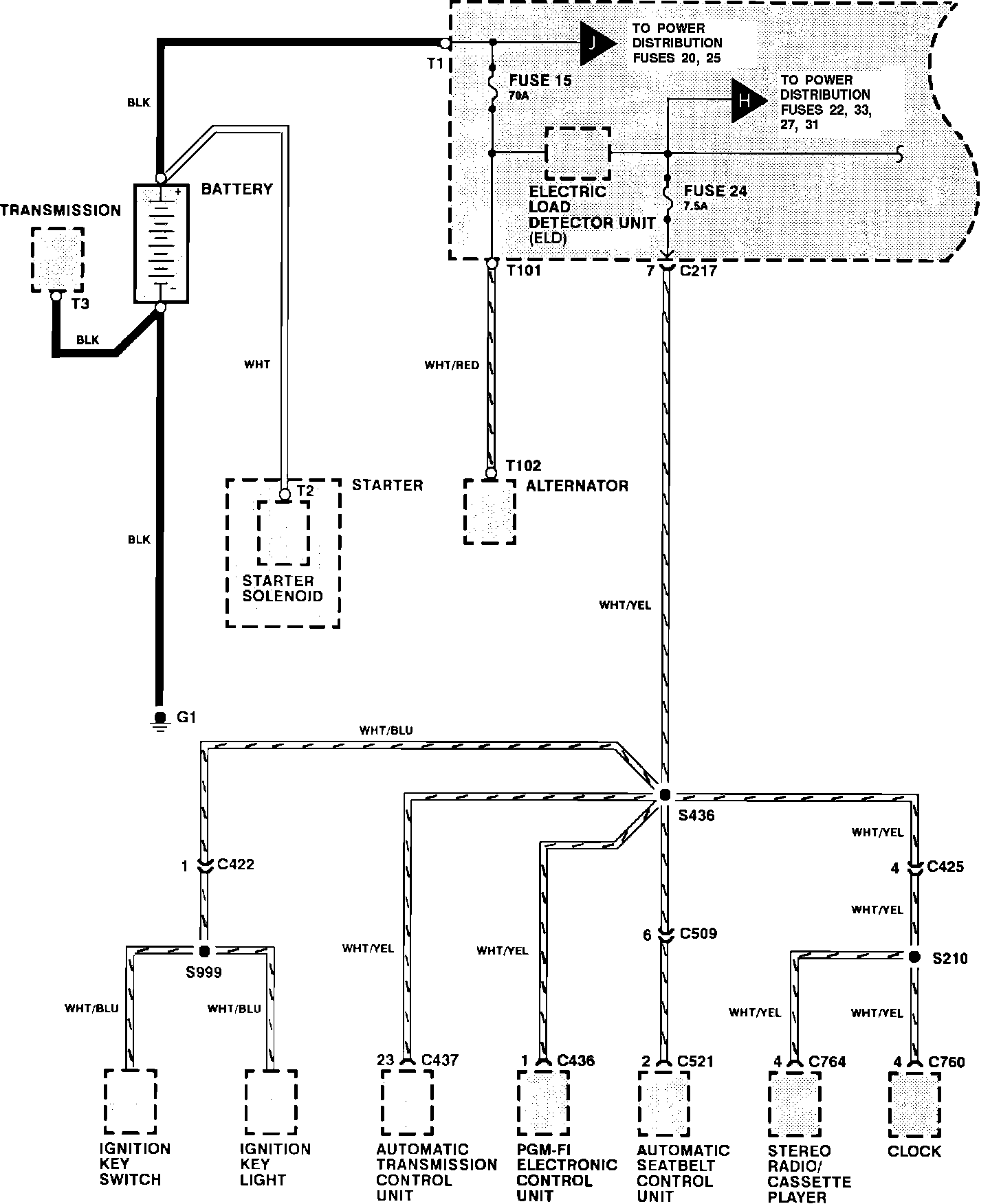

Power Distribution (Fuses 15, 17, 18, 23 & 24):

Power Distribution (Fuses 15, 17, 18, 23 & 24):

Power Distribution (Fuses 19):

Power Distribution (Fuses 19):

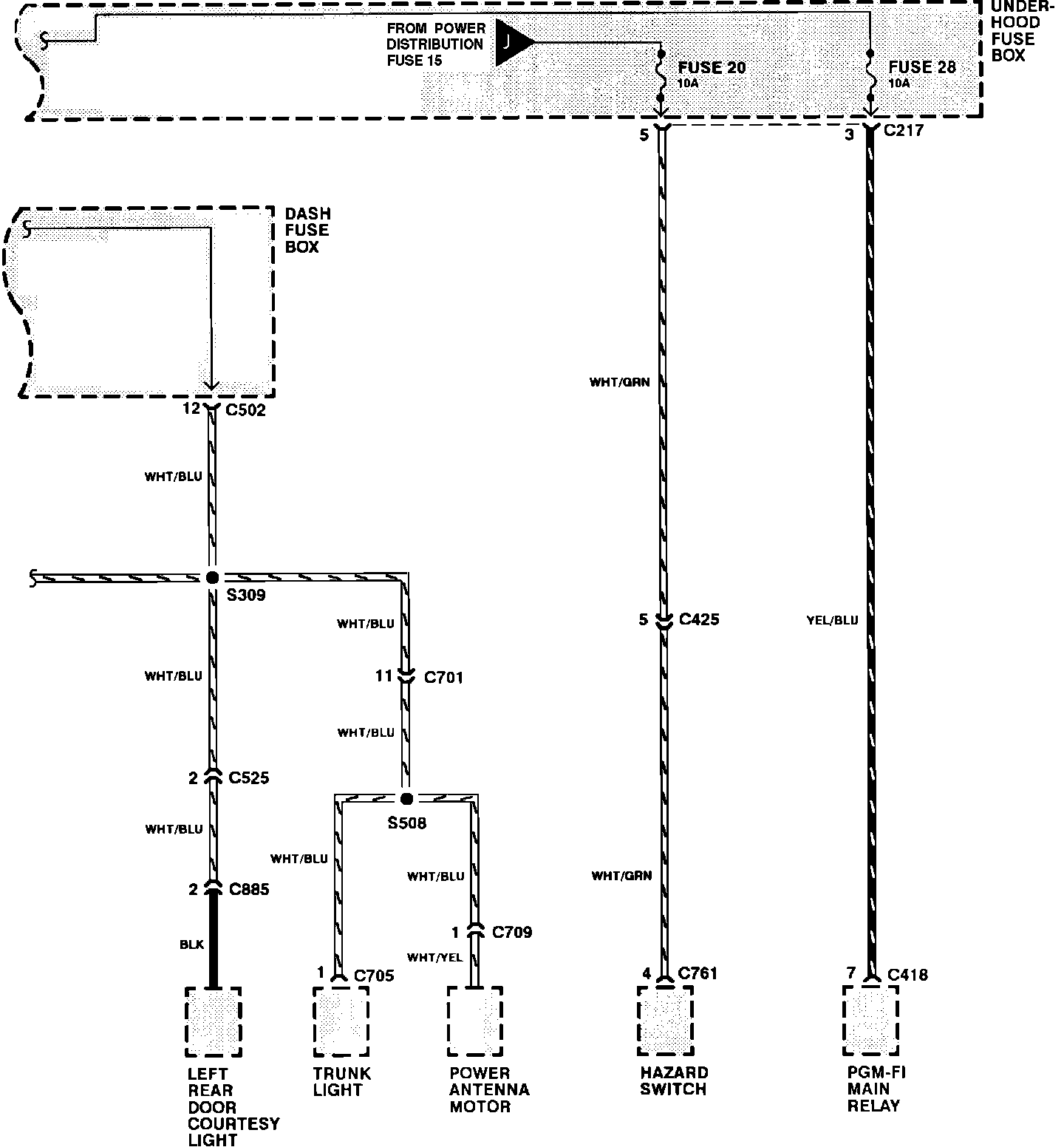

Power Distribution (Fuses 20, 22 & 28):

Power Distribution (Fuses 20, 22 & 28):

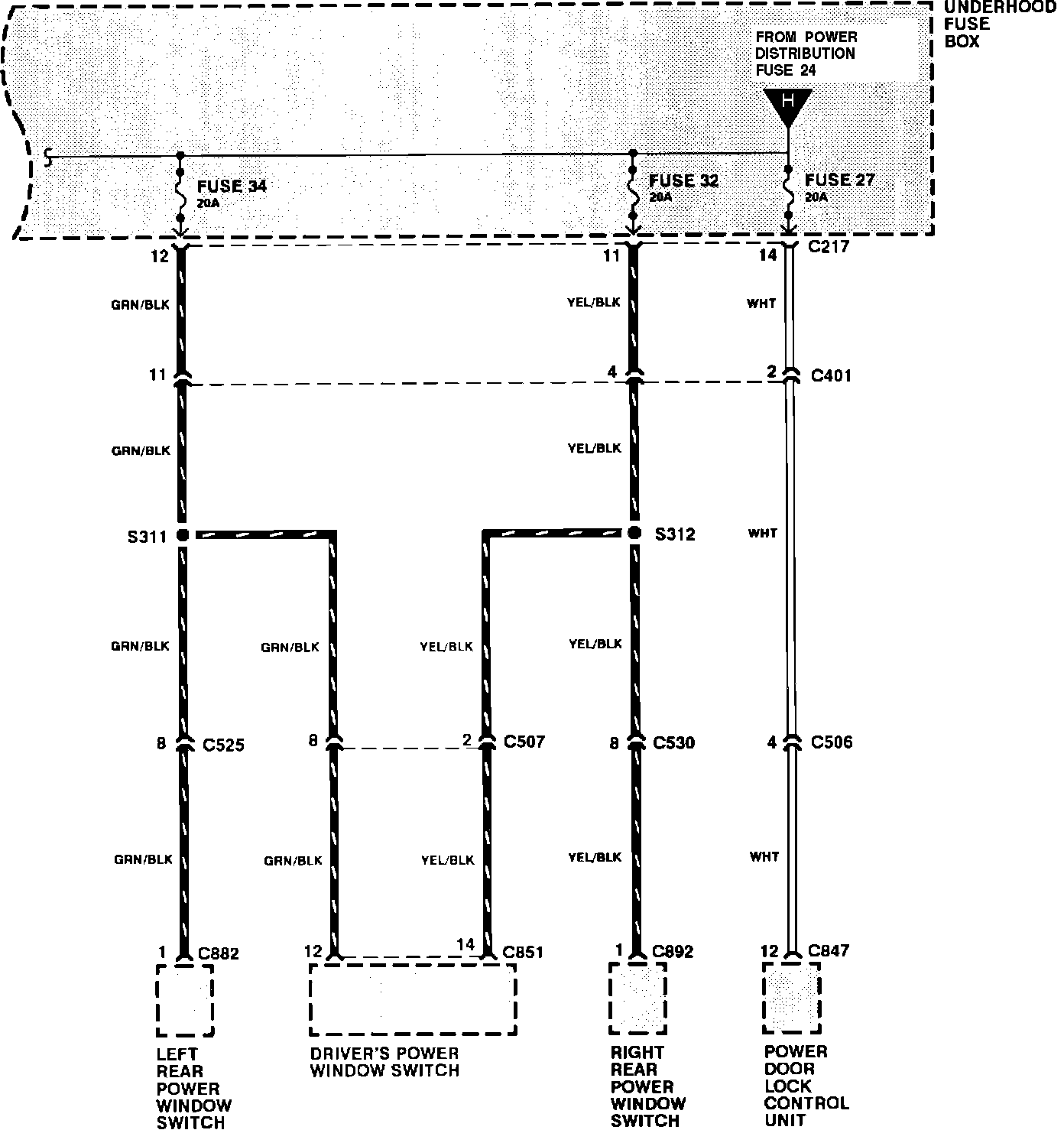

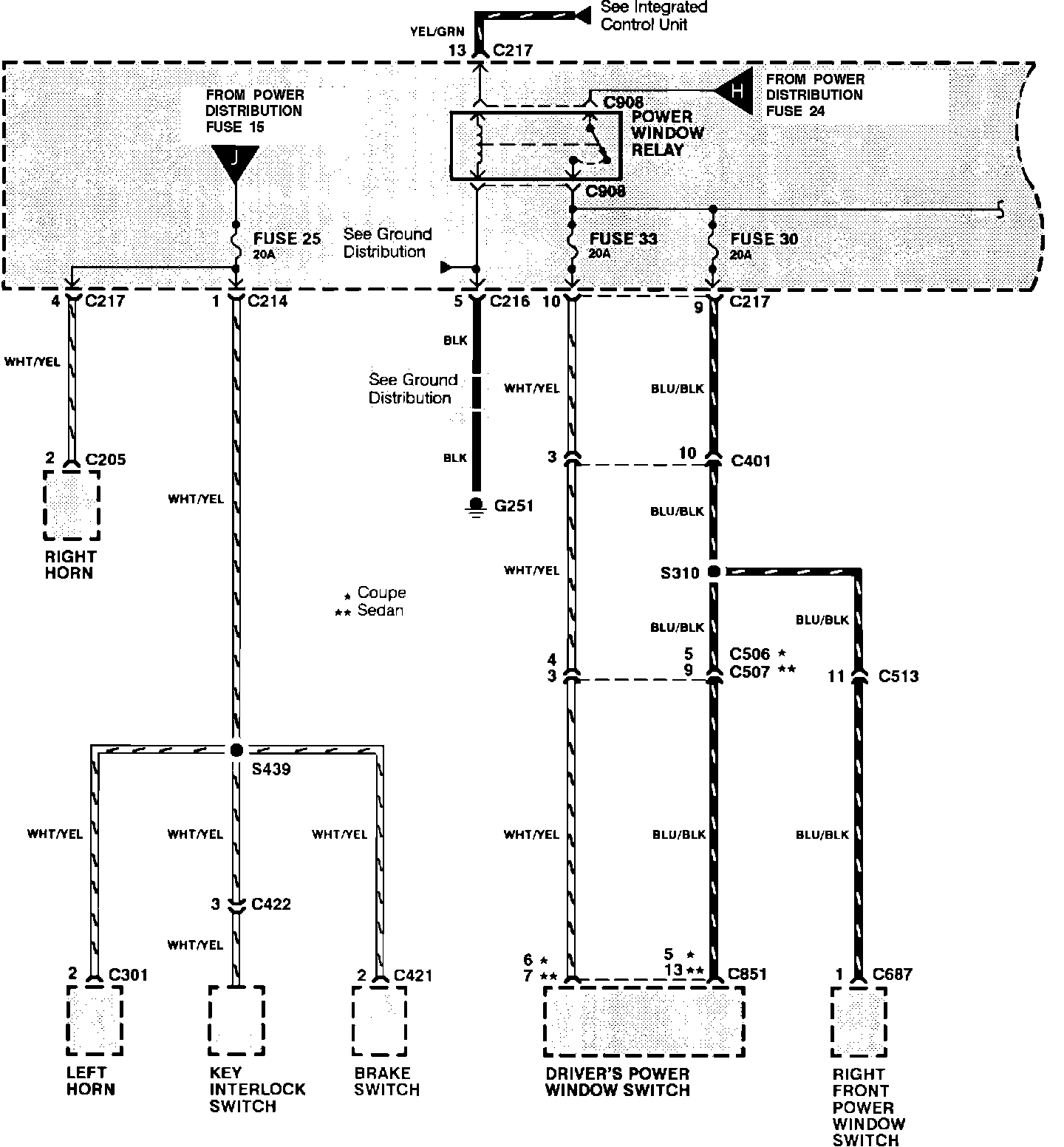

Power Distribution (Fuses 25, 27, 30, 32, 33 & 34):

Power Distribution (Fuses 25, 27, 30, 32, 33 & 34):

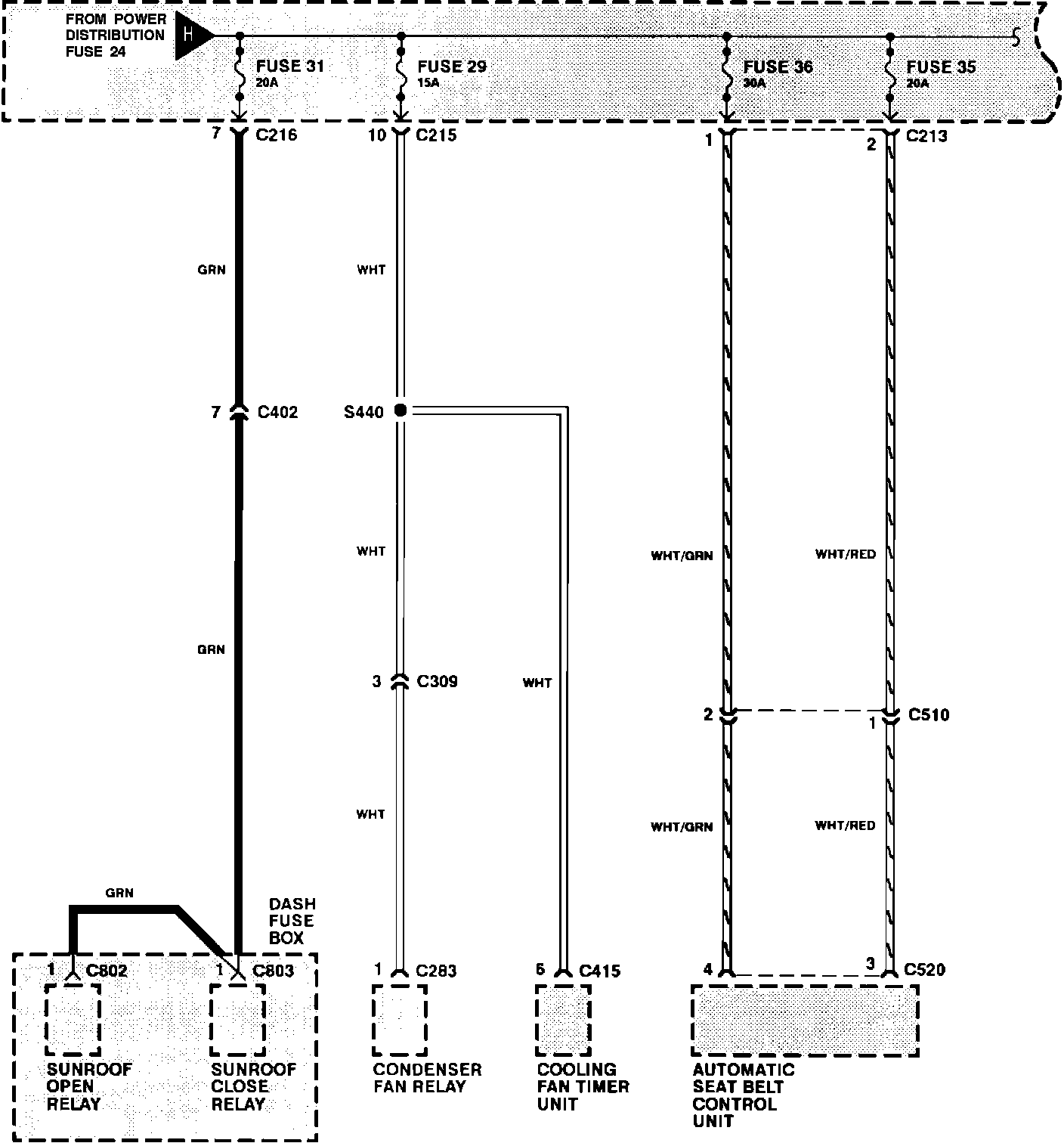

Power Distribution (Fuses 29, 31, 35, 37, 38 & 39):

Power Distribution (Fuses 29, 31, 35, 37, 38 & 39):
