Computers and Control Systems: Locations

NOTE:
- Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).

0: Related to Fuel and Emissions System.

- Connector with male terminals (double outline): View from terminal side.
- Connector with female terminals (single outline): View from wire side.

How to Identify Connectors:
Identifying numbers have been assigned to all connectors. The number is preceded by the letter "C" for connectors, "G" for ground terminals or "T" for non ground terminals.






CONNECTOR AND WIRE HARNESS ROUTING






Starter Cable / Battery Ground Wire / Engine Ground Wire

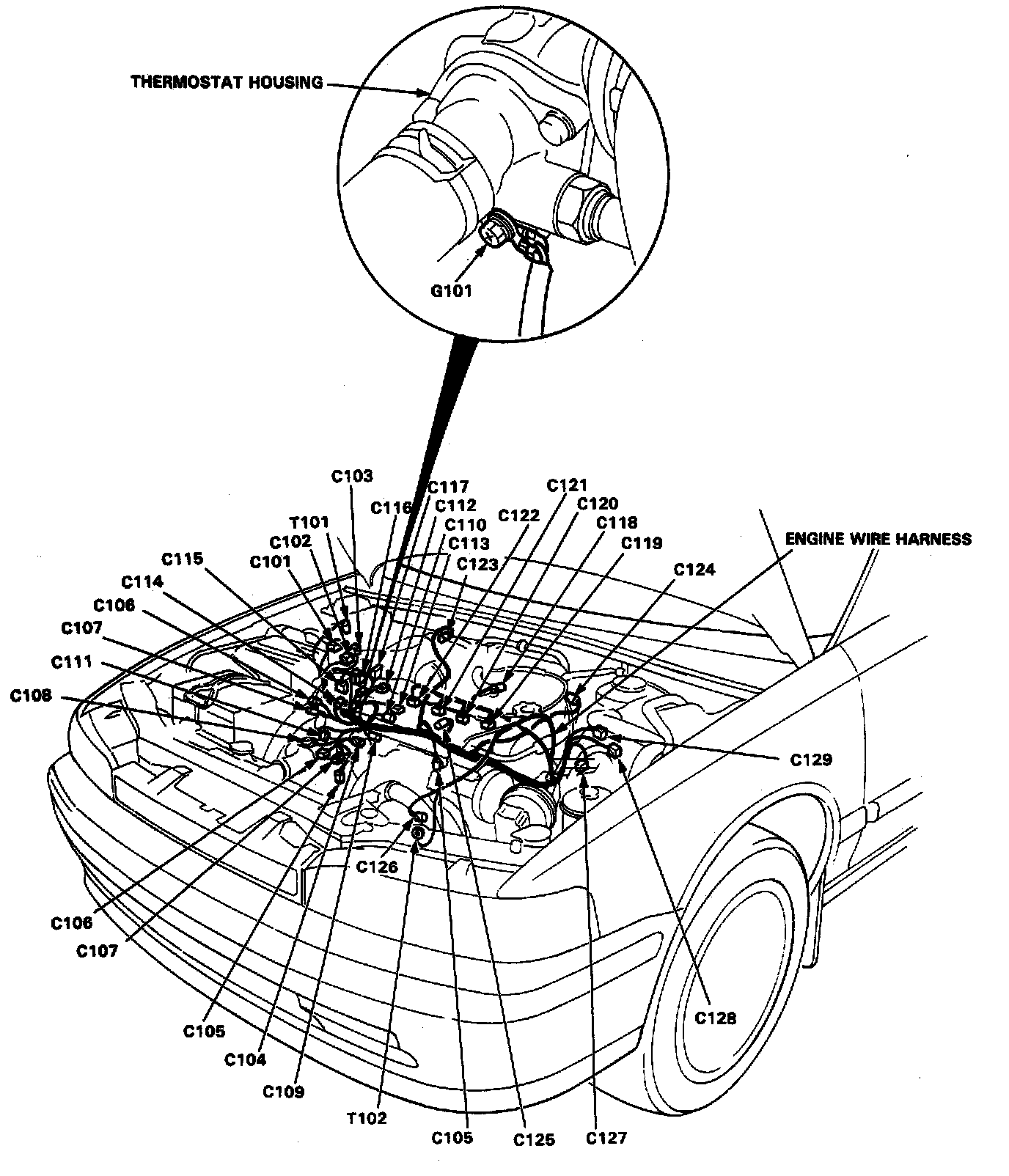

Engine Wire Harness

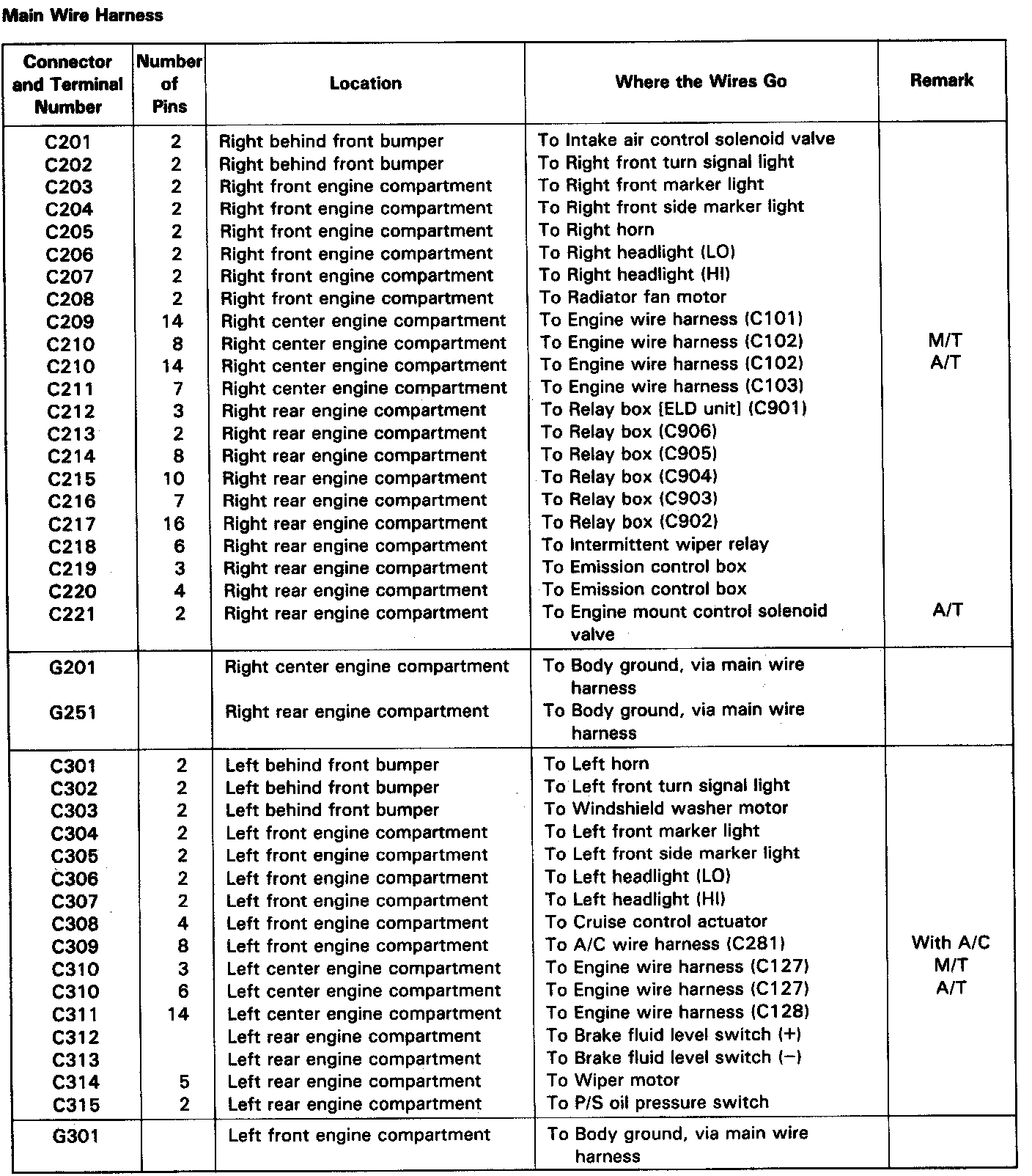

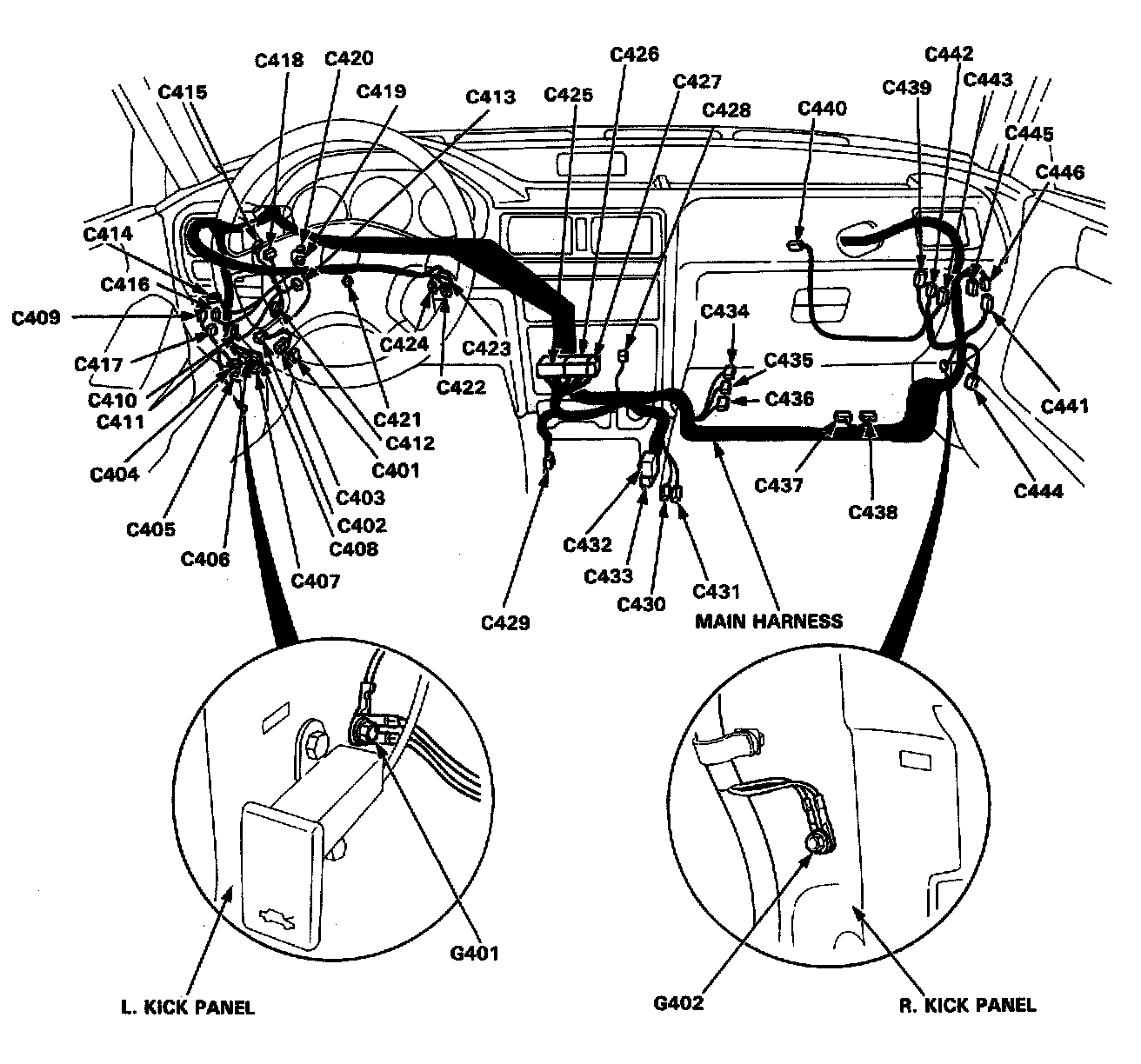

Main Wiring Harness

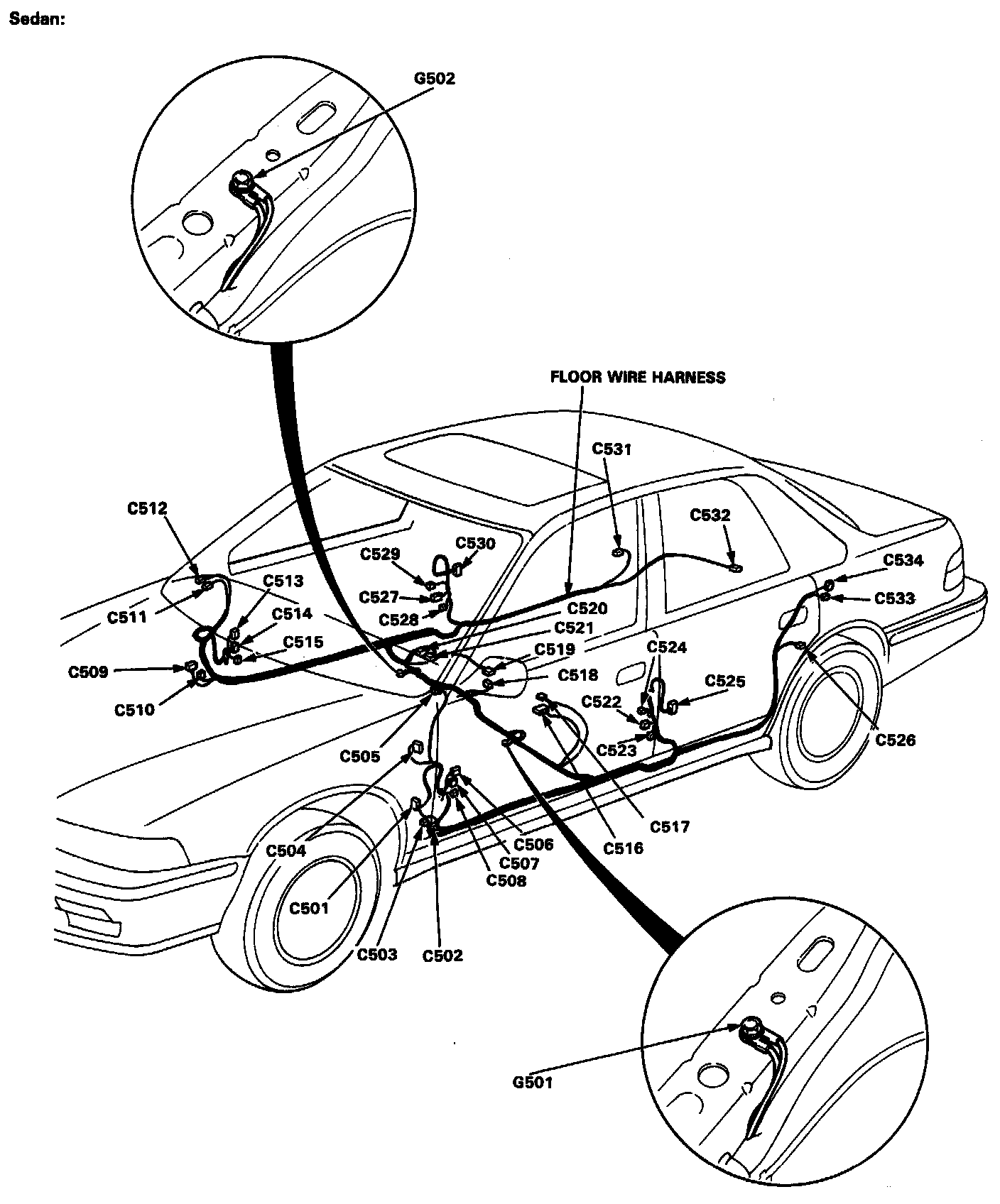

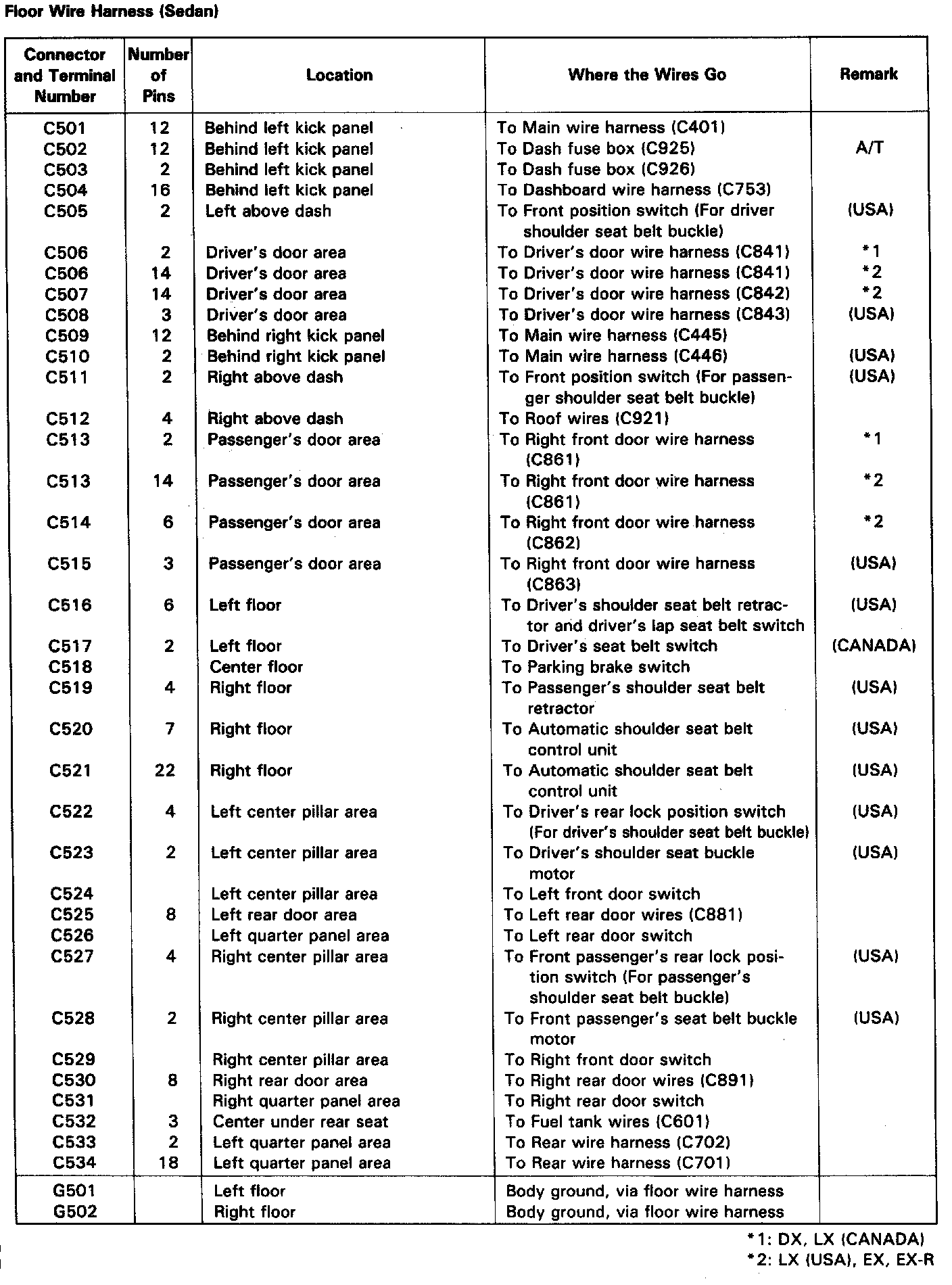

Floor Wiring Harness (Sedan)

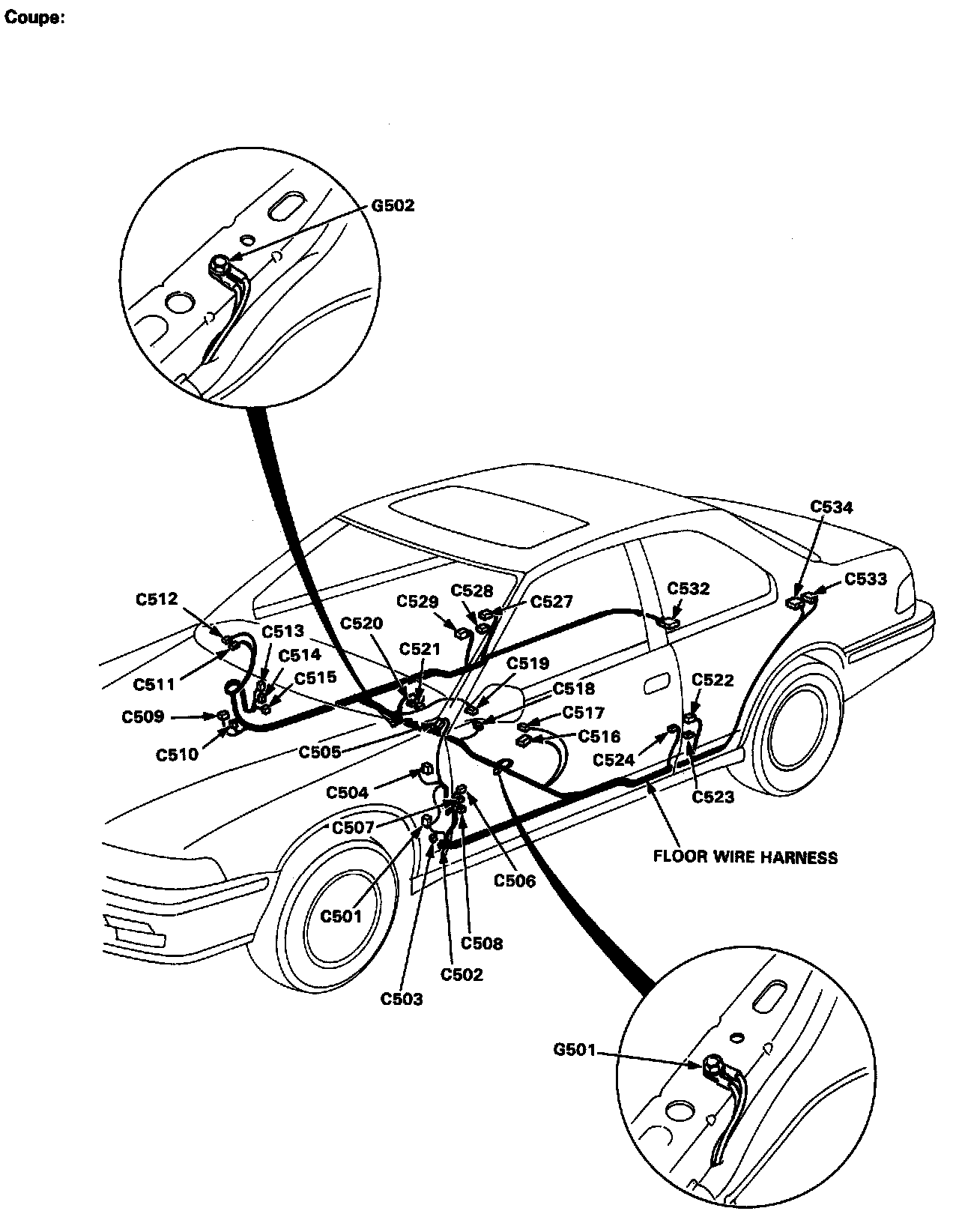

Floor Wiring Harness (Coupe)

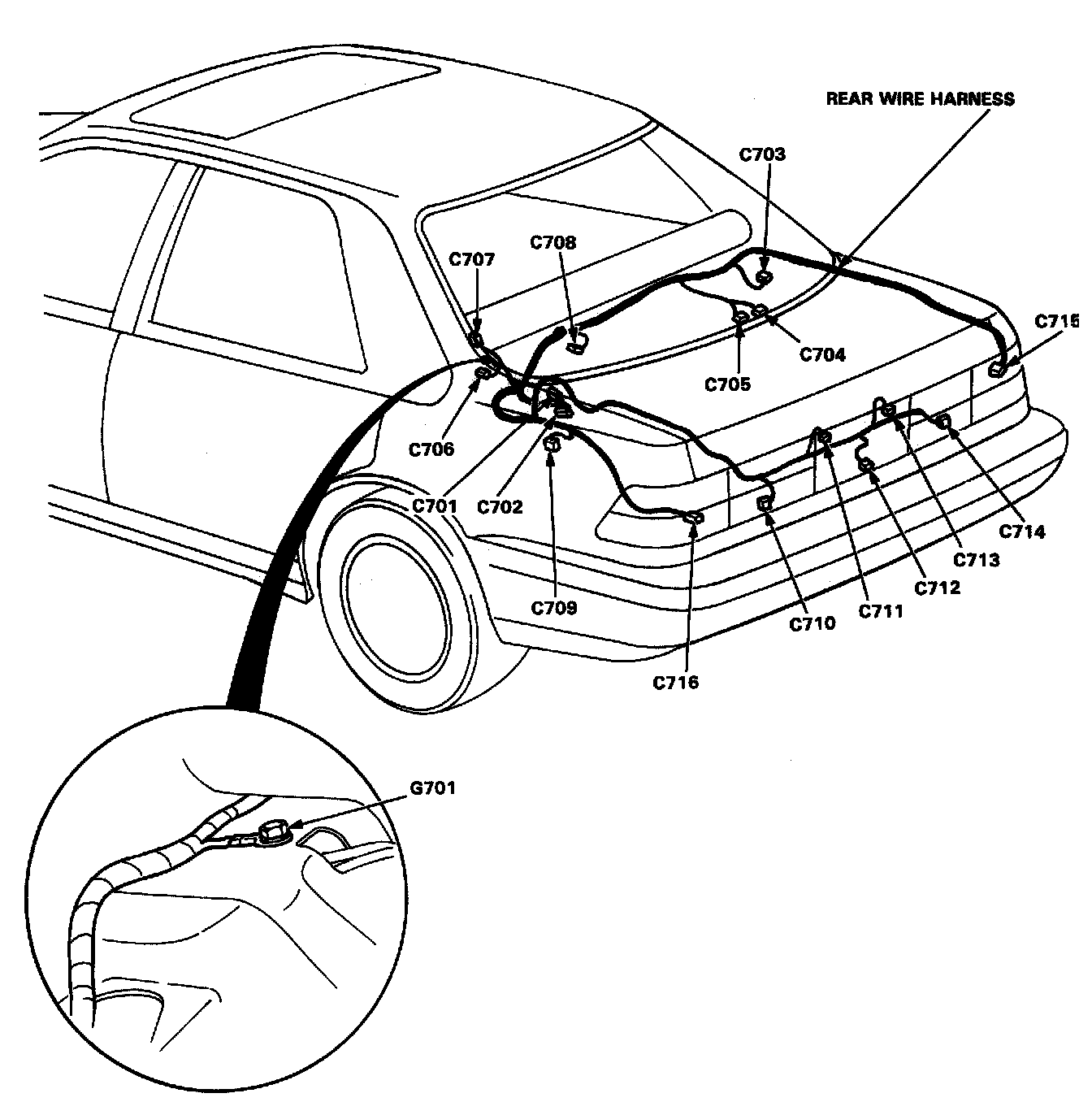

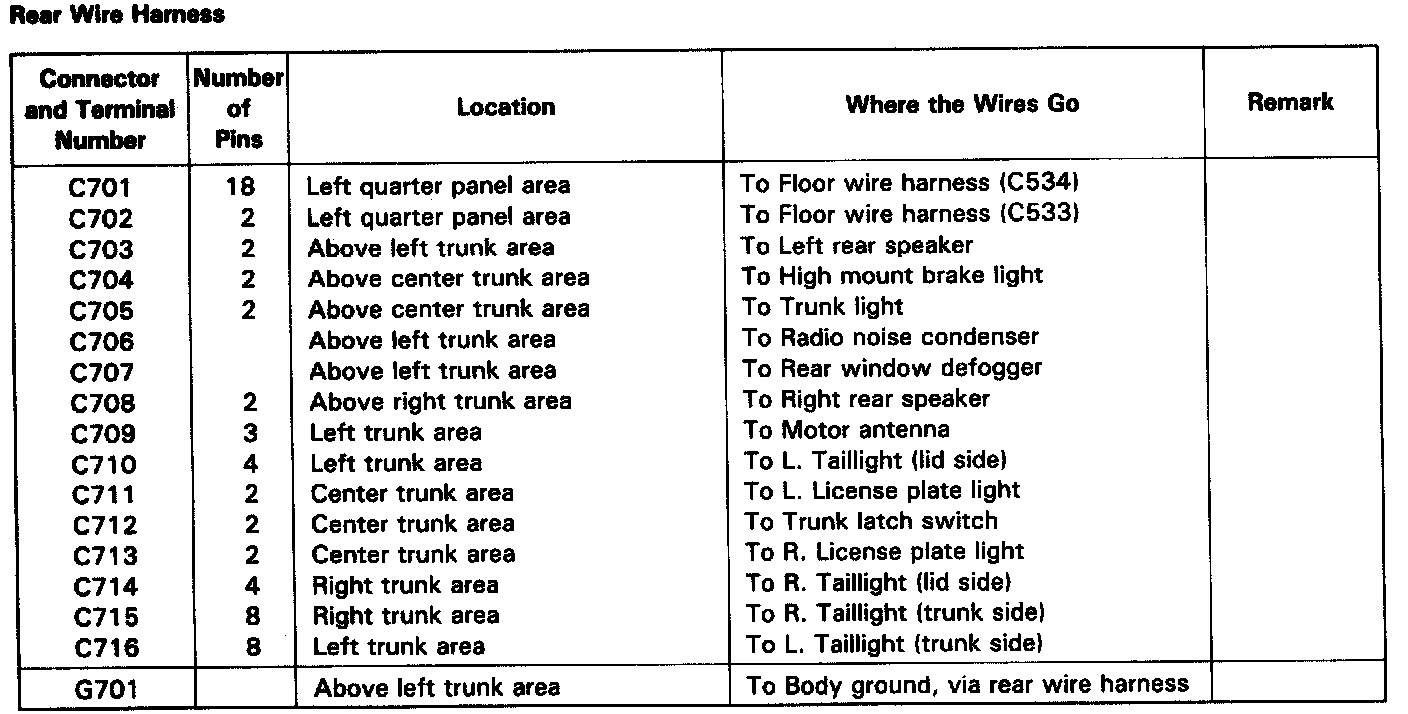

Rear Wiring Harness











Dashboard Wiring Harness

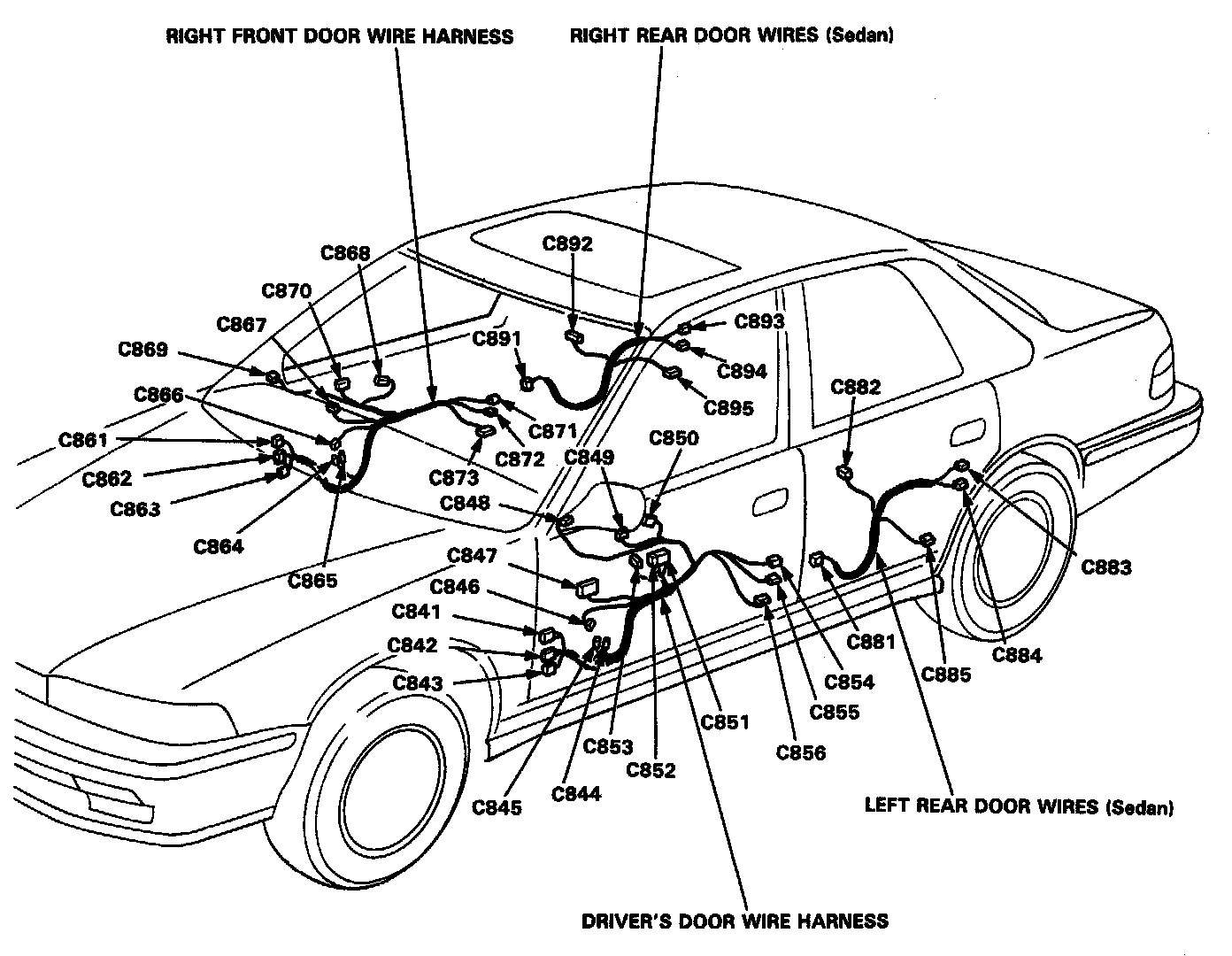

DOORS - Driver's/ Right Front/ Left & Right Rear (Sedan)/

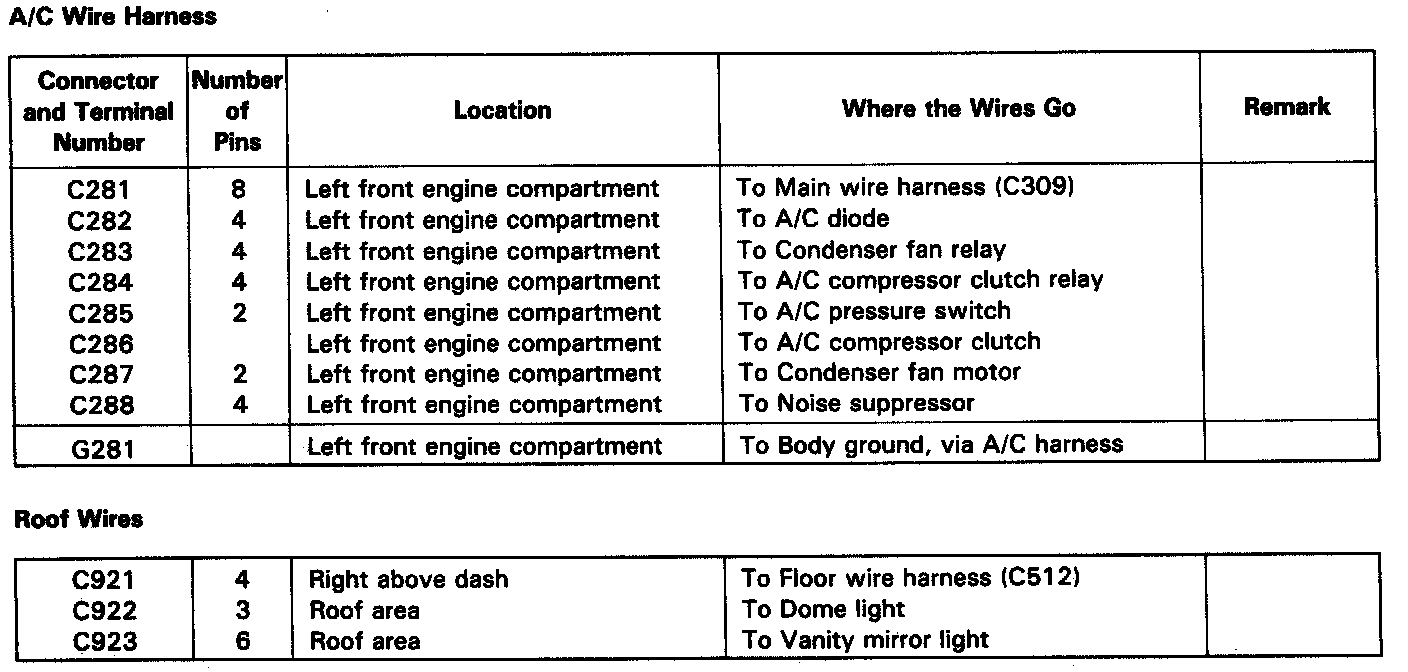

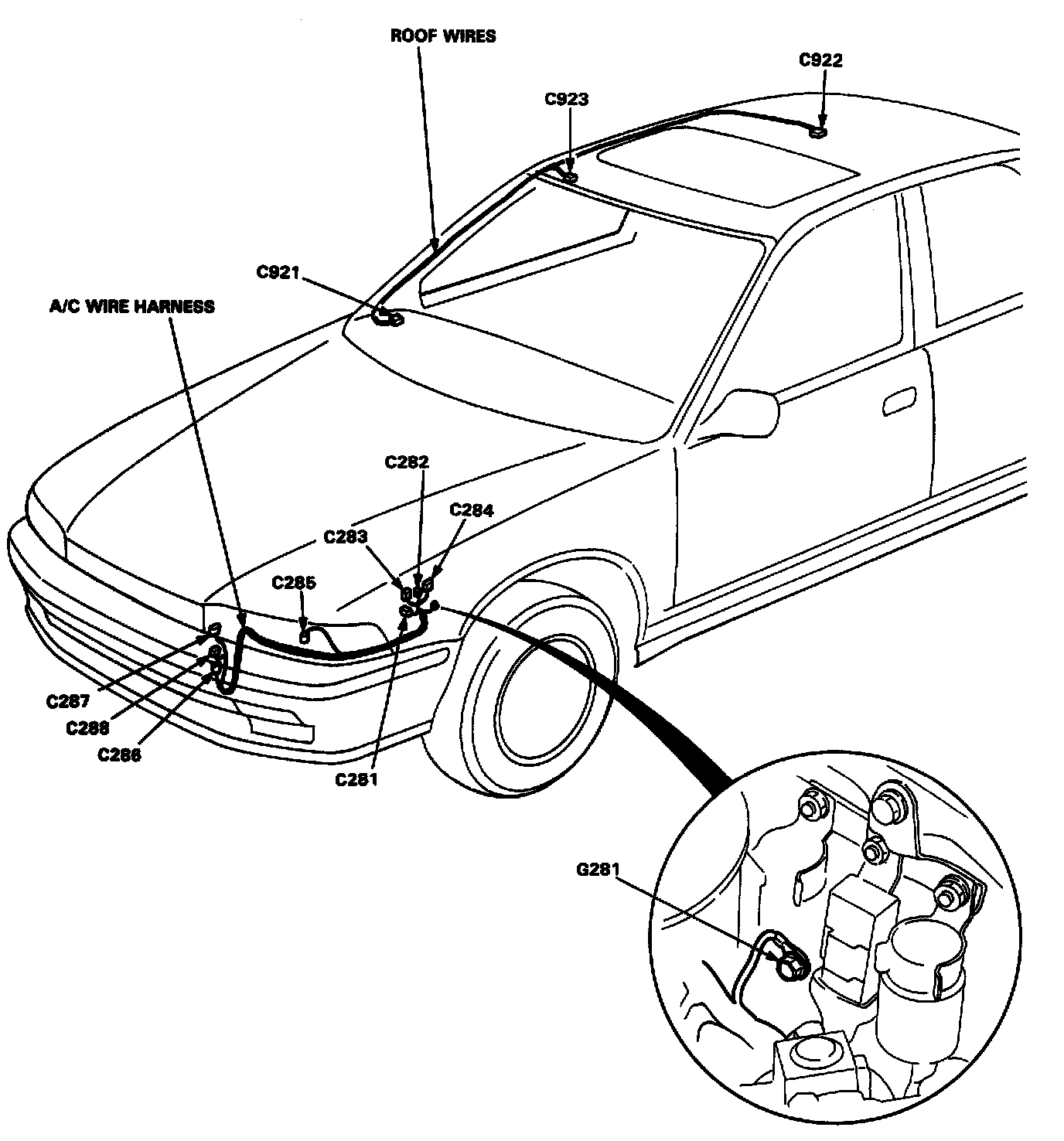

A/C and Roof Harness

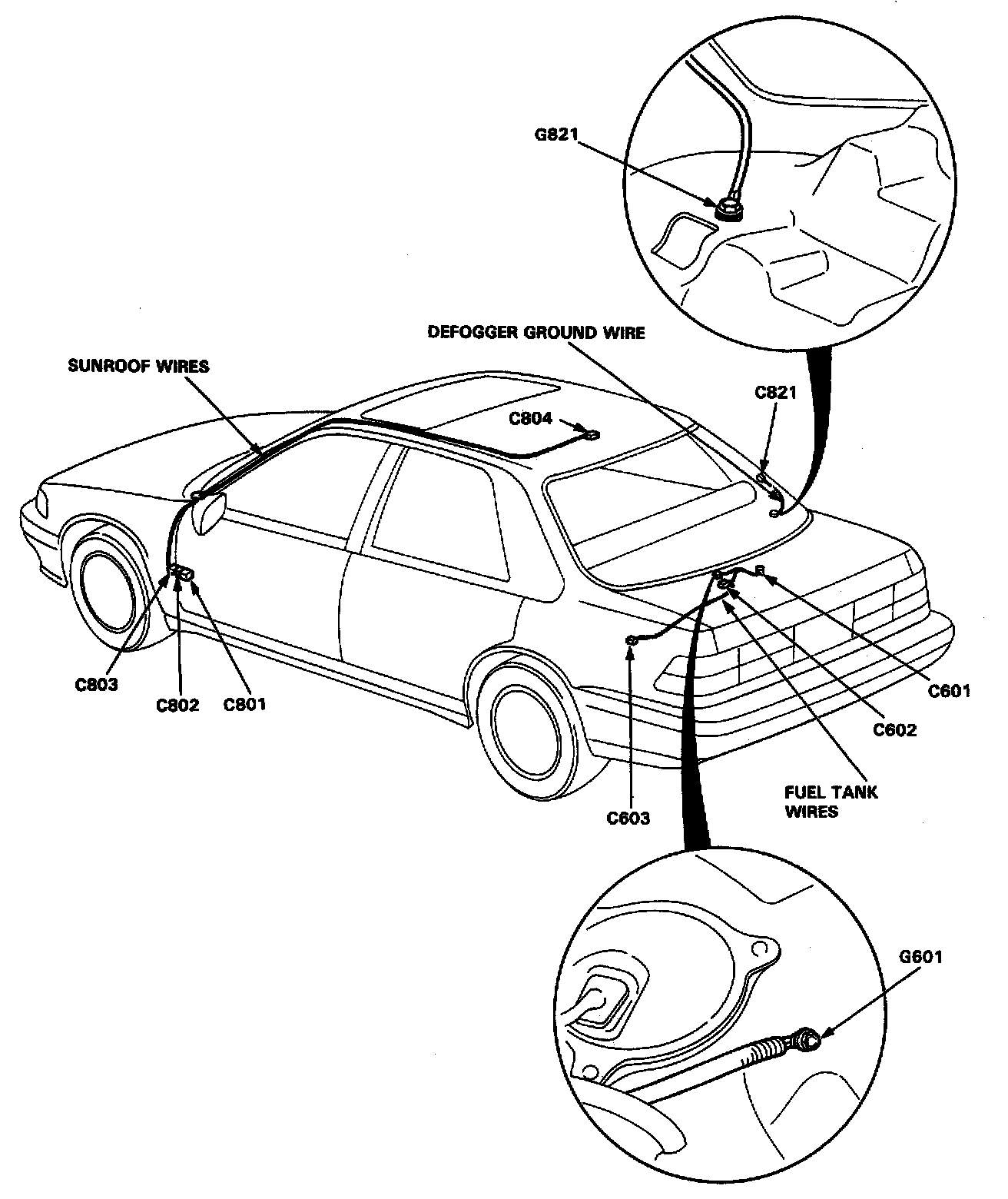

Fuel Tank / Sunroof / Defogger Ground Wires
