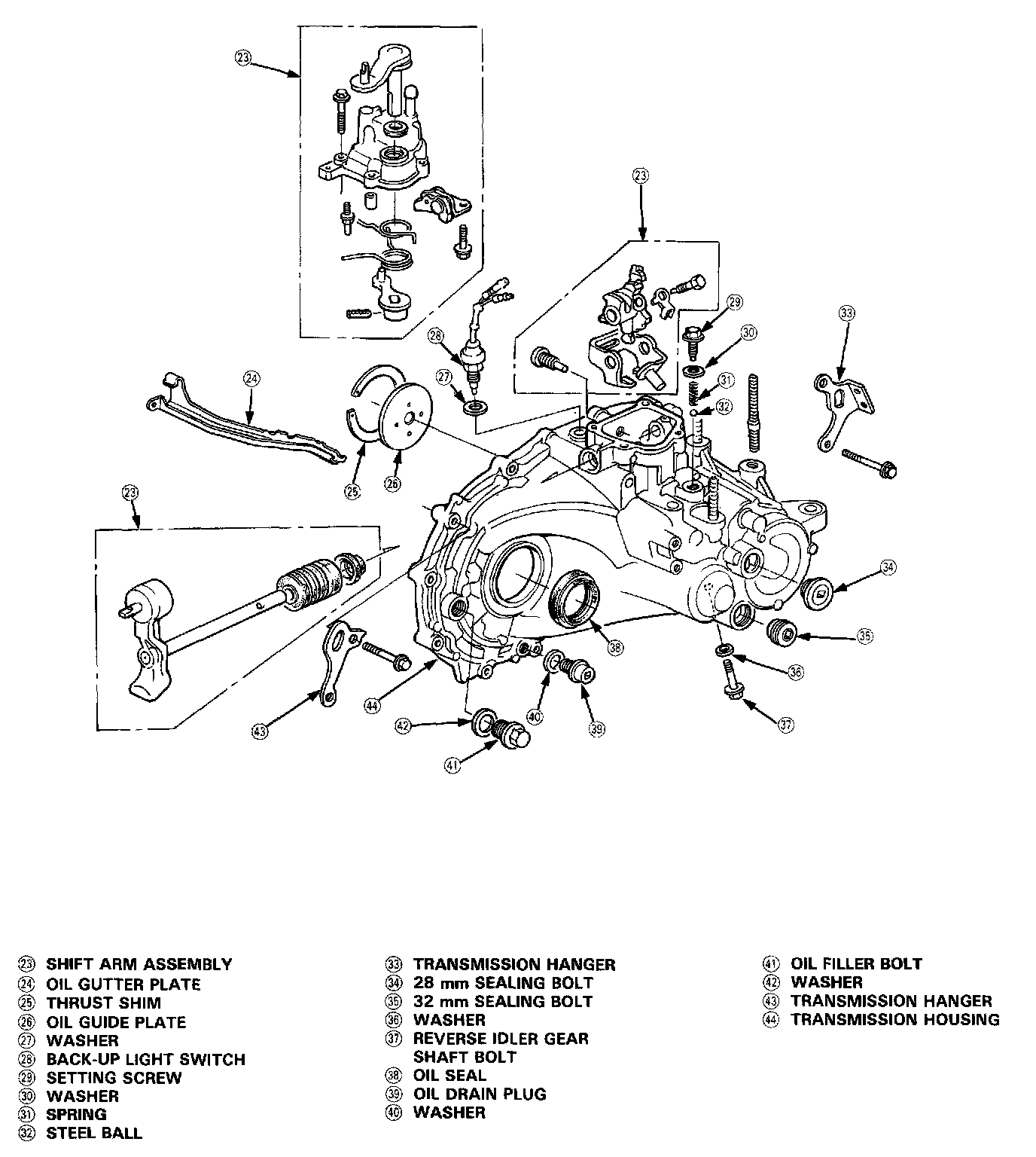

Illustrated Index

Clean all parts throughly in solvent and dry with compressed air.

Lubricate all parts with oil before reassembly.

NOTE: This transmission uses no gaskets between the major housings; use P/N 08718-550000 OE sealant.
Assemble the housings within 20 minutes after applying the sealant and allow it to cure at least 30 minutes after assembly before filling the transmission with oil.
