Electrical Diagrams

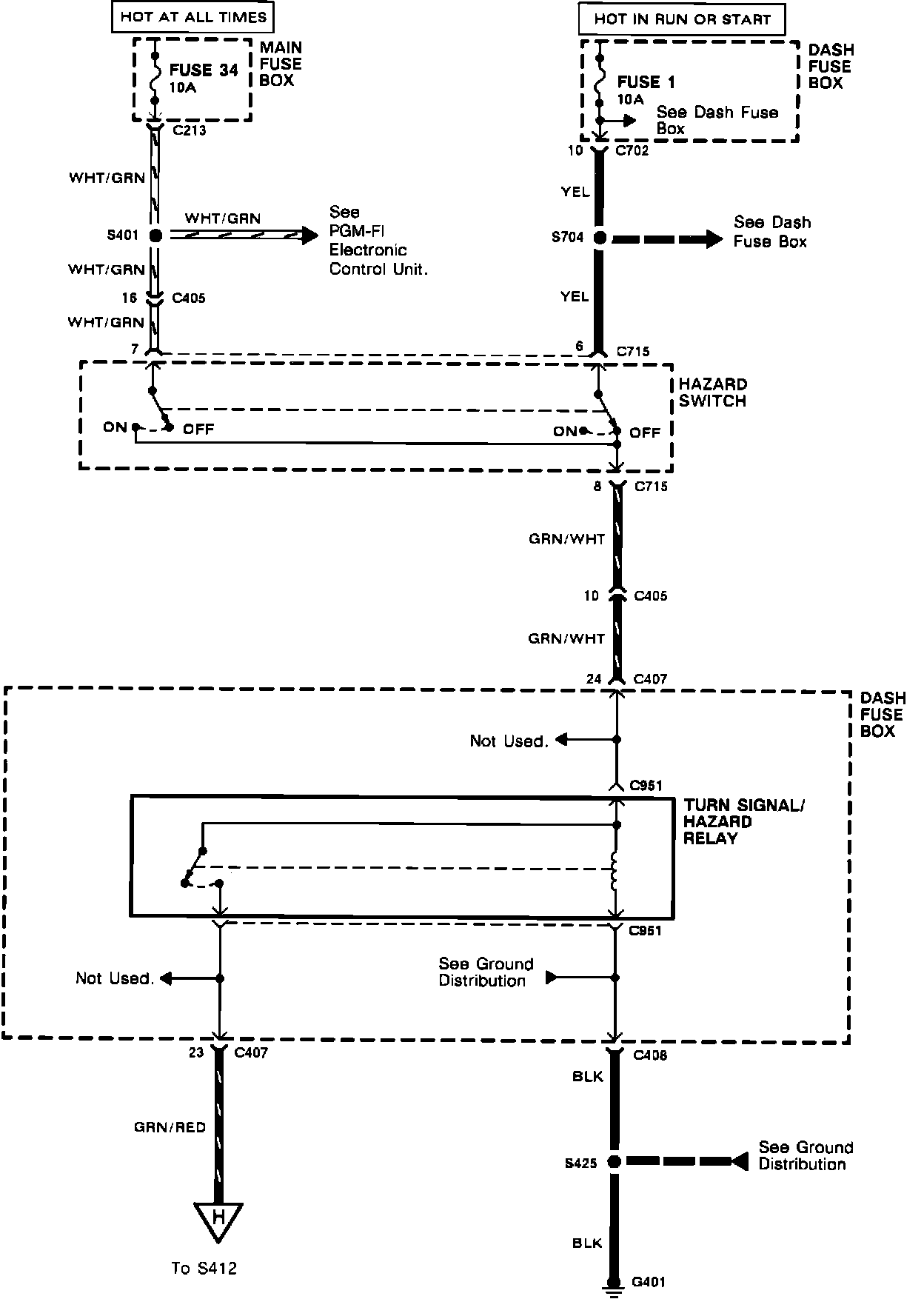

Hazard & Turn Signal Lamps - Part 1 Of 3:

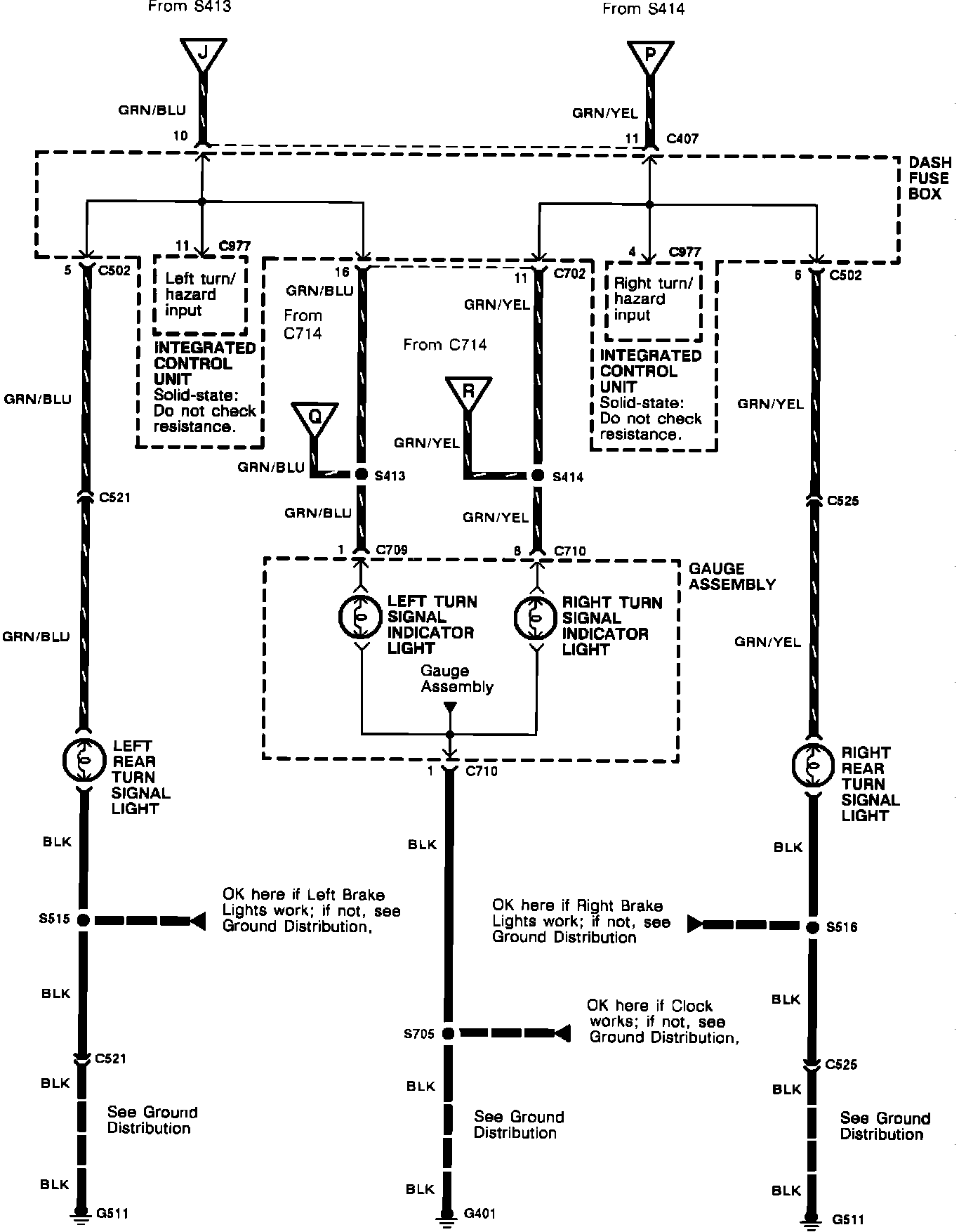

Hazard & Turn Signal Lamps - Part 2 Of 3:



Hazard & Turn Signal Lamps - Part 3 Of 3:
