California W/Automatic Transmission
California W/Automatic Transmission

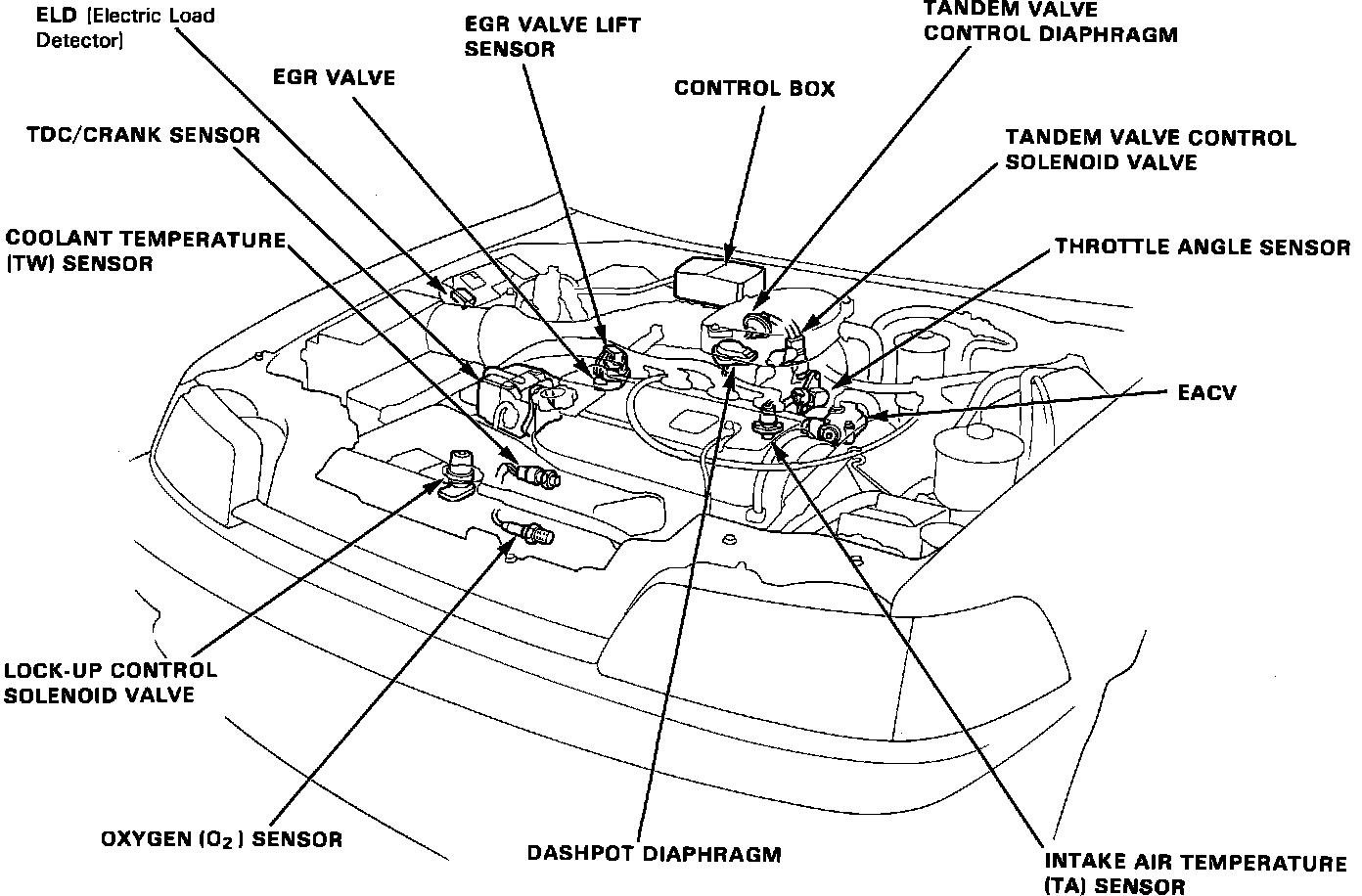

Fig. 9 Engine Compartment (1.5L Throttle Body FI) (CAL: A/T):
