Honda
>>
1990
>>
CRX Si L4-1590cc 1.6L SOHC (D16A6) MFI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

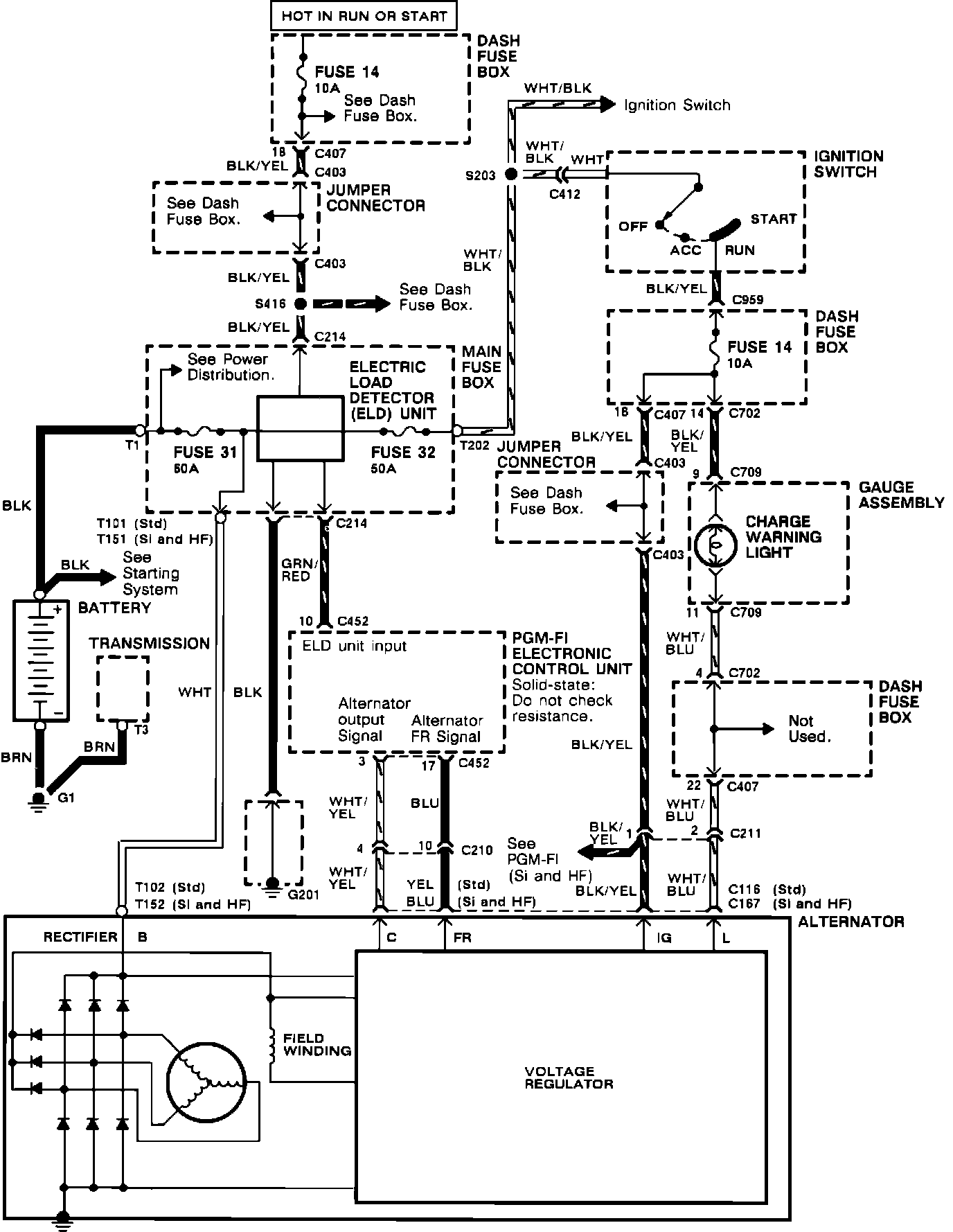

Charging System:
Charging System:
