Wiper and Washer Systems

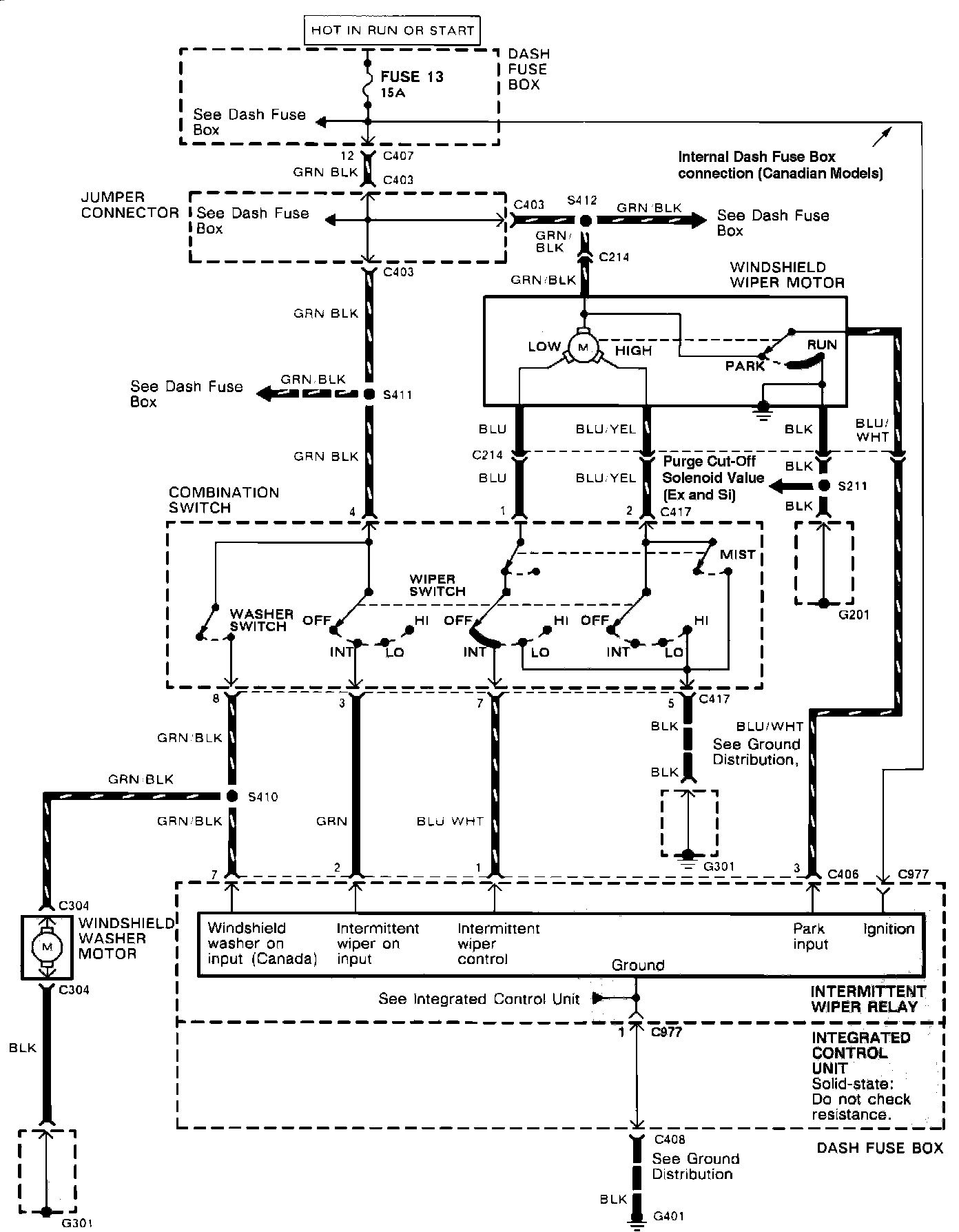

Wagon Windshield Washer/Wiper, Front. Wiring Circuit:

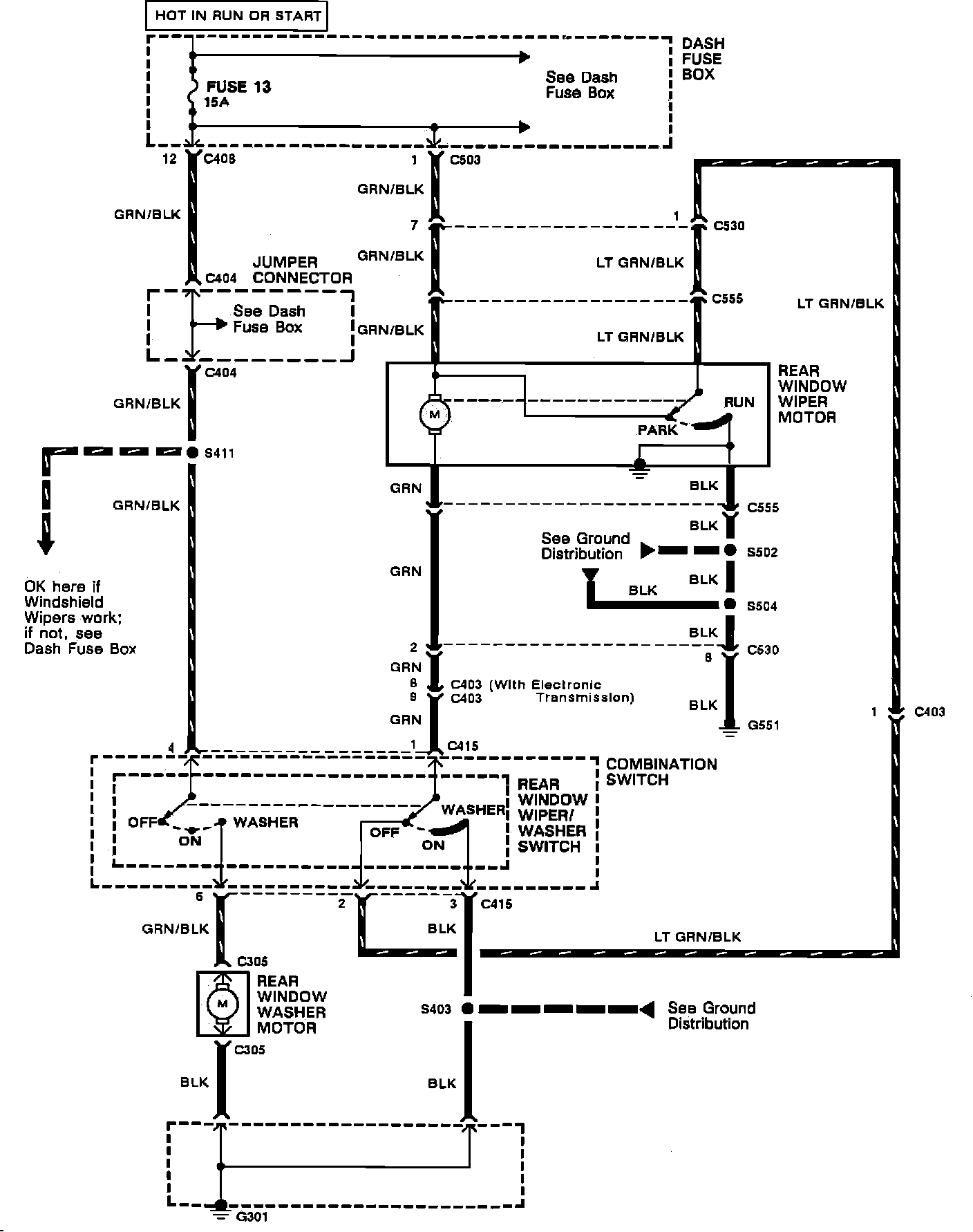

Wagon Windshield Washer/Wiper, Rear. Wiring Circuit:

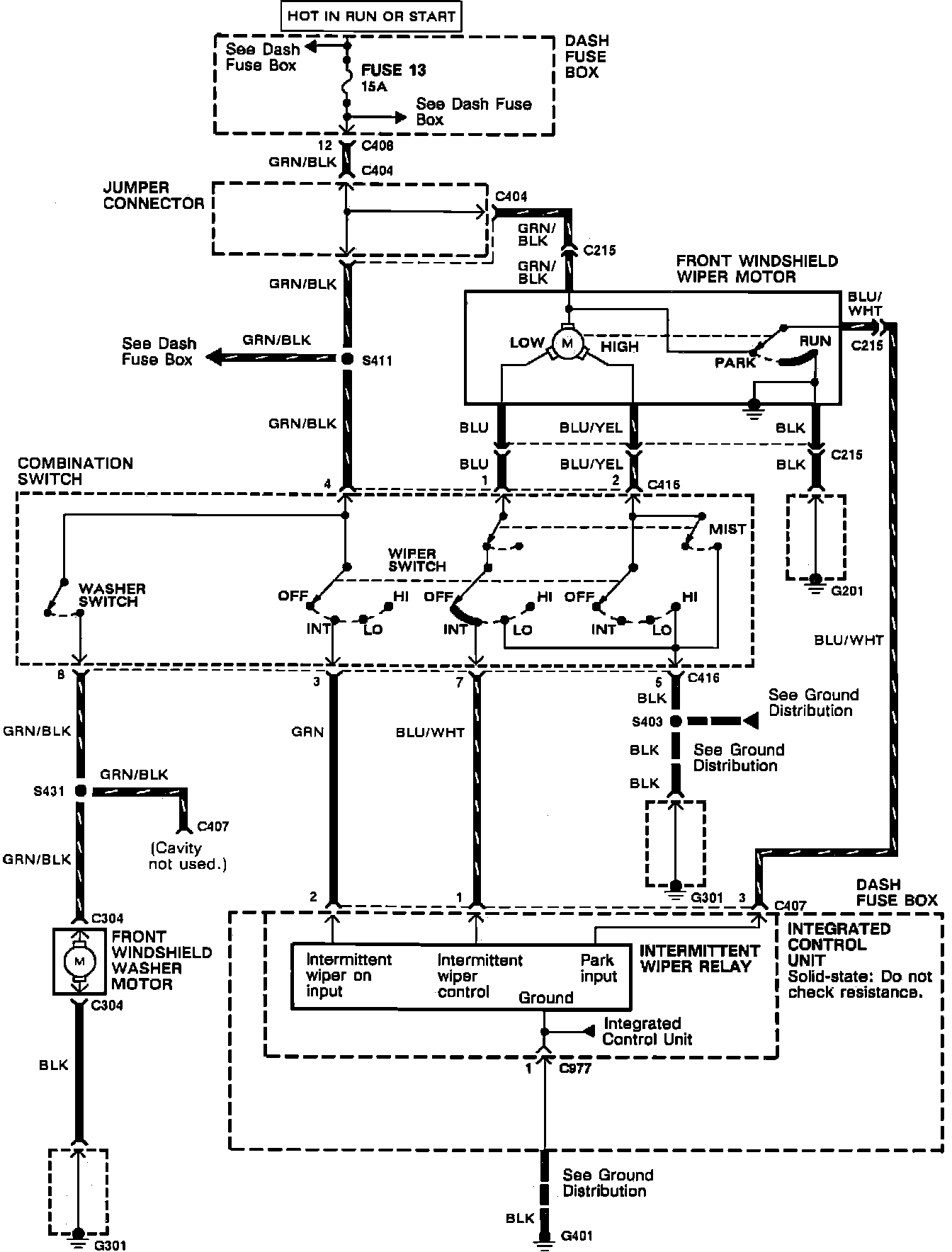

Wiper/Washer, With Pulse - Front:

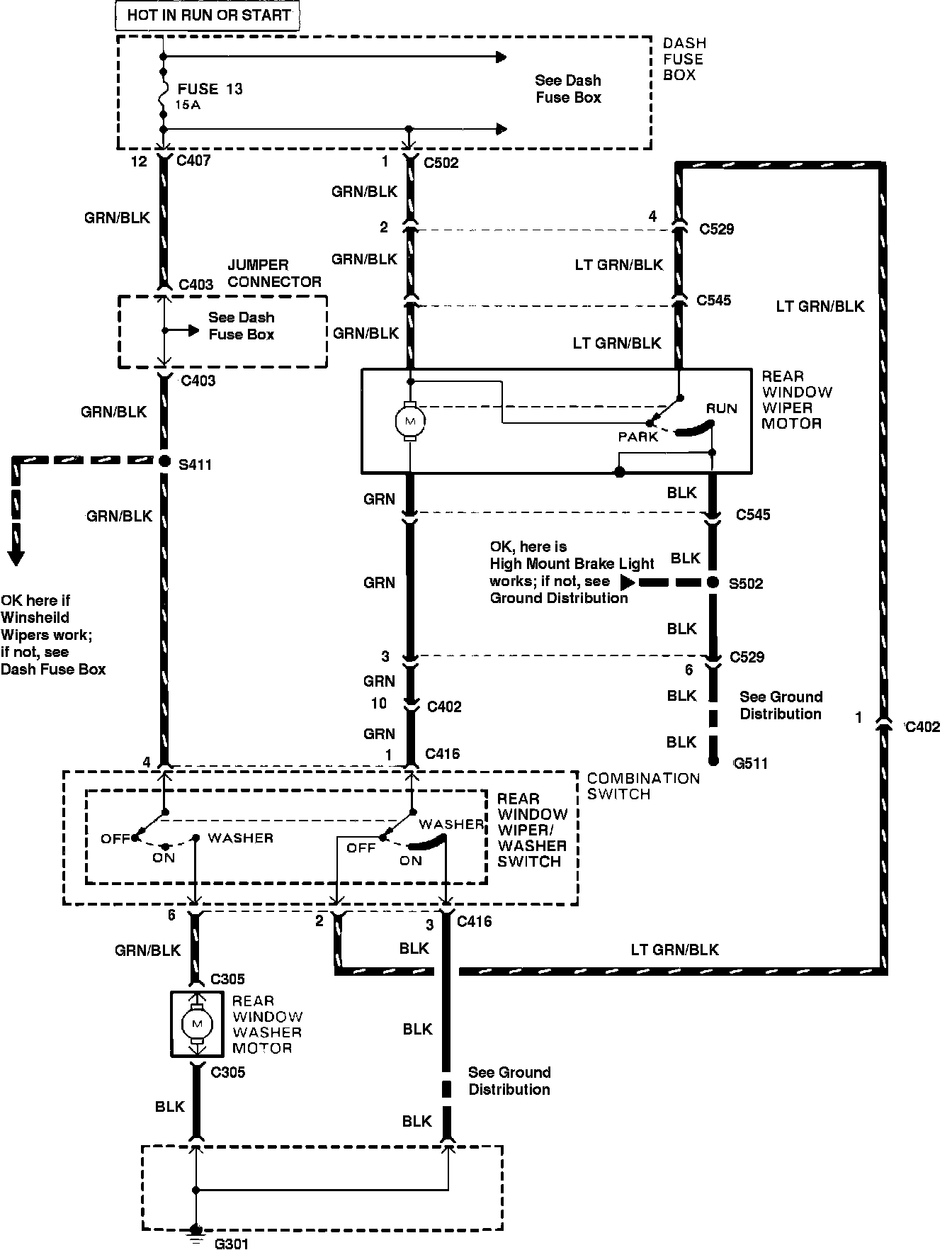

Wiper/Washer, Hatchback/Sedan - Rear:
