Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1990
>>
Civic Hatchback L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
Hatchback and Sedan
Hatchback and Sedan

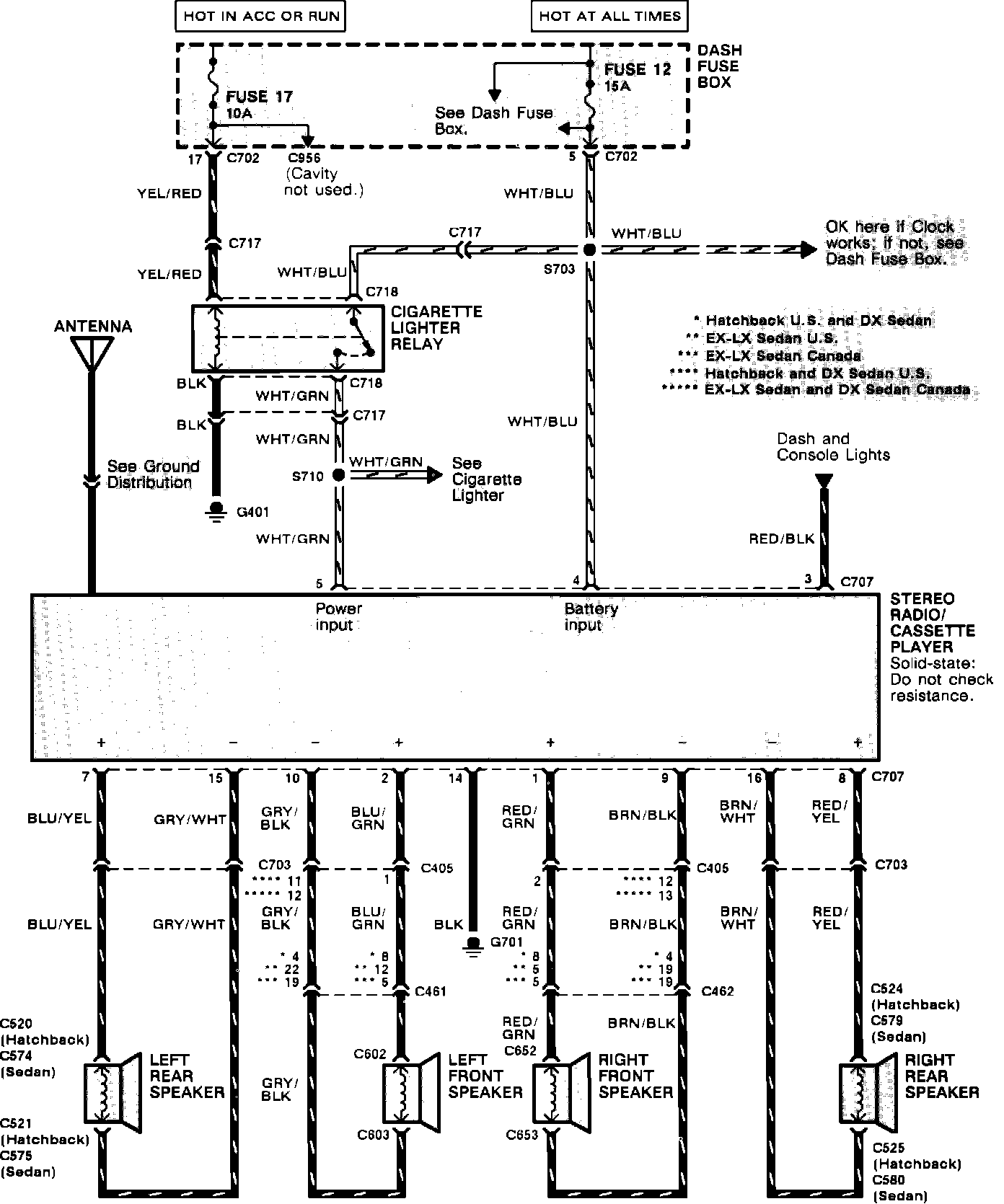

Radio & Speakers:
