Electrical Diagrams

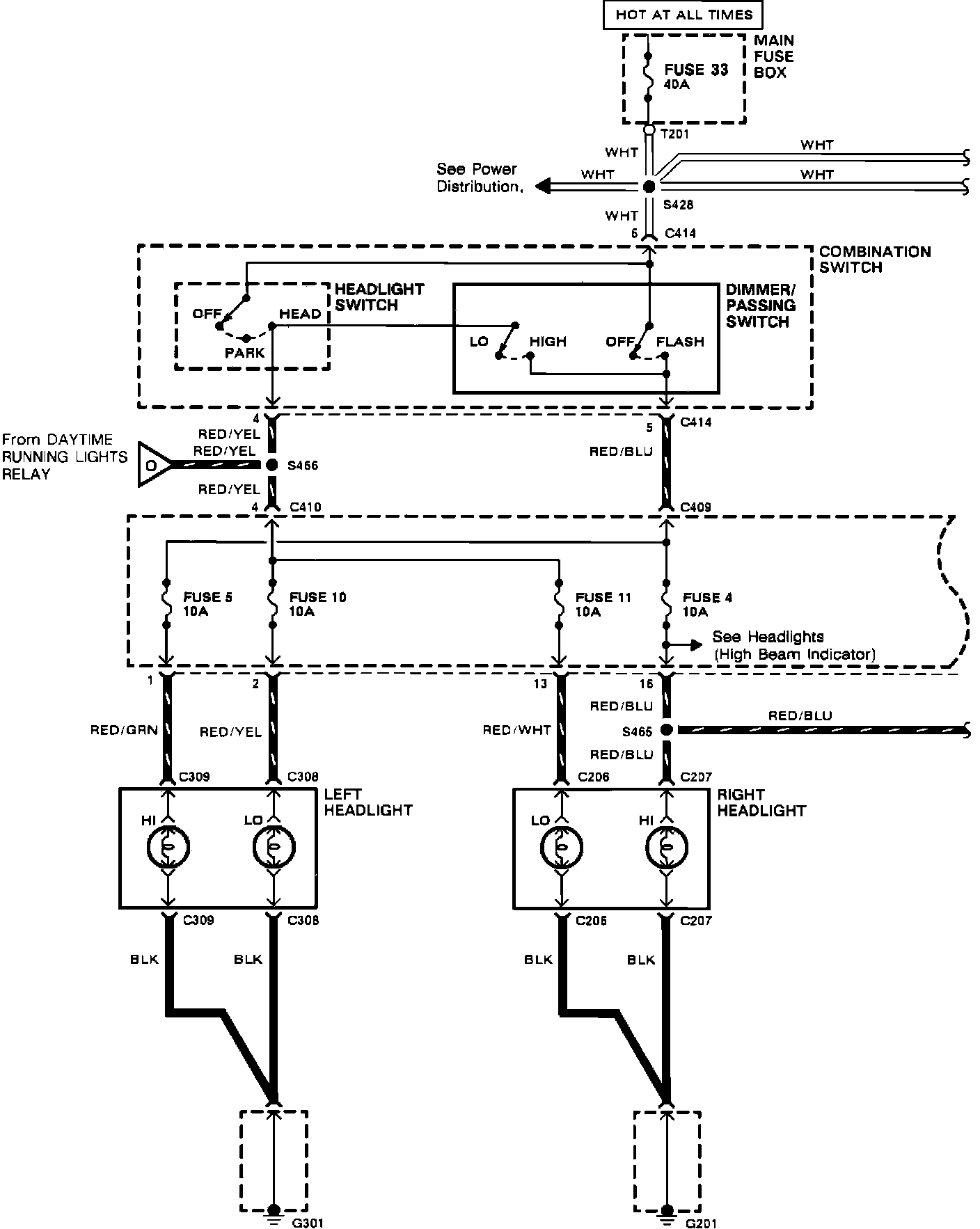

Daytime Running Lamps- Part 1 Of 4:

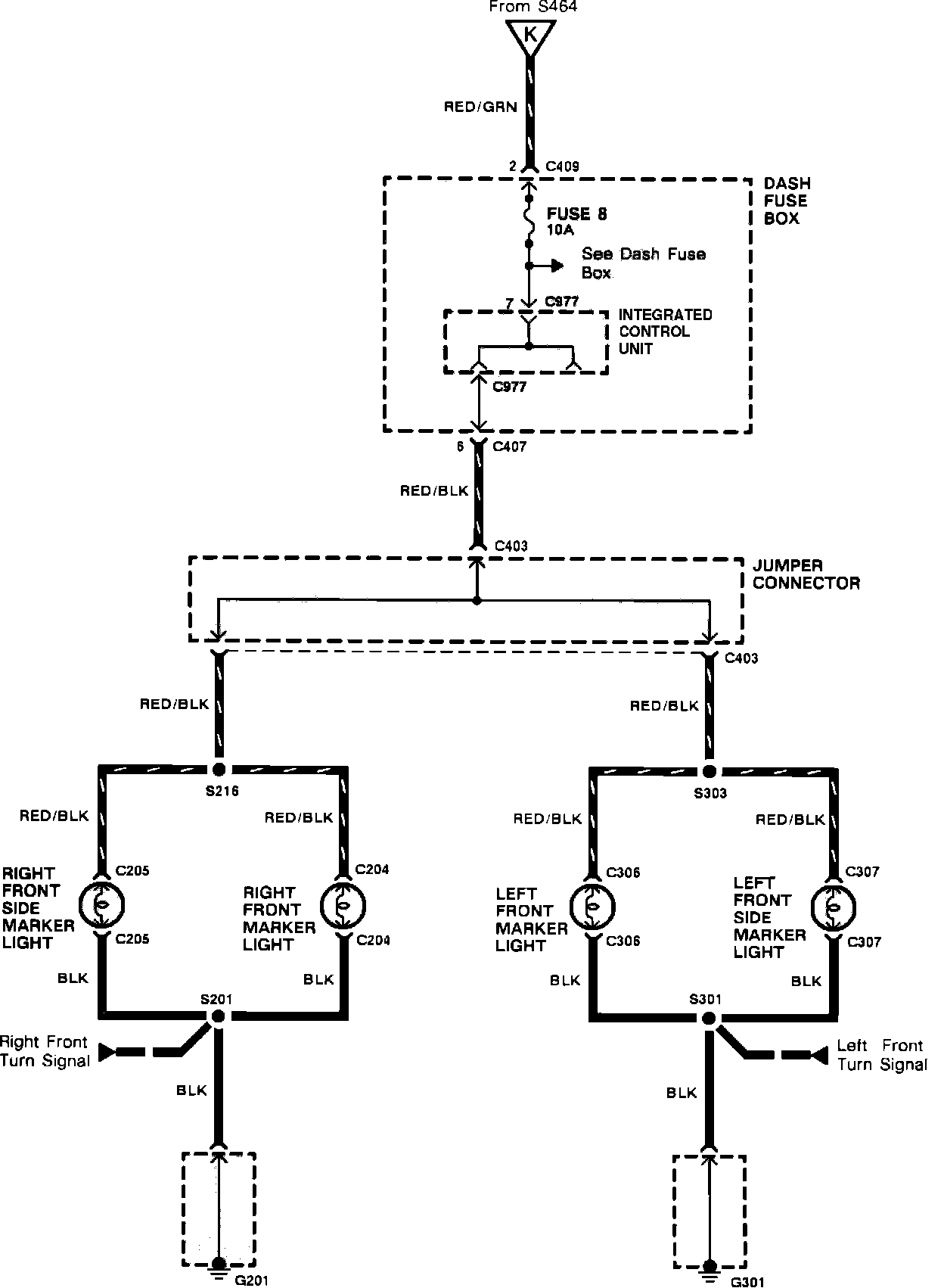

Daytime Running Lamps - Part 2 Of 4:

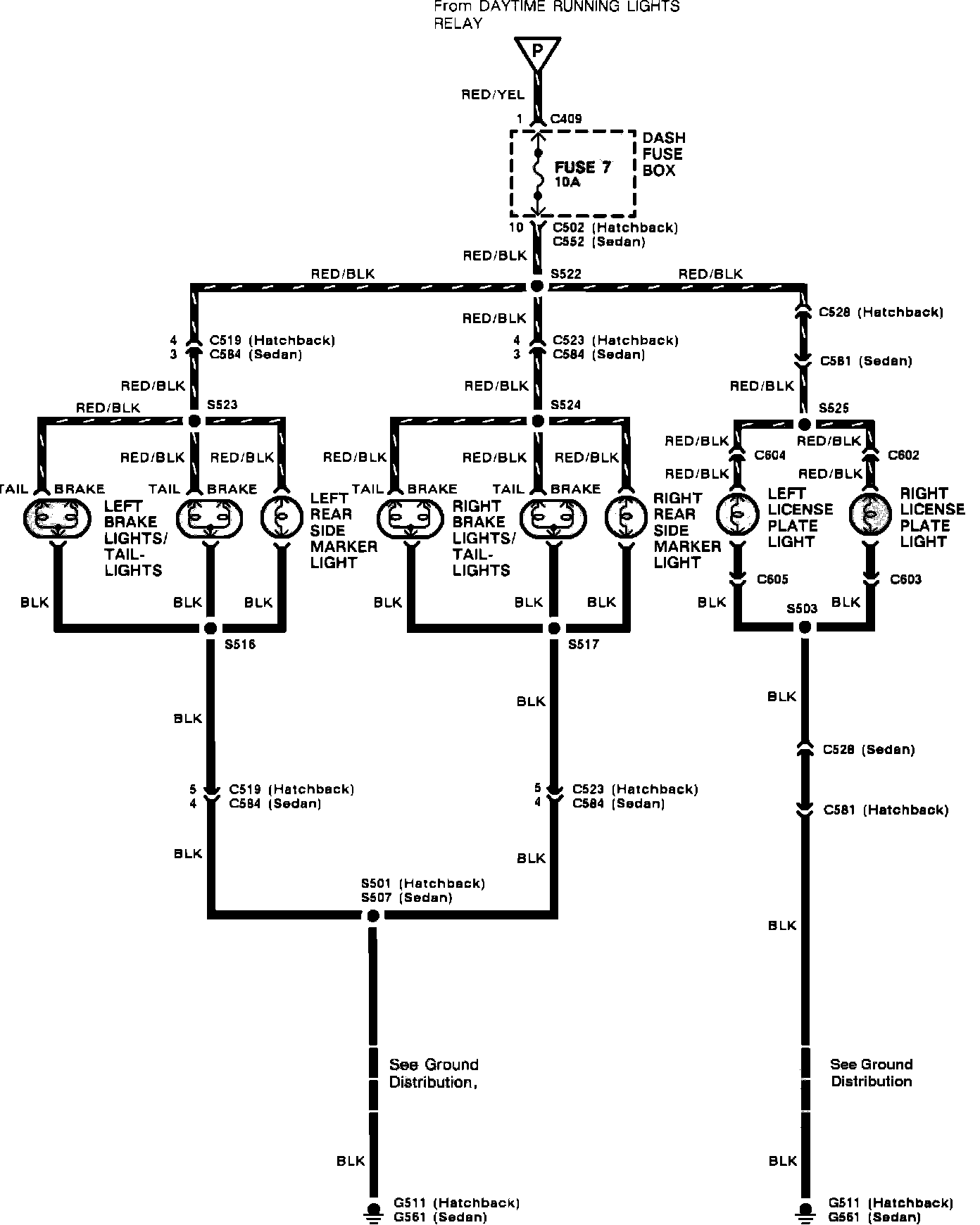

Daytime Running Lamps - Part 3 Of 4:



Daytime Running Lamps - Part 4 Of 4:
