Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1990
>>
Civic Hatchback Si L4-1590cc 1.6L SOHC (D16A6) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Audible Warning Device
>>
Hatchback/Sedan
Hatchback/Sedan

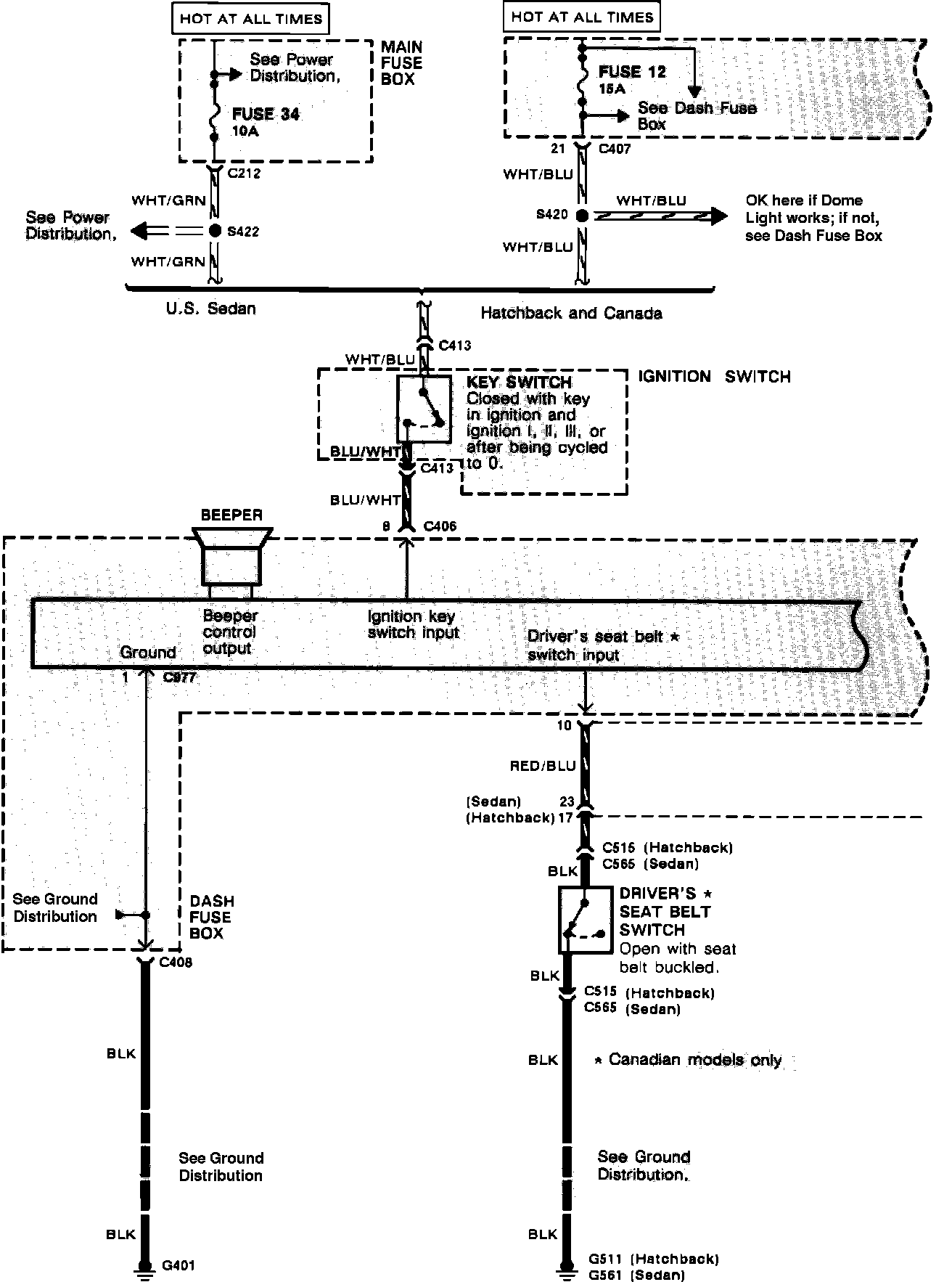

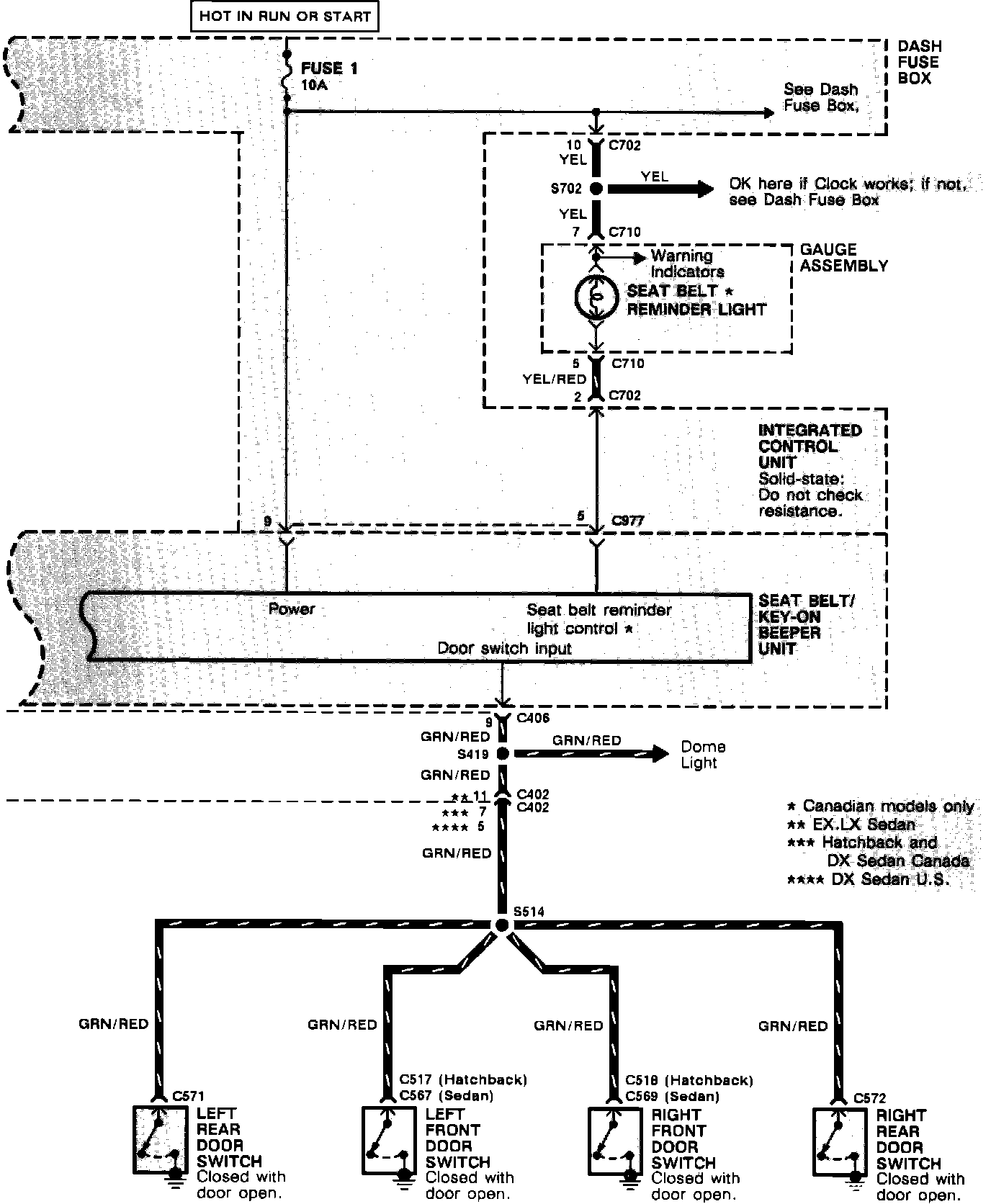

Key-On & Seat Belt Warning:
Key-On & Seat Belt Warning:
