Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

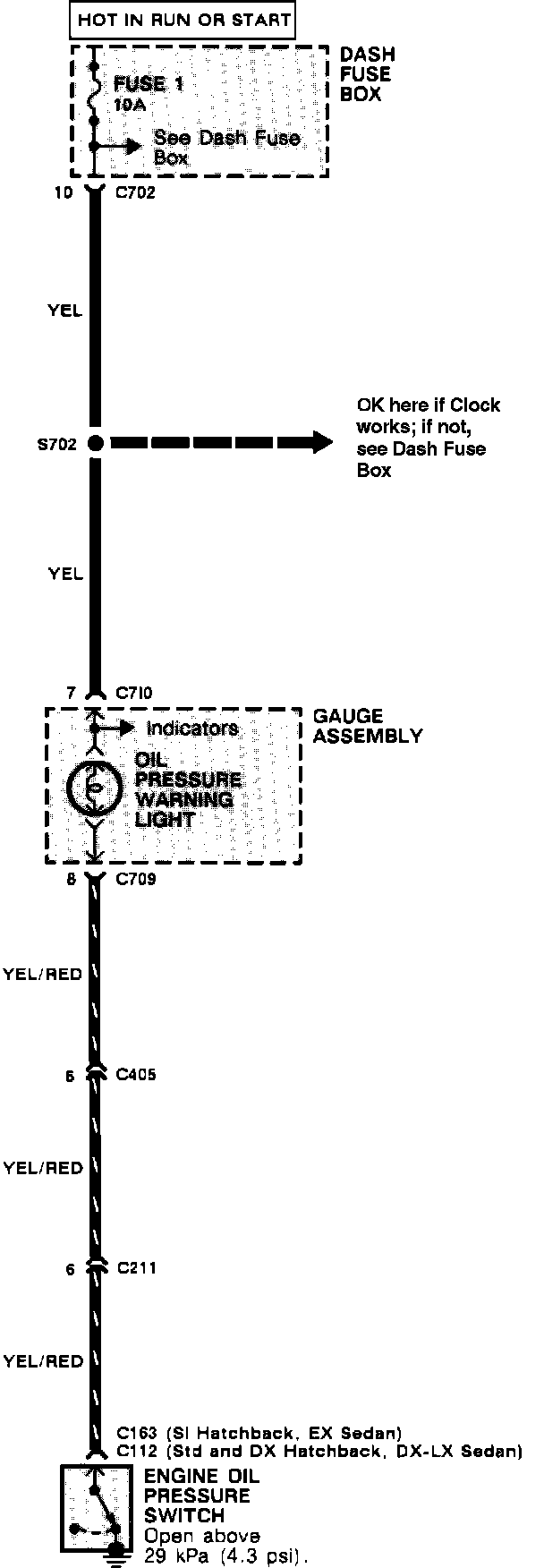

Oil Pressure Warning (Hatchback/Sedan):
Oil Pressure Warning:
