Home >> Honda >> 1990 >> Civic Hatchback Si L4-1590cc 1.6L SOHC (D16A6) MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Hatchback/Sedan >> Fuse 1, 13 and 14 >> Part 1 of 2

Part 1 of 2

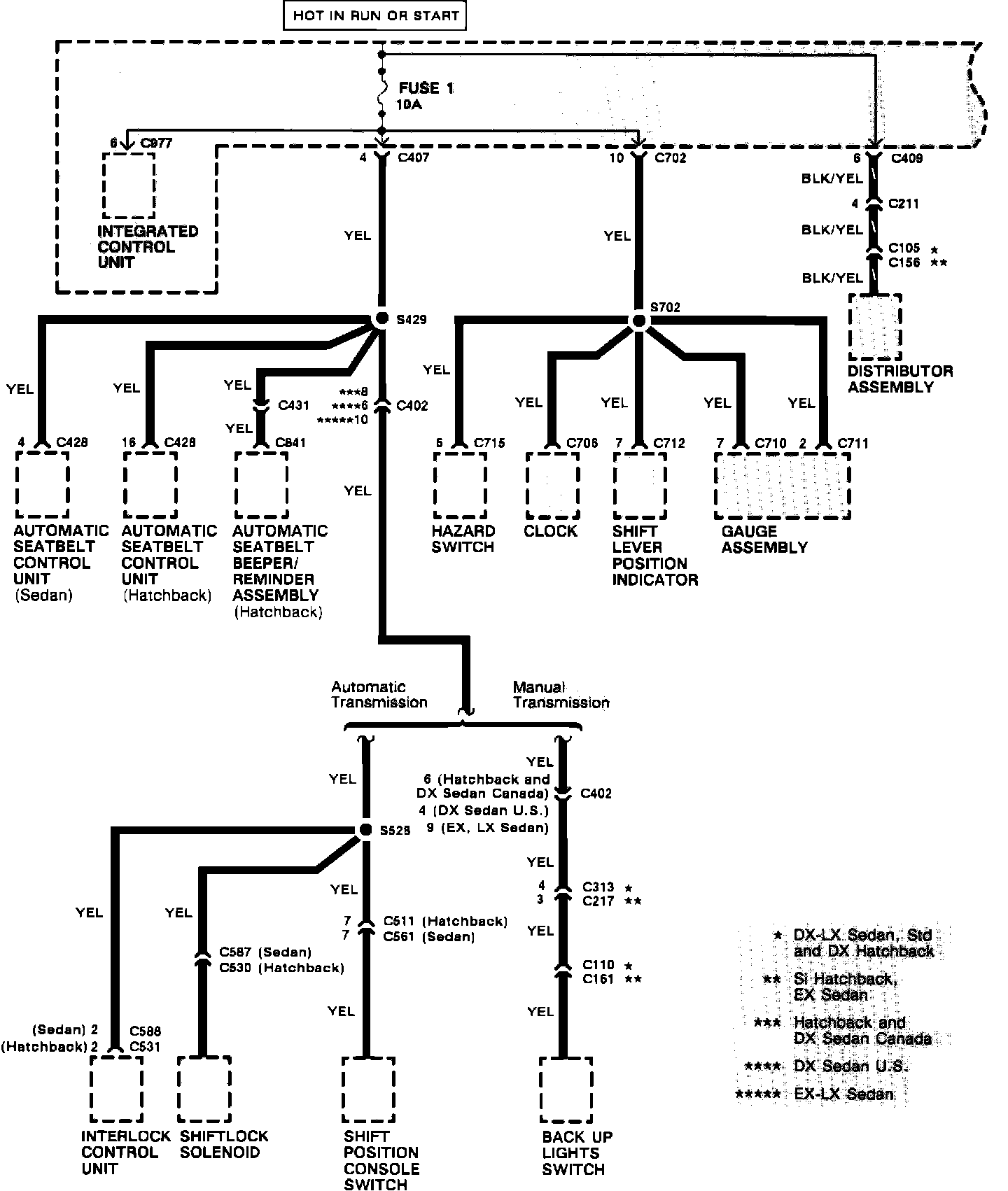

Fuses 1, 13 & 14:
