Home >> Honda >> 1990 >> Civic Wagon 2WD L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Computers and Control Systems >> System Diagram

System Diagram

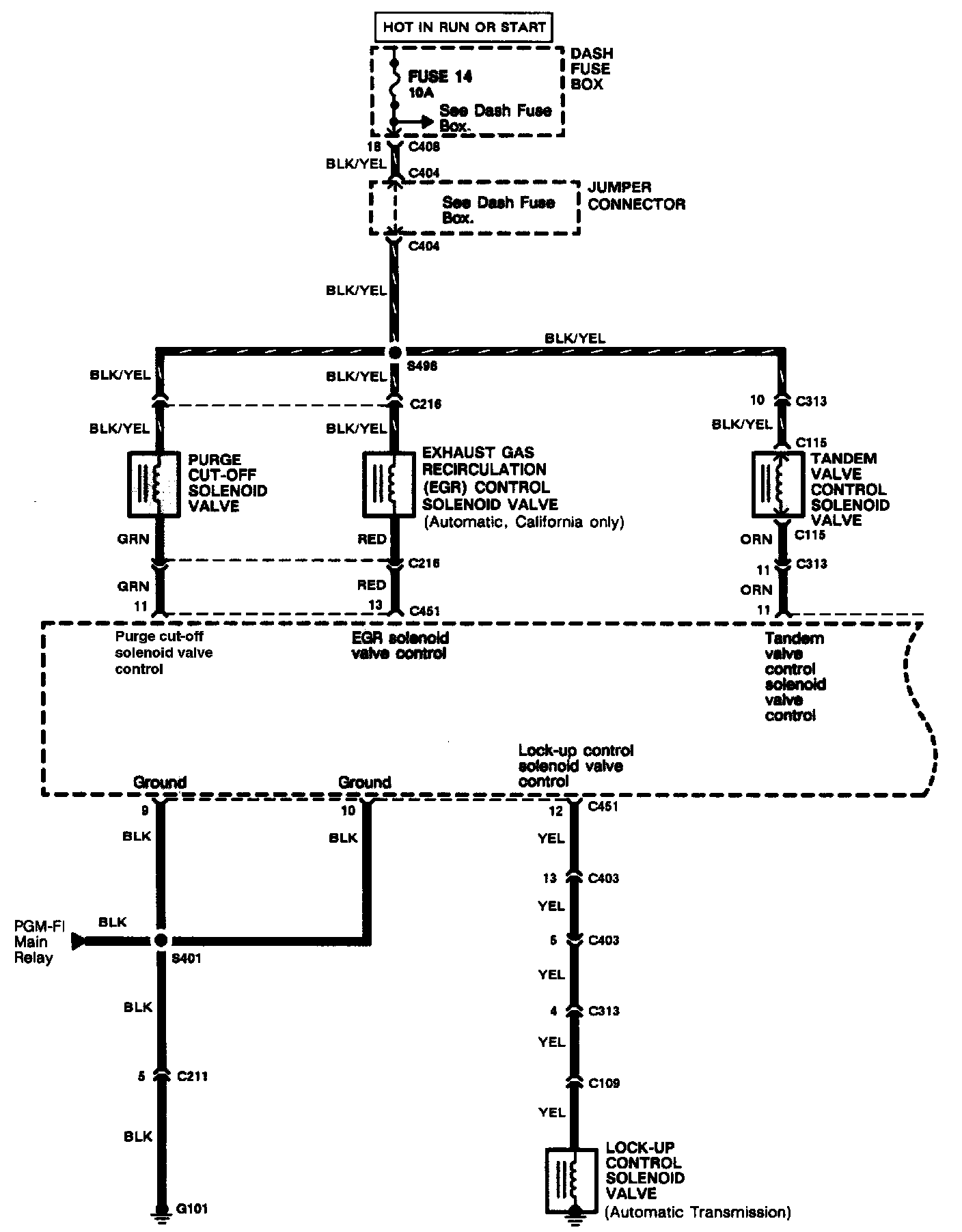

Part 1 Of 9:

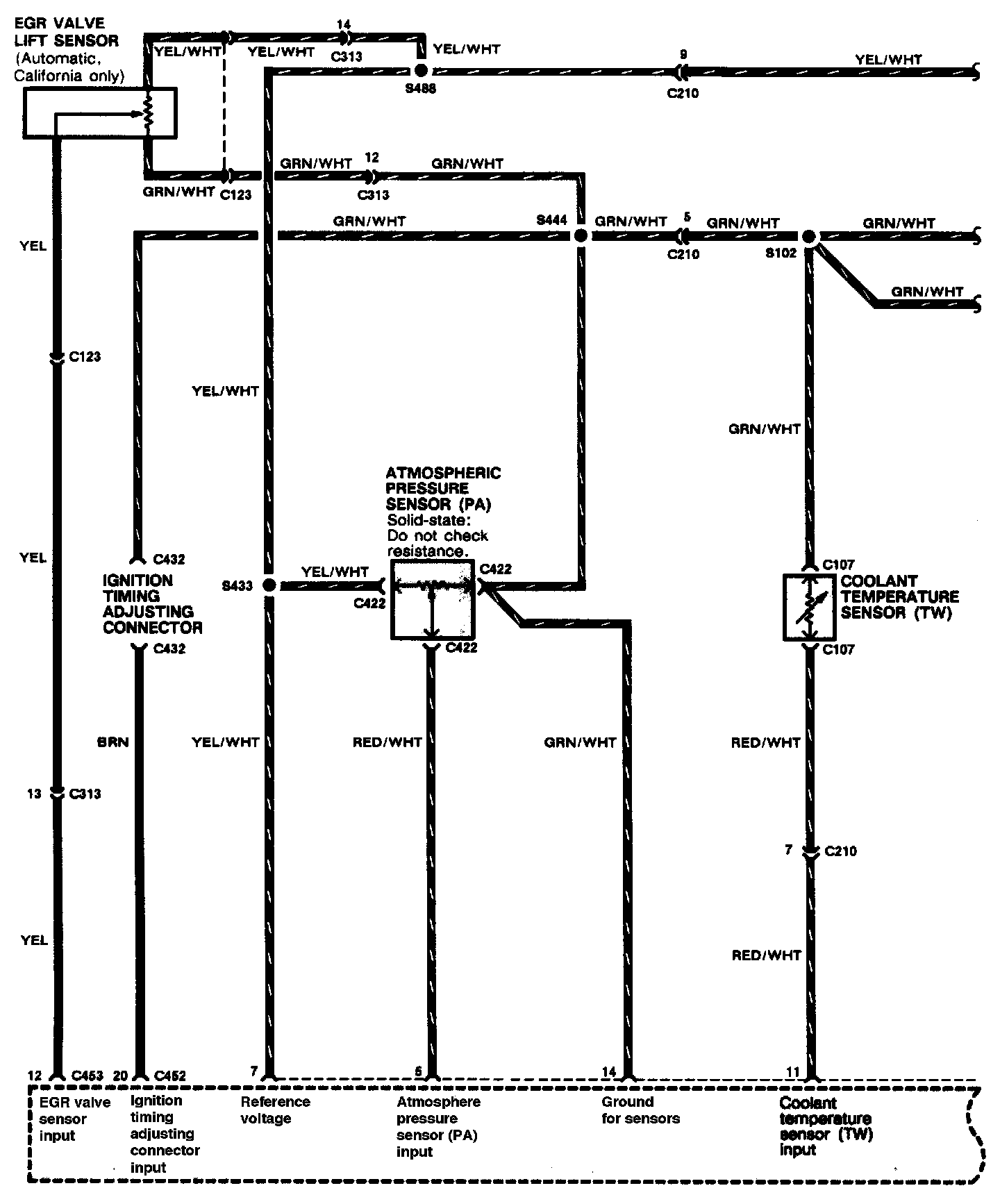

Part 2 Of 9:

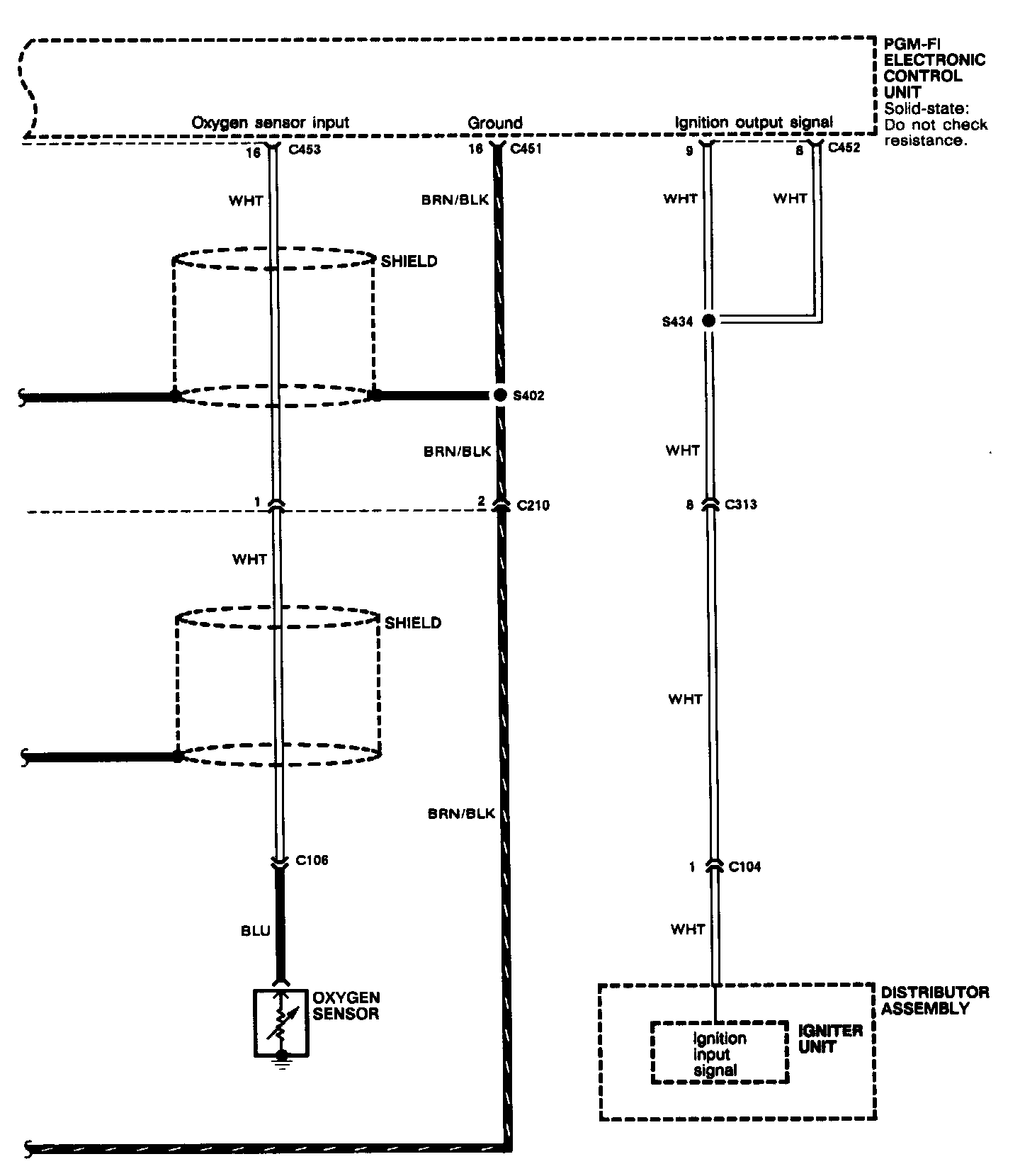

Part 3 Of 9:

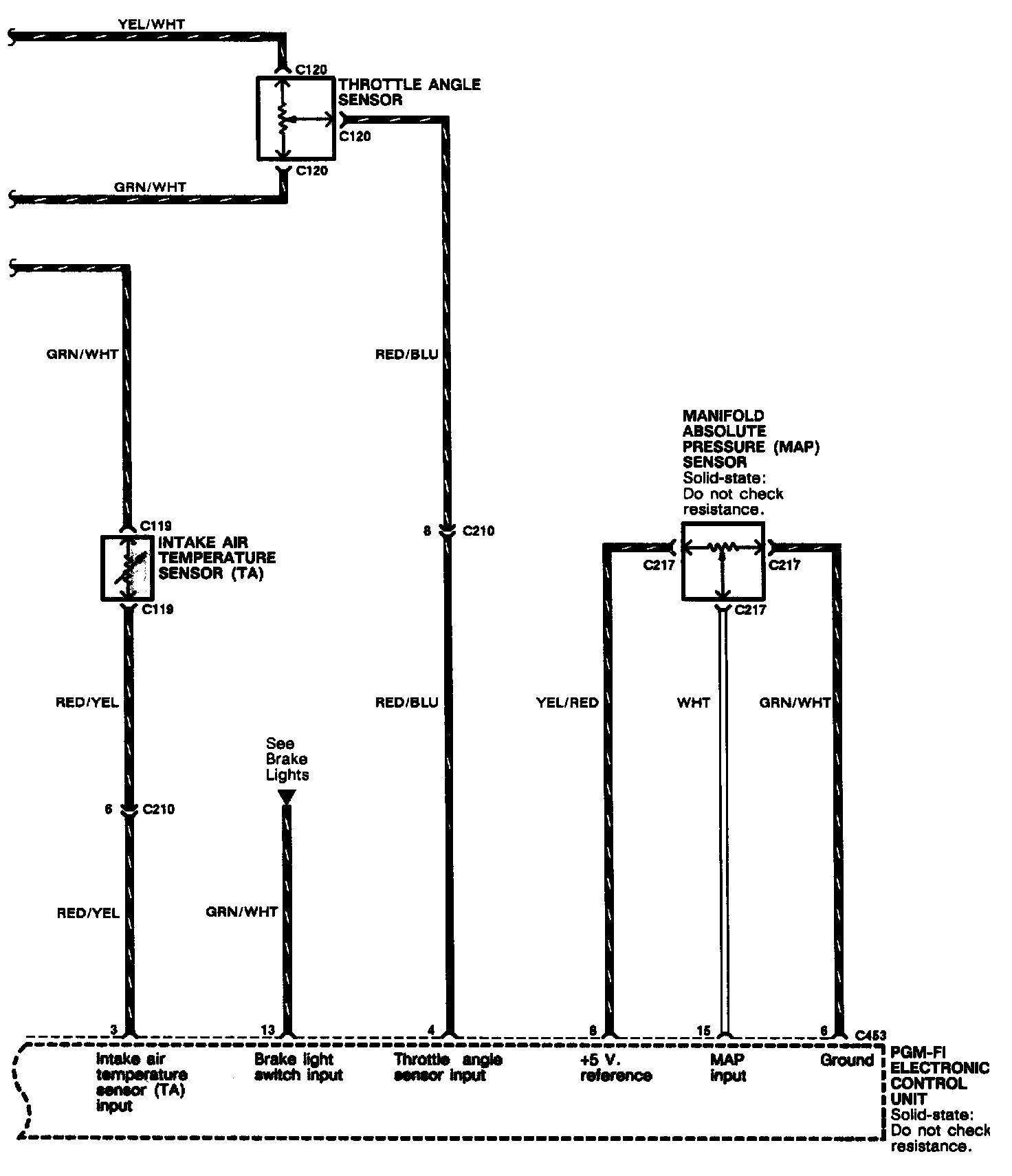

Part 4 Of 9:

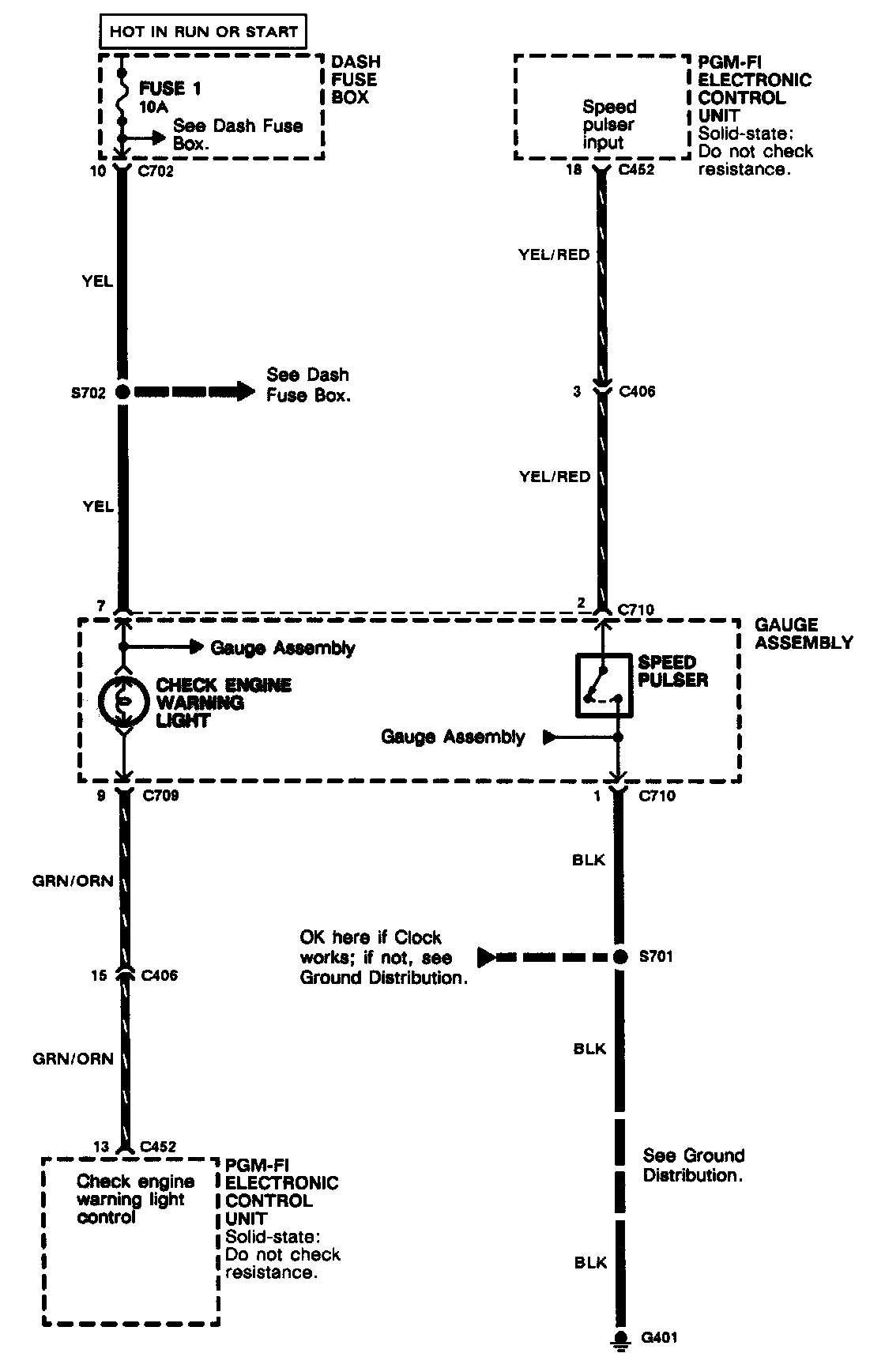

Part 5 Of 9:

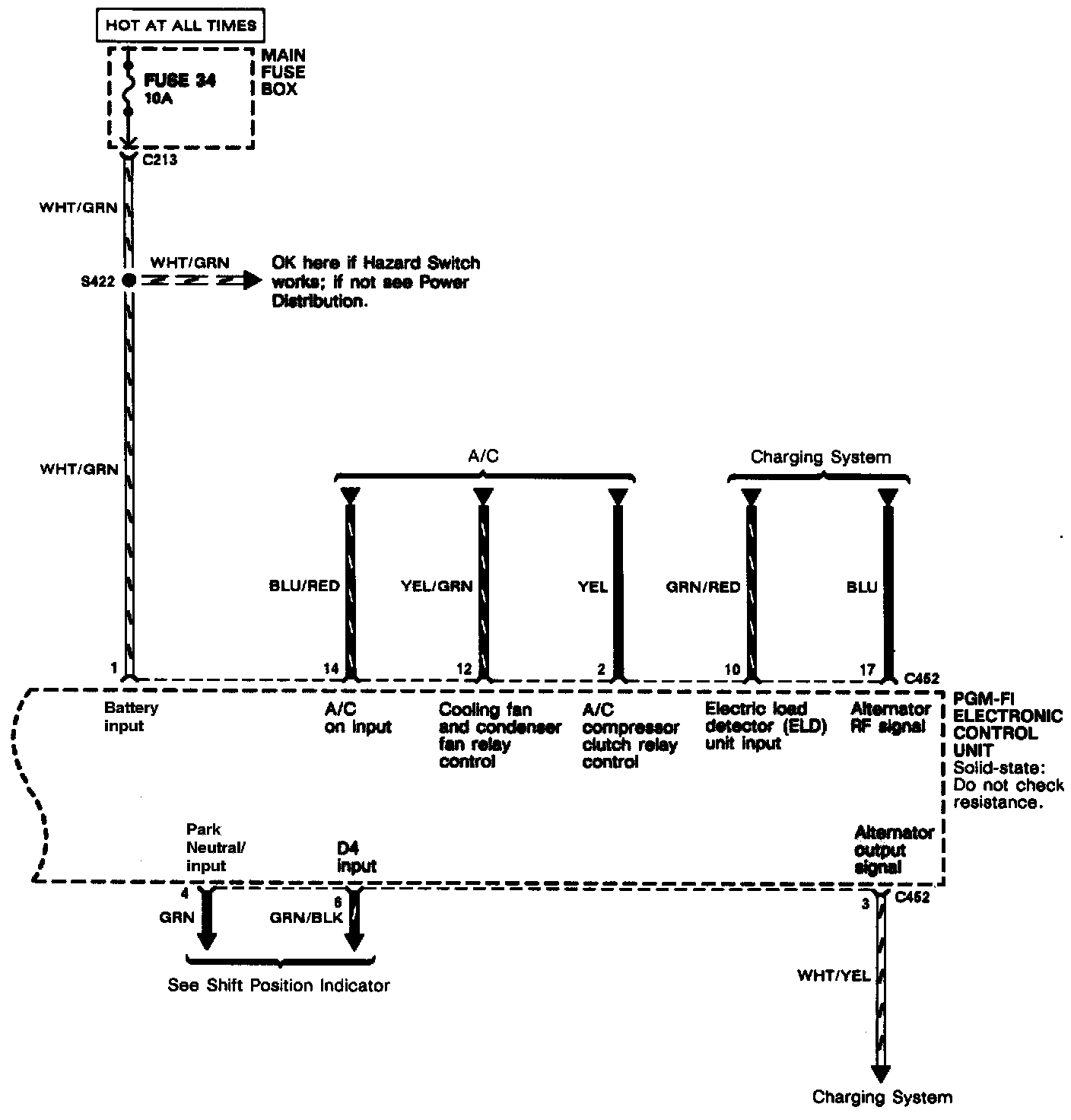

Part 6 Of 9:



Part 7 Of 9:



Part 8 Of 9:



Part 9 Of 9:
