With Air Conditioning

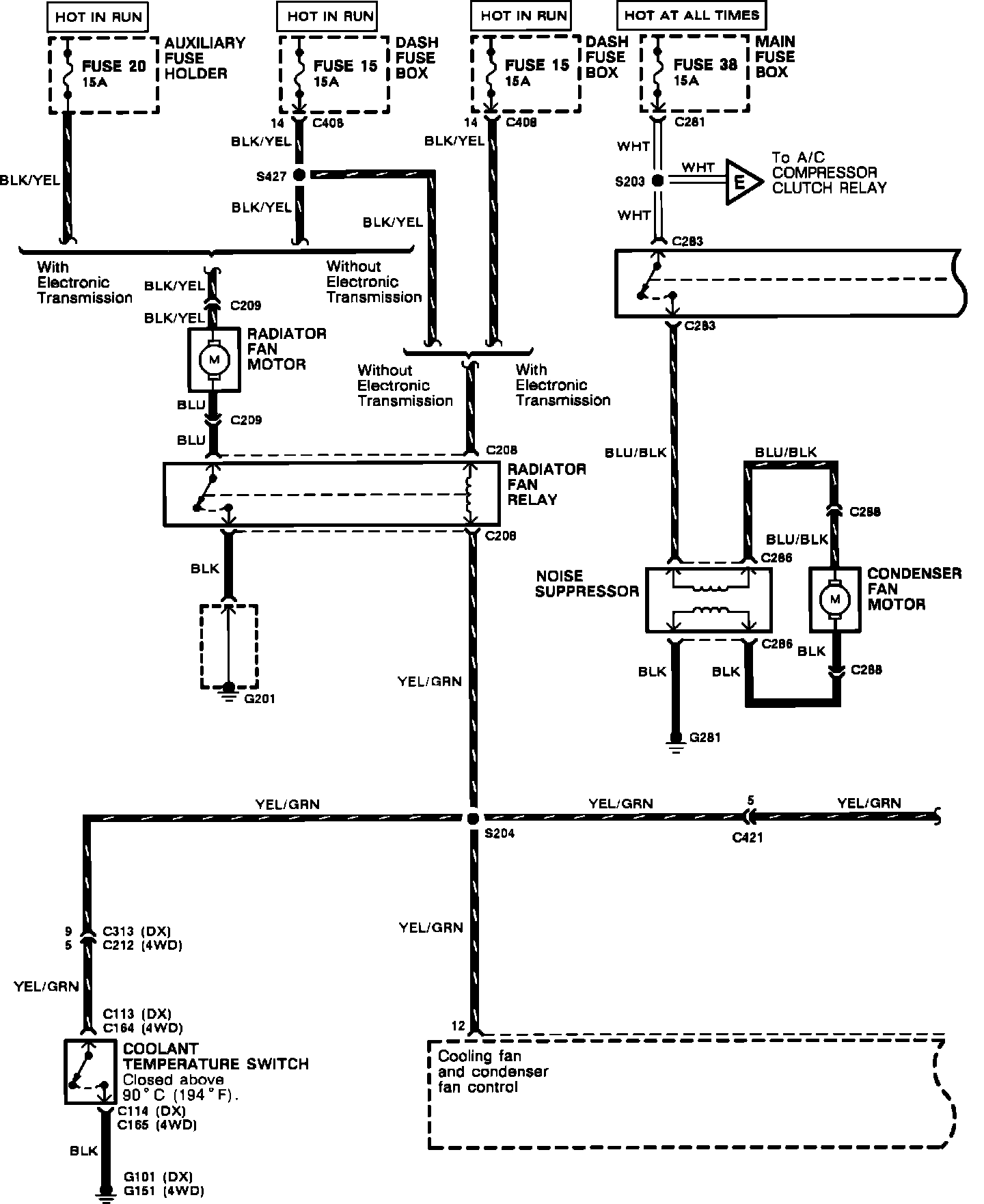

Fig. 4 Cooling Fan Wiring Circuit. 1989-91 Civic Wagon 4WD w/fuel Injection:



Compressor & Fan Control U.S. Vehicles:



Compressor & Fan Control Canadian Vehicles:
