Home >> Honda >> 1990 >> Prelude L4-1958cc DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Vanity Lamp

Vanity Lamp

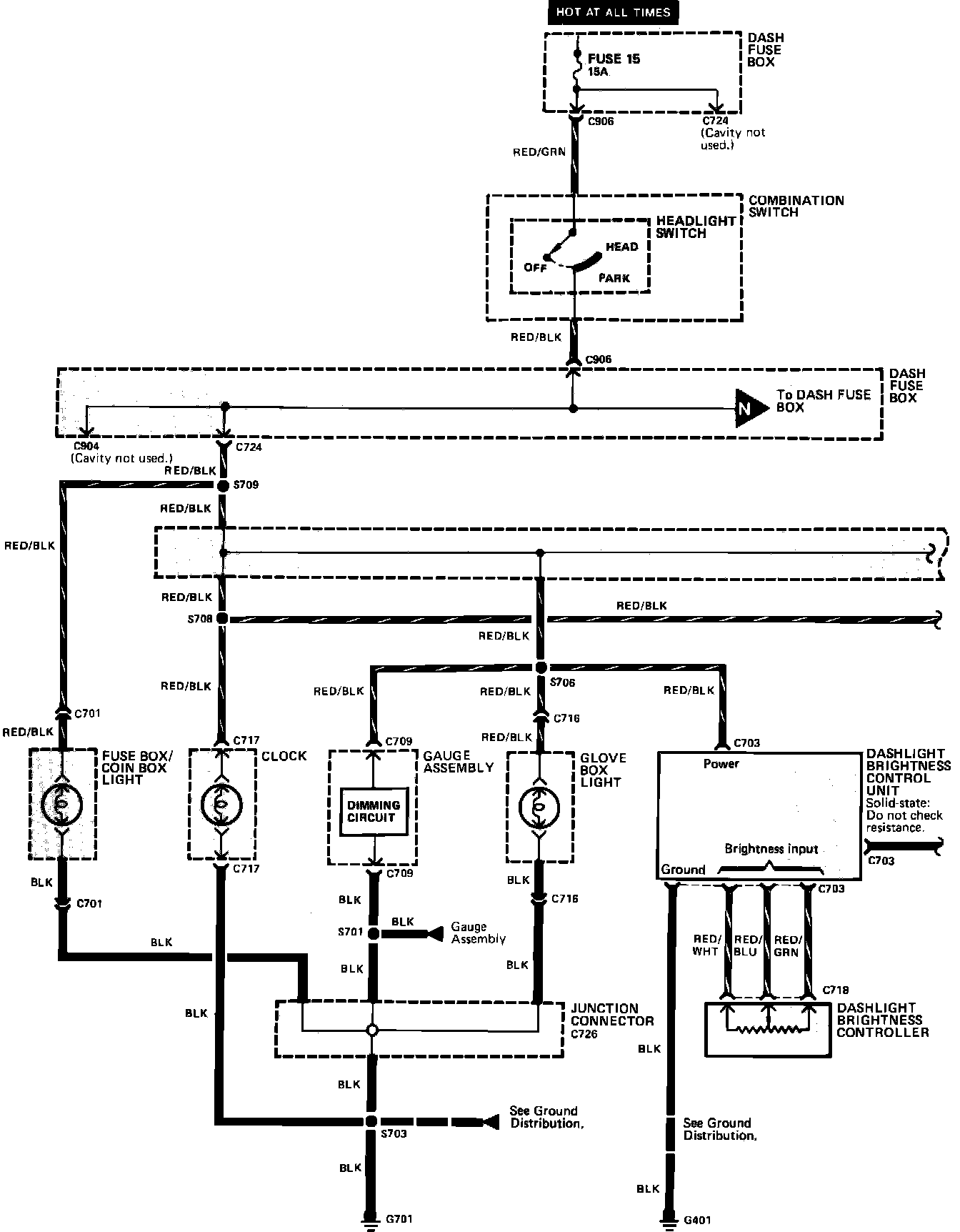

Console & Dash Lamps:

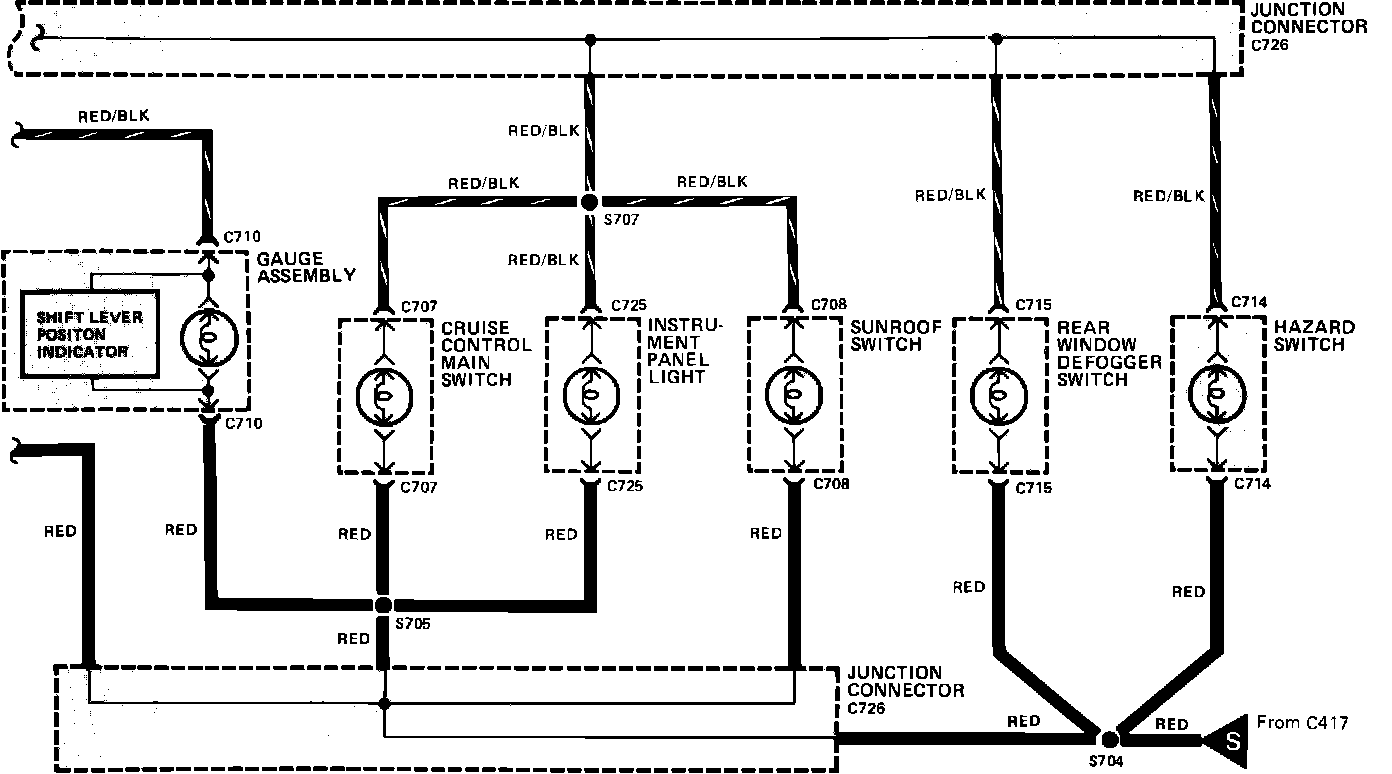

Console & Dash Lamps:

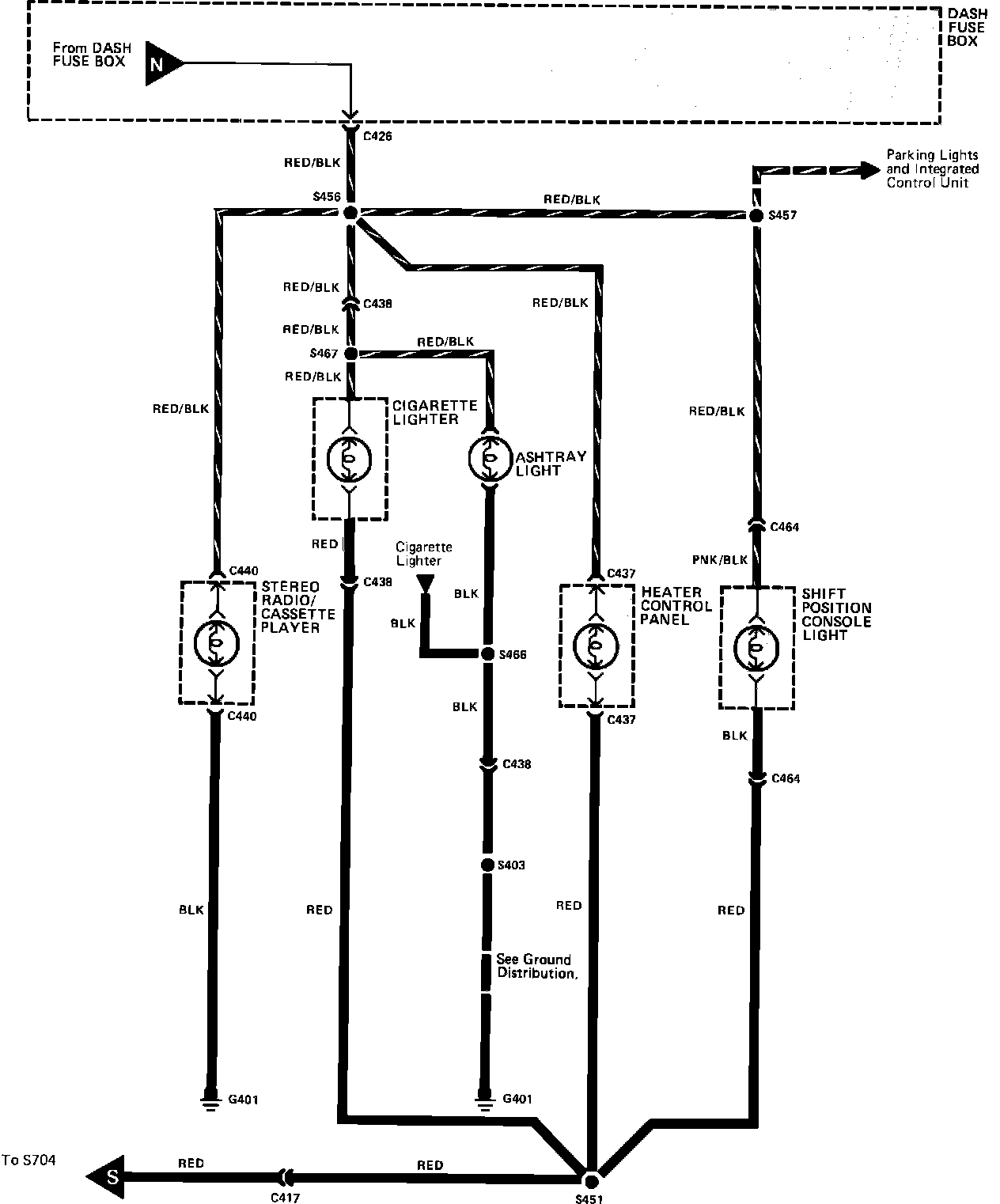

Console & Dash Lamps:
