Torque Specifications

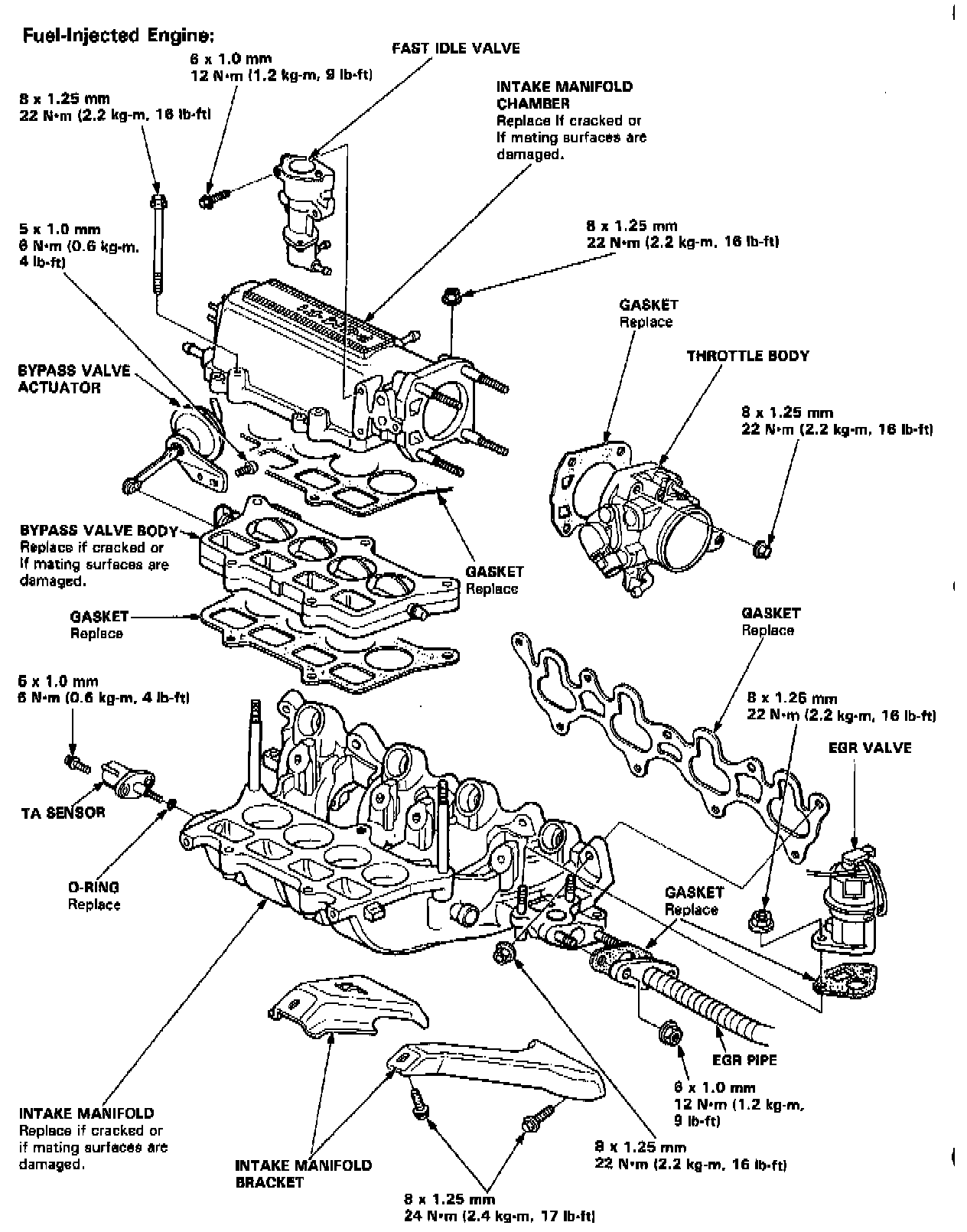

Intake (FUEL INJECTED):

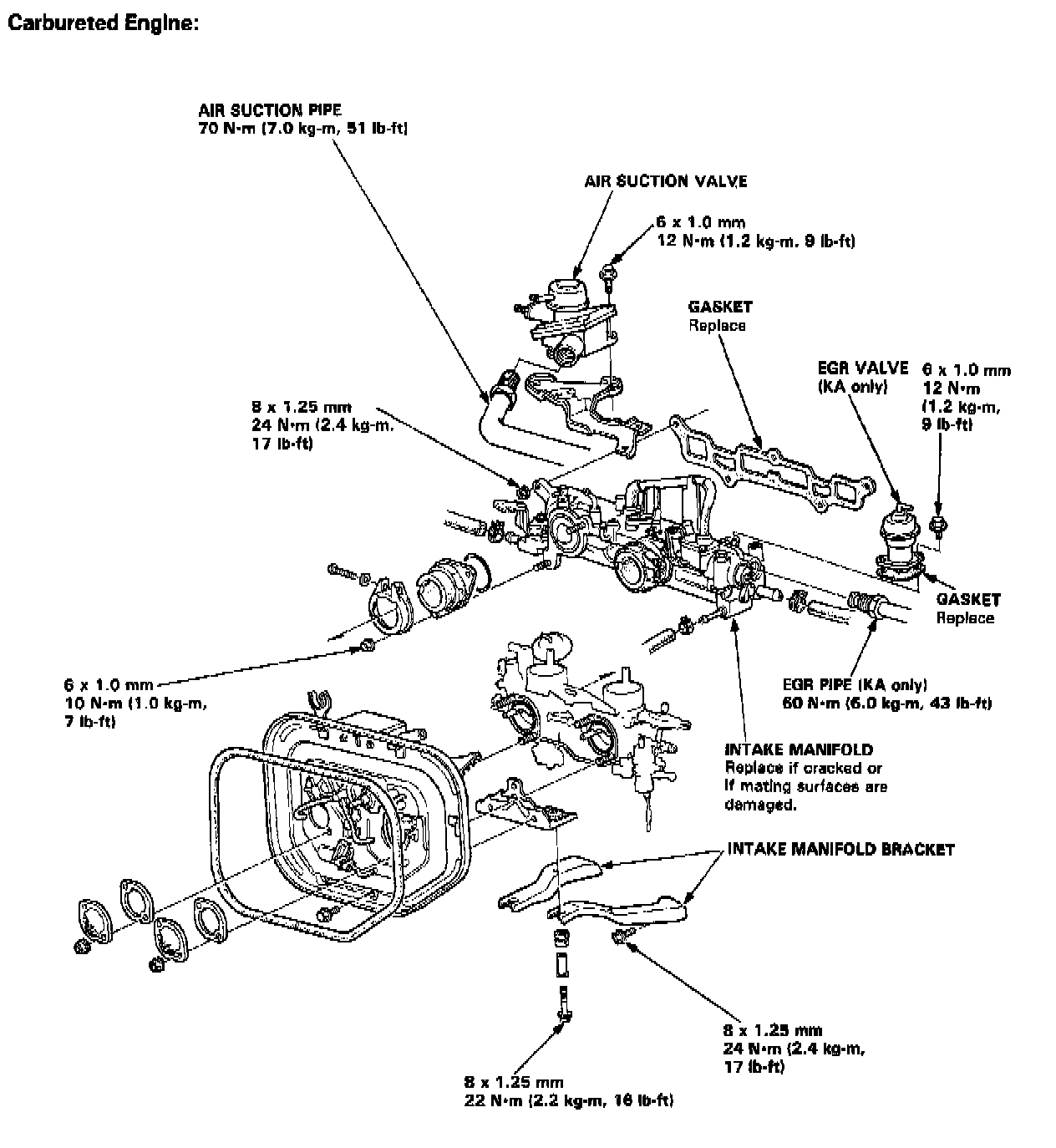

Intake (CARB):

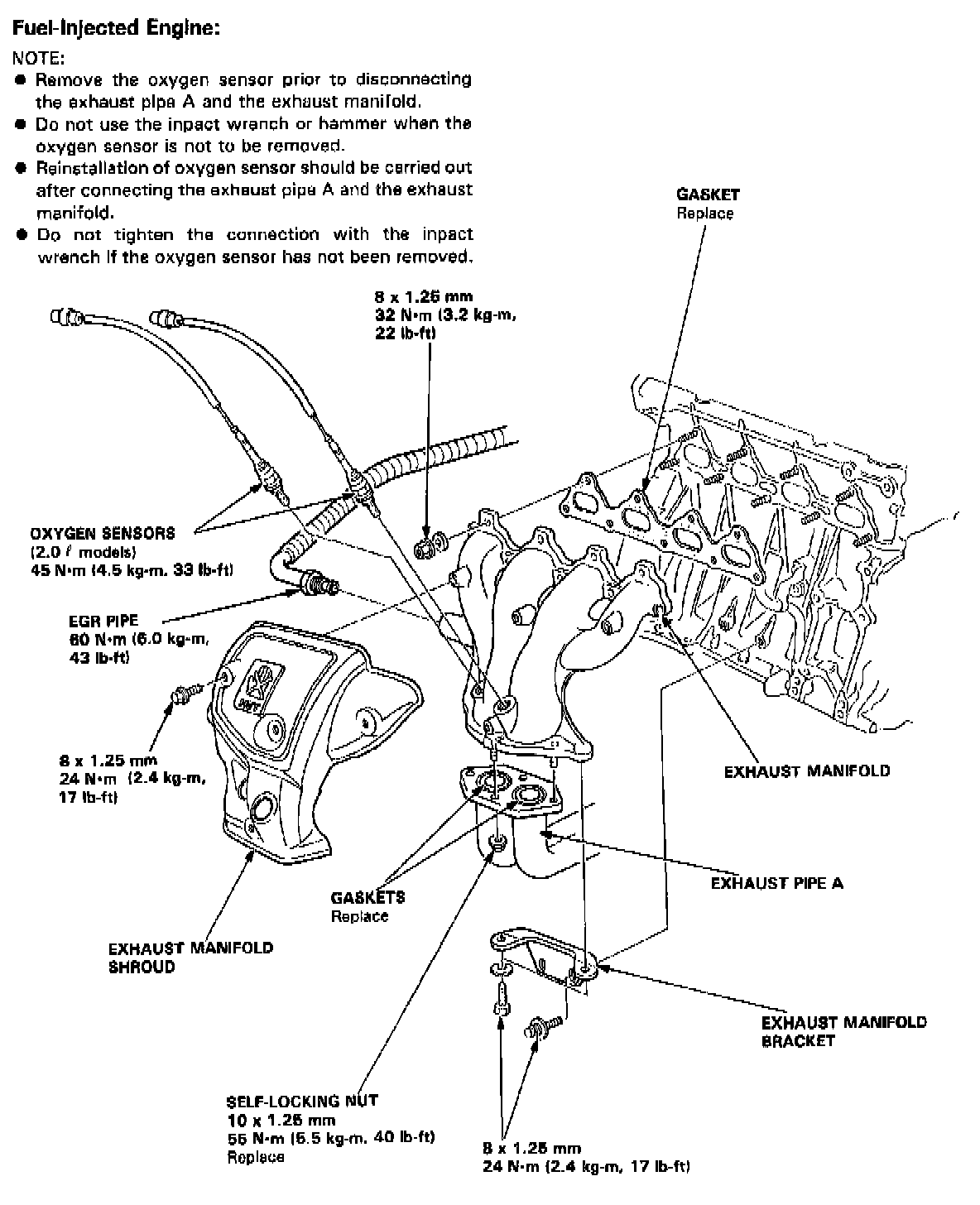

Exhaust Manifold (FUEL INJECTED):

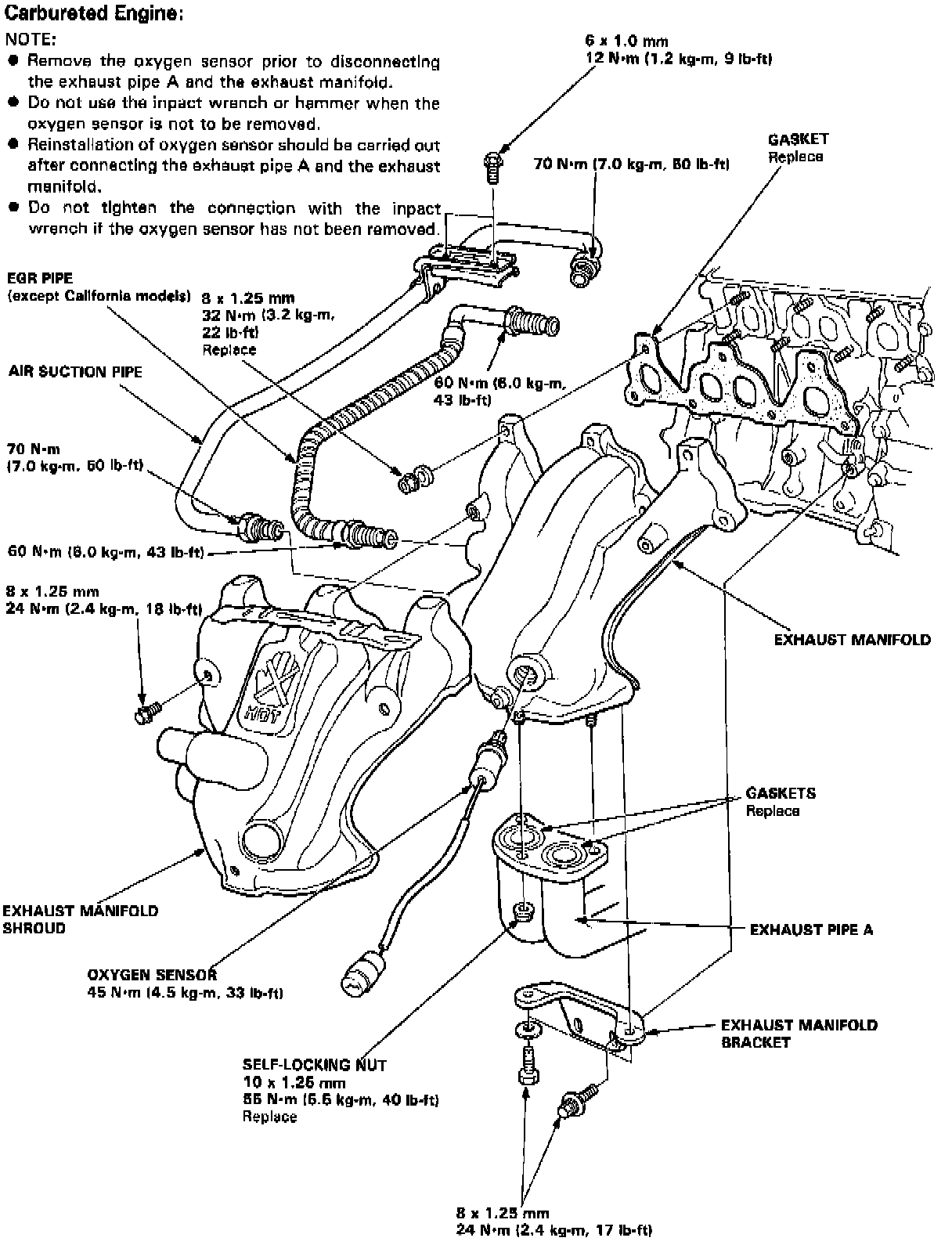

Exhaust Manifold (CARB):

Cylinder Head (FUEL INJECTED):

Cylinder Head Assembly (CARB):

Head (FUEL INJECTED):

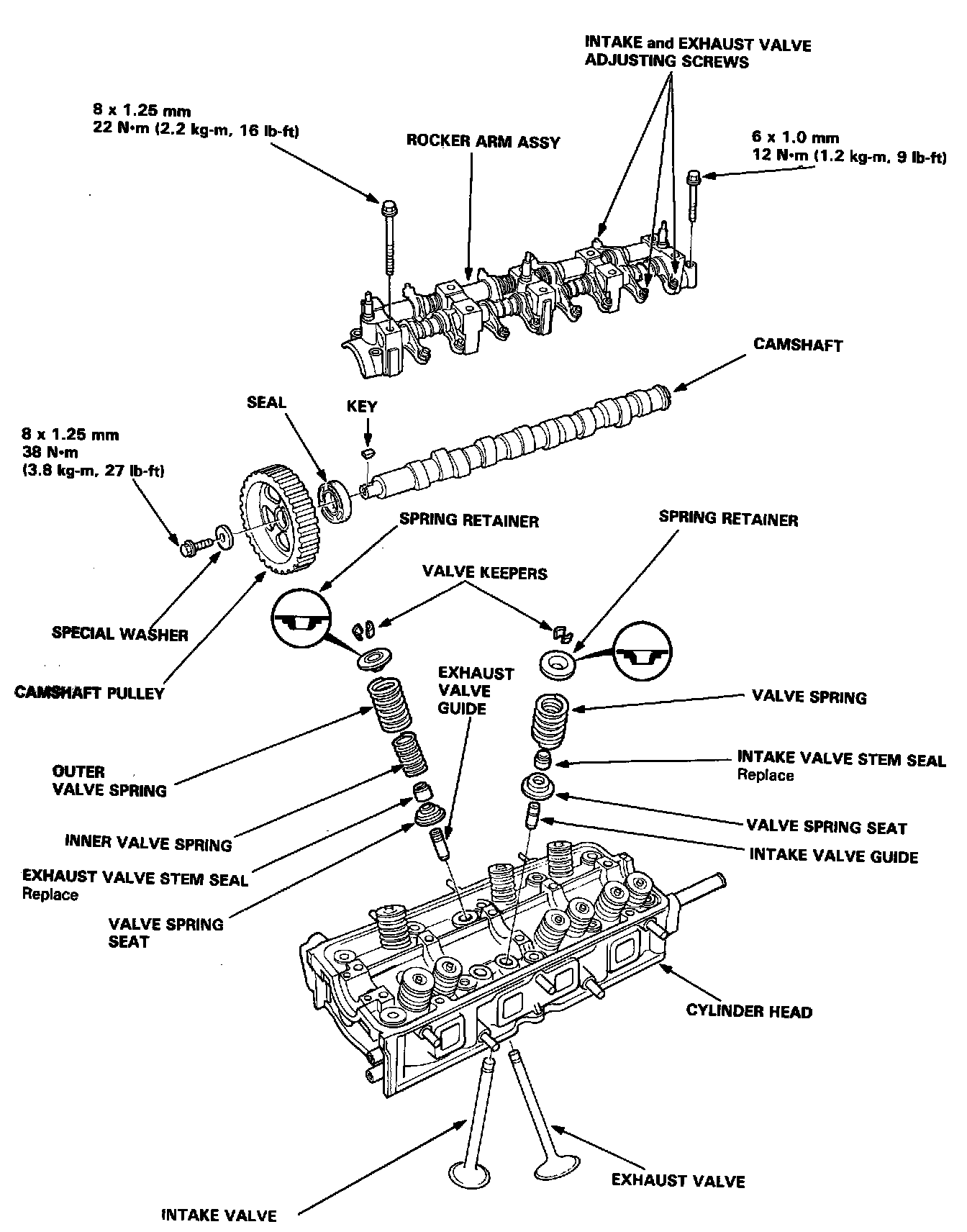

Head (CARB):

Cam Holder Torque/Sequence (CARB):

Head Bolt Torque Sequence (FUEL INJECTED):

Head Bolt Torque Sequence (CARB):

Tighten cylinder head bolts in two steps:

1st step: Tighten all bolts, in sequence, to 30 N.m (22 lb-ft.)
2nd step: Tighten all bolts to 68 N.m (49 lb-ft).

Rocker Arms (CARB) - Tighten 2 Turns At A Time:

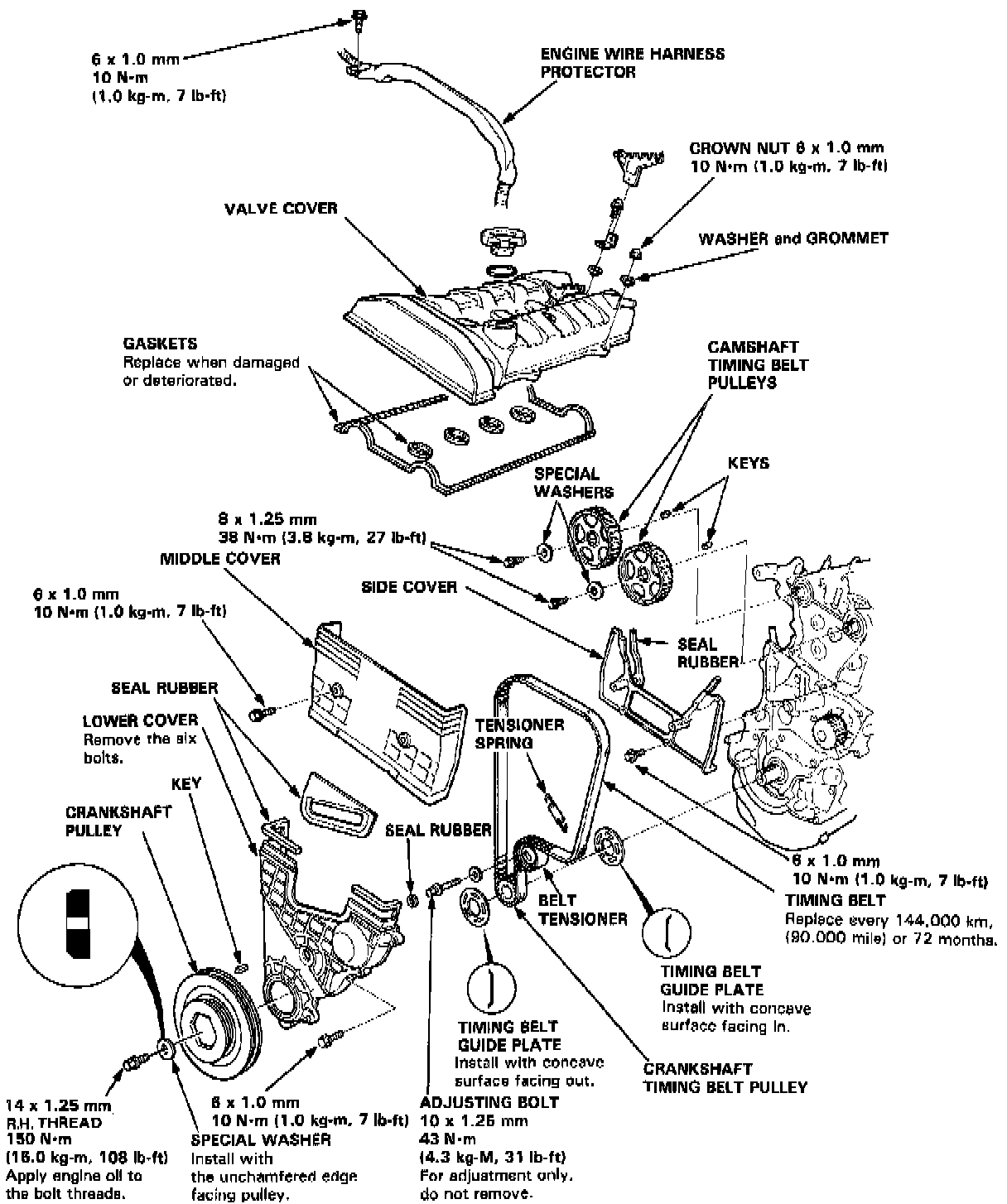

Timing Components (FUEL INJECTED):

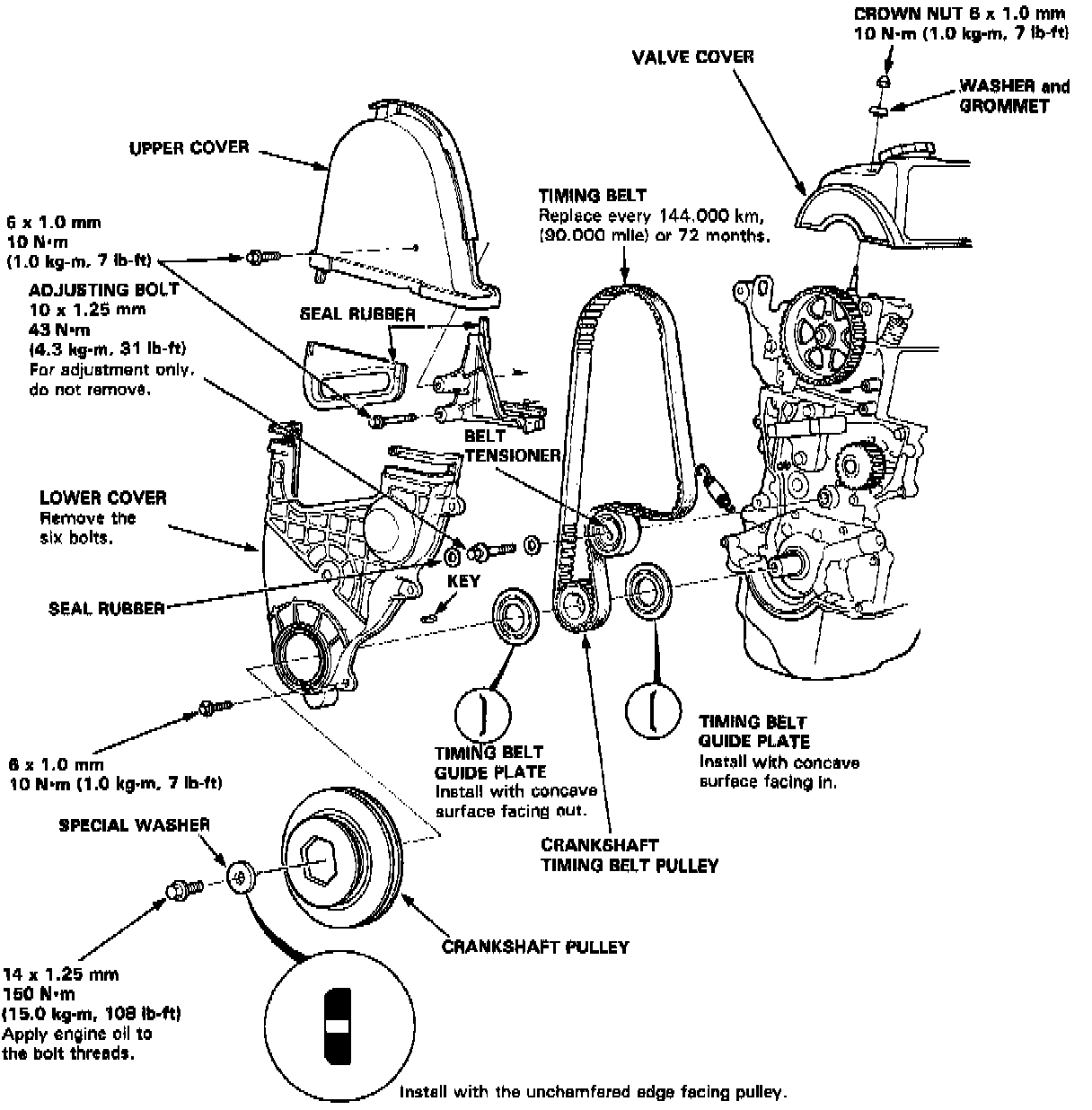

Timing Components (CARB):

Lower Engine:

Engine Lubrication:

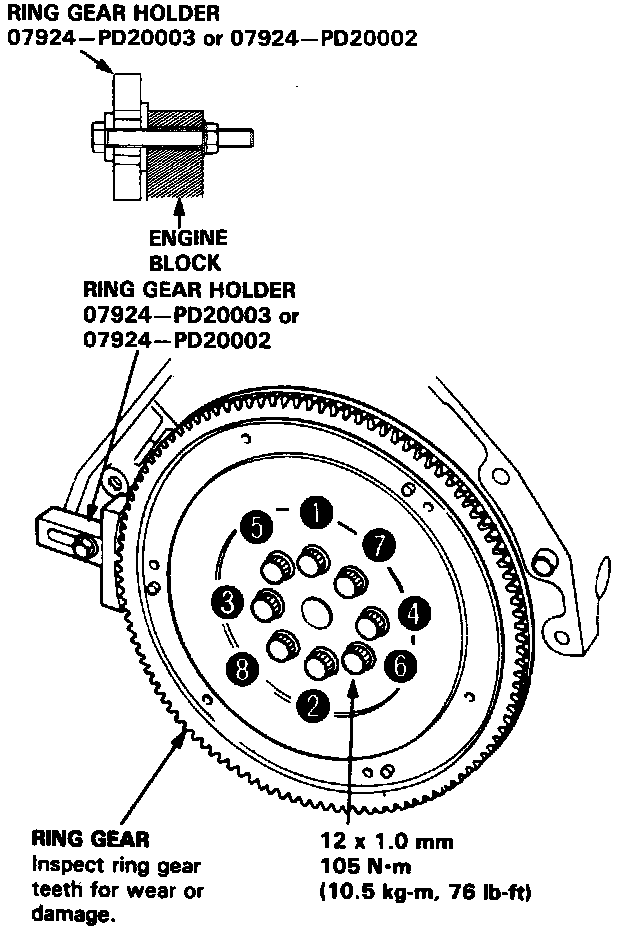

Flywheel (M/T) Torque/Sequence:

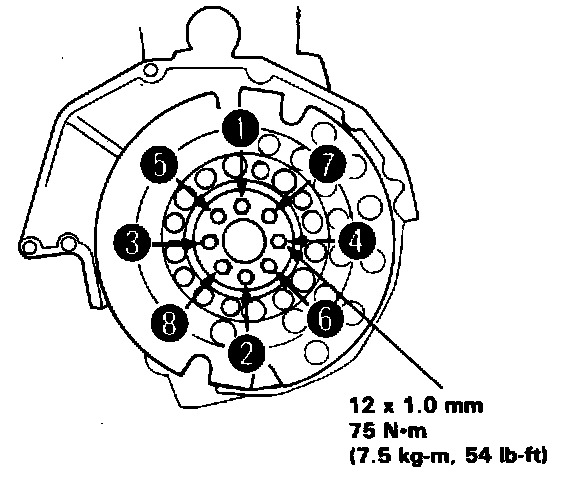

Drive Plate (A/T) Torque/Sequence:
