Charging the Refrigerant System

Charging Procedures

Refrigerant capacity 900 -0 +50 g (32 -0 +2 oz).

Warning
- Always wear eye protection when charging the system.

- Do not overcharge the system; the compressor will be damaged.

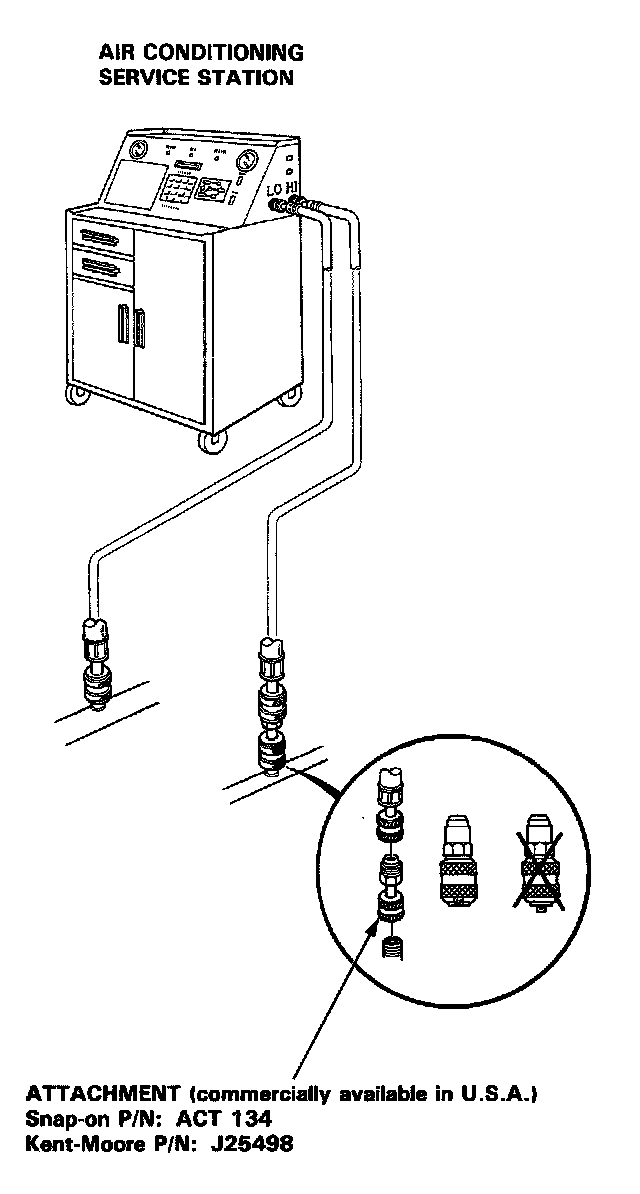

Attach an Air Conditioning Service Station as shown. Follow the equipment manufacturer's instructions.
