Electrical Diagrams

Hazard & Turn Signal Lamps - Part 1 Of 2:

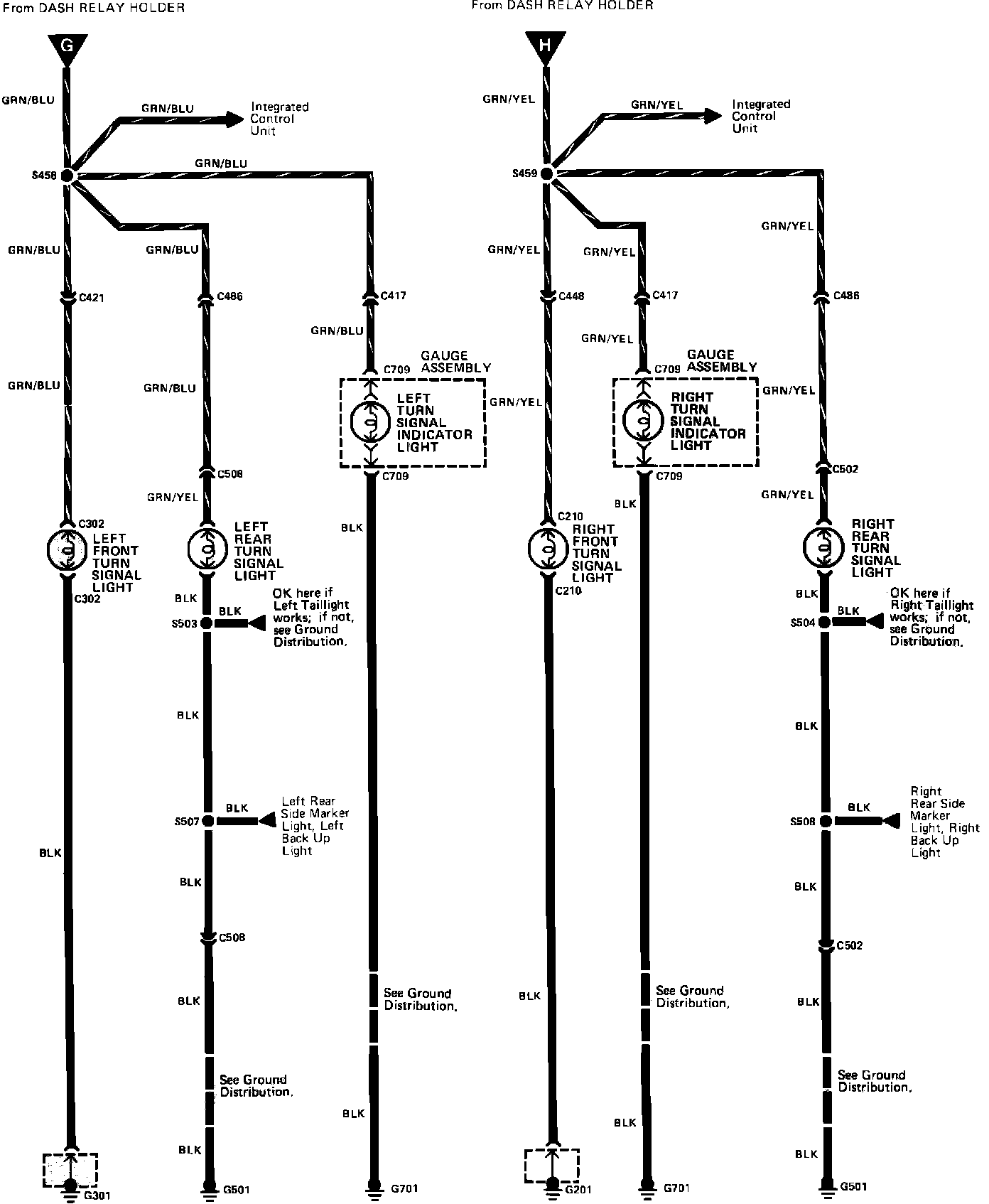

Hazard & Turn Signal Lamps - Part 2 Of 2:
