Fuel Tank: Description and Operation

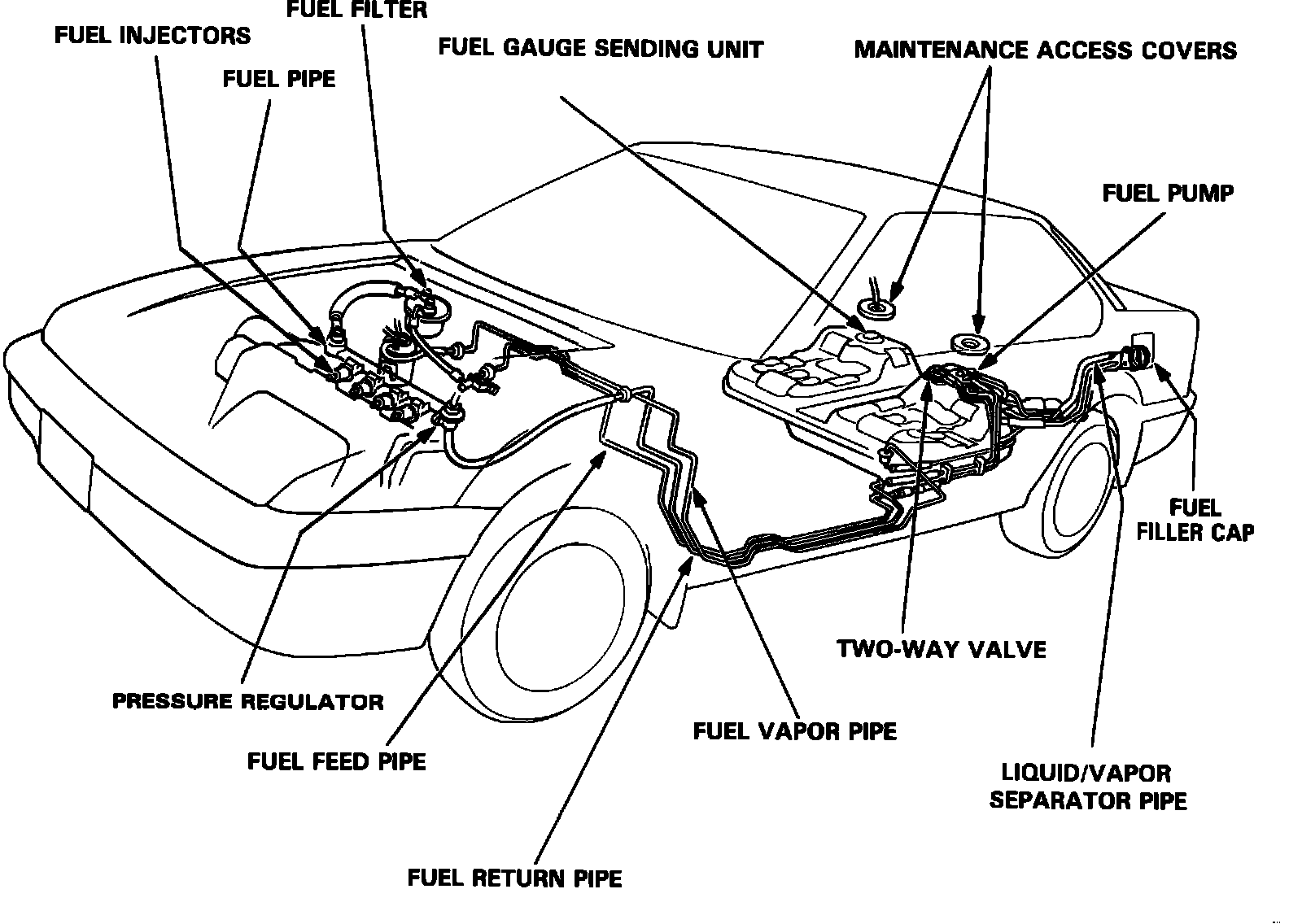

Fig. 76 Fuel And Vapor Hose Routings:

The Fuel Tank, located under the rear of the vehicle, between the rear wheels, houses the fuel supply, fuel gauge sending unit, and the fuel pump. The Fuel Tank is held in place with two steel straps and is protected from fuel vapor expansion through the fuel vapor line.
