Starting System: Description and Operation

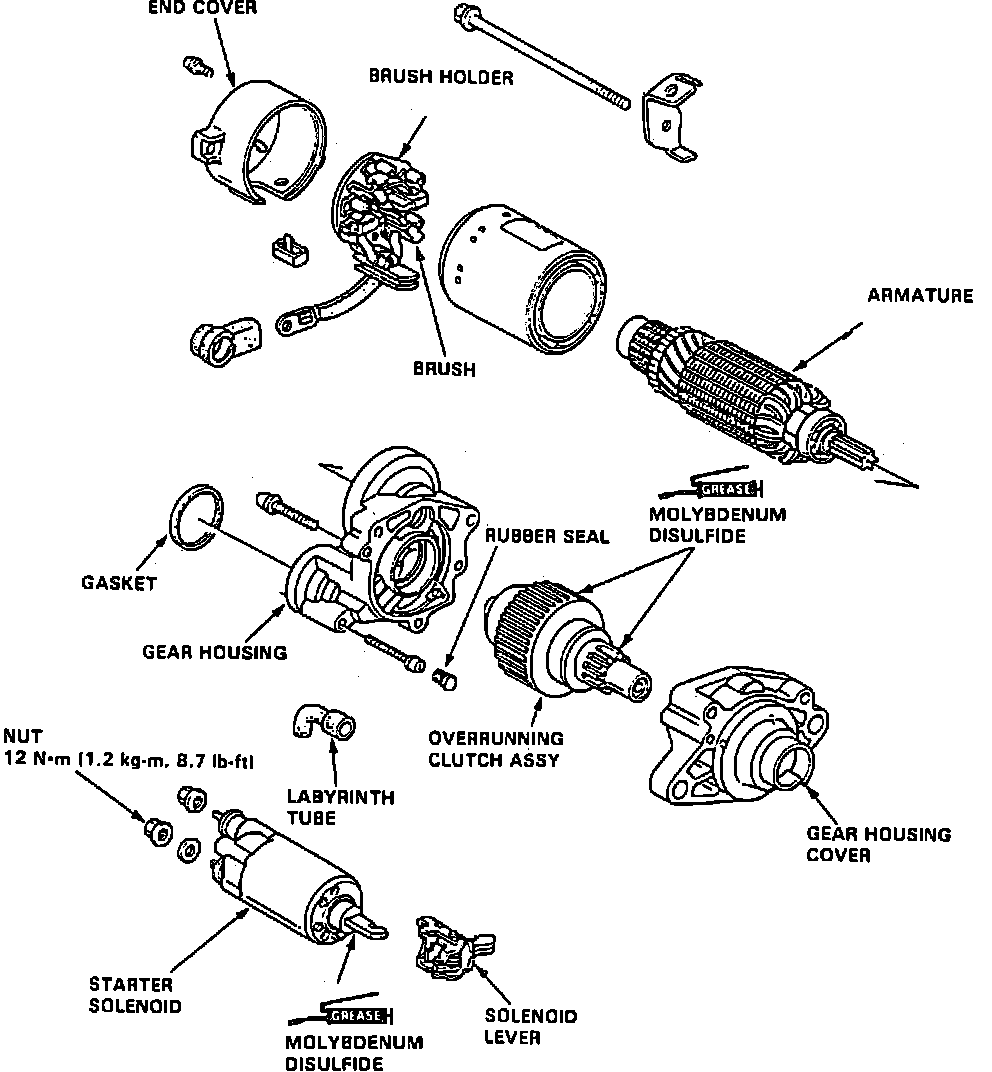

Fig. 1 Exploded View Of Gear Reduction Starter:

The Accord and Prelude starter Fig. 1 is a gear reduction type with a 1.4kw rating. It uses a planetary gear train to transmit armature rotation to the pinion shaft. A solenoid switch is mounted on the starter motor.
