Fuel Pump: Description and Operation

Fuel Pump:

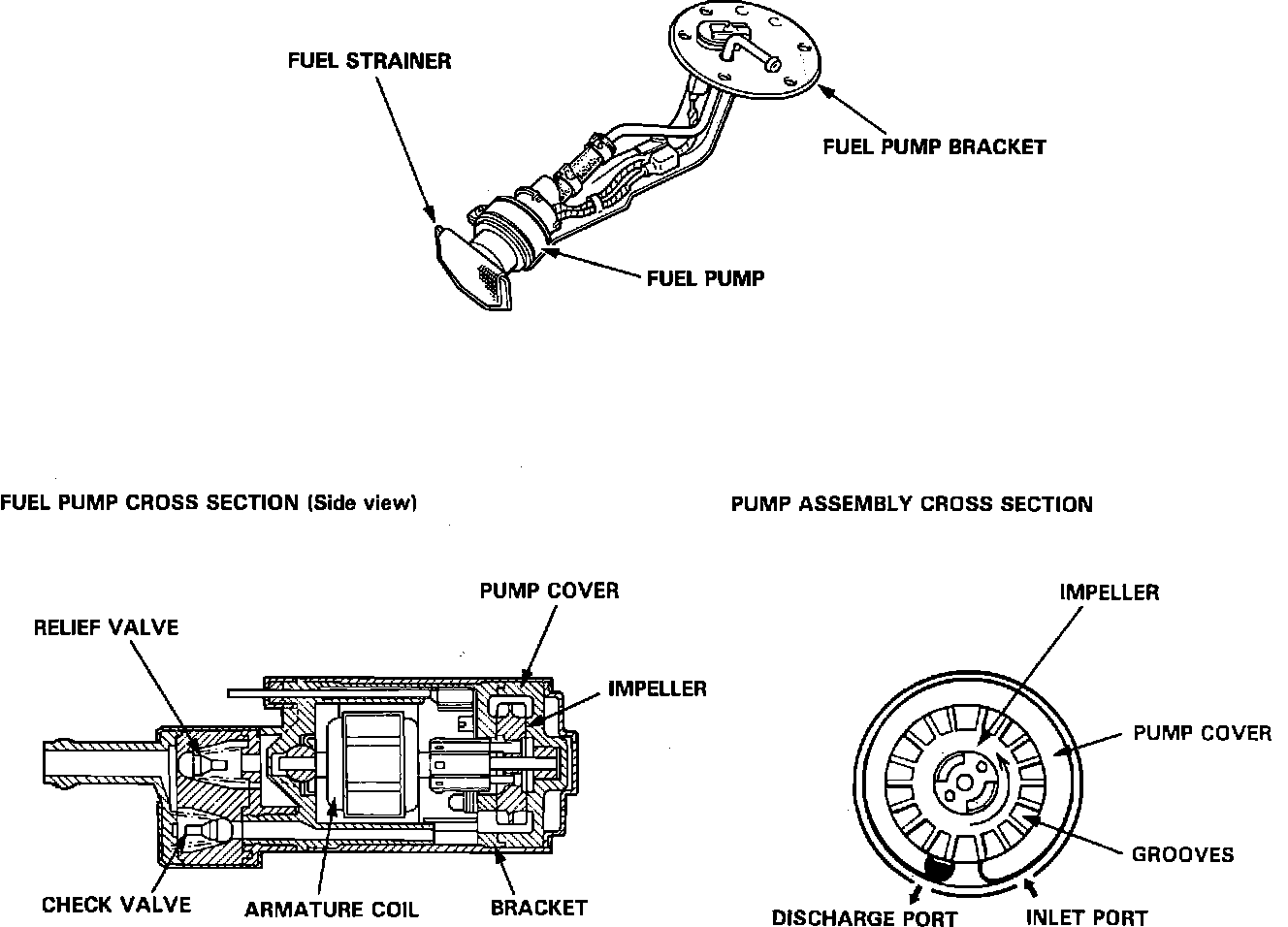

The fuel pump is located in the fuel tank. The pump is a single unit incorporating a DC motor, an impeller style pump, a relief valve to protect against over pressure, and a check valve to maintain system pressure after engine shut off.
