Engine - Distributor Repair Procedure

9220honda01

Model
1988-92 CIVIC
1990-92 ACCORD
1992 PRELUDE


Applicable To
ALL


File Under
ELECTRICAL


Bulletin No.
89-027

Issue Date
FEB 28, 1992


Distributor Repair Procedure
(Supersedes 89-027 Distributor Repair Procedure, dated July 19, 1991)


A distributor sub-assembly is available. The sub-assembly (Distributor Housing complete), includes the distributor housing, TDC sensor, crank angle sensor, and cylinder sensor. This allows the replacement of these sensors without replacing the distributor assembly. The igniter and ignition coil are not included in the sub-assembly, but are available separately. Replacement of the coil and/or the igniter are separate operations detailed in the flat rate manual.

DISASSEMBLY





1. Disconnect the connector from the distributor.

2. Disconnect the spark plug wires from the distributor cap.

3. Remove the distributor hold-down bolts, then remove the distributor from the cylinder head.

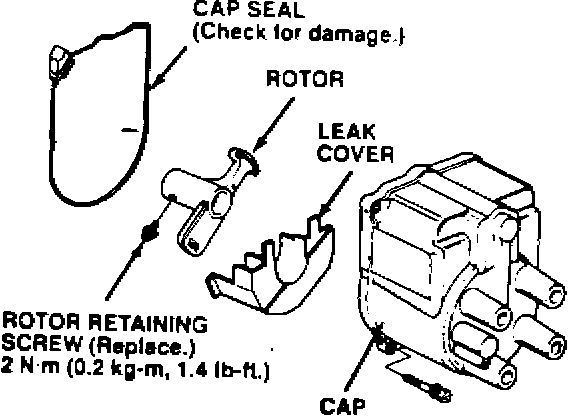

4. Remove the distributor cap, cap seal, leak cover, and rotor.


5. Transfer the igniter, ignition coil, sub-harness (if applicable), and condenser (if applicable) to the new distributor sub-assembly, as shown in the Electrical Section of the appropriate service manual.

6. Install the leak cover, cap seal, rotor, and distributor cap.

7. Reset the PGM-FI ECU as shown in the Fuel/Emissions Section of the appropriate service manual.


8. Install the distributor on the engine, warm the engine up to normal operating temperature, then adjust the ignition timing to specifications.

PARTS INFORMATION

Distributor Housing Complete

1990-92 Accord
P/N 30105-PT3-A02, H/C 3275799

1988-91 Civic 1.5 (except CRX HF)
P/N 30105-PM5-A05, H/C 3808763

1988-91 Civic 1.6 and CRX HF
P/N 30105-PM6-036, H/C 3808771

1992 Civic 4-Dr. (DX & LX)
P/N 30105-P06-A02, H/C 3879244

1992 Civic 4-Dr. (EX)
P/N 30105-P08-006, H/C 3879251

1992 Prelude (S)
P/N 30105-P12-A01, H/C 3940277

1992 Prelude (Si)
P/N 30105-P14-A01, H/C 3940285

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out-of-warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number: 117105
Flat rate time: 0.5 hour
Failed part: Use the P/N of the failed part
Defect code: See flat rate manual
Contention code: See flat rate manual
