Sunshade - Moves Rearward While Driving

90honda03
Model Applicable To
'86-89 ACCORD LX-i & SE-i
'89-90 CIVIC Si ALL
'88-90 PRELUDE
File Under Bulletin No.
89-005
BODY Issue Date SEPT 7, '90
Sunshade Won't Stay Completely Closed (Supersedes 89-005, dated May 5, 1989)
PROBLEM

The sunshade moves rearward while driving.


CORRECTIVE ACTION

Install new guide rails with half-round cut-outs that hold the sunshade in the fully closed and fully opened positions.



1. Remove the headliner and sunroof frame as described in the Body section of the Service Manual.

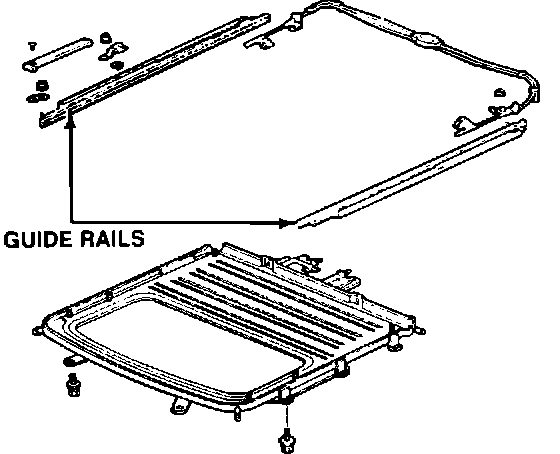

2. Replace both guide rails with the new parts listed under PARTS INFORMATION.
PARTS INFORMATION

Accord:
Right Guide Rail P/N 70311-SE3-920, H/C 2183598 Left Guide Rail P/N 70321-SE3-920, H/C 2183606

Civic Si:
Right Guide Rail P/N 70310-SH3-000, H/C 2715969 Left Guide Rail P/N 70315-SH3-000, H/C 2715977

Prelude:
Right Guide Rail P/N 70310-SF1-010, H/C 2987527 Left Guide Rail P/N 70315-SF1-010, H/C 2987535


WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Out-of-warranty: Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Service Manager. You must request consideration, and get the DSM's decision, before starting work.

Operation number: 814105

Flat rate time: 3.0 hours

Failed part: P/N 70310-SF1-010 H/C 2987527

Defect code: 061

Contention code: B99
