Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
System Diagram
System Diagram

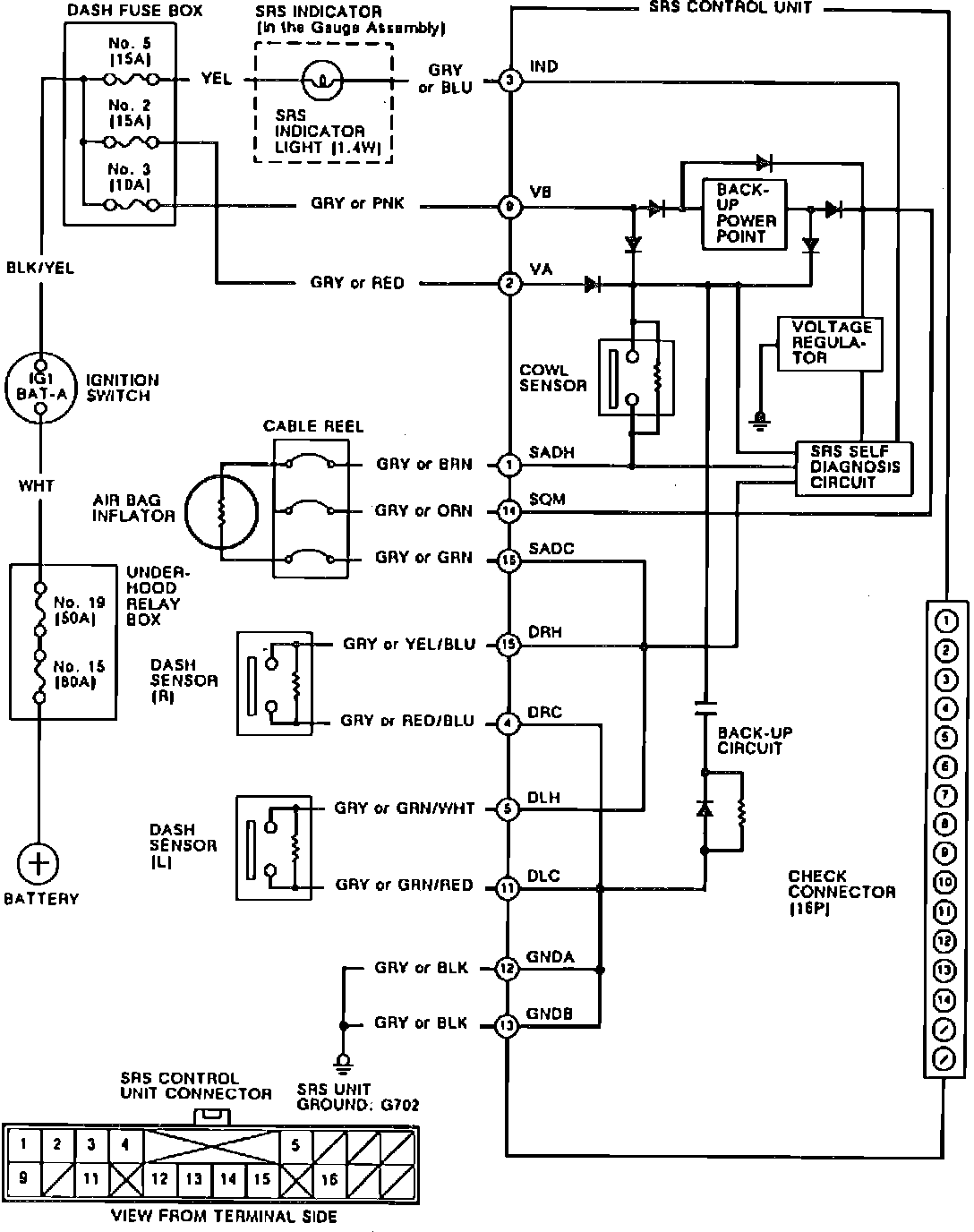

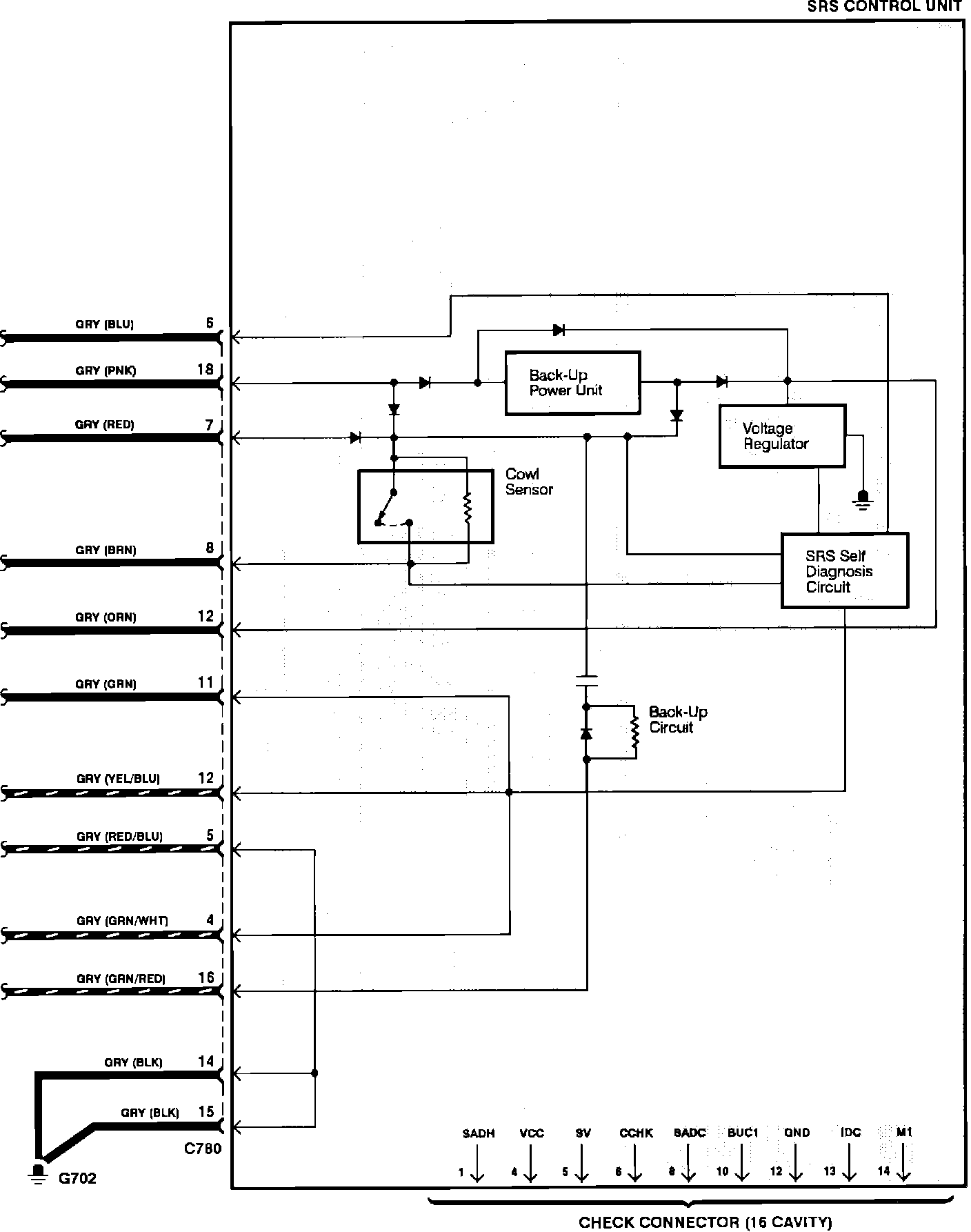

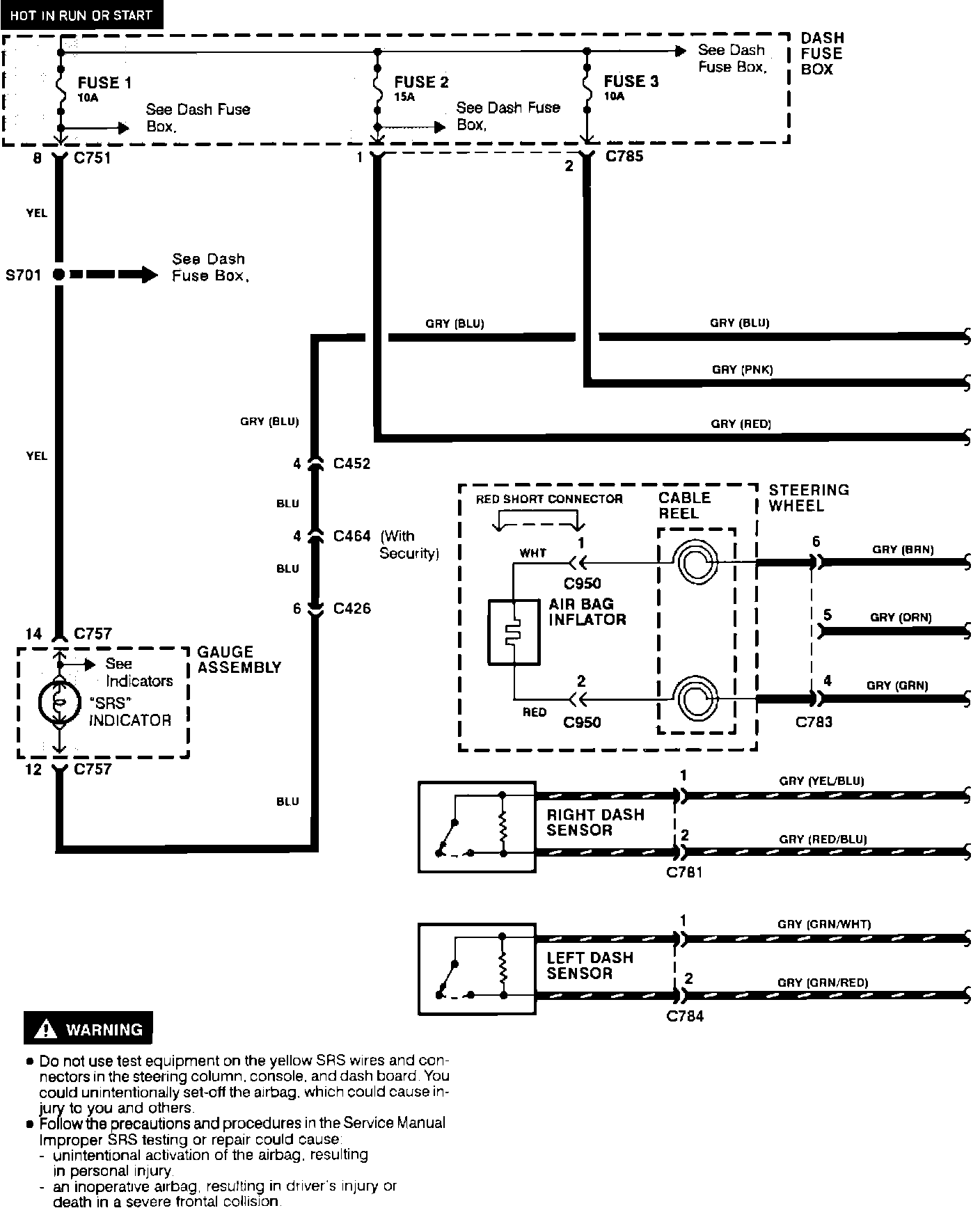

Fig. 3 SRS System Circuit Wiring Diagram:
Airbag (SRS):
Airbag (SRS):
