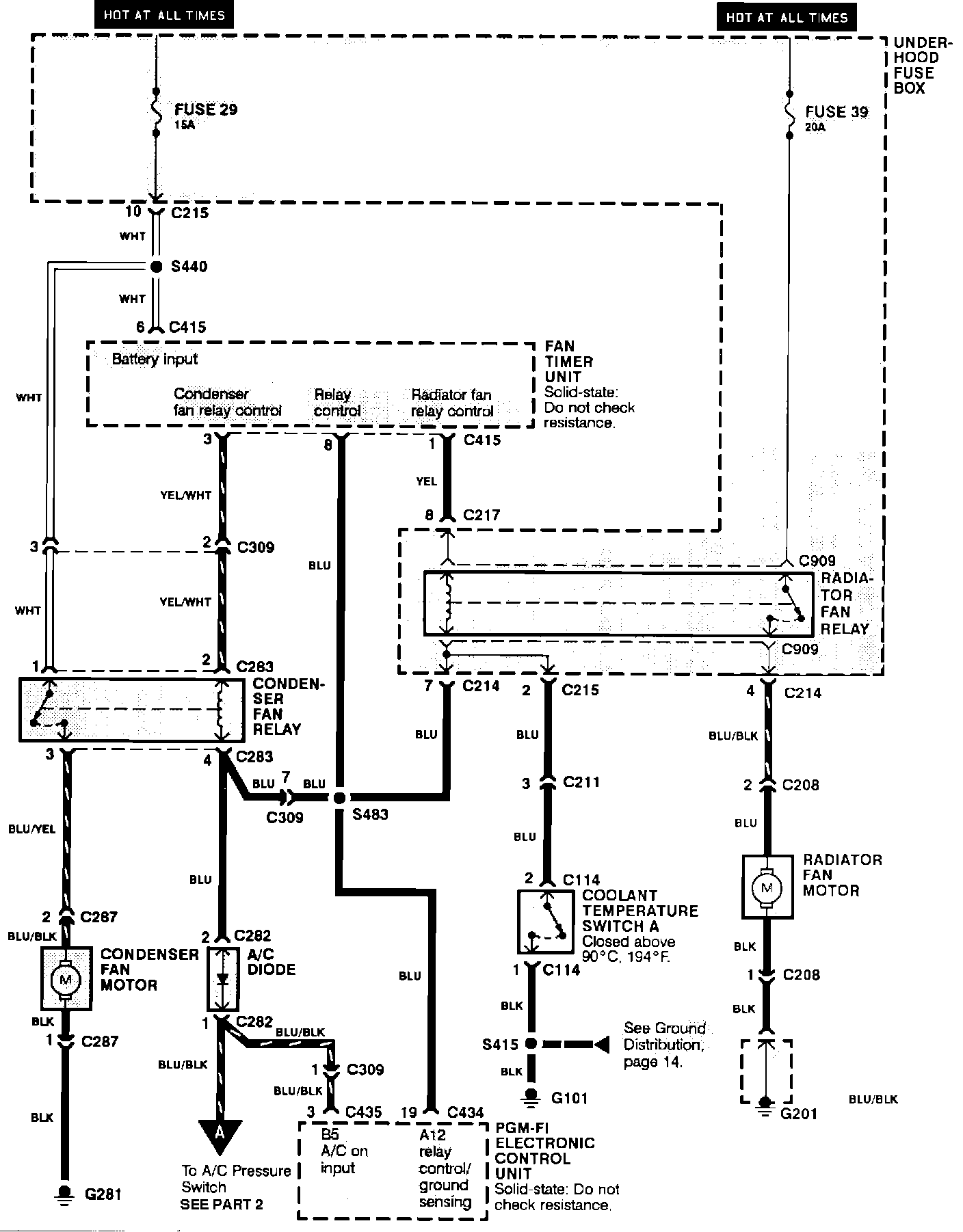

A/C. Fans & Compressor Controls, Part 1 Of 3:

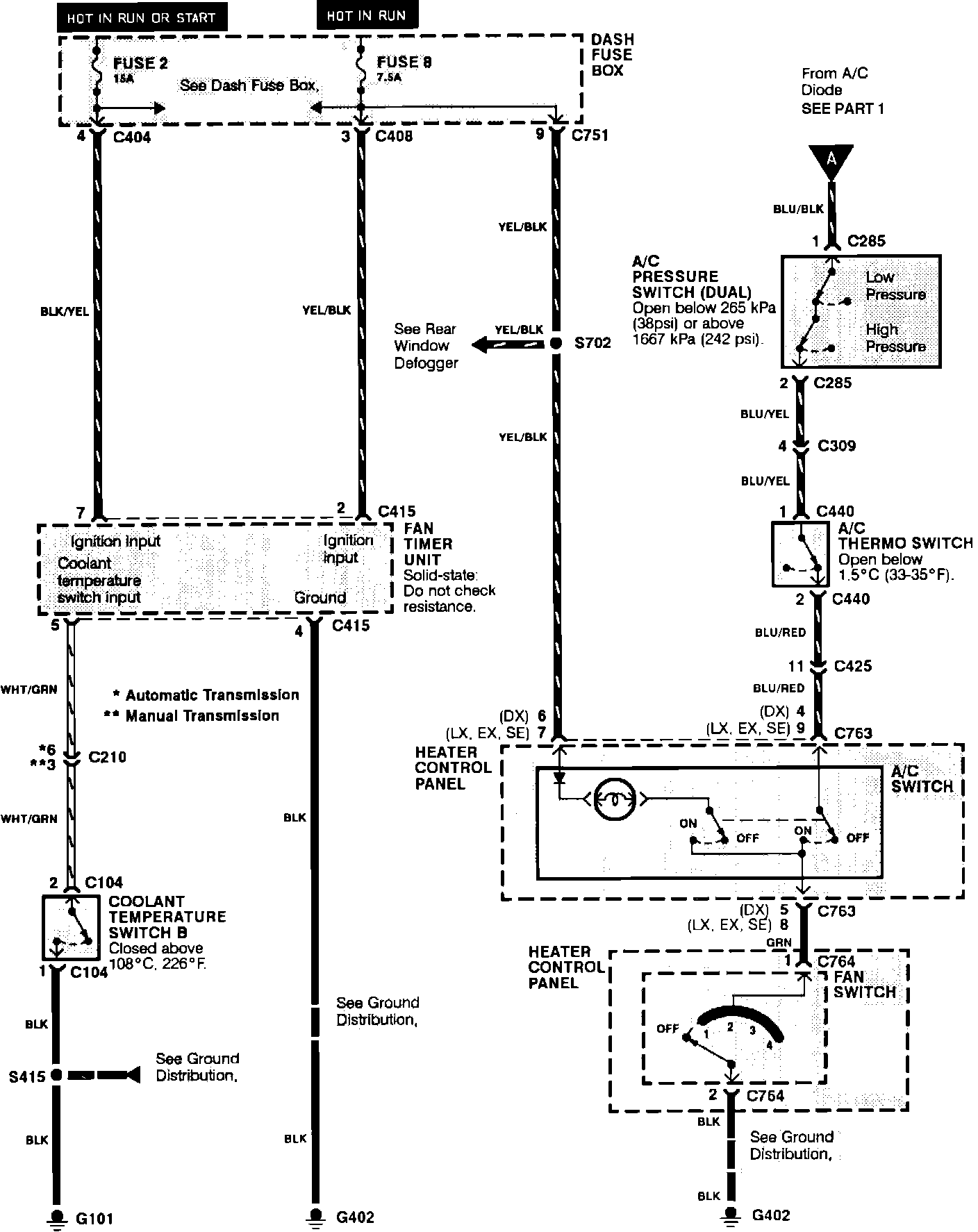

A/C. Fans & Compressor Controls, Part 2 Of 3:

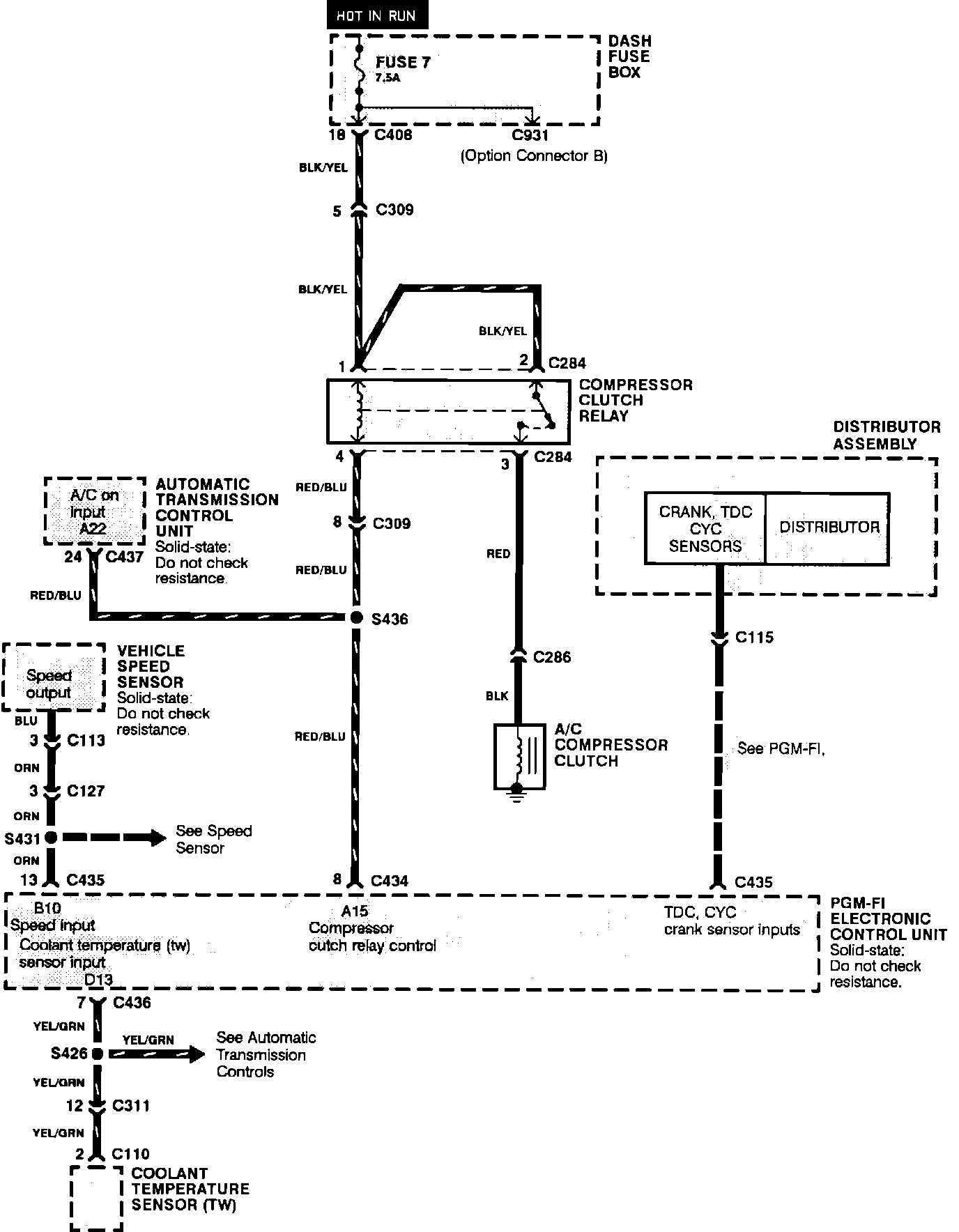

A/C. Fans & Compressor Controls, Part 3 Of 3:
