Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Coupe and Sedan

Coupe and Sedan

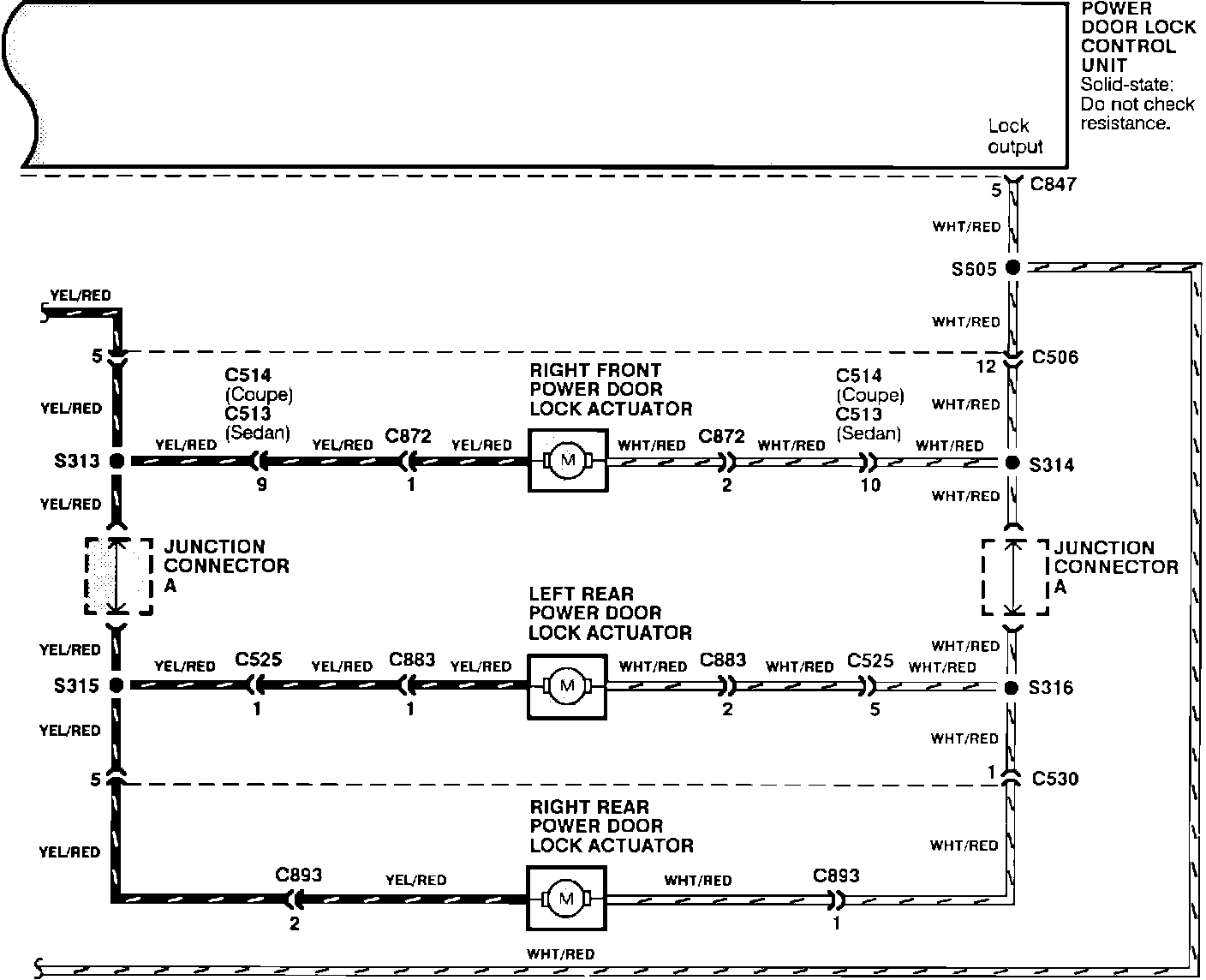

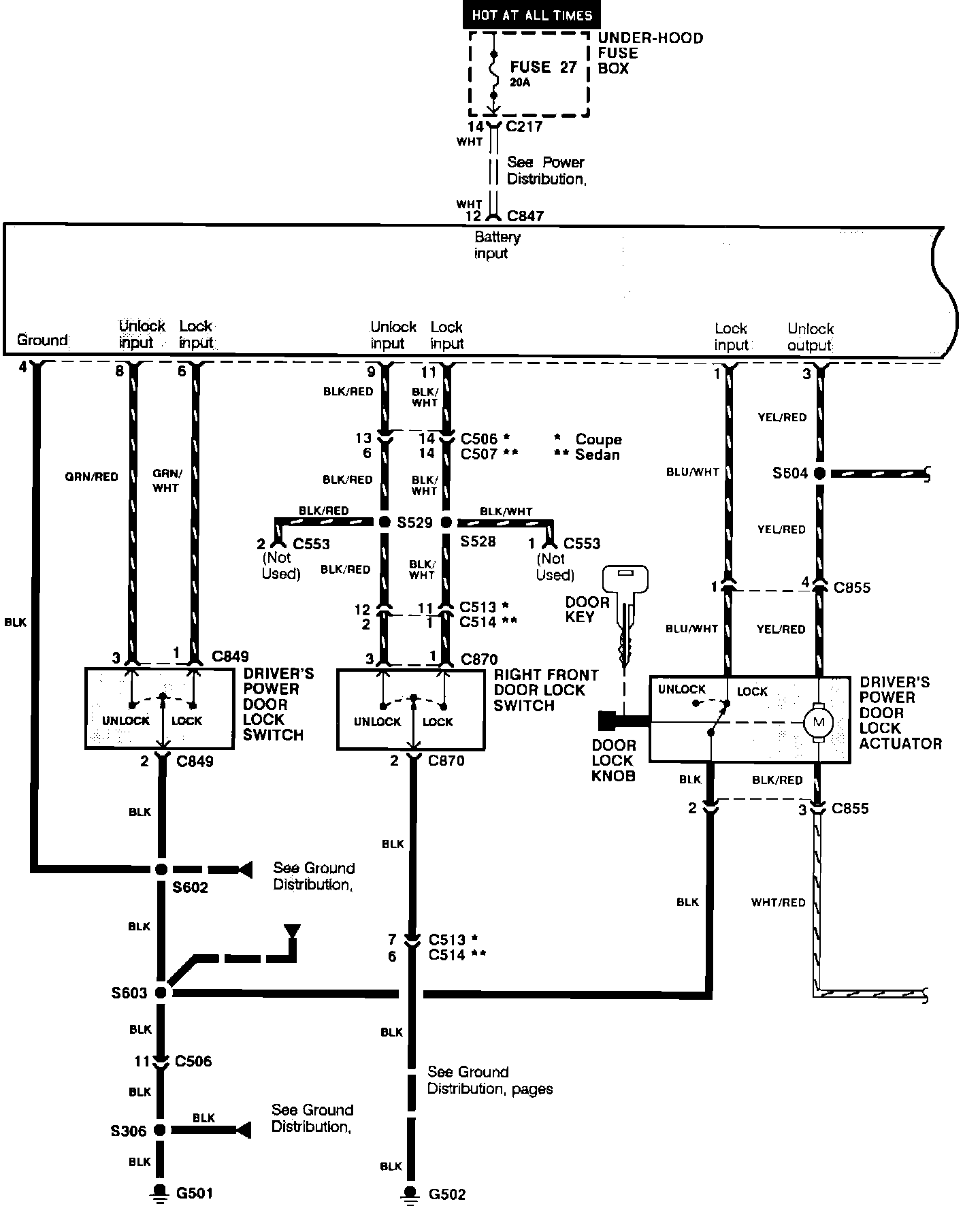

Power Door Locks. Coupe & Sedan.:



Power Door Locks. Coupe & Sedan.:
