Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1991
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seat Belt Systems
>>

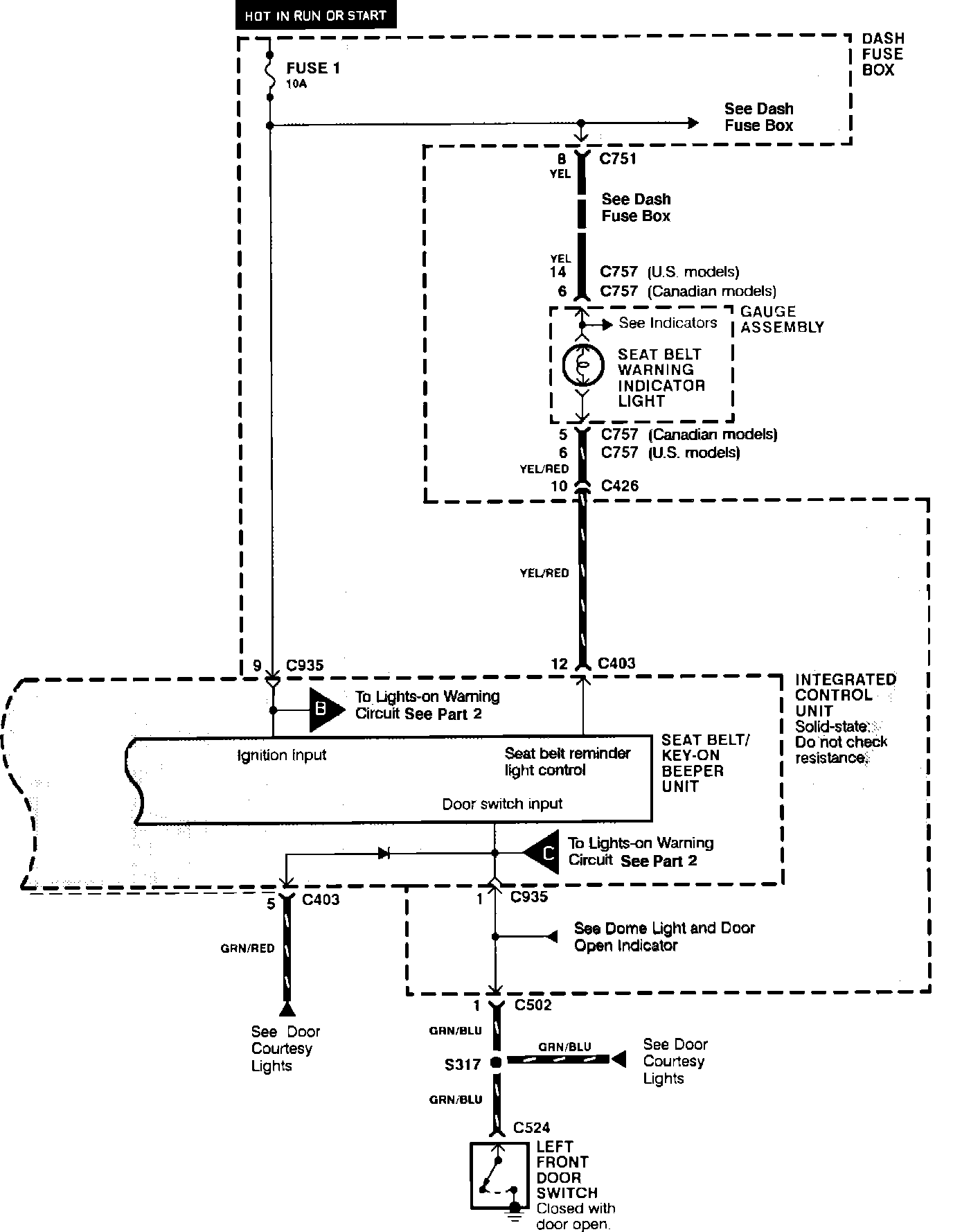

Lights On, Ignition Key Warning System (Wagon and Canada)
Lights On, Ignition Key Warning System (Wagon and Canada)

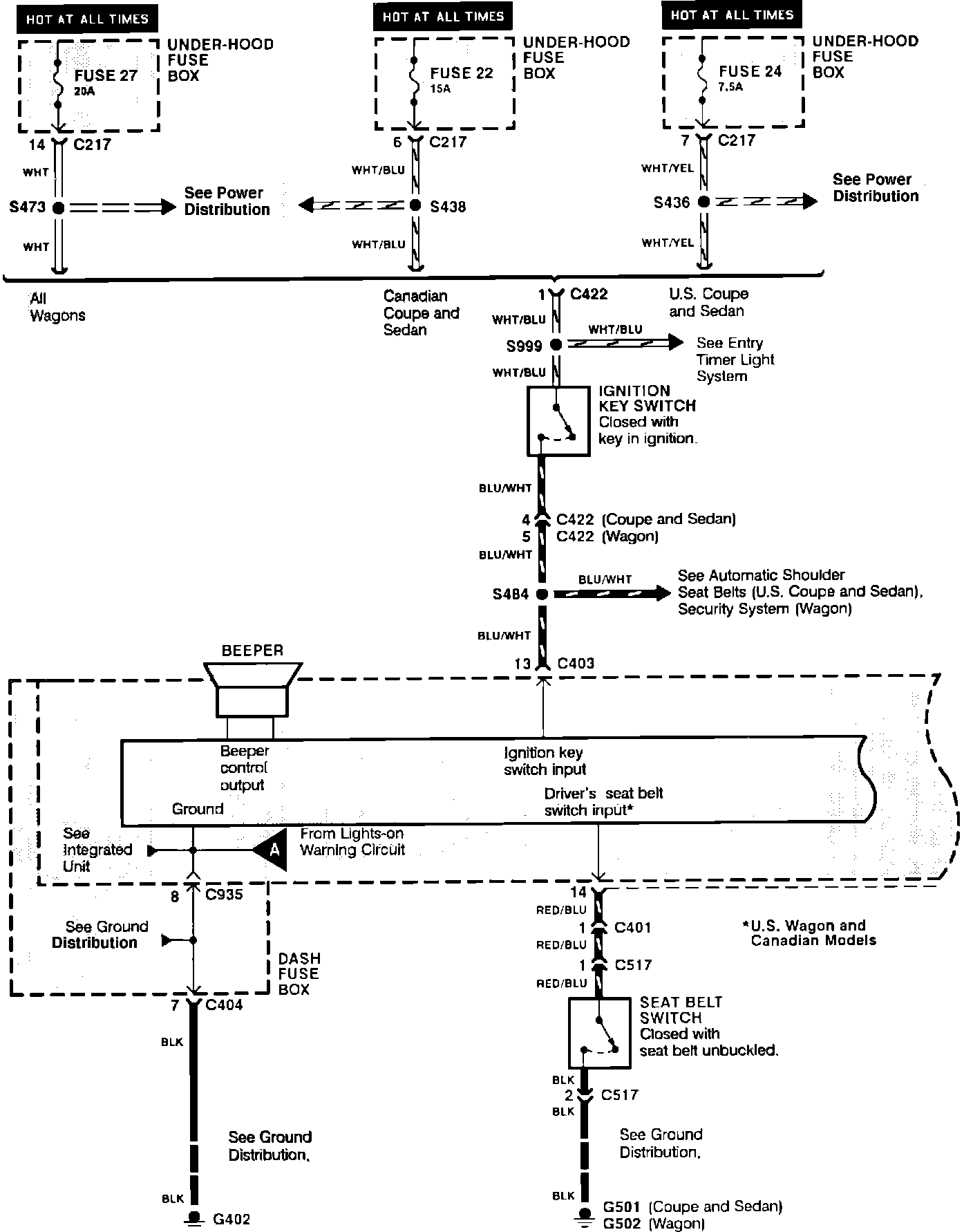

Seat Belt (wagon & Sedan), Lights-On And Ignition Key Warning System:
Seat Belt (wagon & Sedan), Lights-On And Ignition Key Warning System:
