Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk Lamp

Trunk Lamp

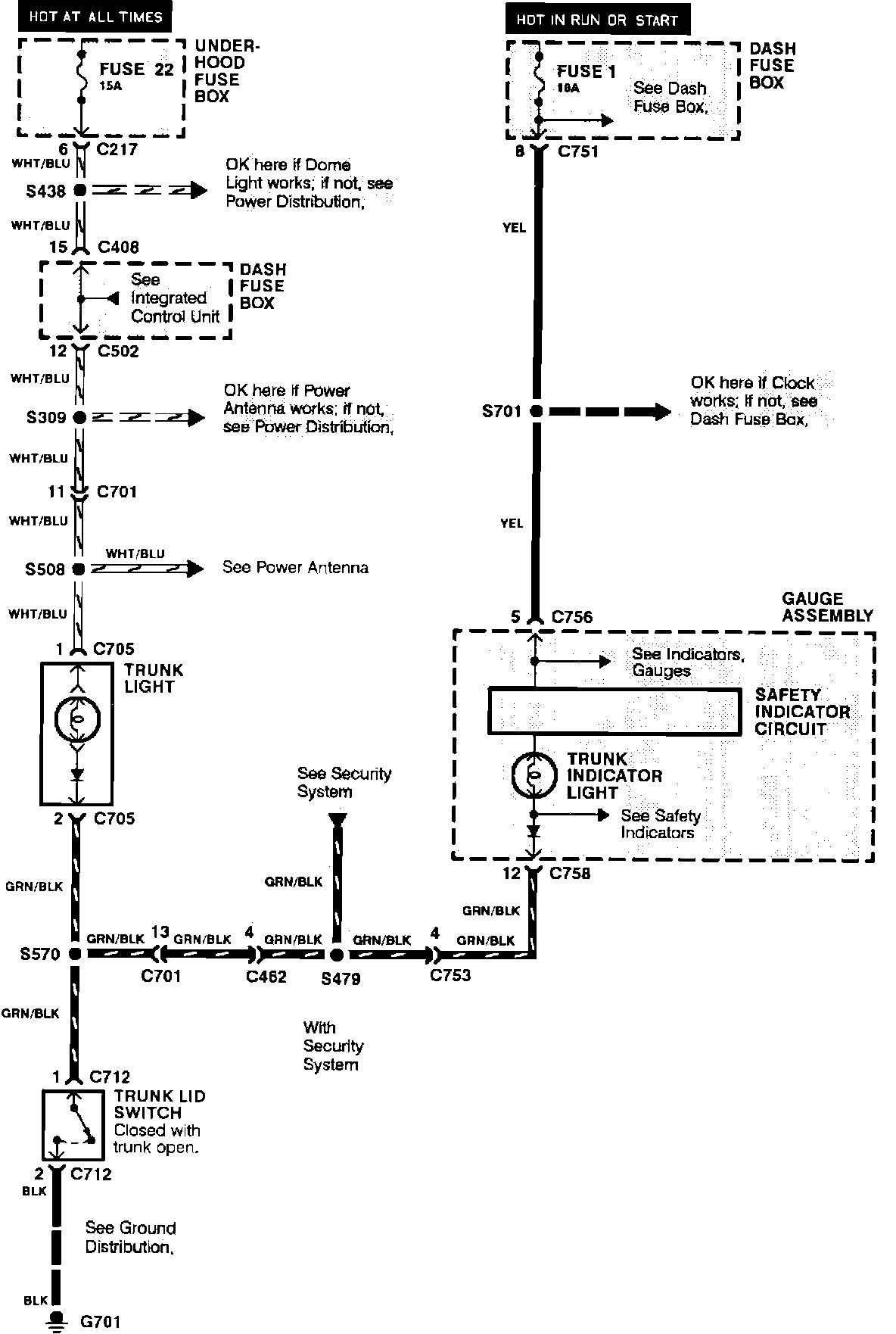

Trunk Light. Coupe & Sedan:
