Home >> Honda >> 1991 >> Accord L4-2156cc 2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Exhaust Manifold >> EX (USA), EX-R (Canada)

EX (USA), EX-R (Canada)

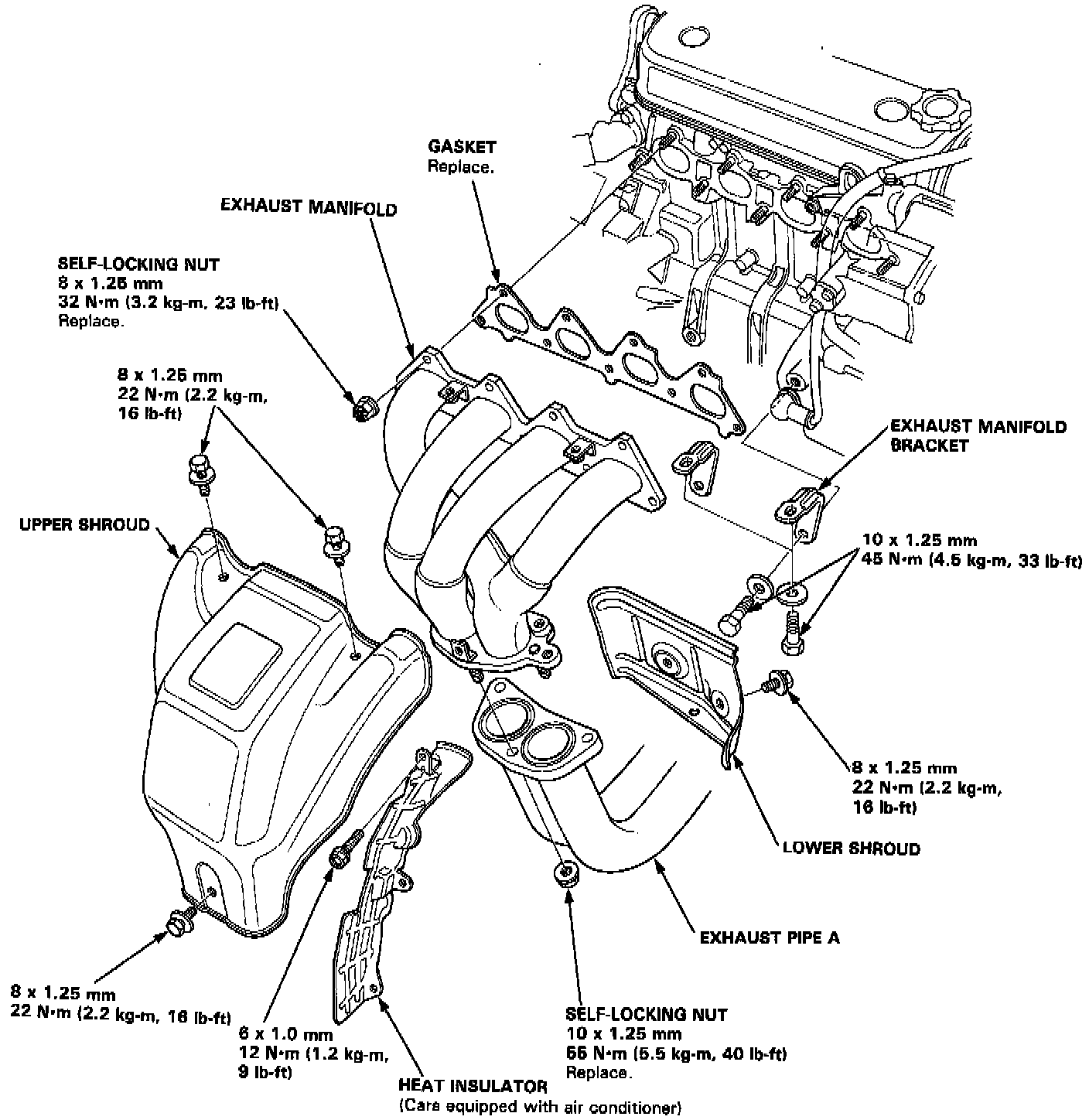

Exhaust Manifold:
