Electrical Diagrams

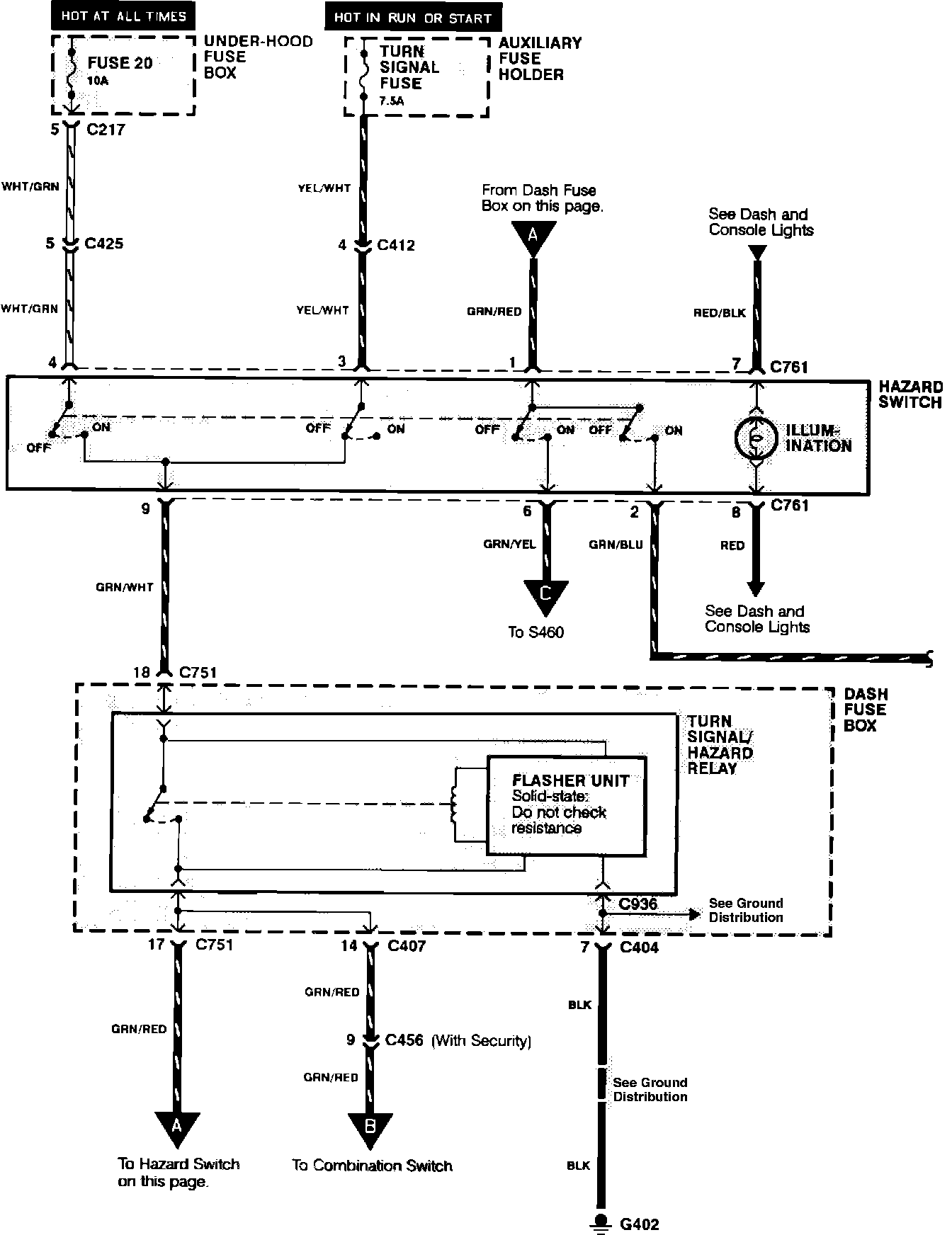

Turn Signal, Front Side Marker & Hazard Lights - Part 1 Of 2:



Turn Signal, Front Side Marker & Hazard Lights - Part 1 Of 2:

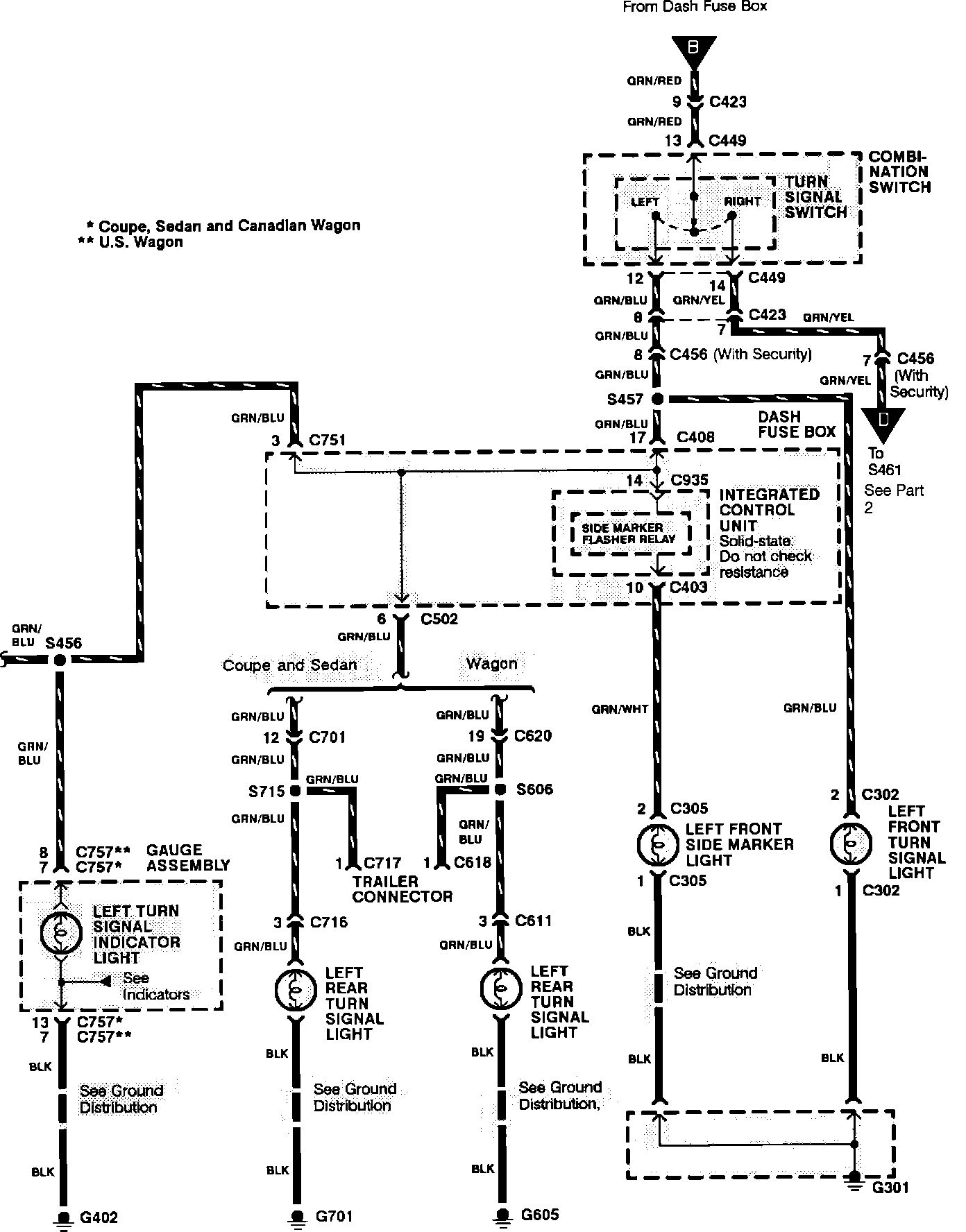

Turn Signal, Front Side Marker & Hazard Lights - Part 2 Of 2:
