Power Distribution

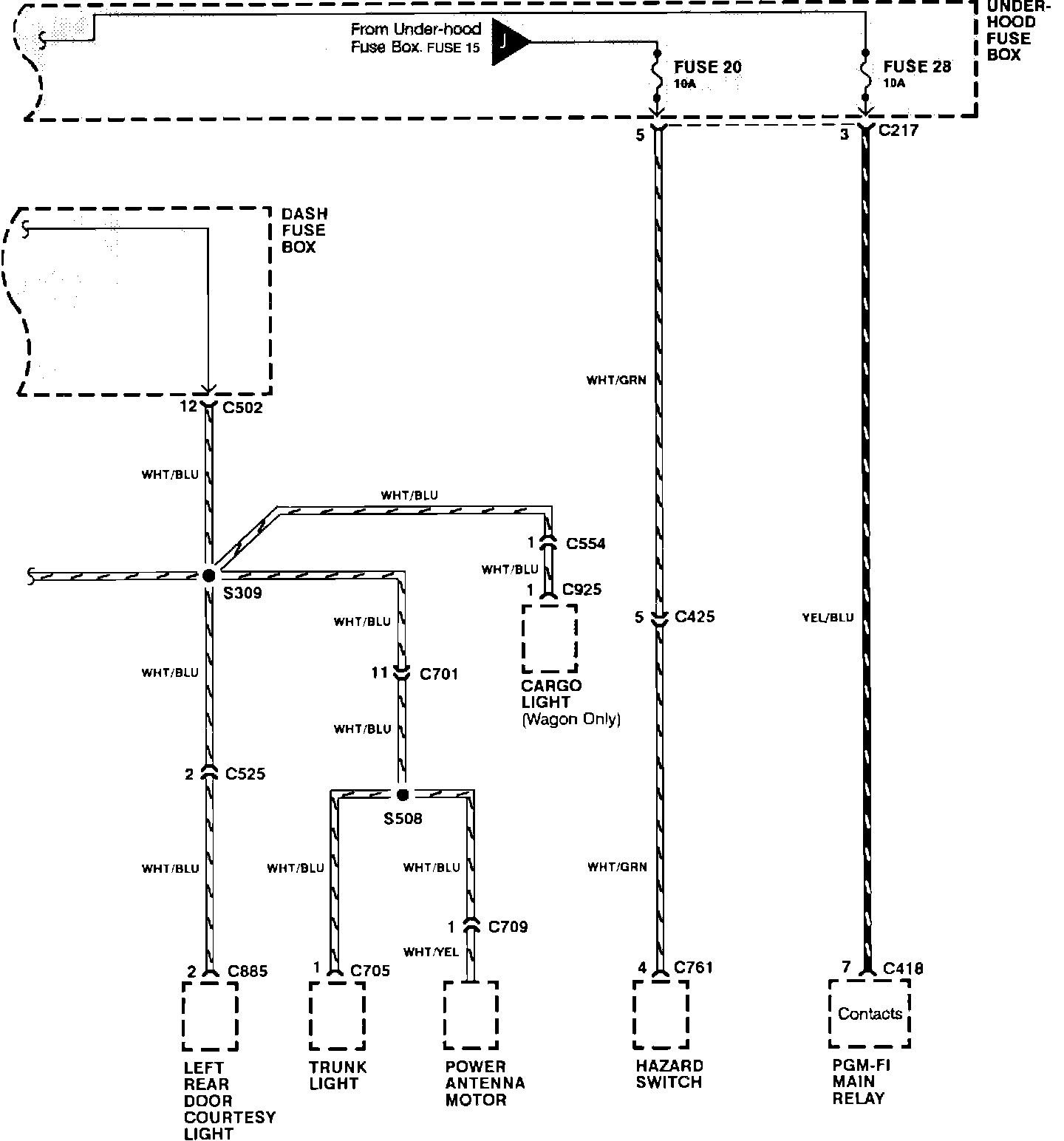

Power Distribution:

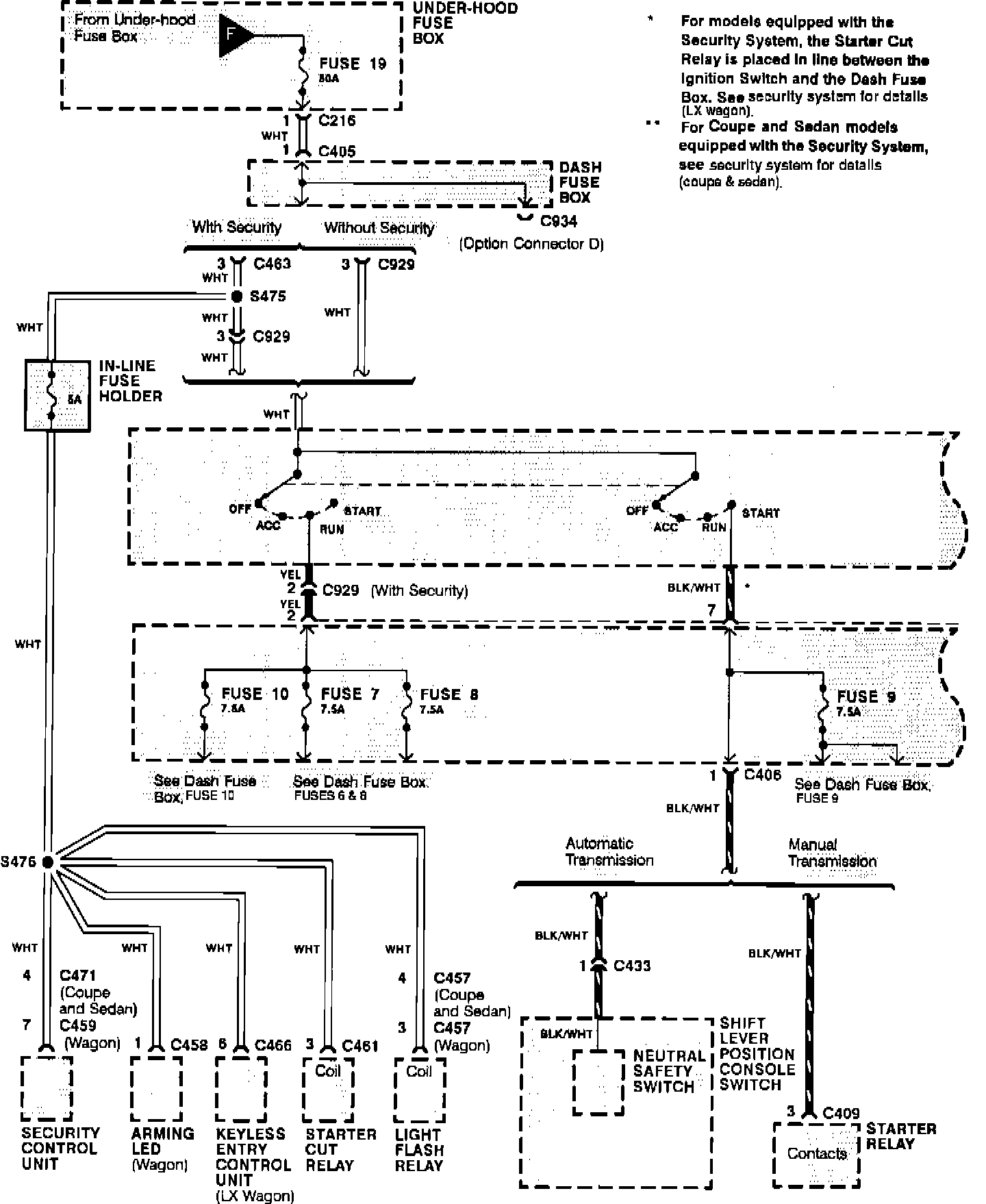

Power Distribution:

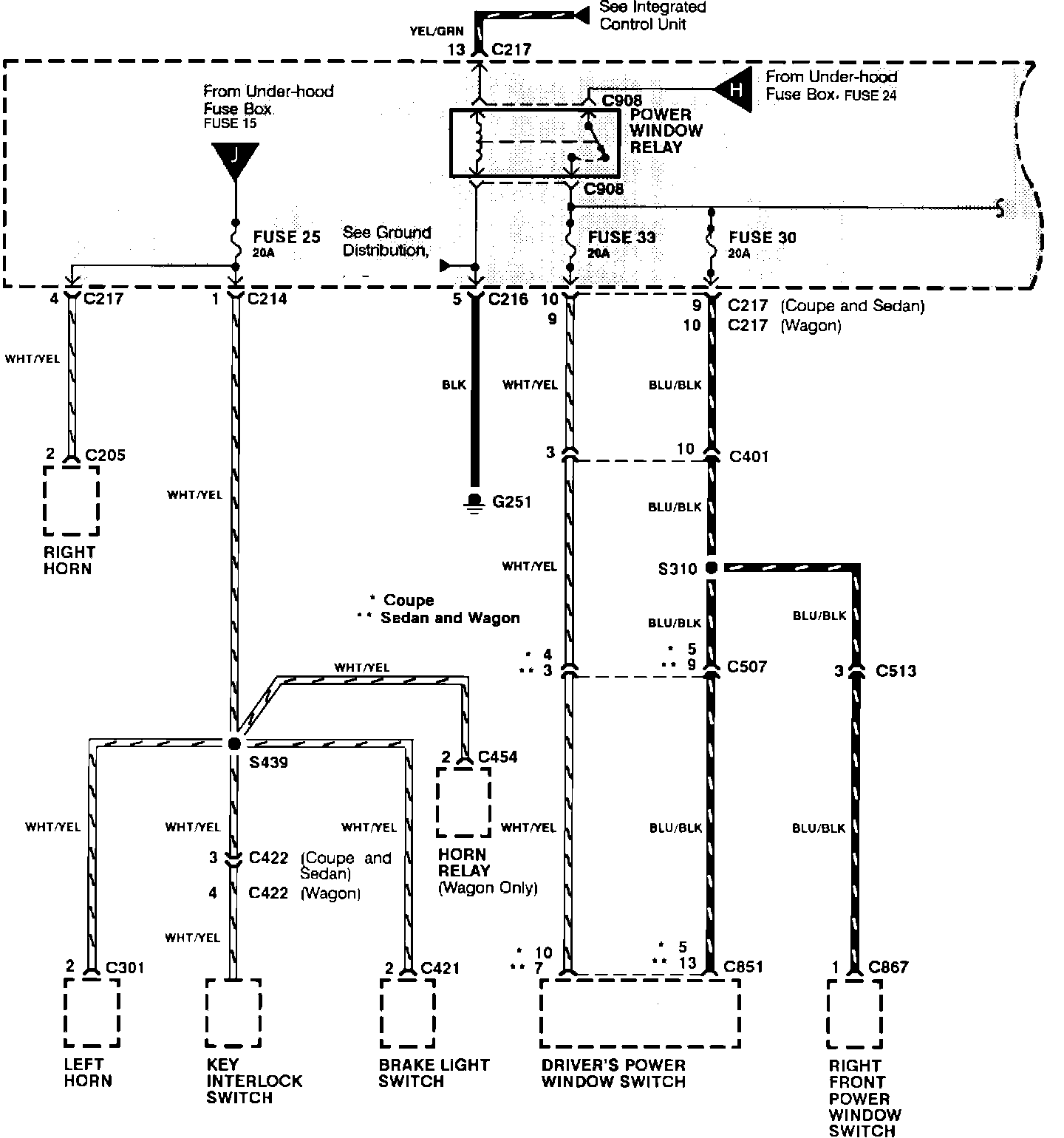

Power Distribution:

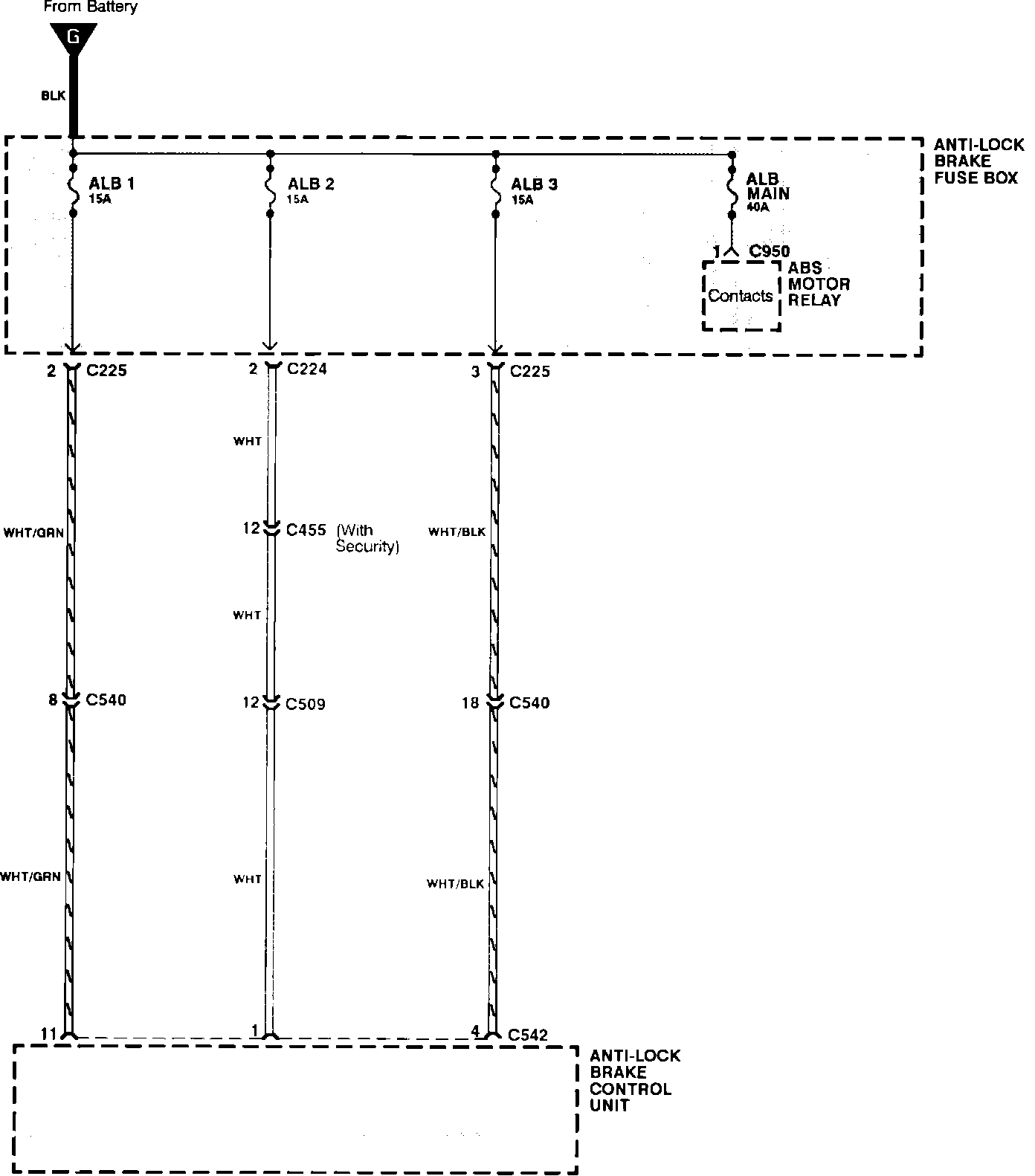

Power Distribution:

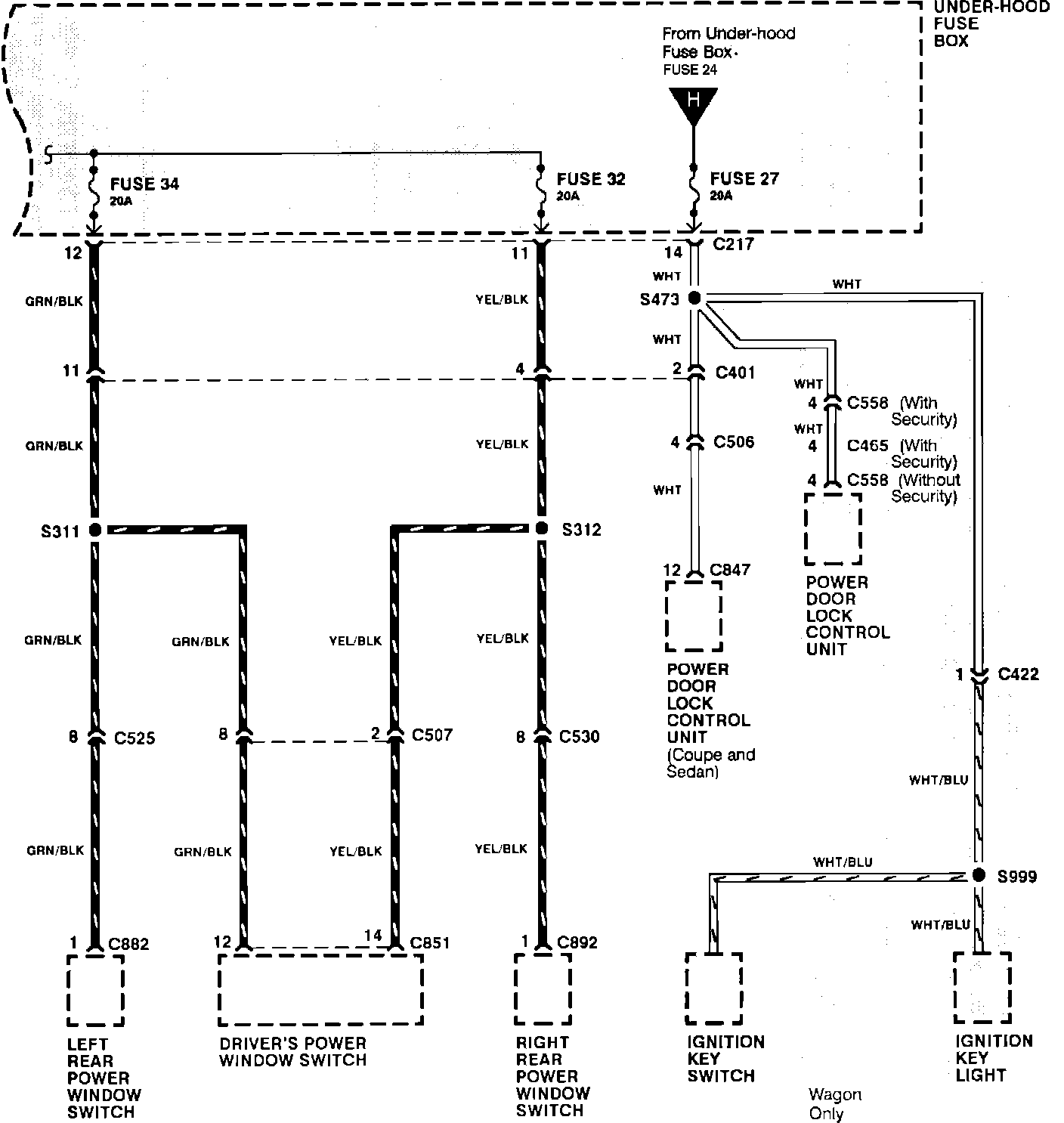

Power Distribution:

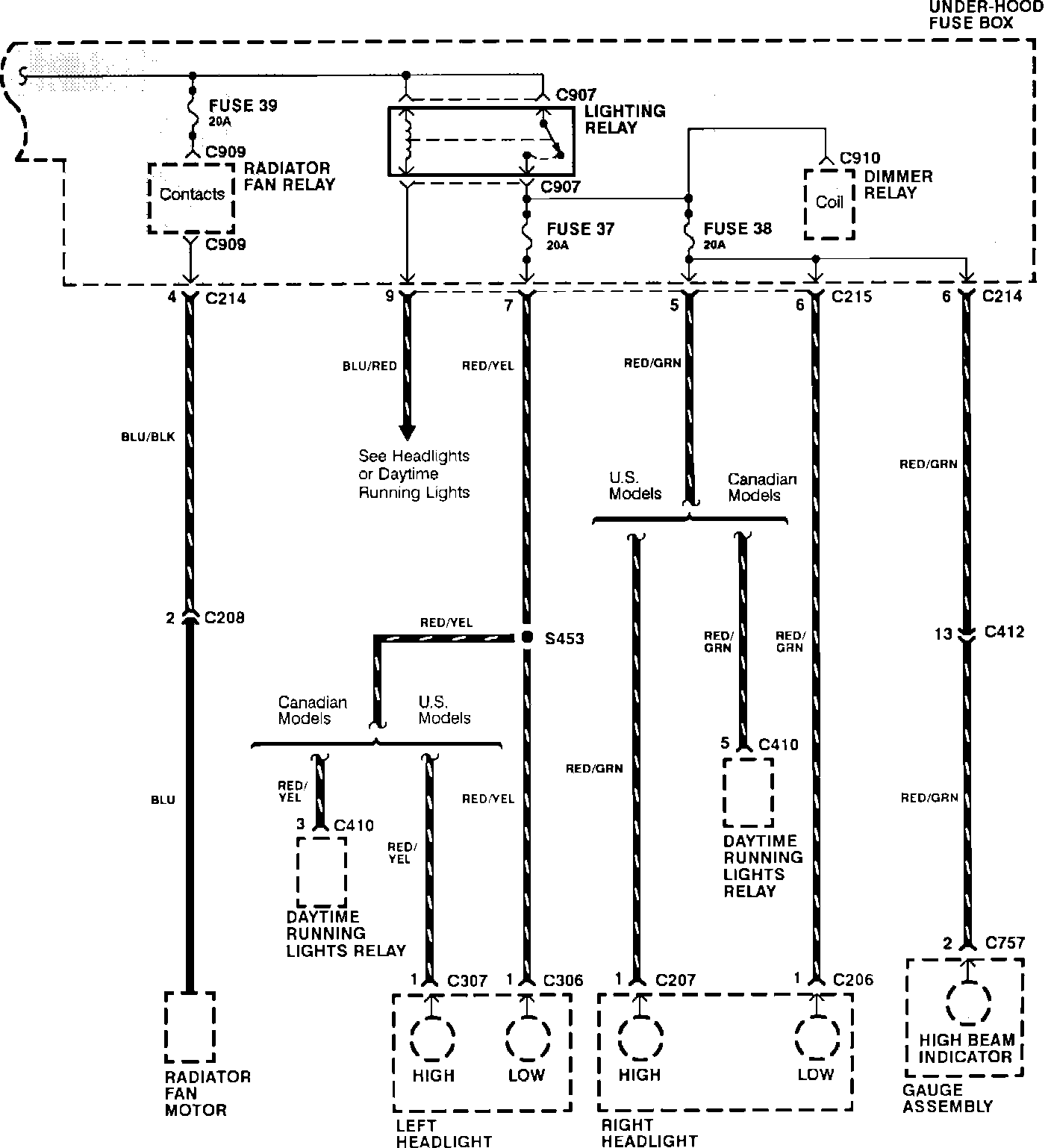

Power Distribution:

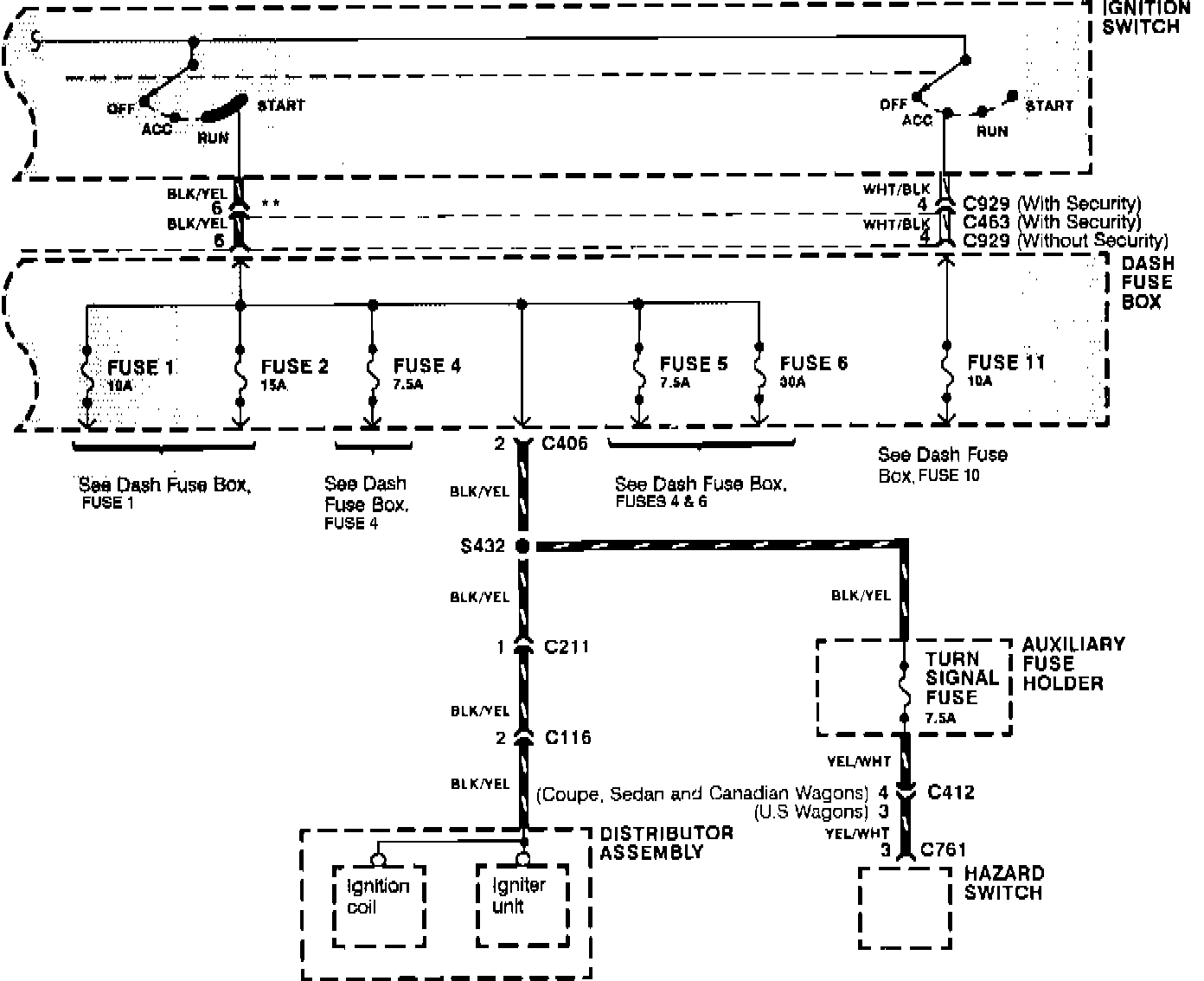

Power Distribution:

Power Distribution:

Power Distribution:

Power Distribution:

Power Distribution:

Dash Fuse Box. Fuse 1 & 3:
