Under-Dash Fuse/Relay Box

Dash Fuse Box. Fuse 1 & 3:

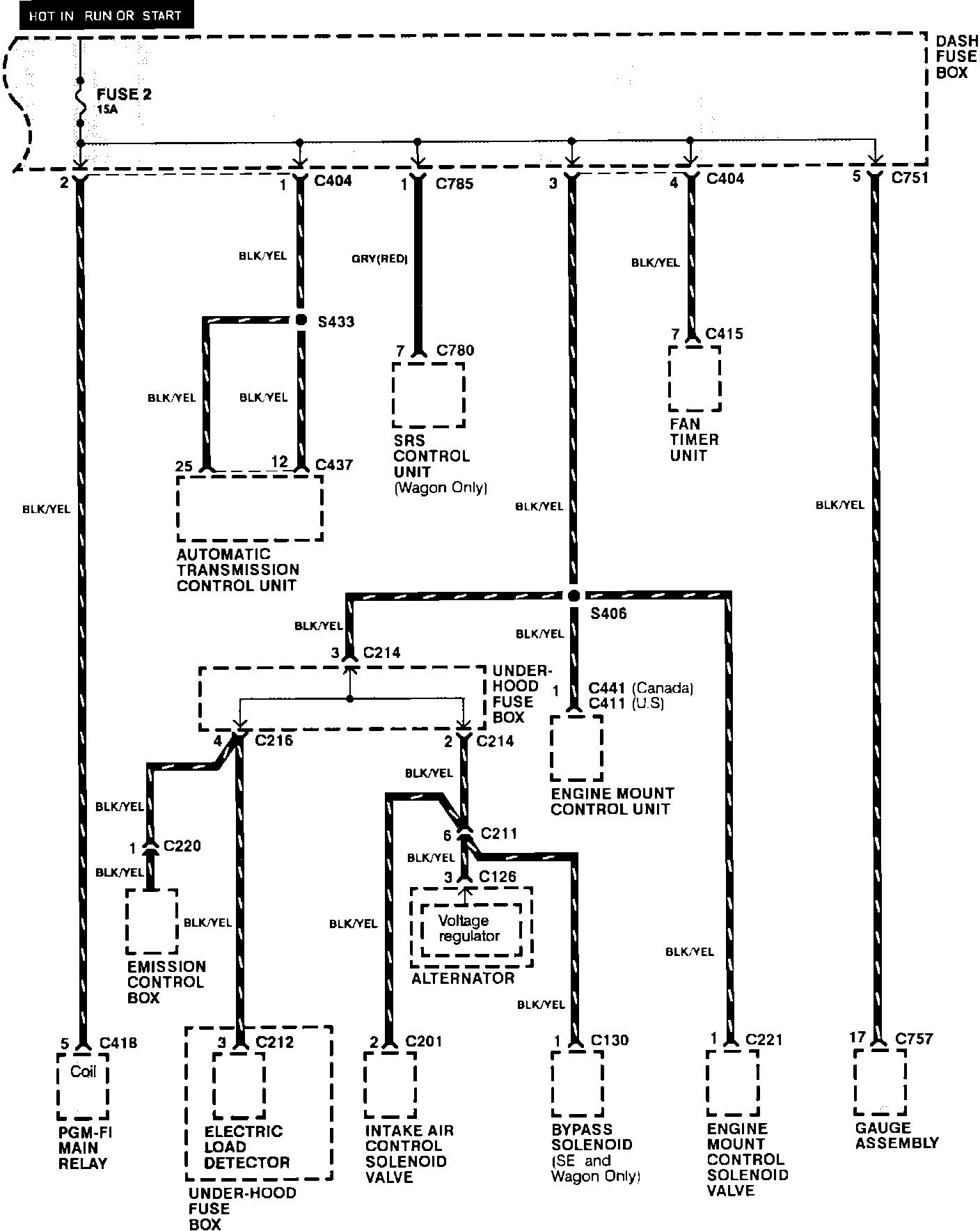

Dash Fuse Box. Fuse 2:

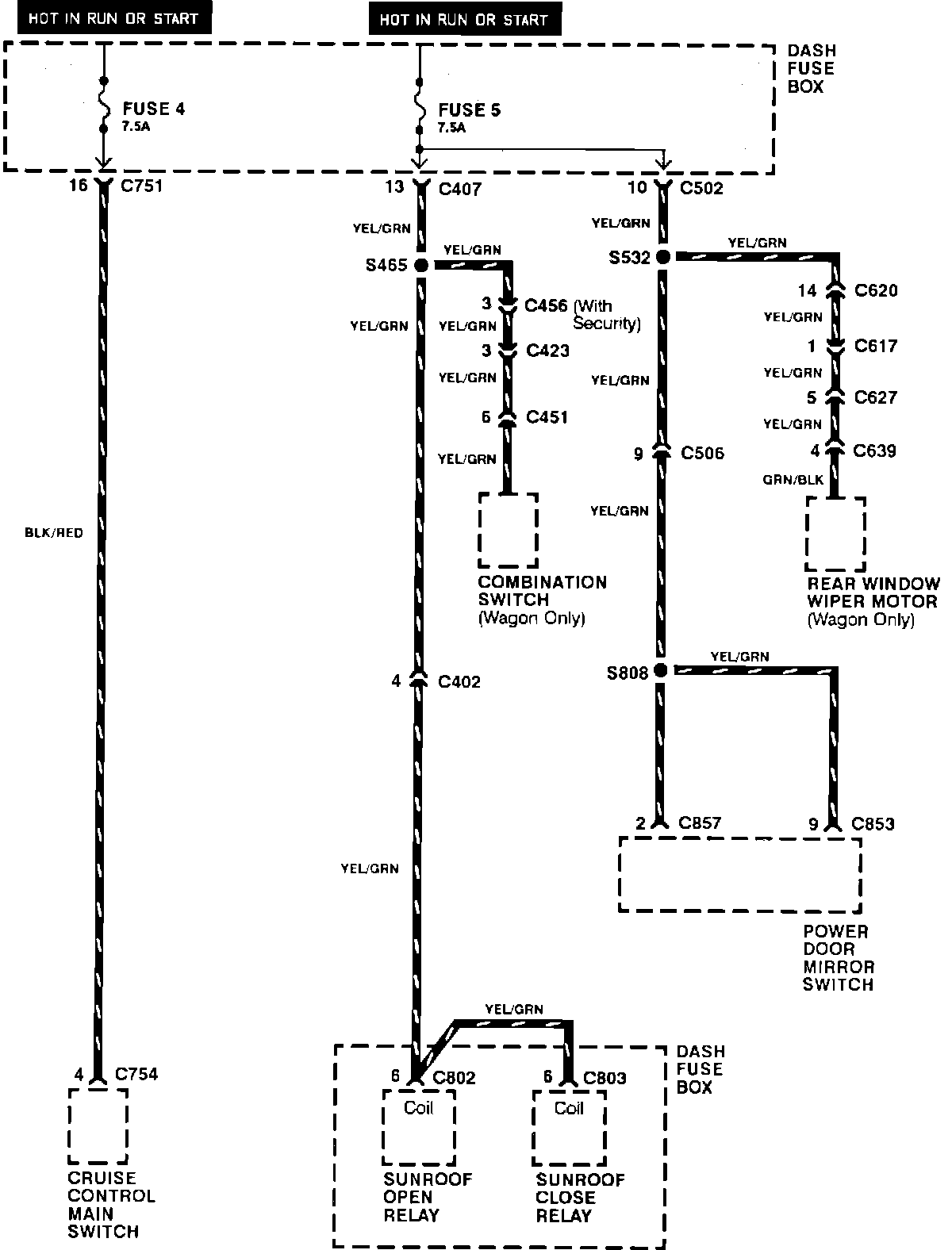

Dash Fuse Box. Fuse 4 & 5:

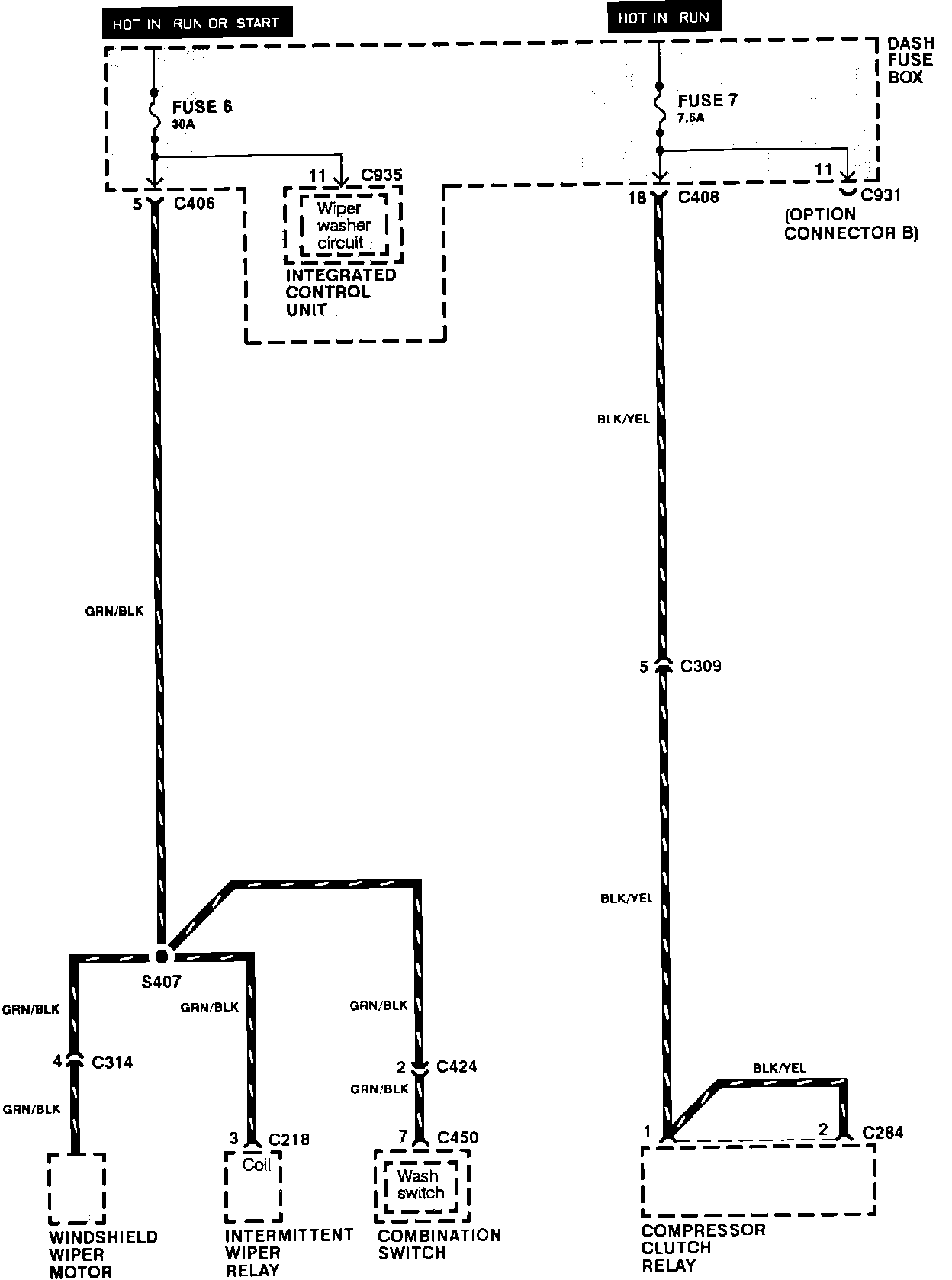

Dash Fuse Box. Fuse 6 & 7:

Dash Fuse Box. Fuse 8:

Dash Fuse Box. Fuse 8:

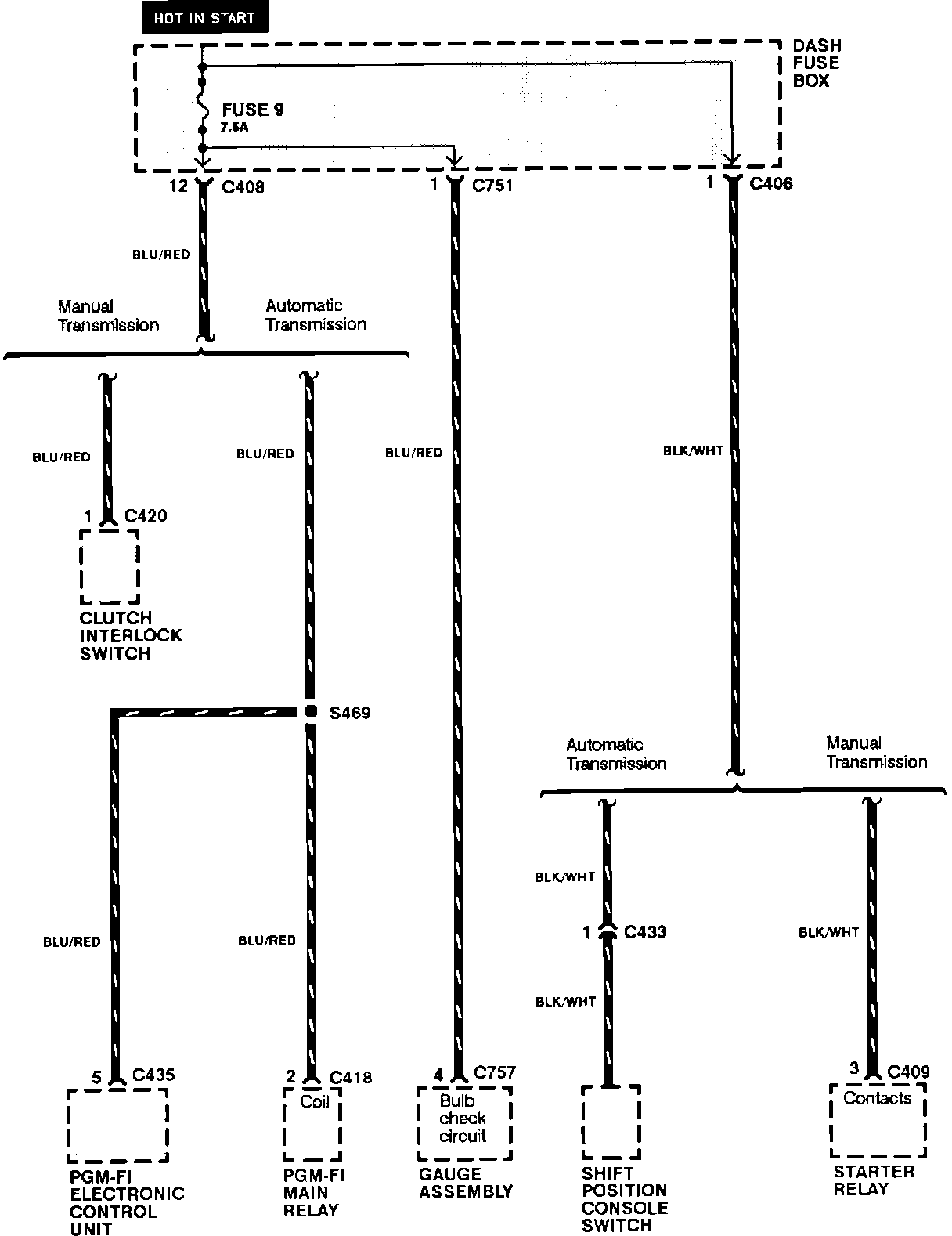

Dash Fuse Box. Fuse 9:

Dash Fuse Box. Fuse 10 & 11:
