Computers and Control Systems: Locations

How to Identify Connectors:
Identification numbers have been assigned to all connectors. The number is preceded by the letter "C" for connectors, "G" for ground terminals or "T" for non-ground terminals.

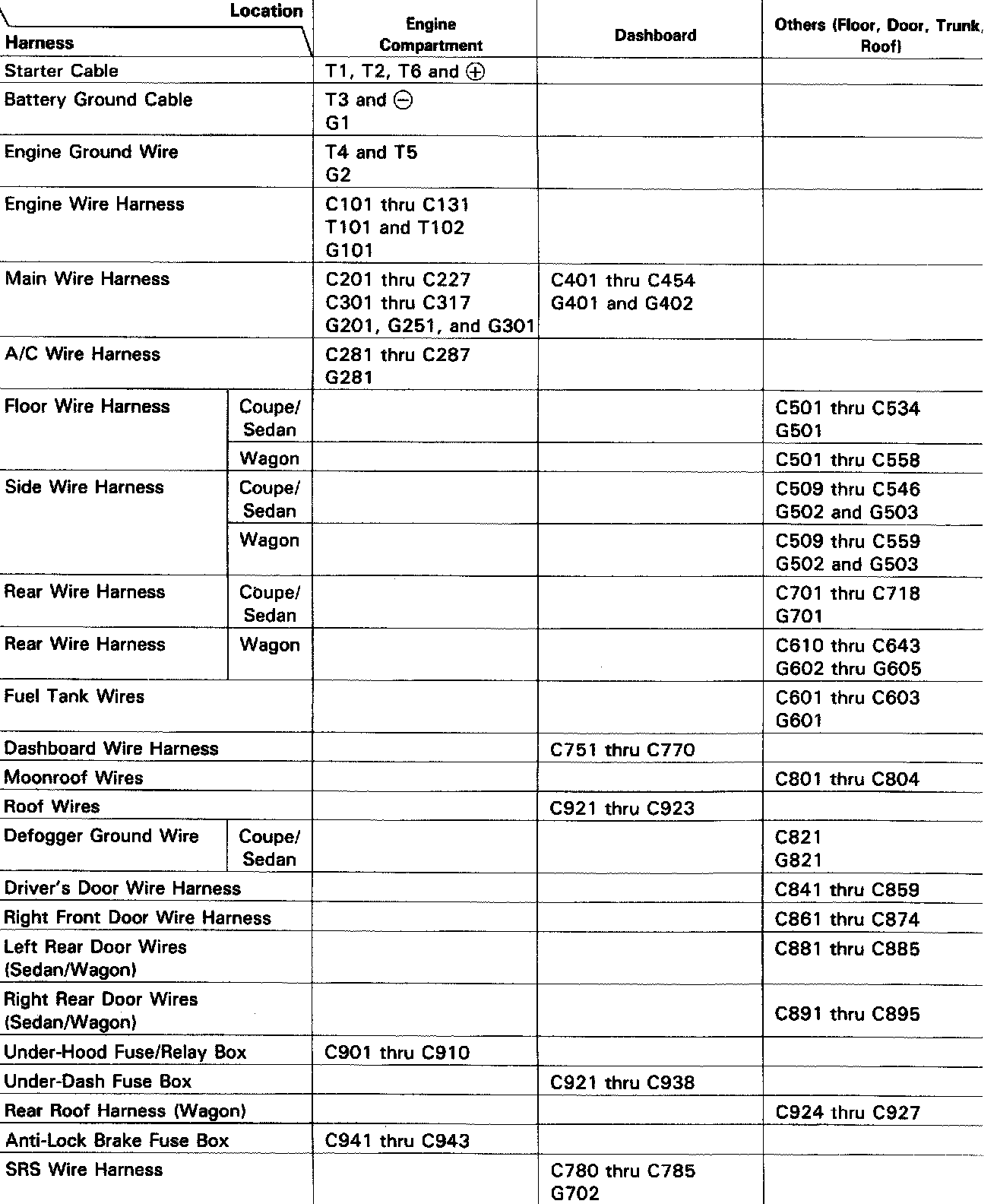

System Wiring Legend

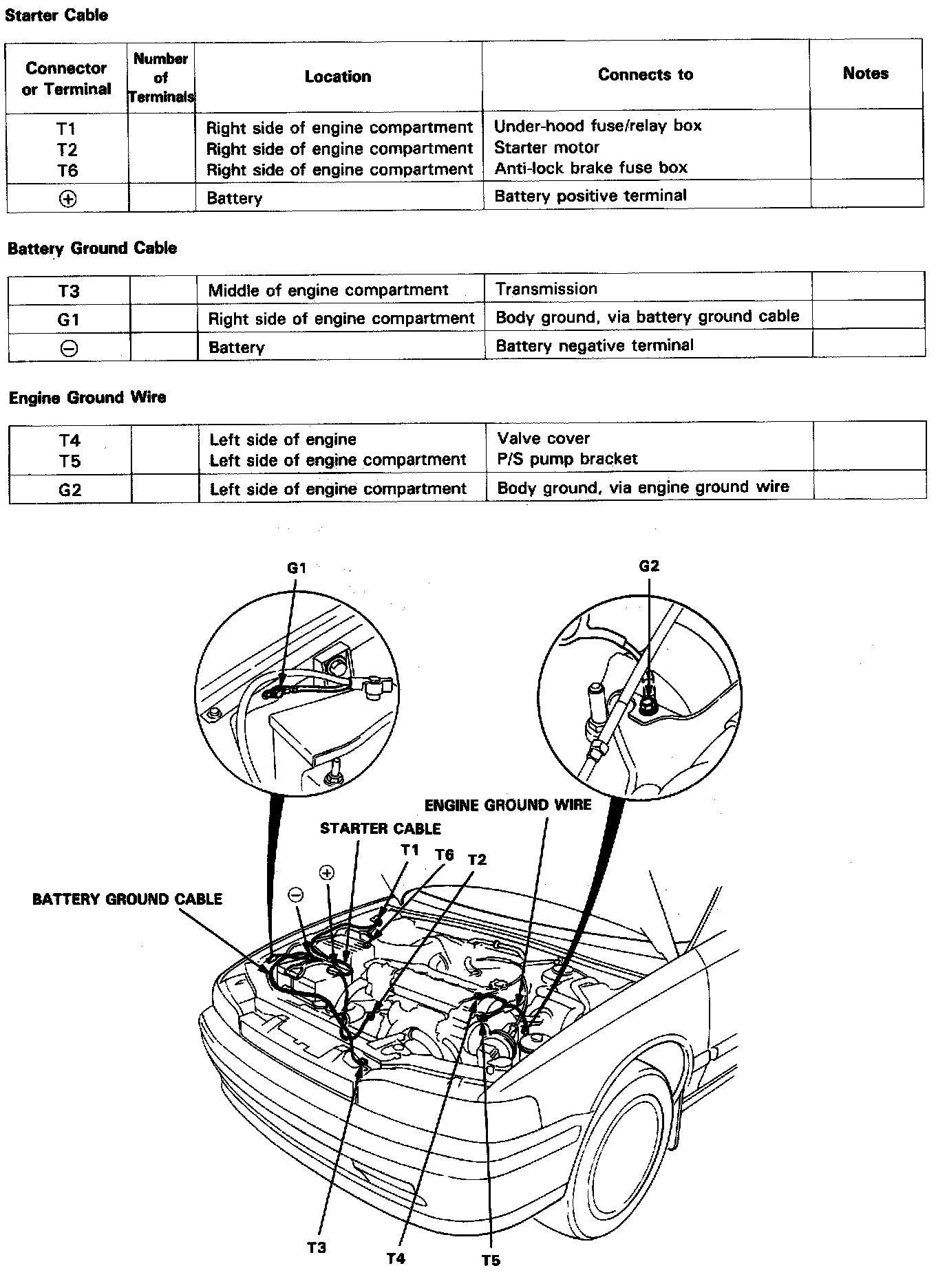

Starter Cable / Battery Ground Cable / Engine Ground Wire

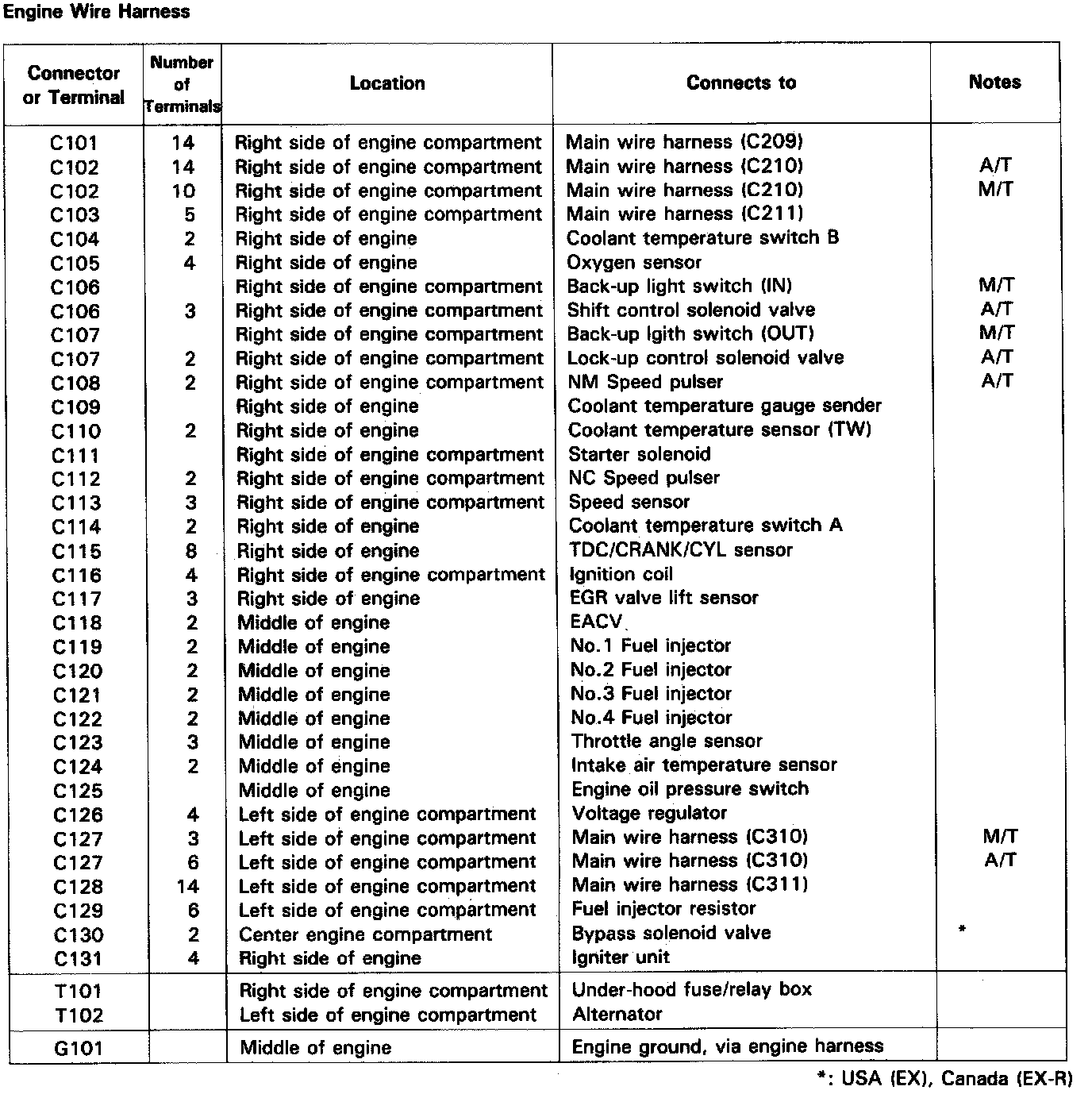

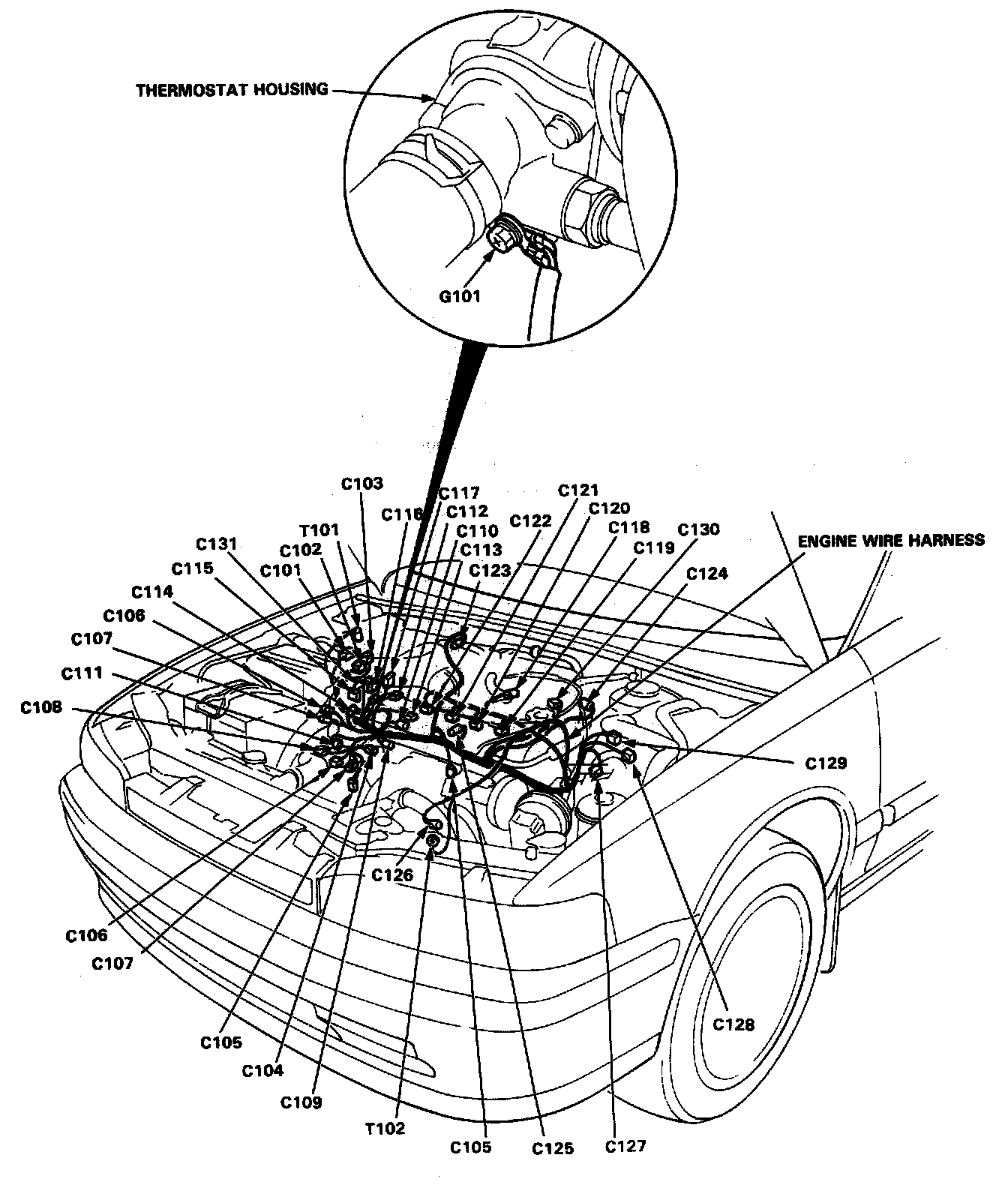

Engine Wire Harness

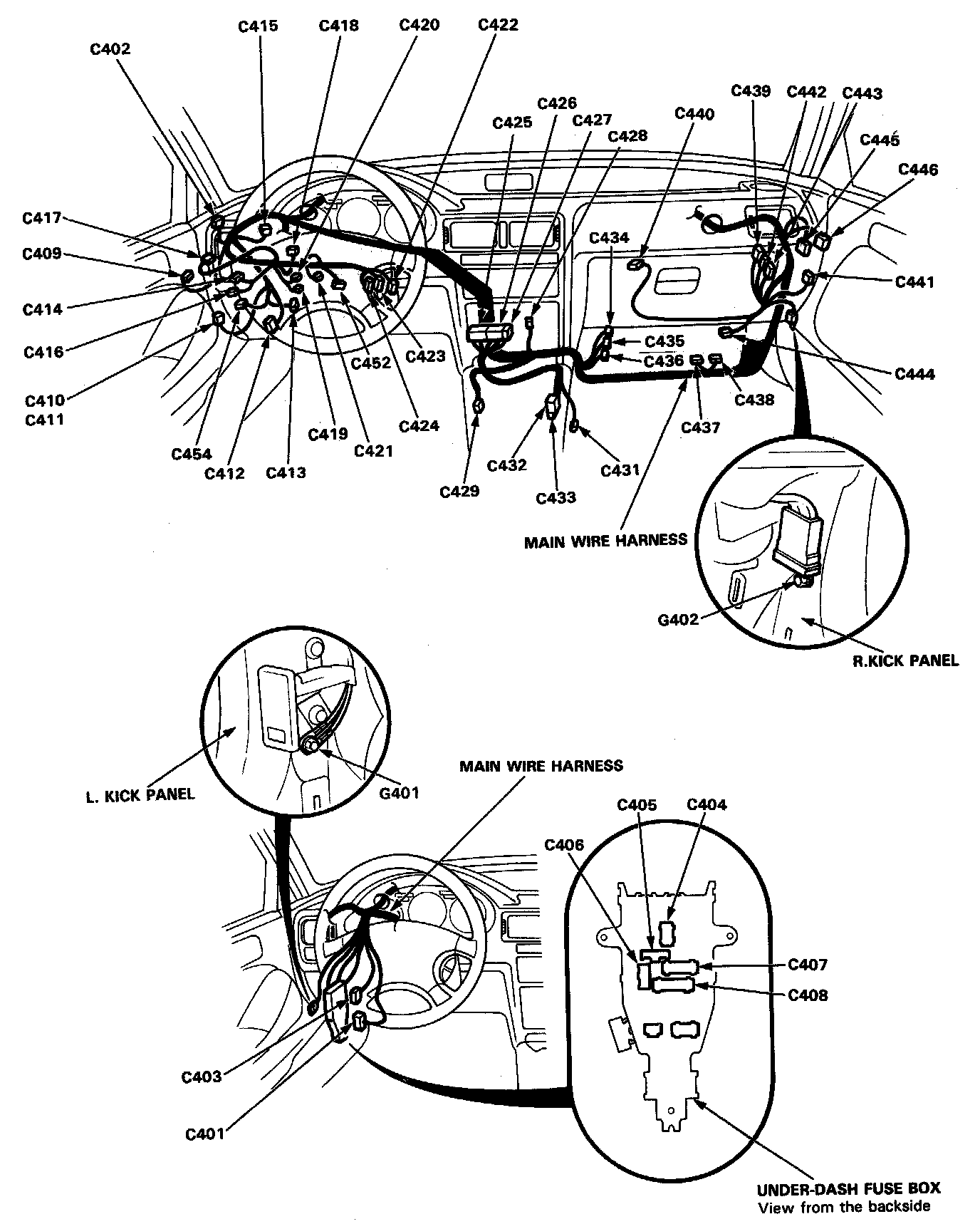

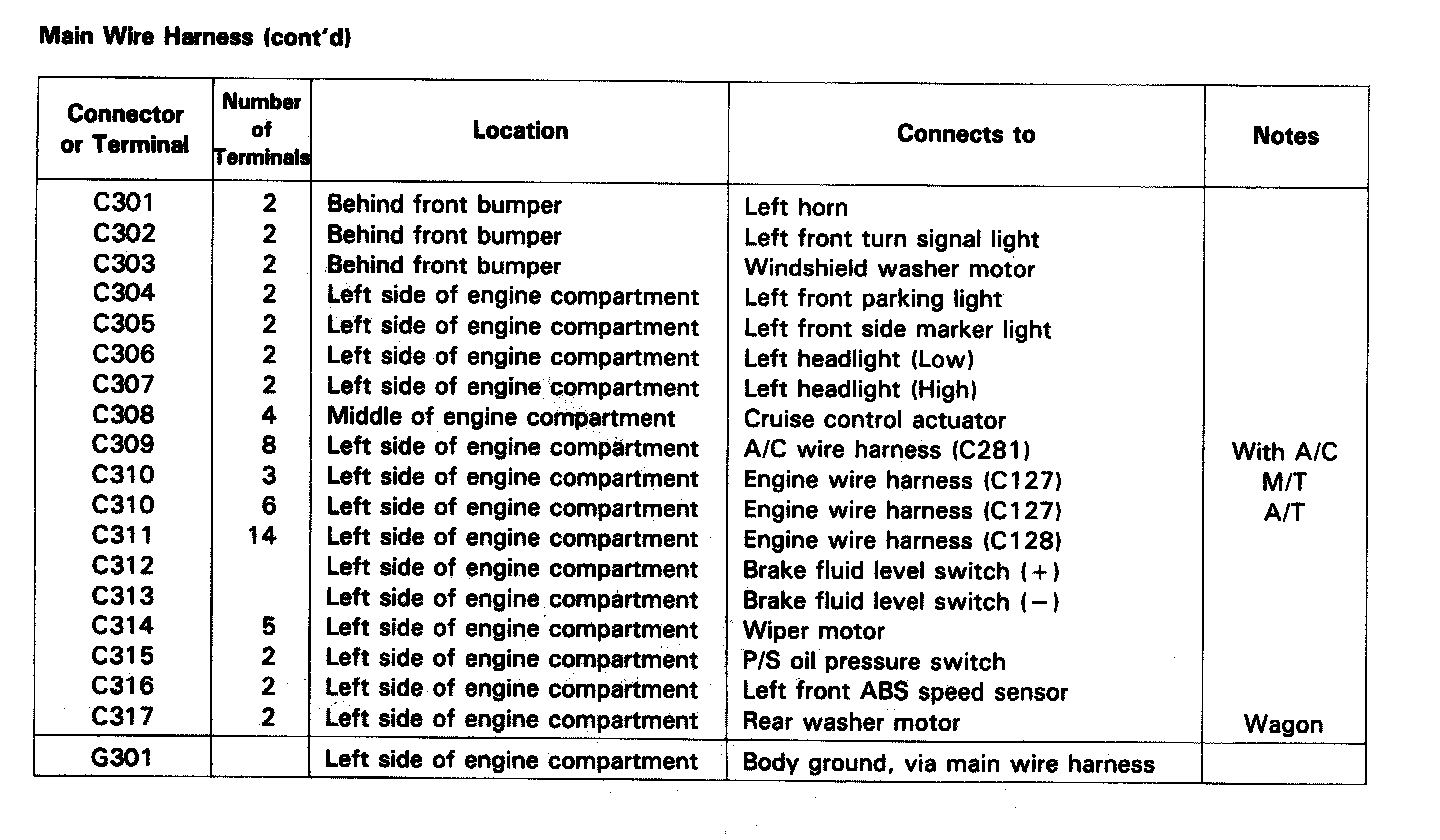

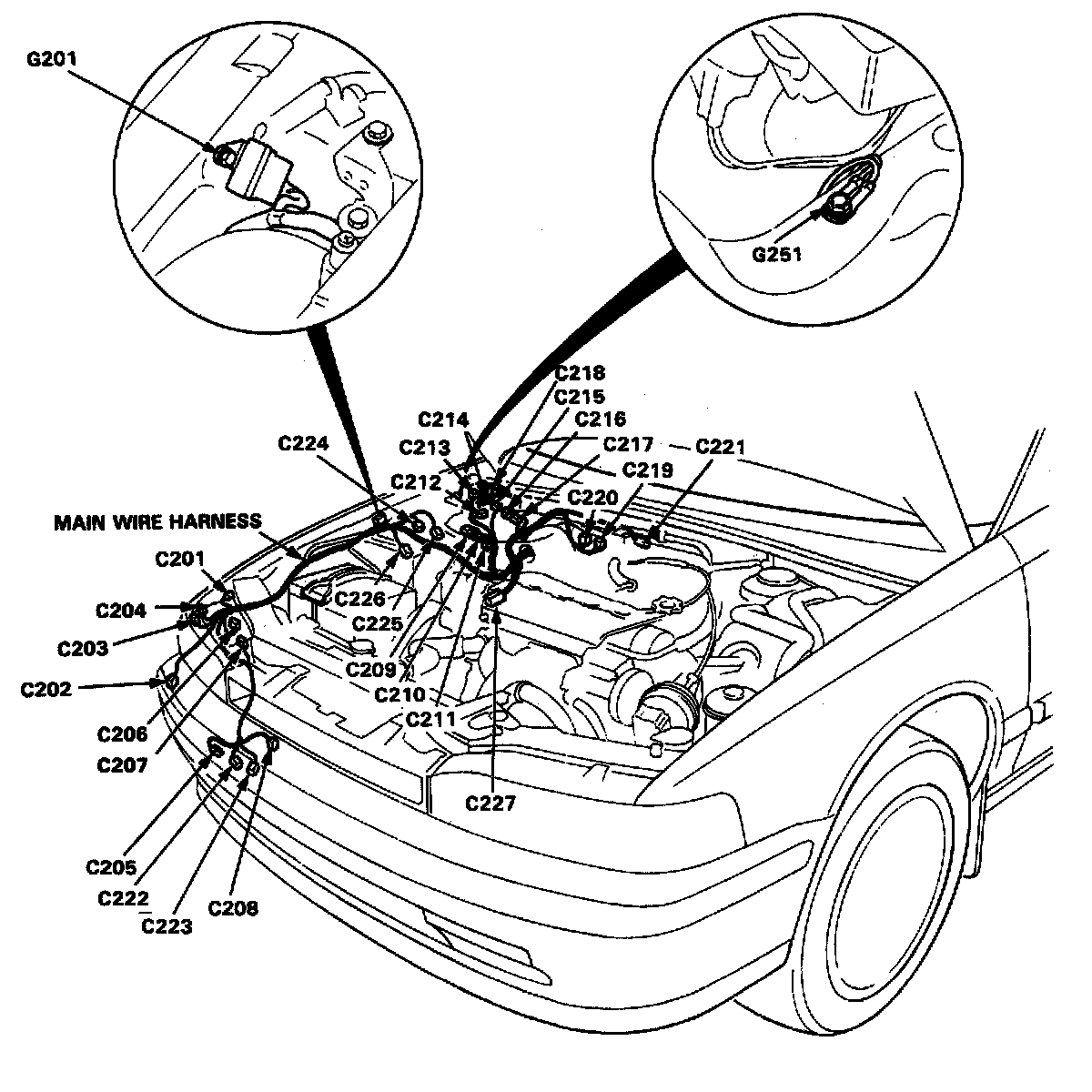

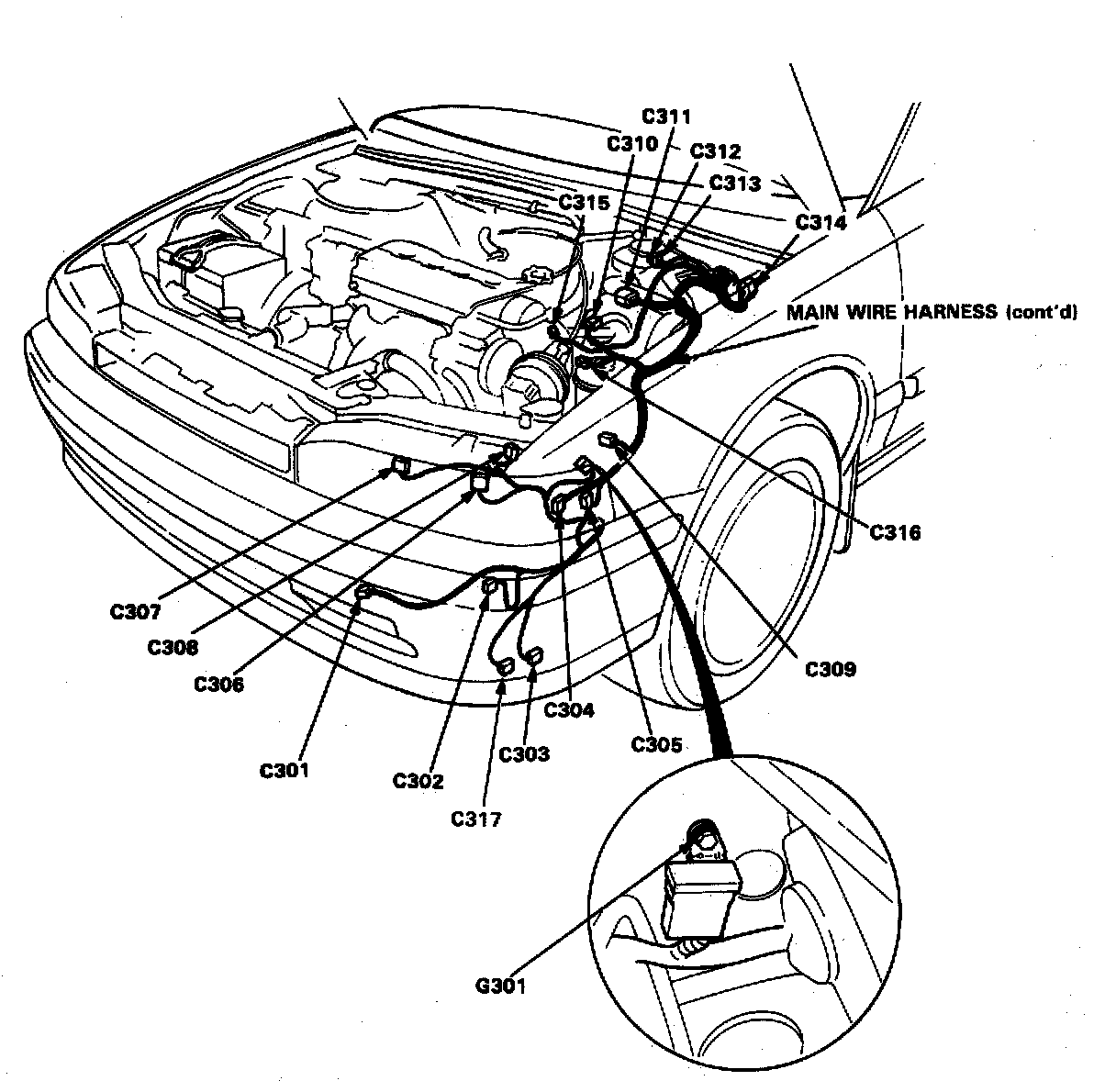

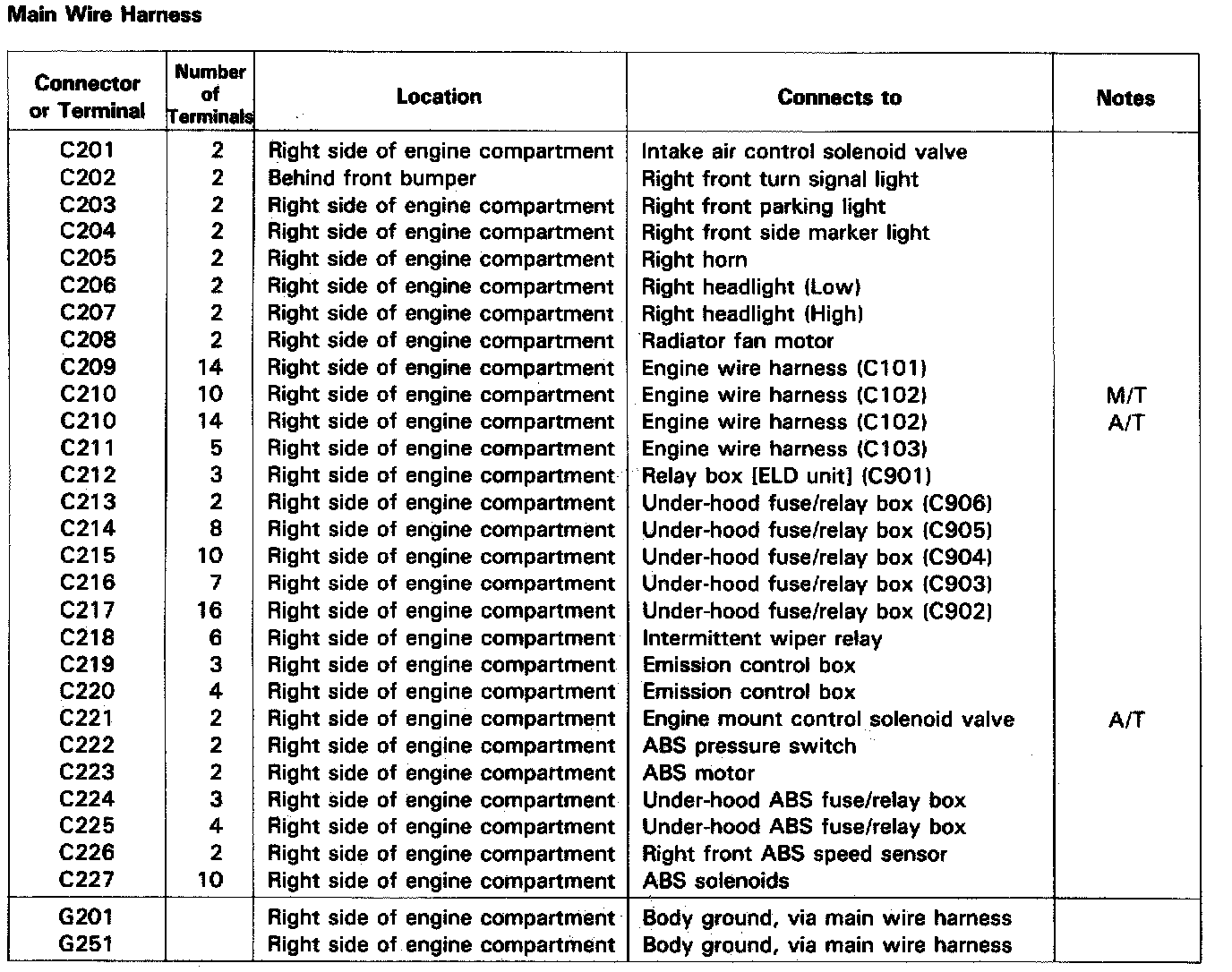

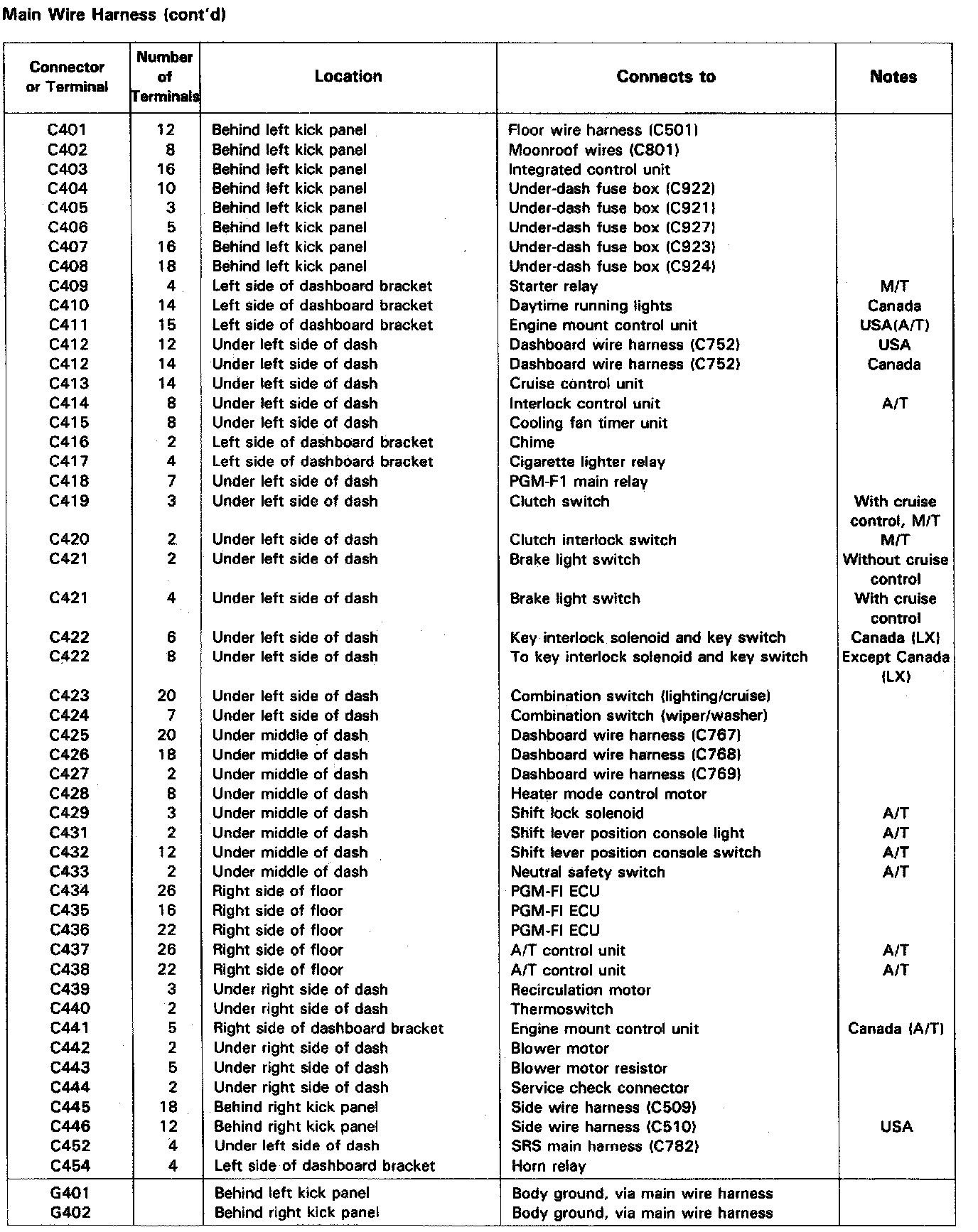

Main Wire Harness

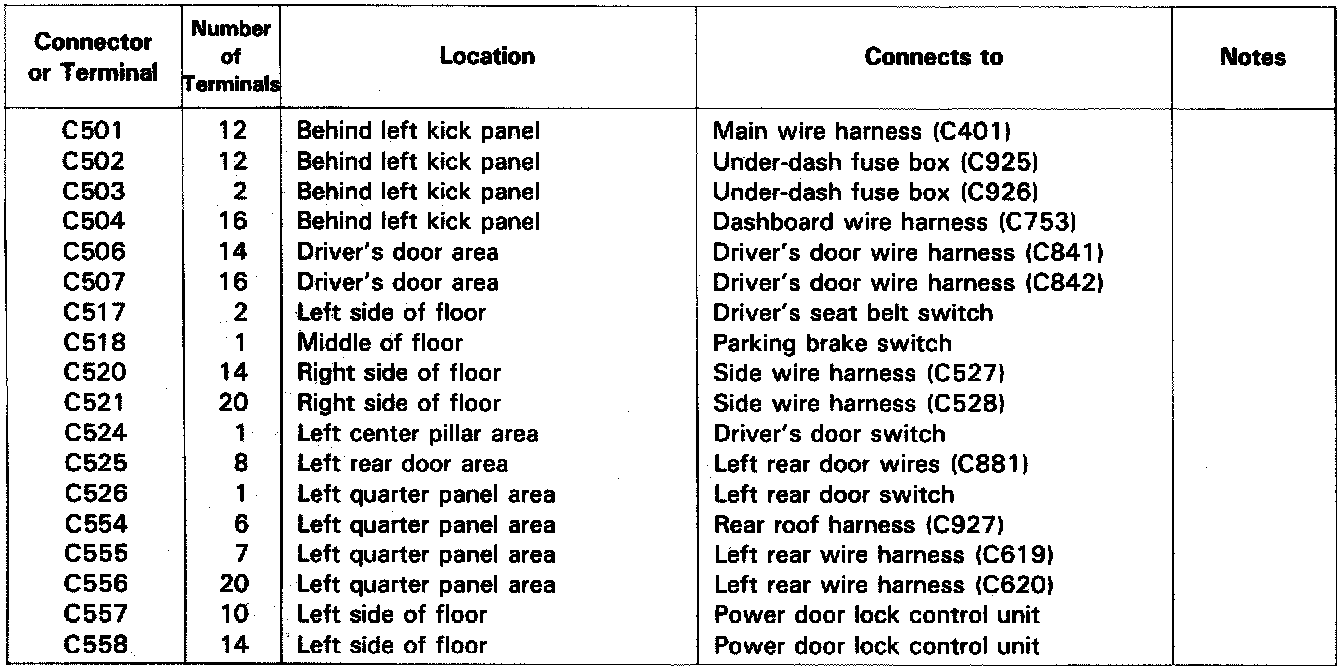

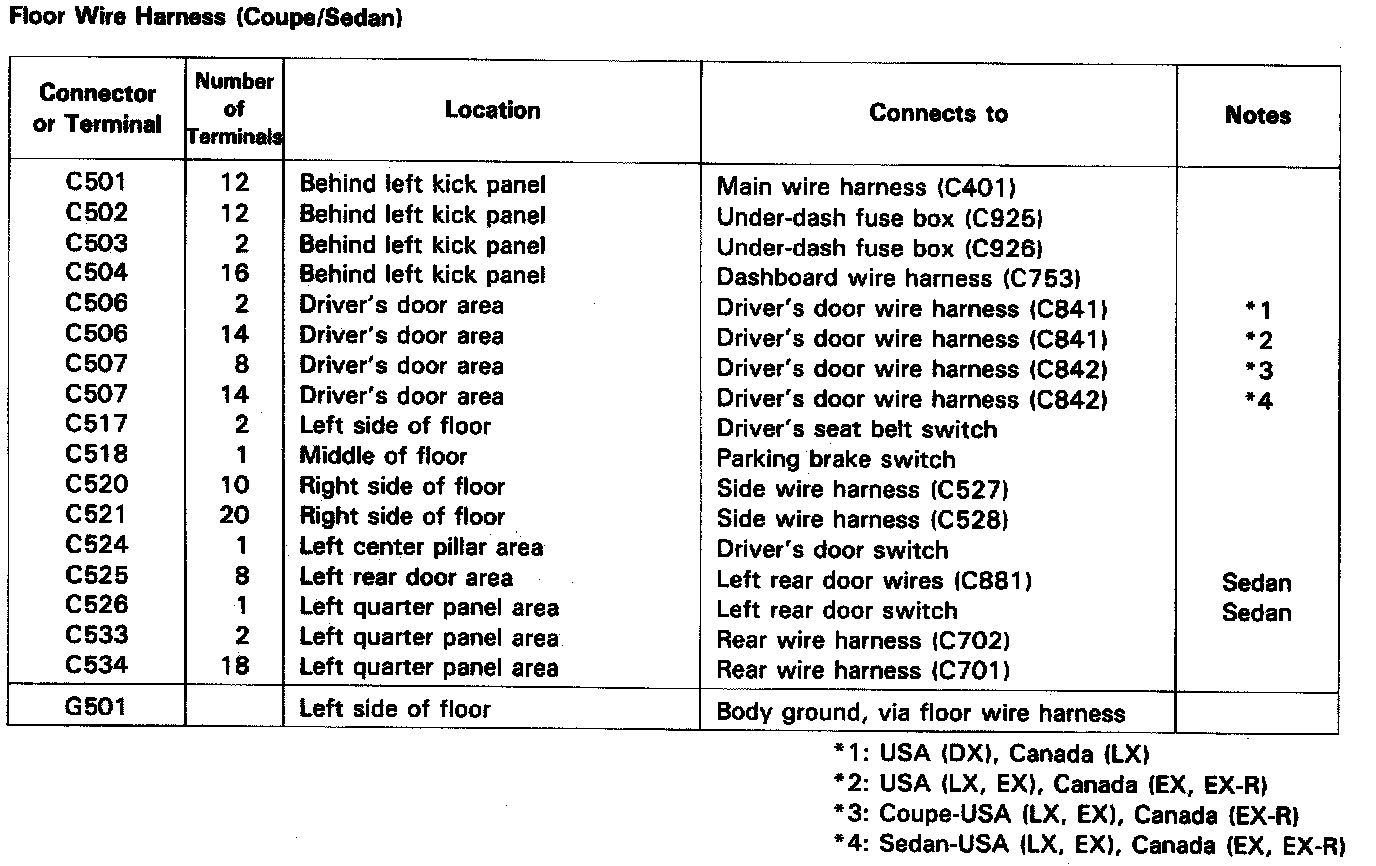

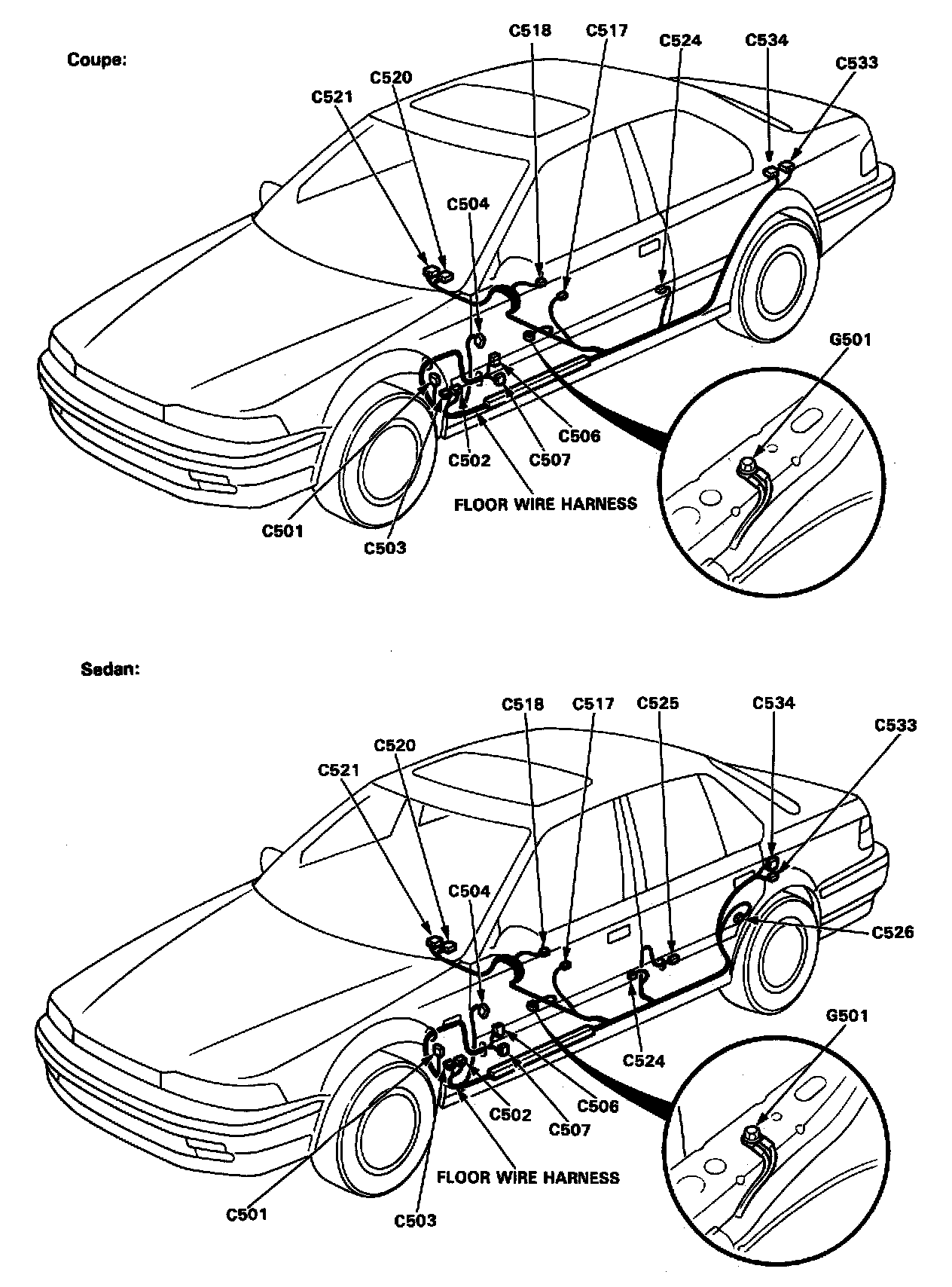

Floor Wire Harness (Coupe/Sedan)

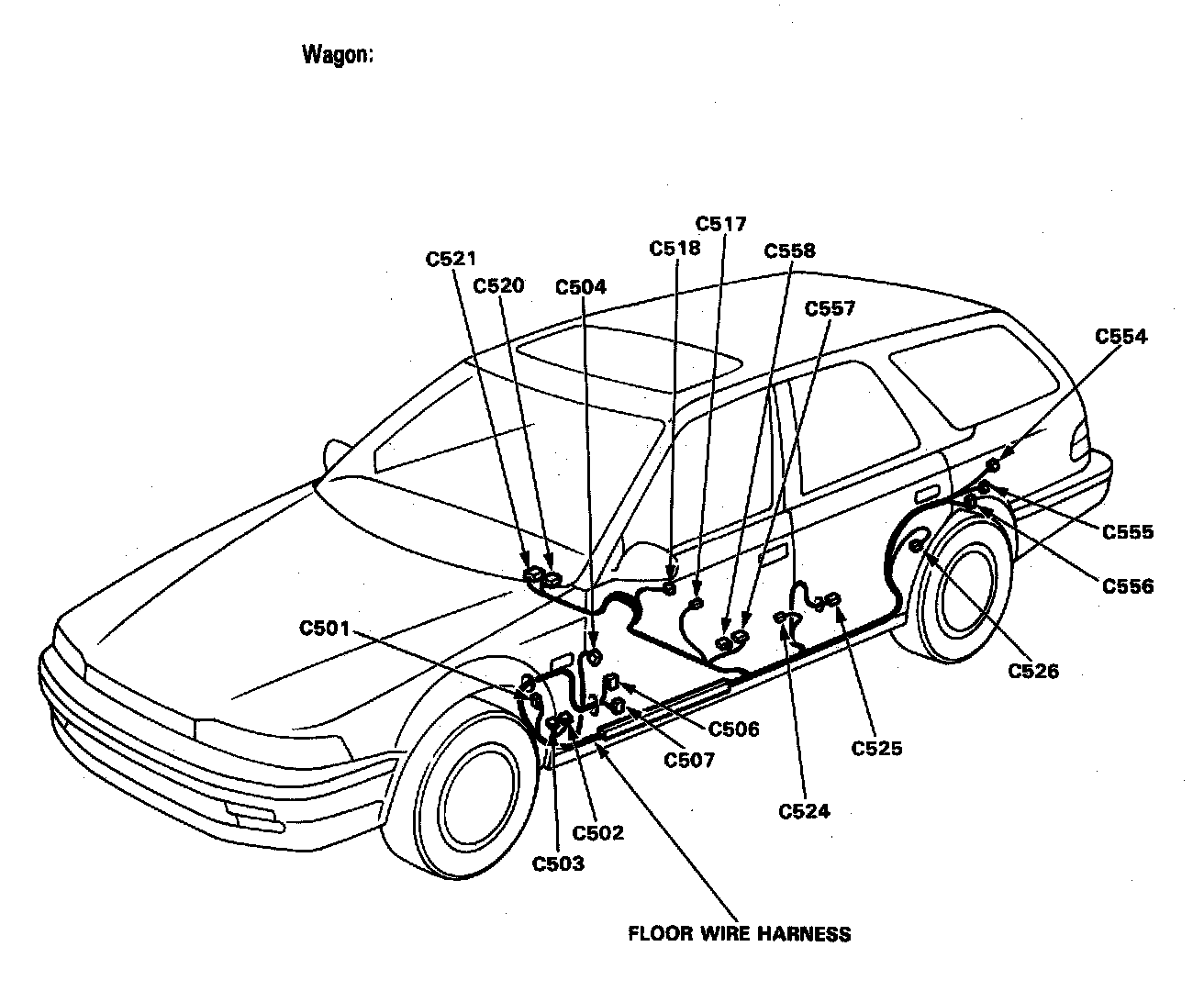

Floor Wire Harness (Wagon)

Side Wire Harness (Coupe/Sedan)

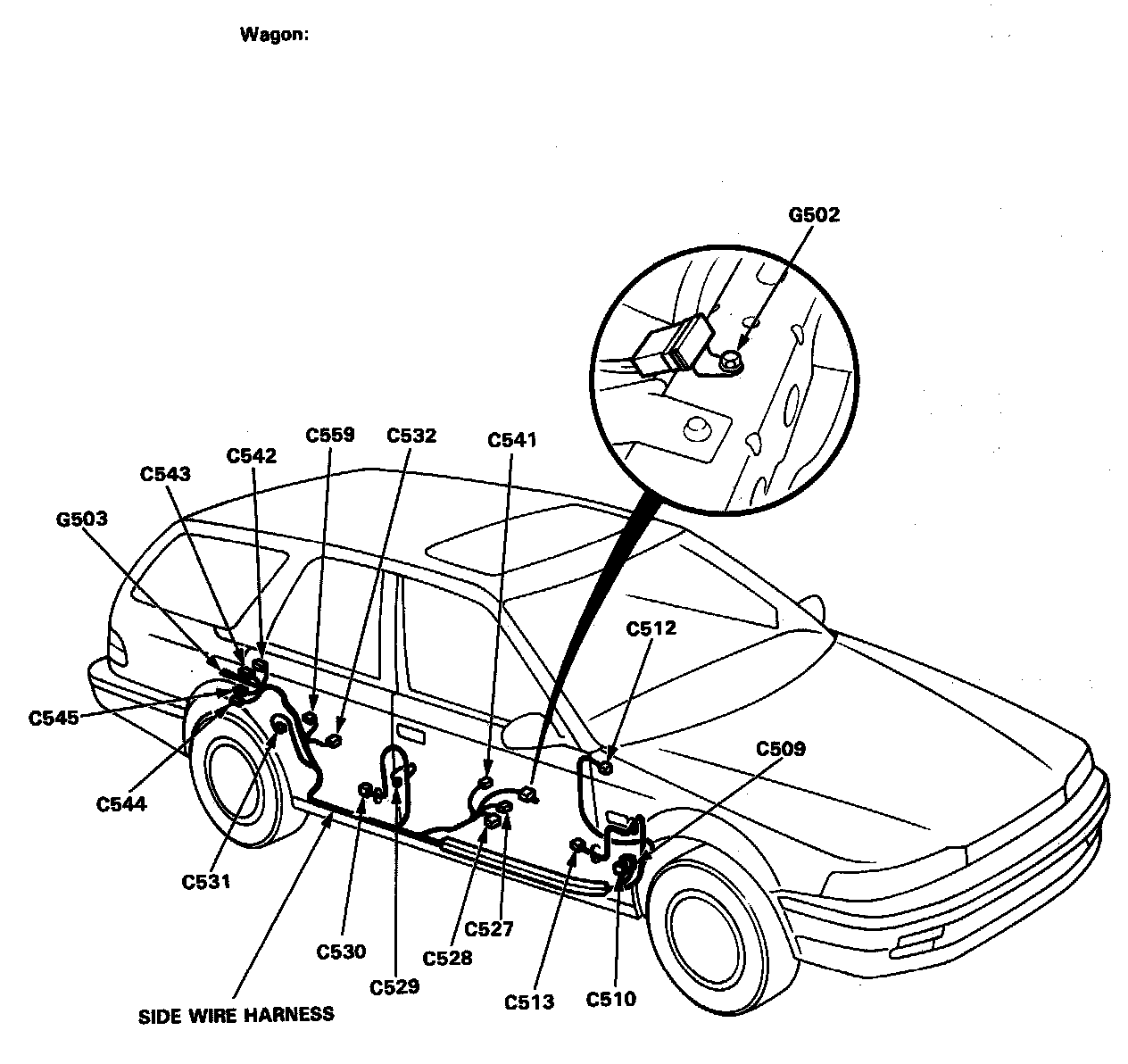

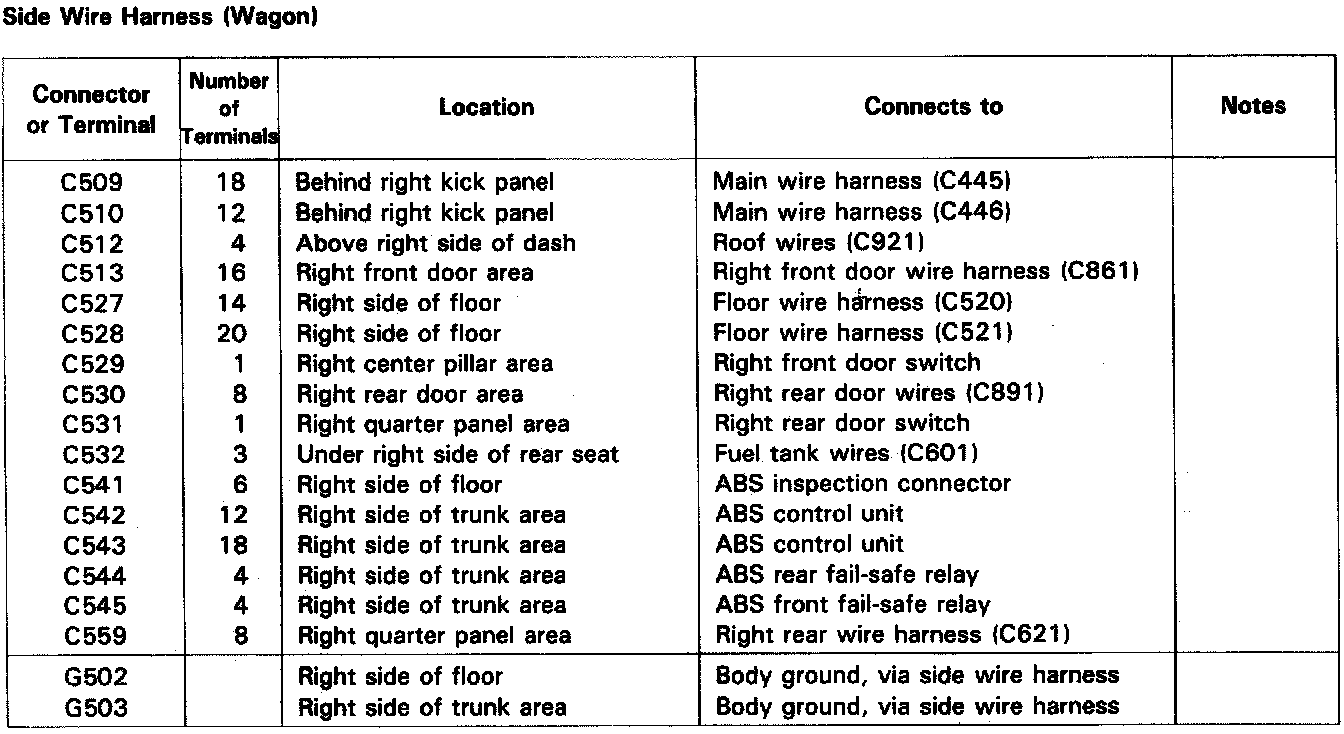

Side Wire Harness (Wagon)

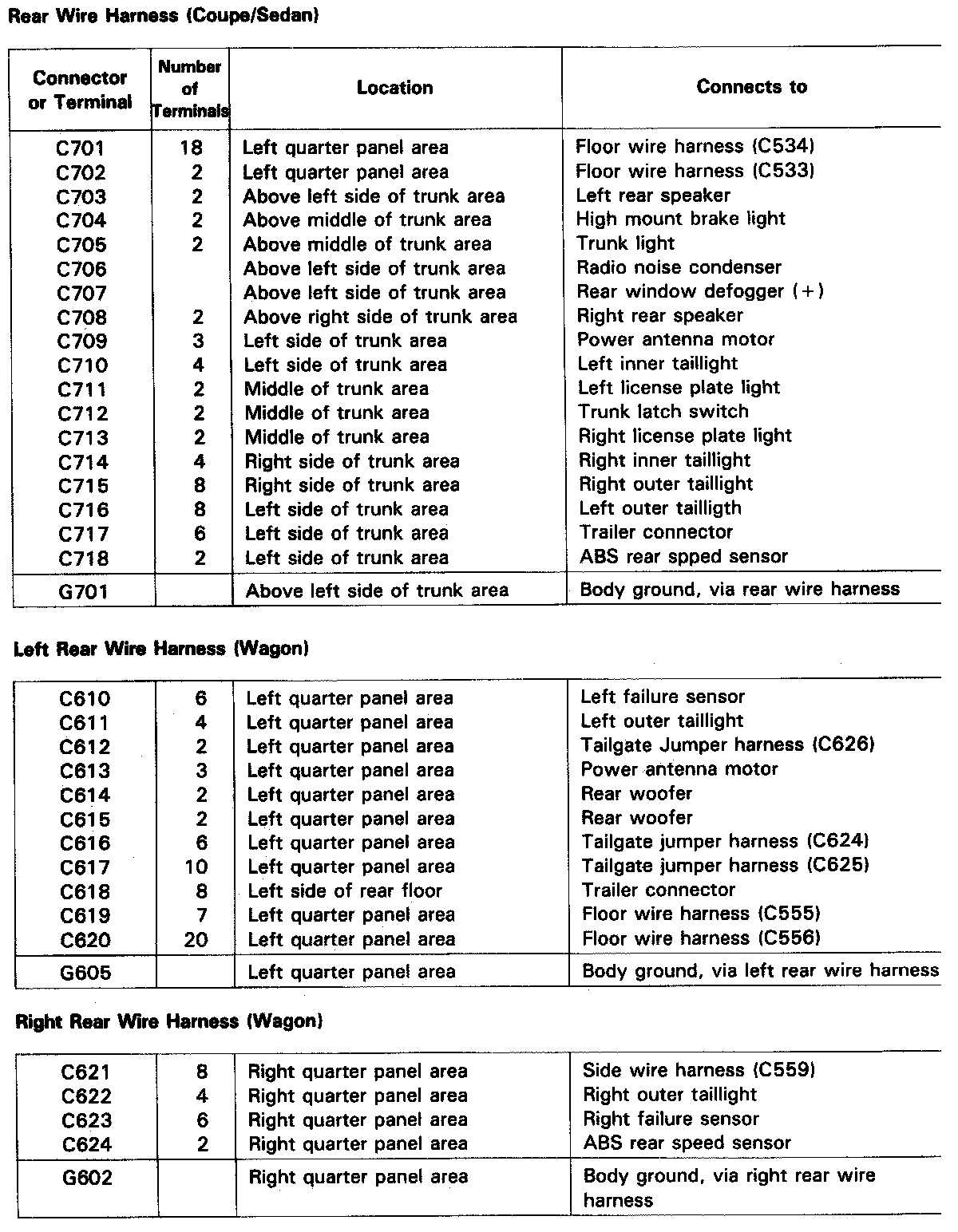

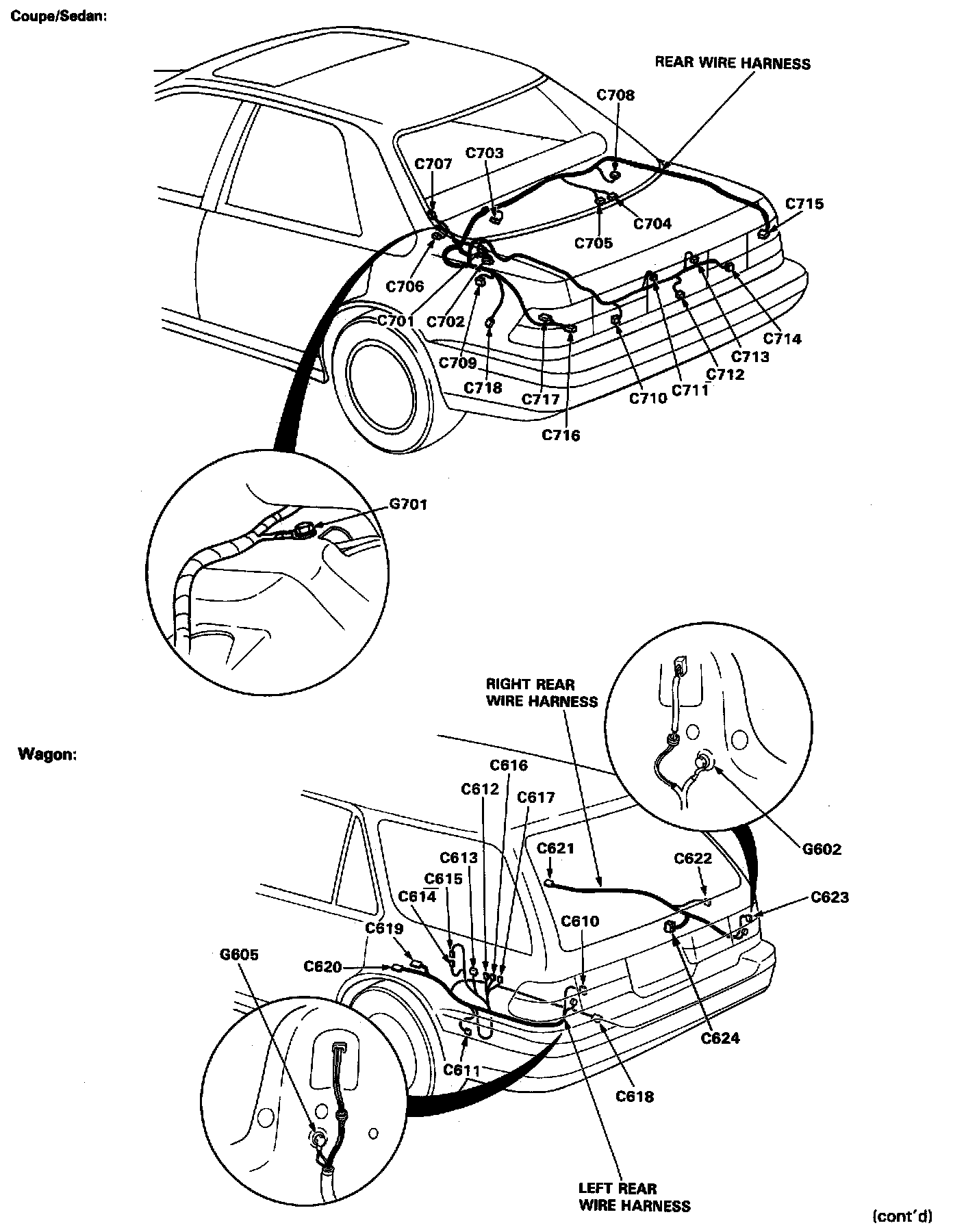

Rear Wire Harnesss

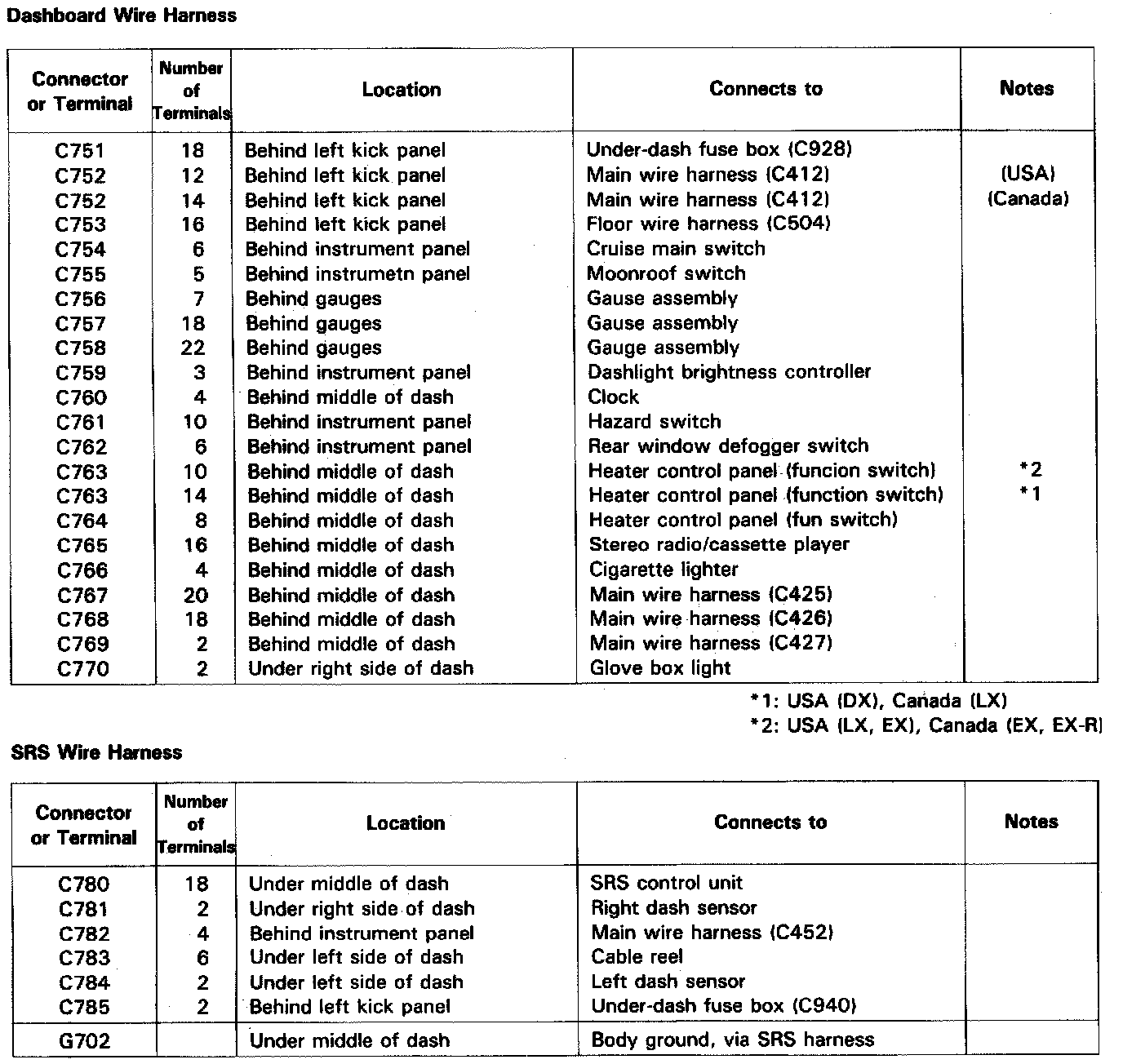

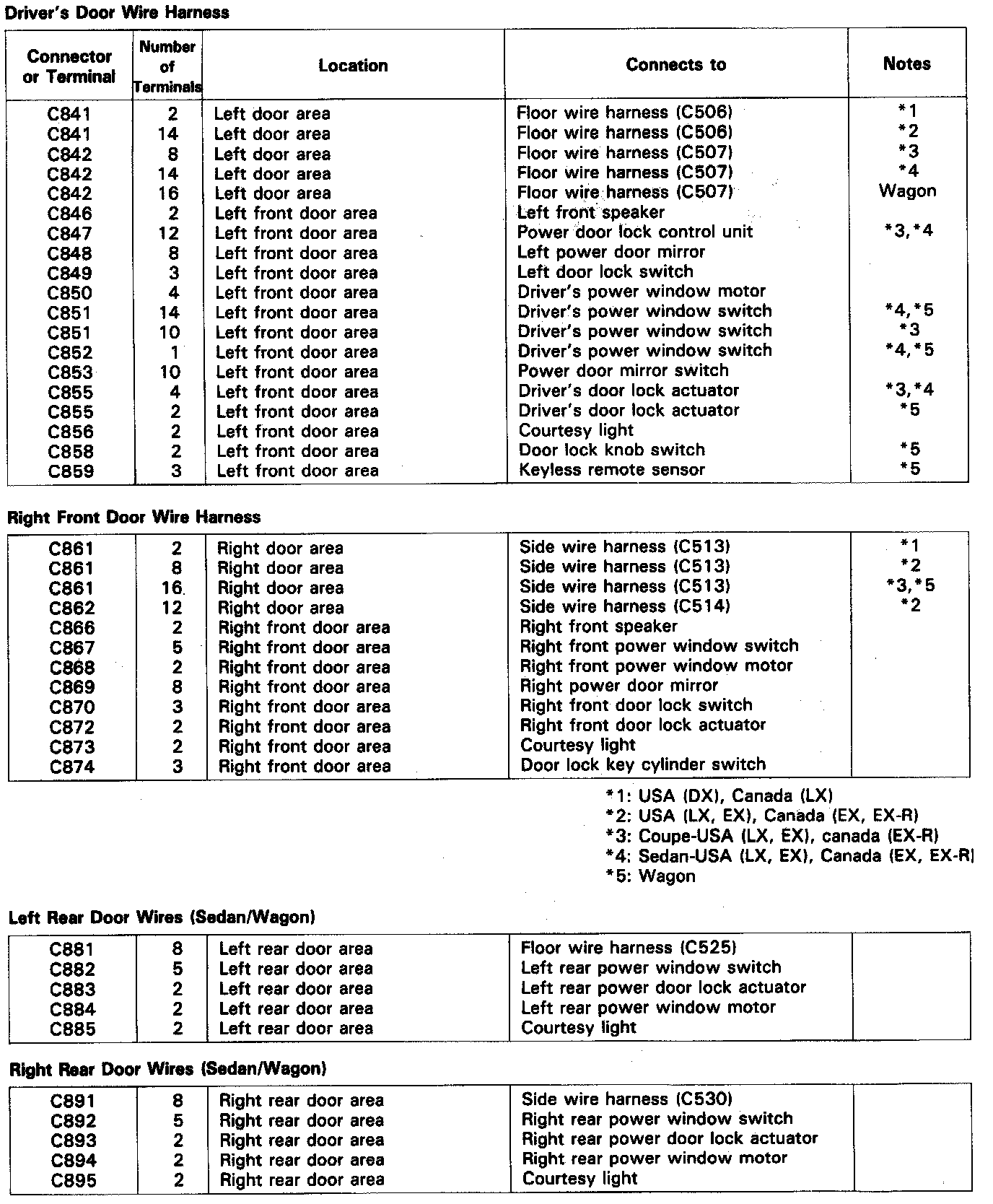

Dashboard / SRS Wire Harness
