Installation

1. Place the transmission on the transmission jack, and raise to the engine level.
2. Check that the 4 dowel pins are installed.

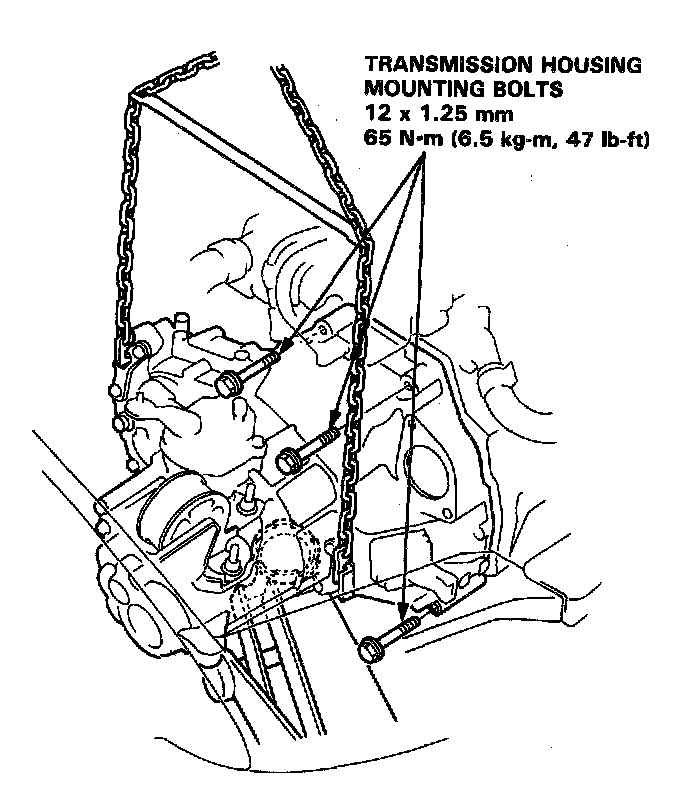

3. Install the 3 transmission housing mounting bolts.





4. Install the transmission mount and mount bracket.

NOTE: Torque mounting bolt and nuts in sequence shown.

CAUTION: Check that the bushings are not twisted or offset.

5. Install the transmission housing mounting bolts (Engine side).
6. Install the 3 rear engine bracket mounting bolts.





7. Install the rear engine mount bracket stay.

NOTE: Loosely install the stay mounting bolt and nut, then torque in the sequence shown.





8. Install the intake manifold bracket.

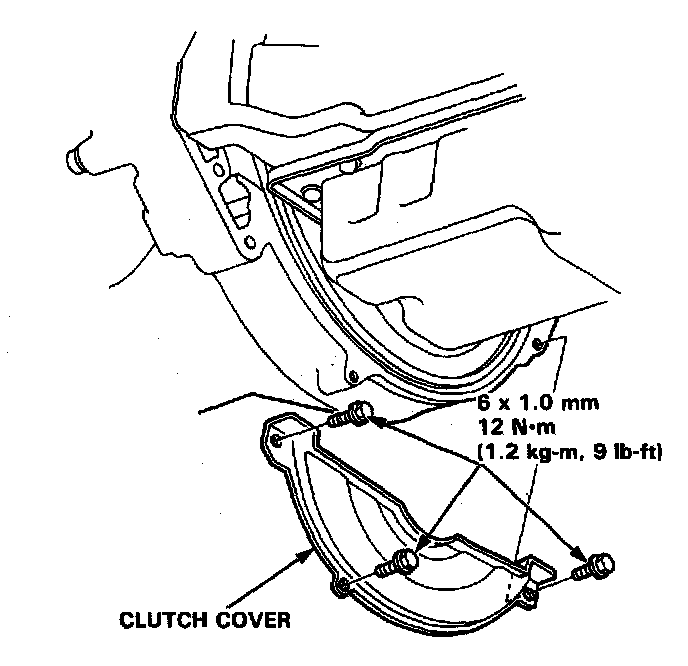

9. Install the clutch cover.
10. Install the radius rod.

NOTE: Check for deterioration or damage of the radius rod rubber bushing (A) and (B).





11. Install the damper fork.
12. Install the intermediate shaft.
13. Install a new set ring on the end of each driveshaft.





14. Install the right and left driveshafts. Service and Repair

NOTE: Turn the right and left steering knuckle fully outward, and slide axle into the differential until you feel its spring clip engage the side gear.

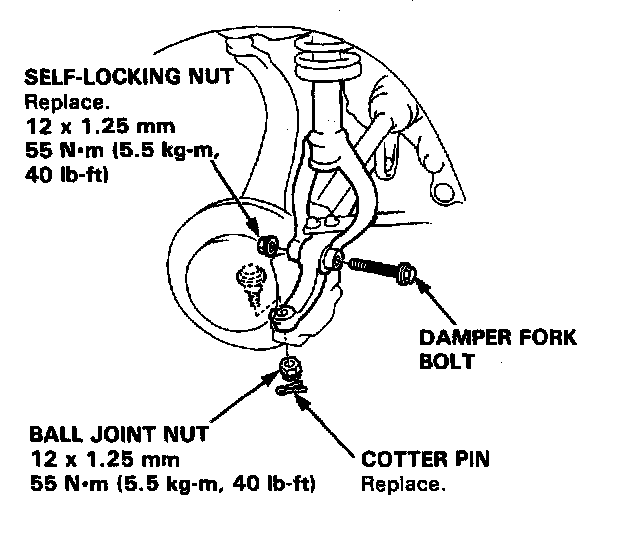

15. Install the damper fork bolt and ball joint nut to the lower arms.
