Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1991
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

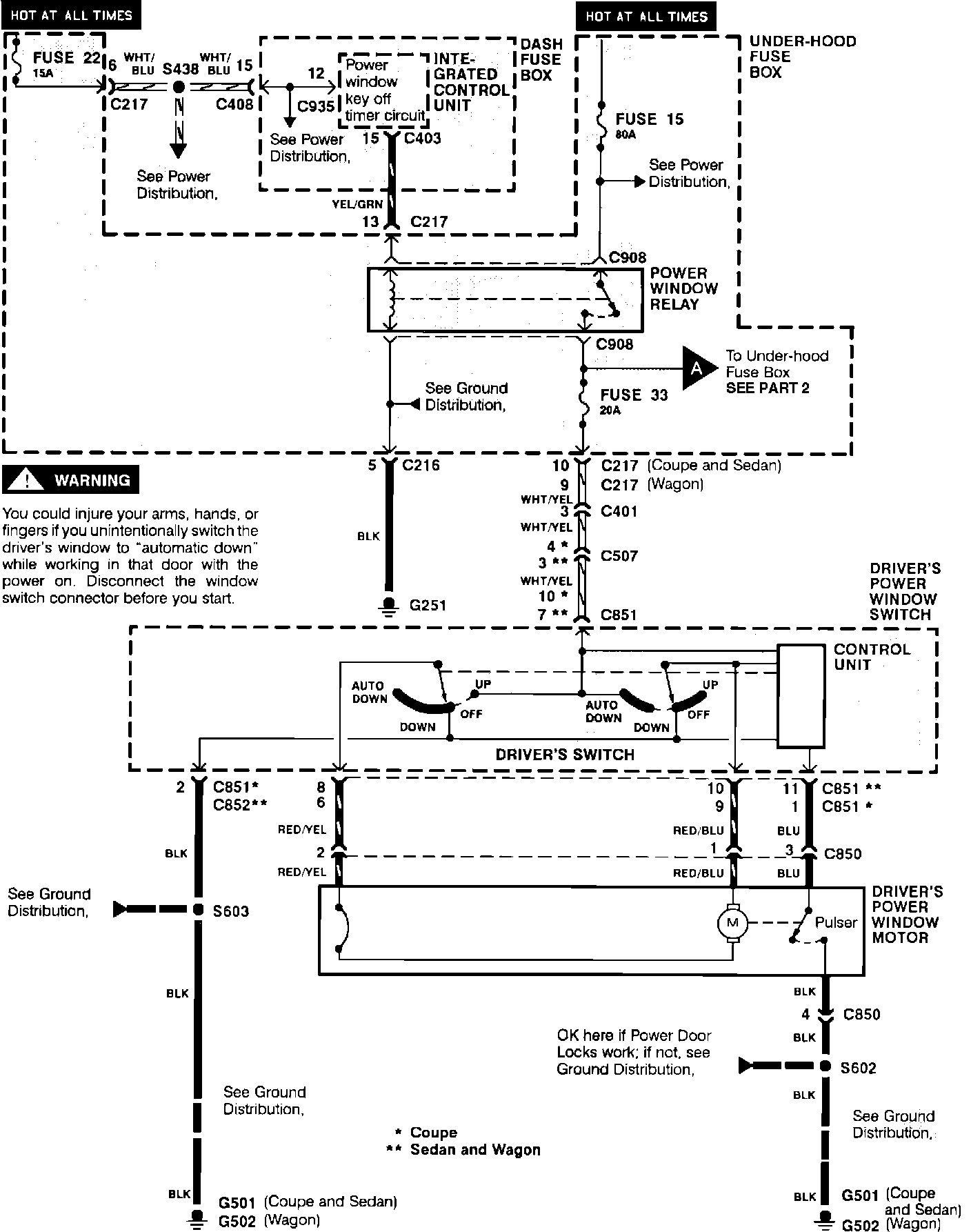

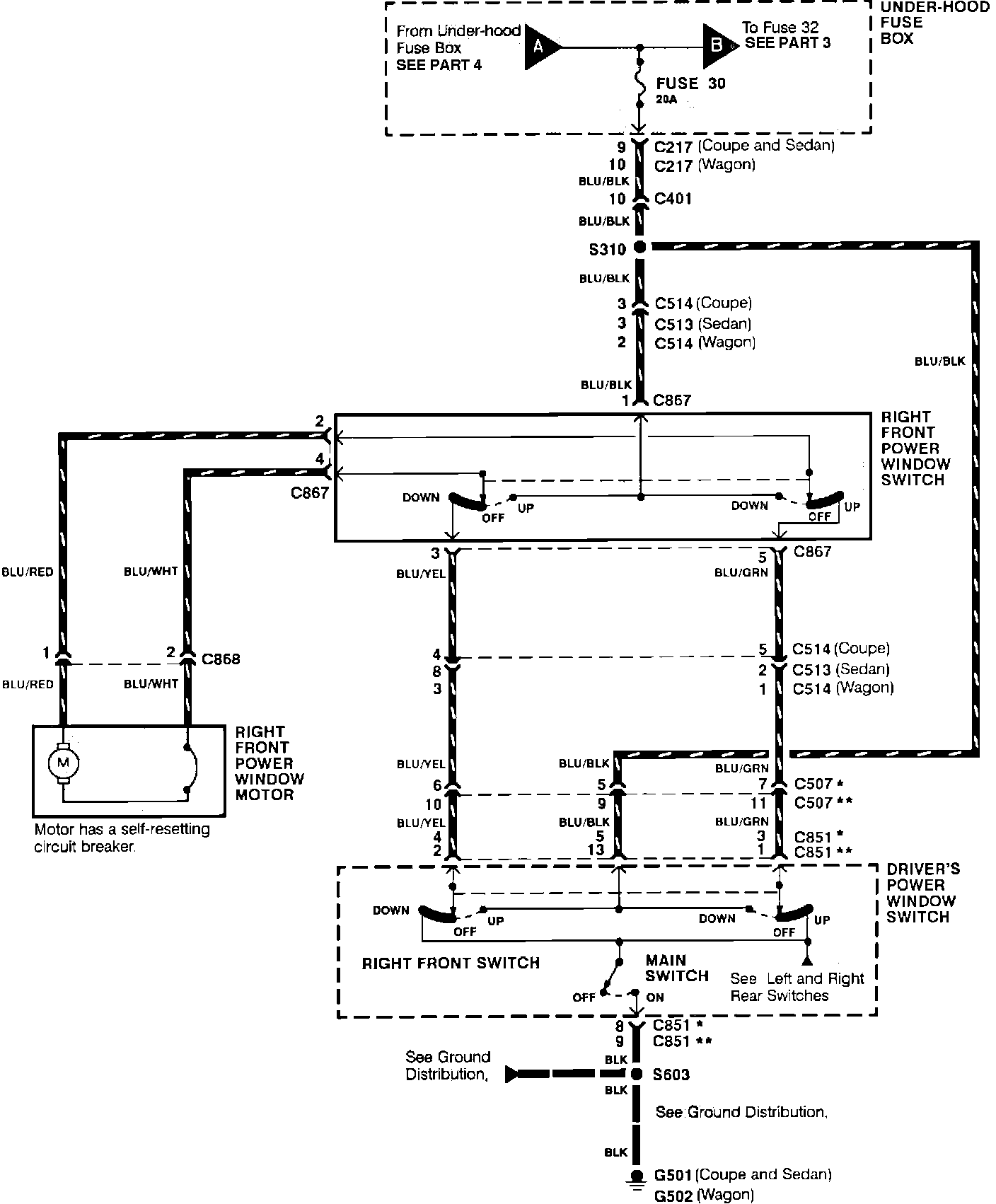

Power Windows (Driver's Door And Right Front Door):
Power Windows (Driver's Door And Right Front Door):

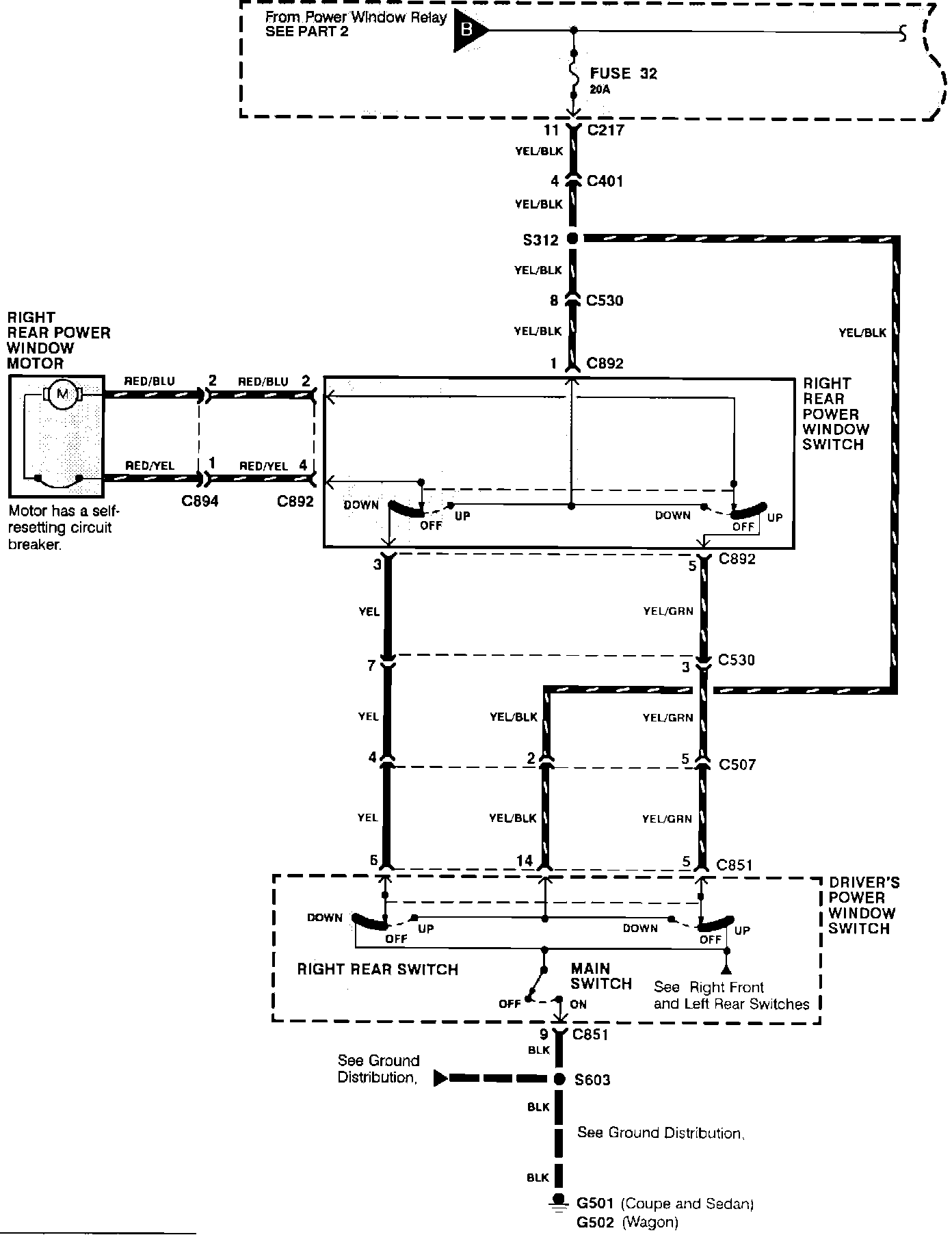

Power Windows. Rear Doors:
Power Windows. Rear Doors:
