CRX DX L4-1493cc 1.5L SOHC (D15B2) TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

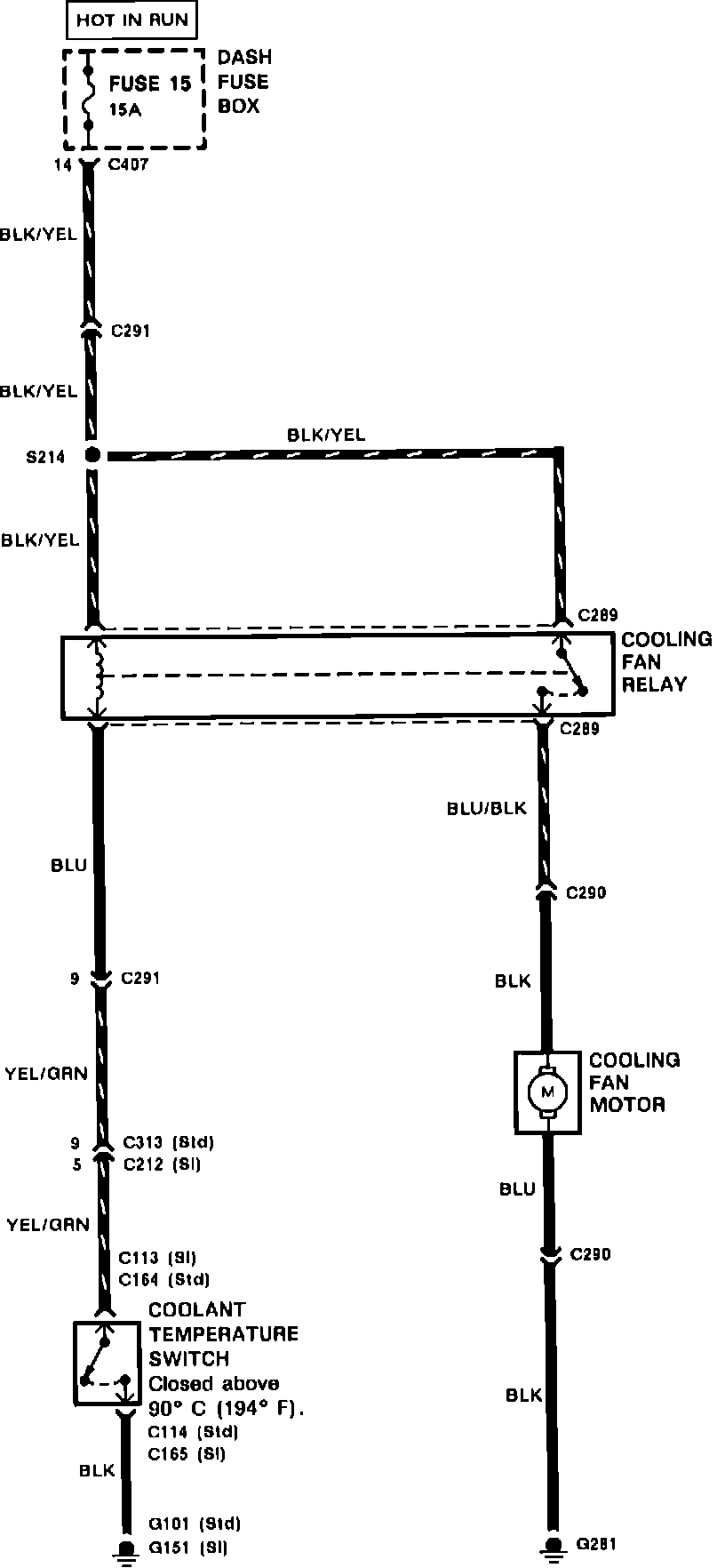

Radiator Cooling Fan Motor
>>
Without Air Conditioning
Without Air Conditioning
Cooling Fan USA:
Coolant Fan. Less A/C. Canadian Models:
