Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1991
>>
Civic Hatchback L4-1493cc 1.5L SOHC (D15B1) TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Harness Routing and Connector Locations
>>
Engine
Engine

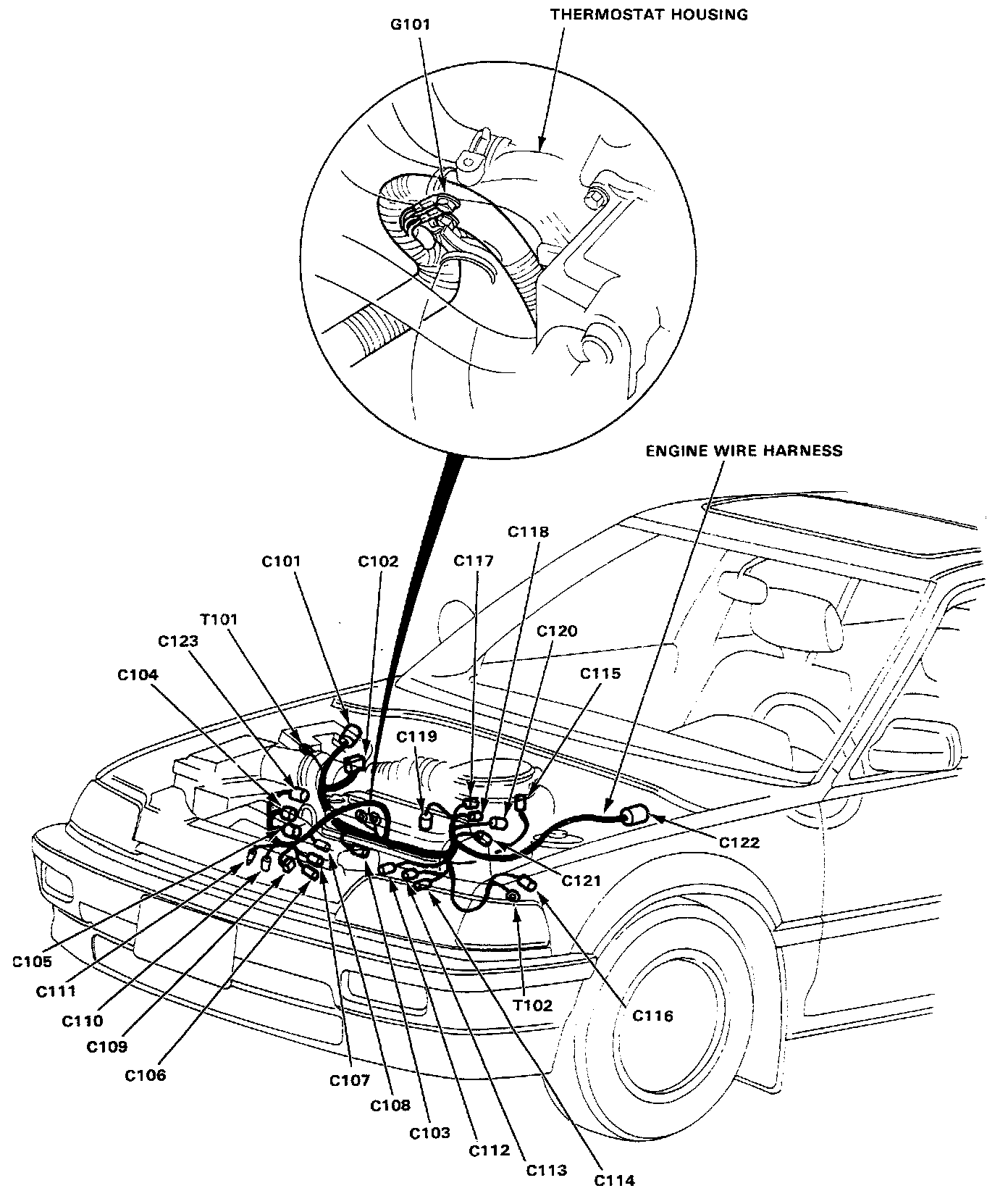

(Std, DX and LX Models)

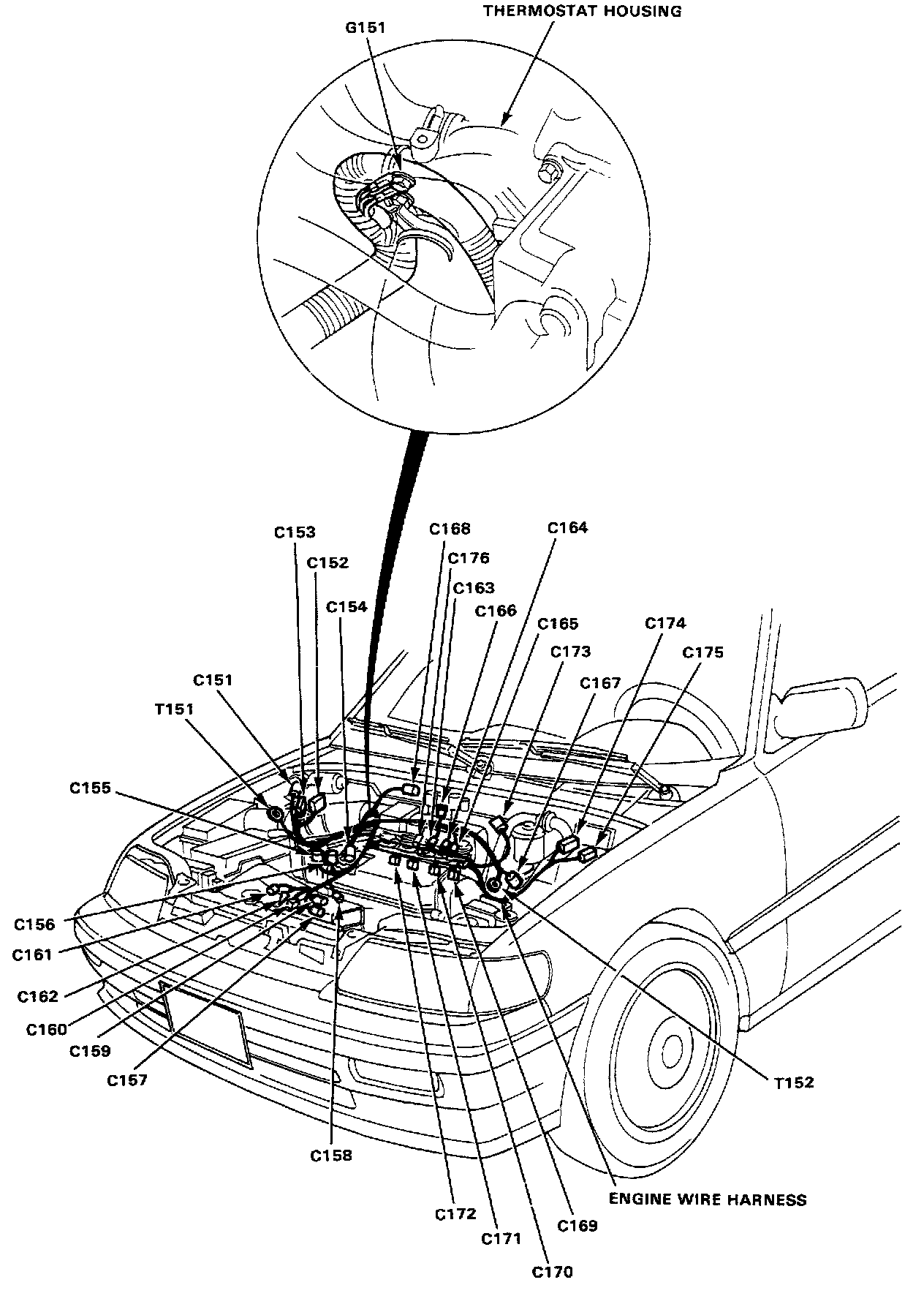

(Si Hatchback, Ex Sedan)
