Home >> Honda >> 1991 >> Civic Hatchback L4-1493cc 1.5L SOHC (D15B1) TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Dome Lamp >> USA

USA

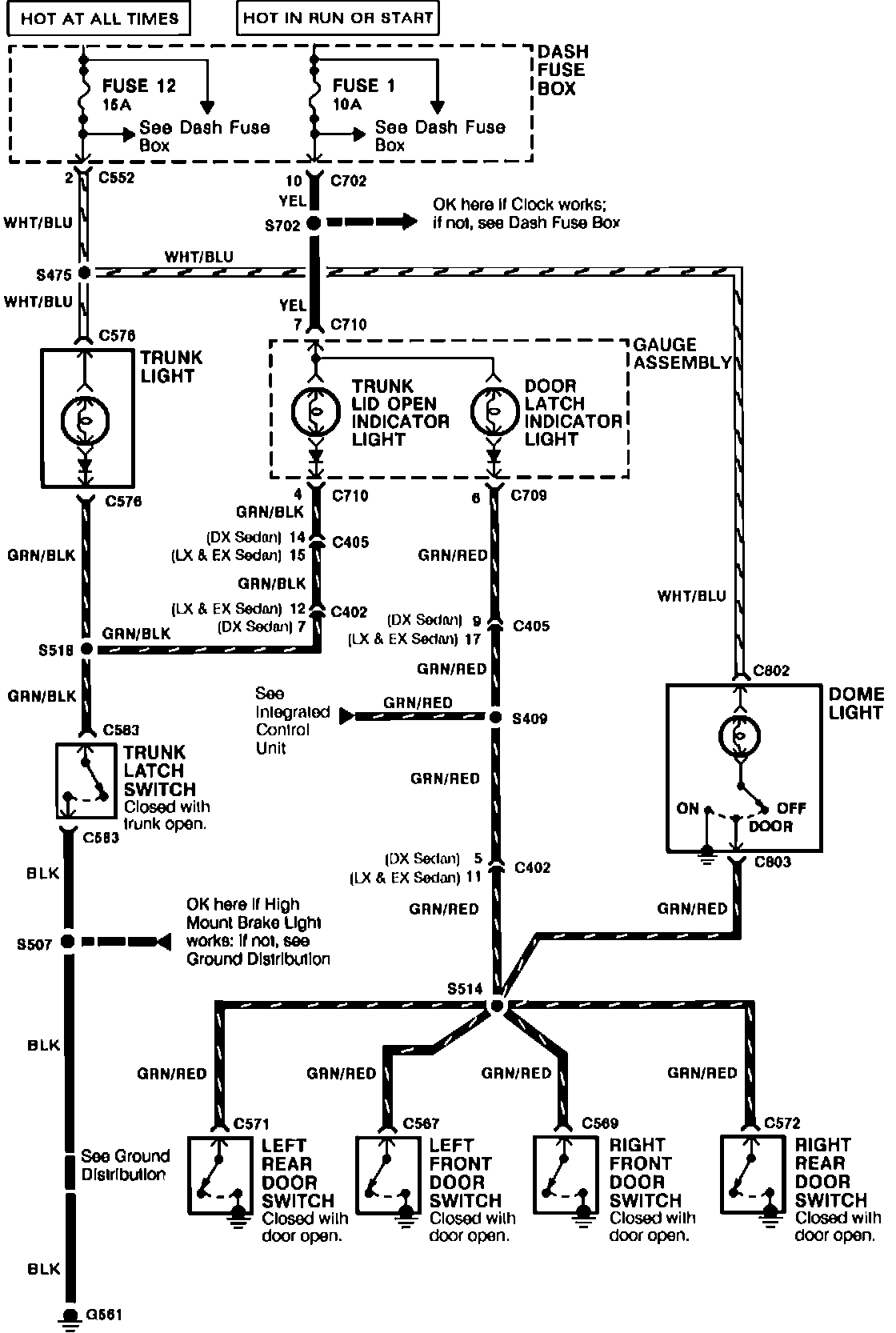

Dome And Trunk Lights. U.S. Models:
