Sanden Compressor Shaft Bearing Replacement
Sanden Compressor Shaft Bearing Replacement1. Remove armature plate, rotor pulley and field coil.
2. Remove front boss, seal plate and felt ring.

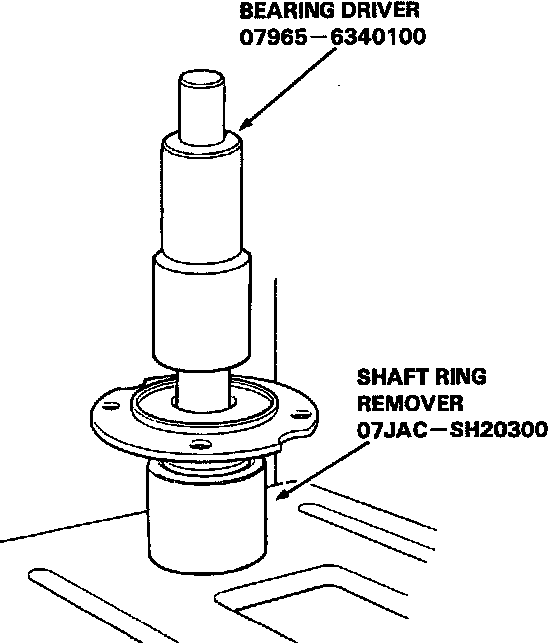

3. Set the front boss onto shaft ring remover.
4. Use Bearing Driver with a hydraulic press to remove the bearing.
5. Install the shaft seal, seal plate and felt ring.
6. Install the front boss onto compressor.
7. Install the bearing using the driver attachment and a hydraulic press. Center the tool on the bearing before pressing. Recheck tool centering as soon as the press first contacts the attachment
CAUTION: Maximum press load: 0.4 tons
8. Install the field coil, rotor pulley and armature plate.
