Home >> Honda >> 1991 >> Civic Sedan L4-1590cc 1.6L SOHC (D16A6) MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Wagon >> Fuse 10

Fuse 10

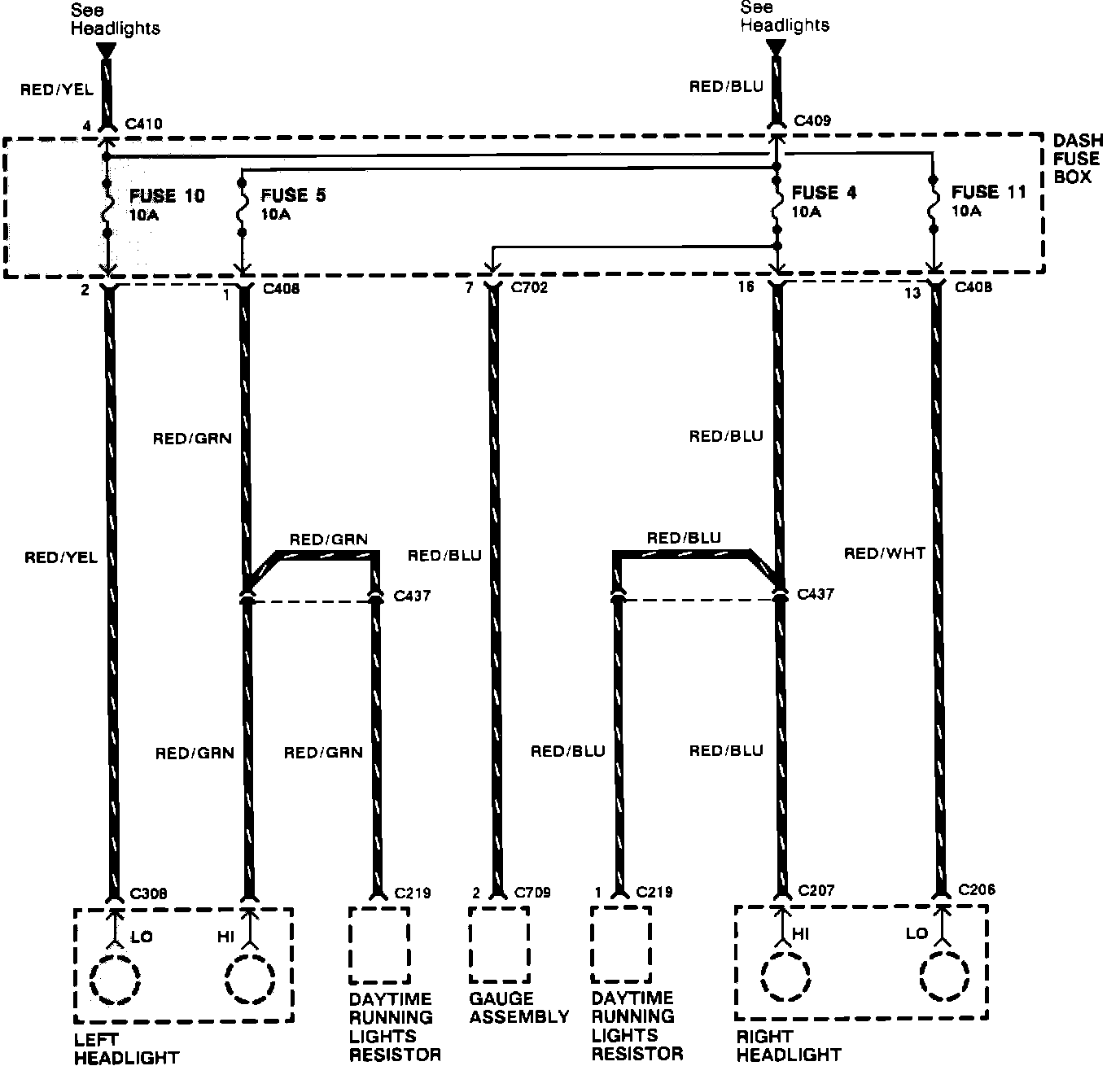

Dash Fuse Box. Fuse 4, 5, 10 & 11:
