Home >> Honda >> 1991 >> Civic Wagon 2WD L4-1493cc 1.5L SOHC (D15B2) TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Marker Lamp >> Front Marker (Parking)

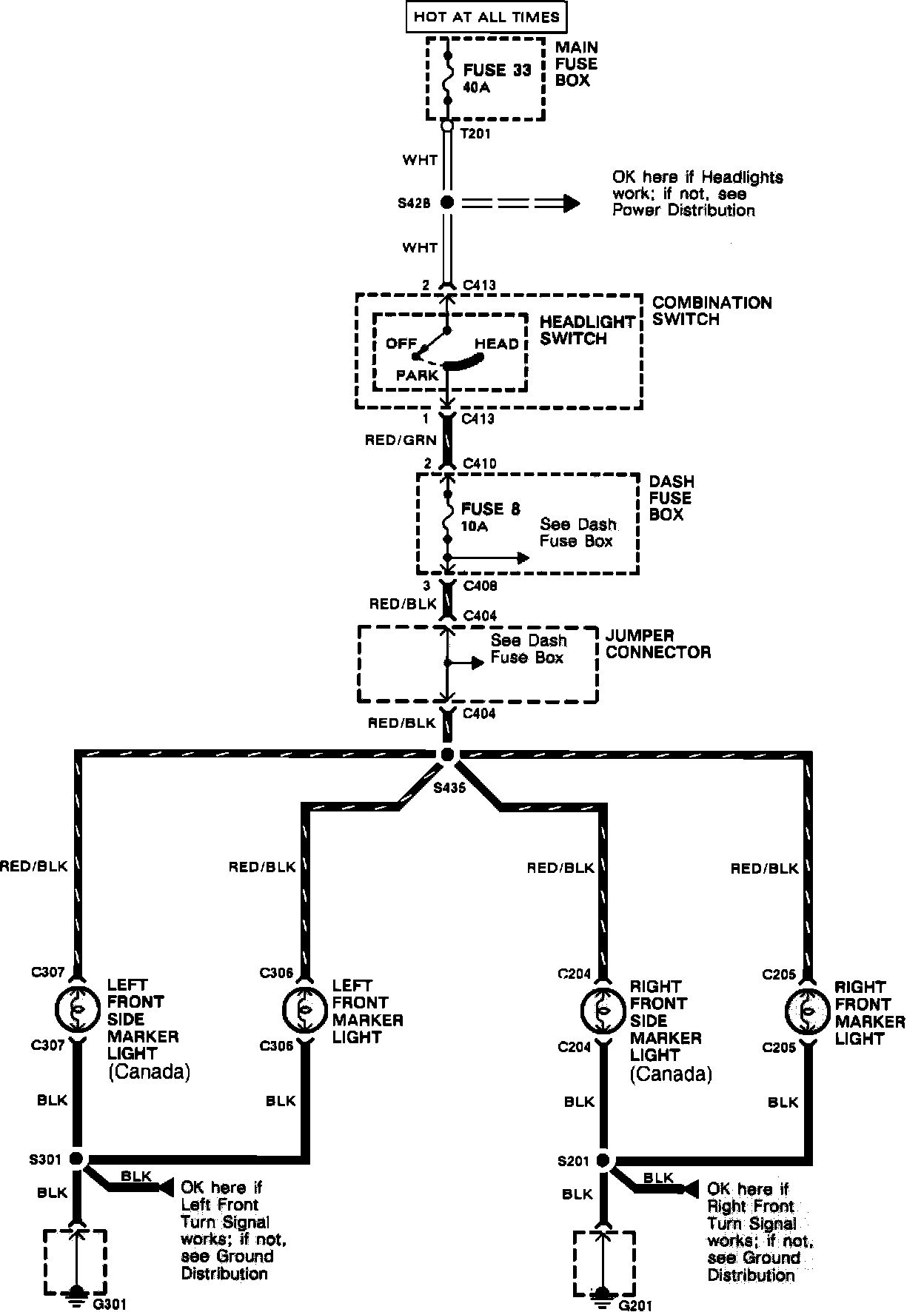

Front Marker (Parking)

Front Marker (parking) Lights & Front Side Marker Lights (Canada).:
